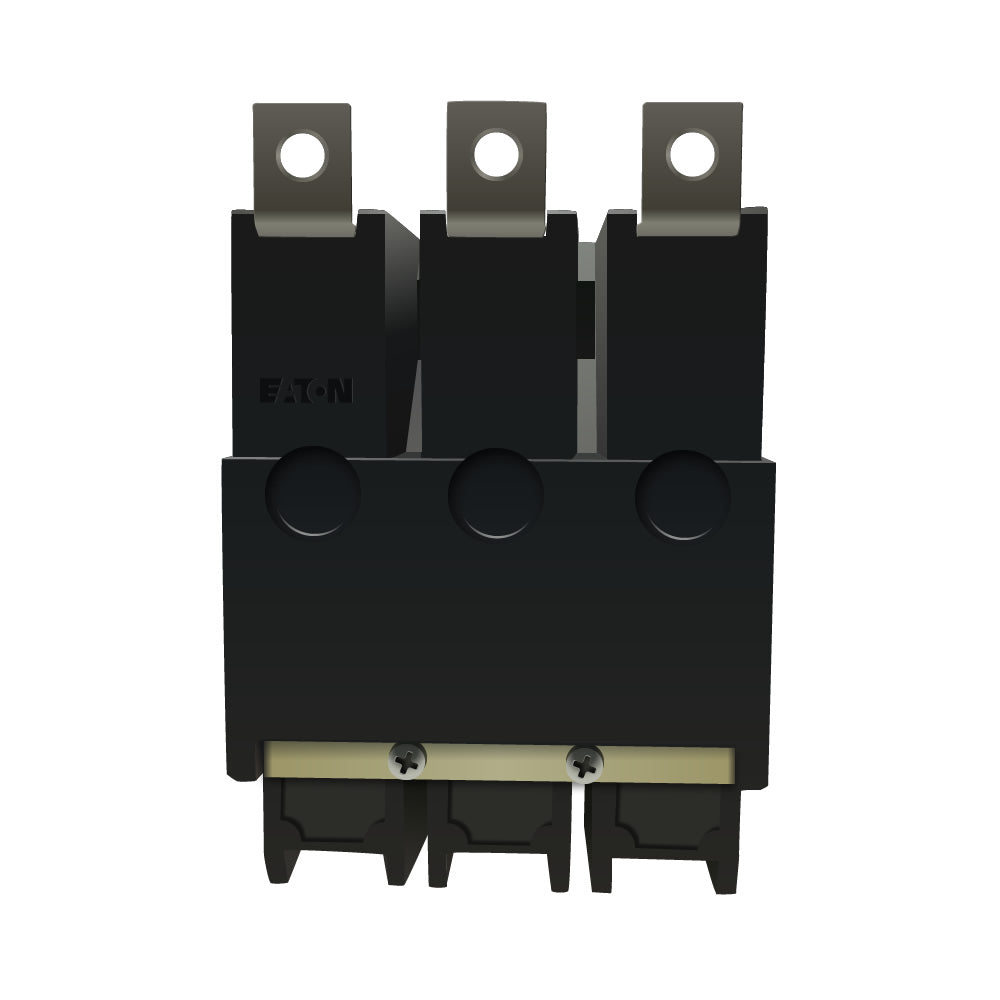

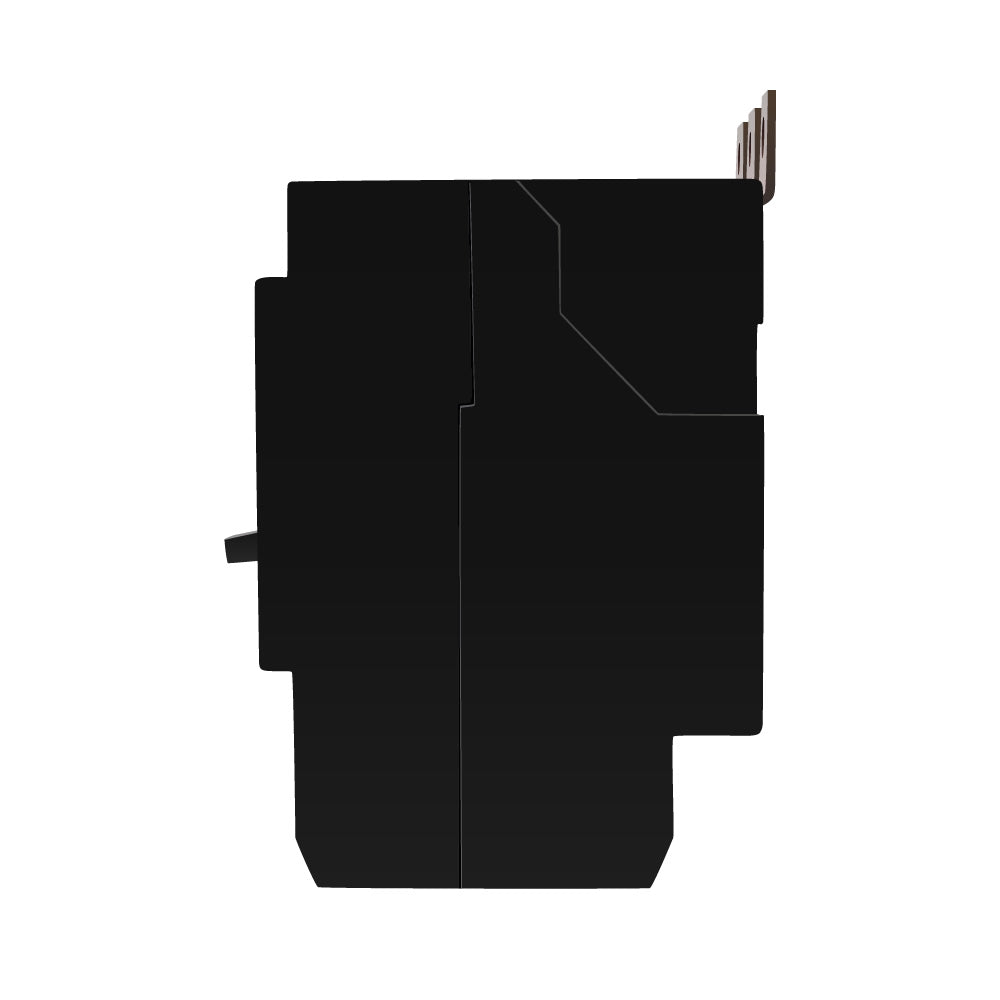

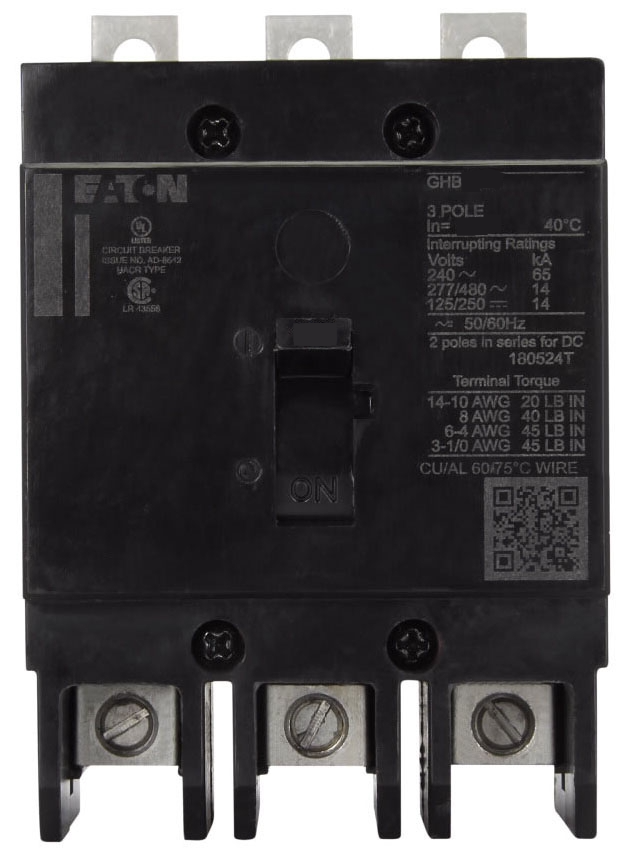

Eaton GHB3080 Circuit Breaker | 80A 3P 480V 14kA@480V Bolt-On GHB Series

Product Description:
The GHB3080 is an 80 amp, 3-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker features a thermal-magnetic trip unit for dependable overcurrent protection in commercial and industrial panelboards. It supports operation up to 480V and is UL listed with an interrupt rating of 14kA@480V for consistent, high-performance protection.

Key Features:
✔ Part Number: GHB3080
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 80
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ UPC: 786679762806
✔ GTIN: 00786679762806
✔ Country of Origin: Dominican Republic
✔ Standards: UL 489
✔ Certification: CSA Certified, UL Listed
✔ Wire Size: 10 to 1/0 AWG
