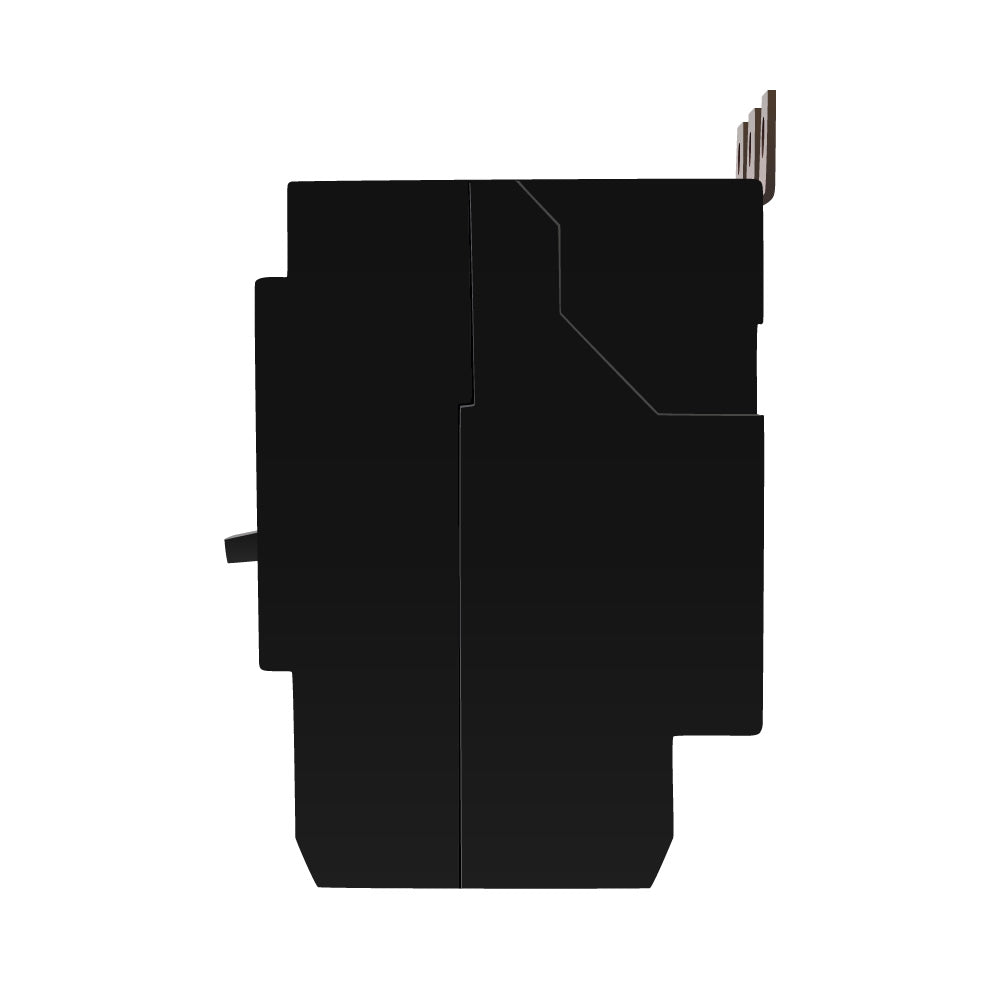

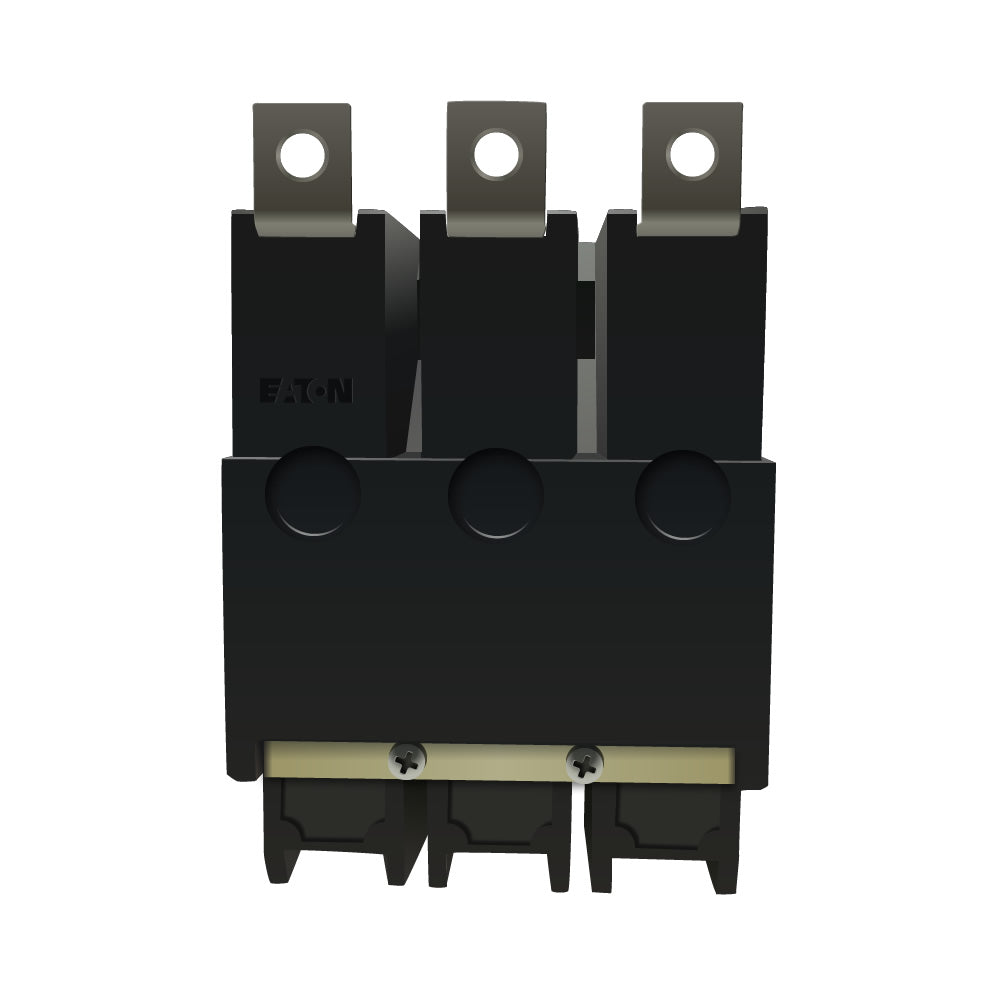

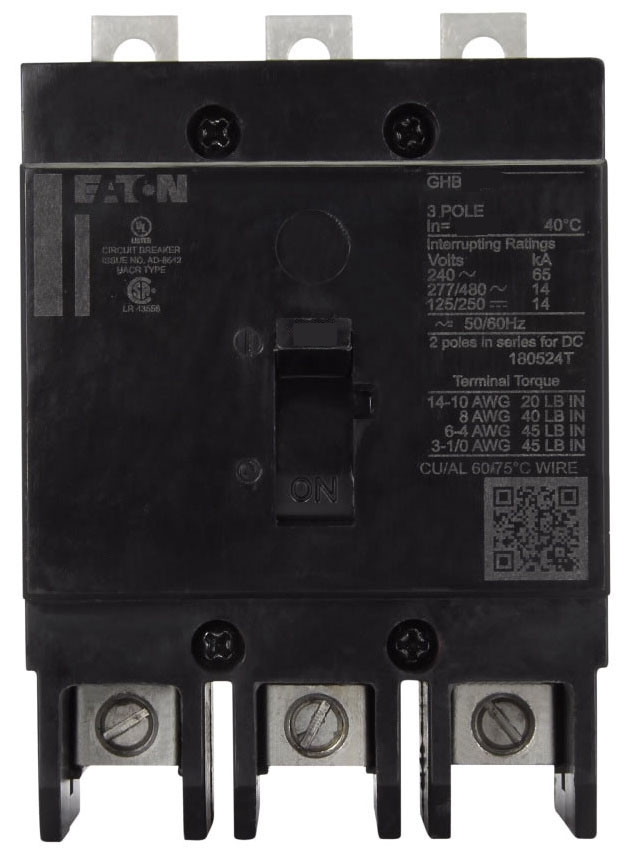

Eaton GHB3090 Circuit Breaker | 90A 3P 480V 14kA@480V Bolt-On GHB

Product Description:
The GHB3090 is a 90 amp, 3-pole molded case circuit breaker from Eaton Cutler-Hammer, designed for reliable protection of branch and feeder circuits. It features a bolt-on connection for secure mounting in commercial and industrial panelboards. This thermal-magnetic trip unit breaker operates up to 480V with an interrupt rating of 14kA for consistent, high-performance protection.

Key Features:
✔ Part Number: GHB3090
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ UPC: 786679911327
✔ GTIN: 00786679911327
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 2.63in Height 4in Width 3in
✔ Weight: 1.75
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: UL 489
✔ Certification: UL Listed
✔ Wire Size: 10 to 1/0 AWG
