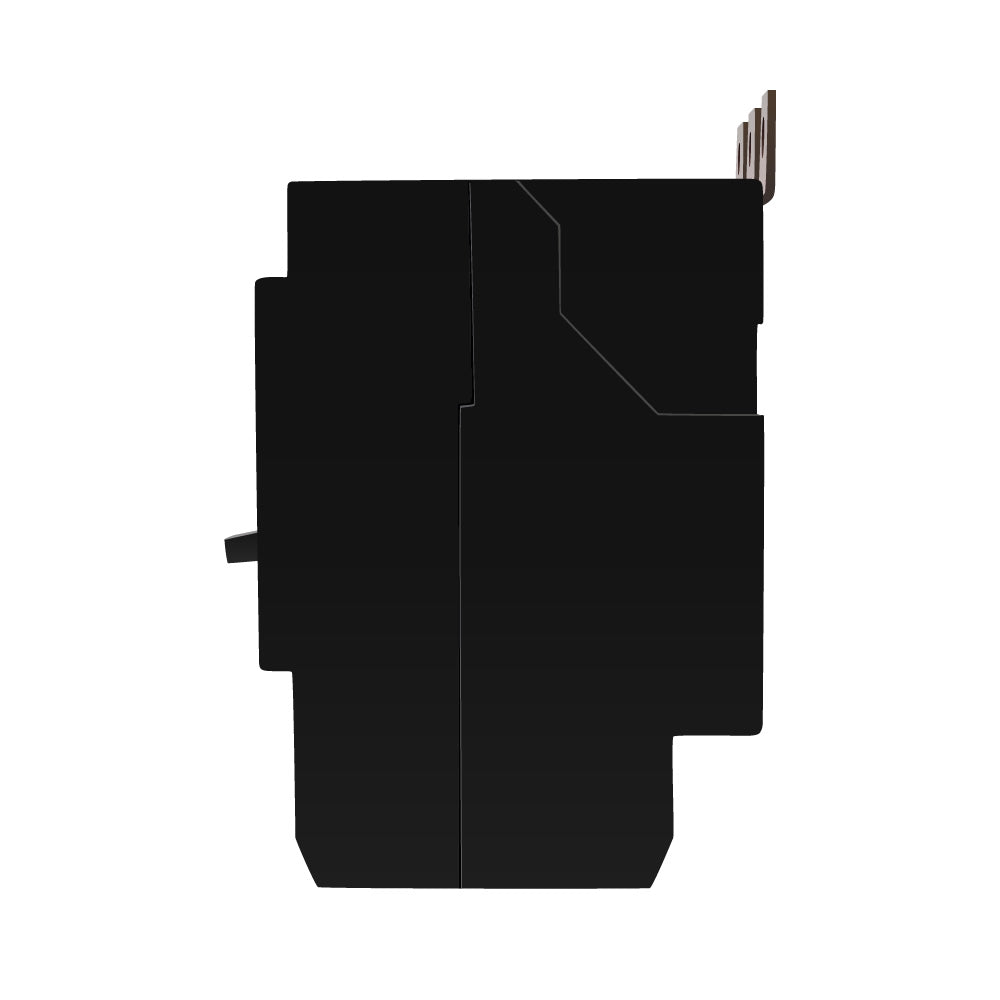

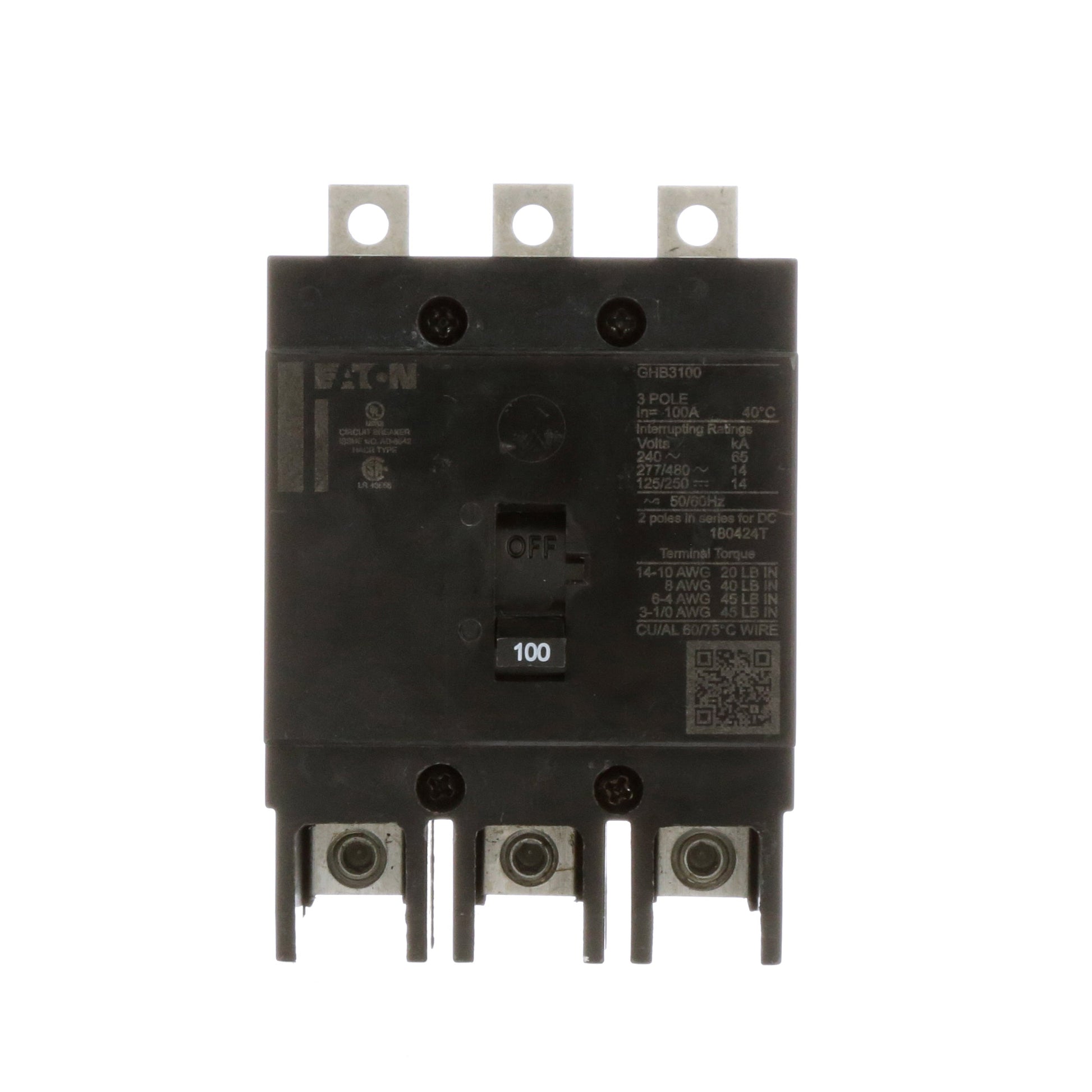

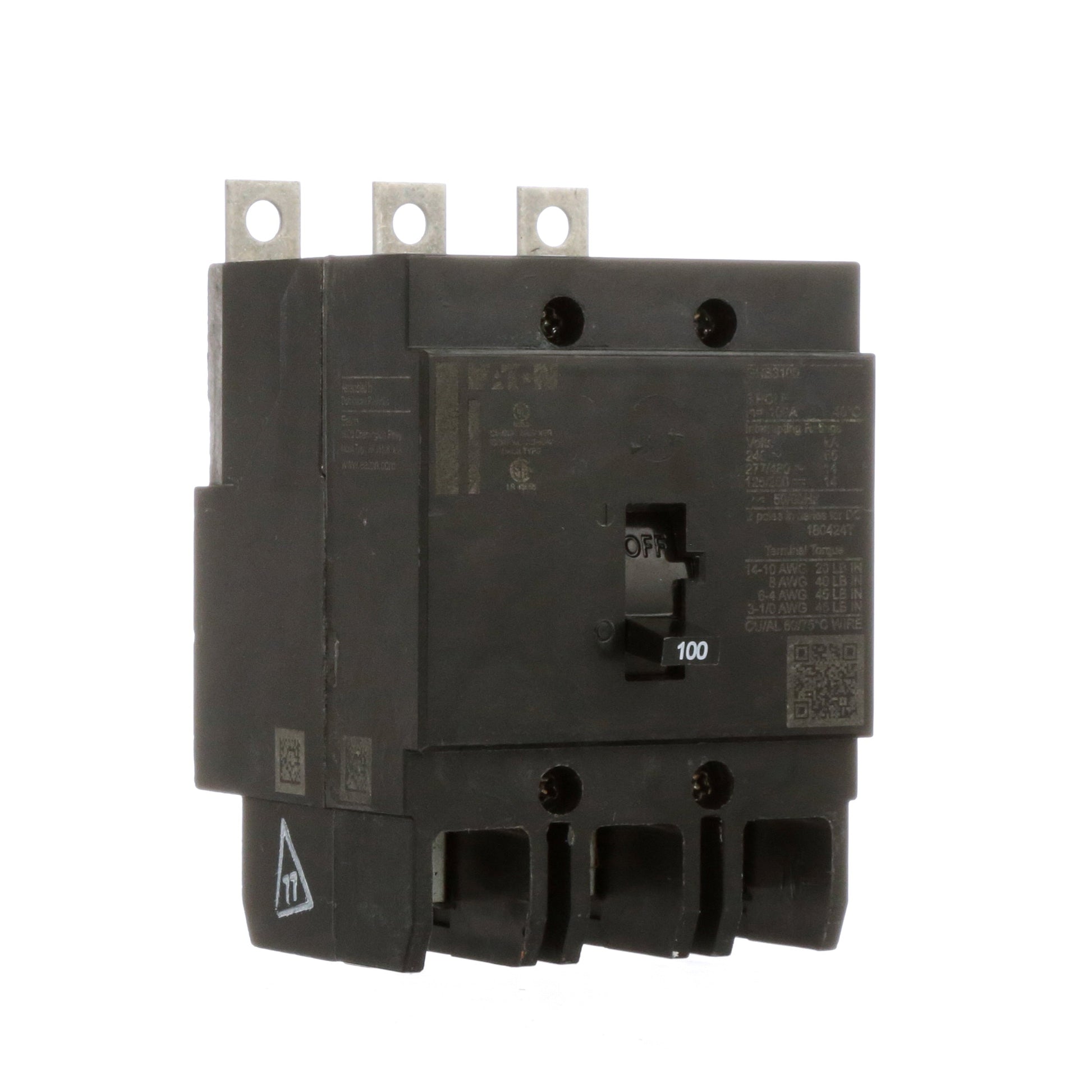

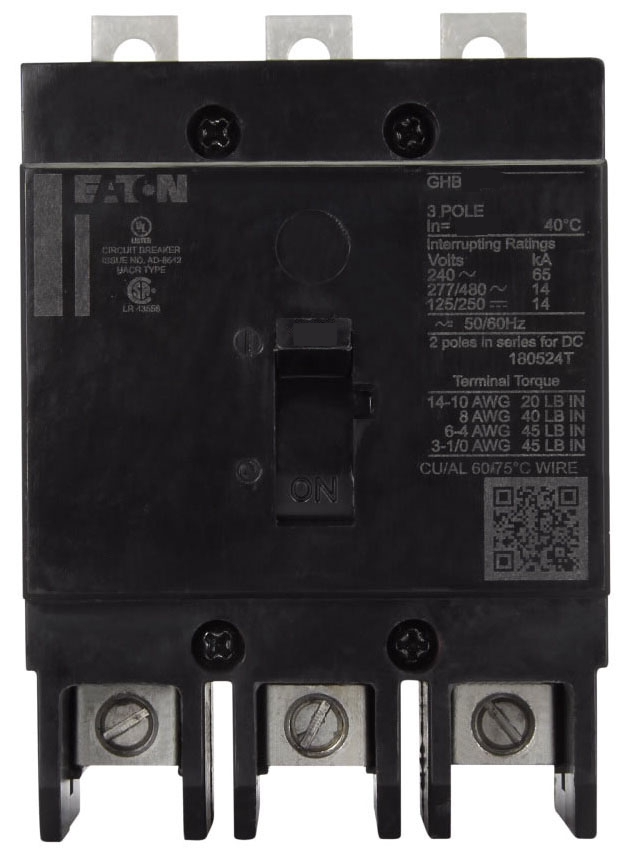

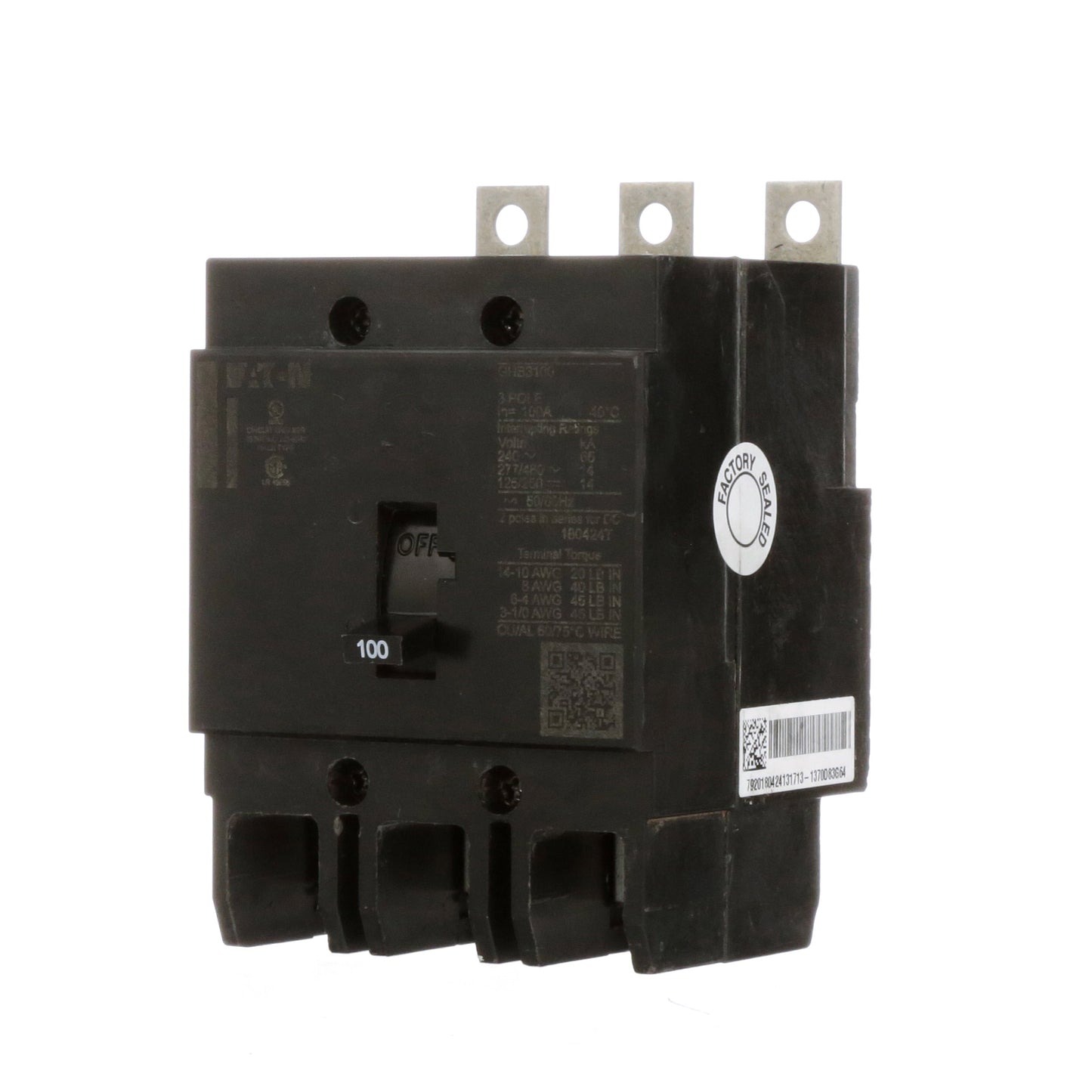

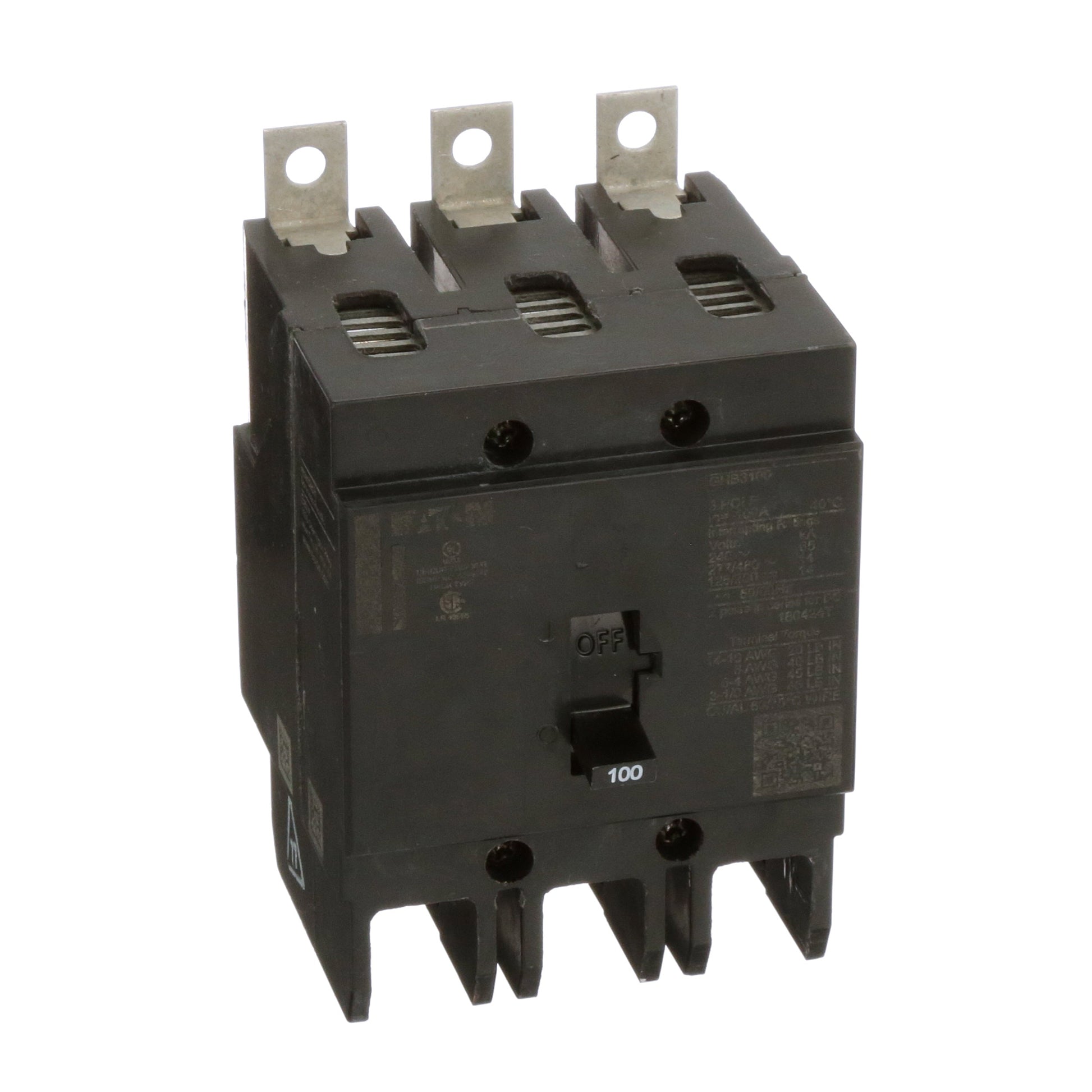

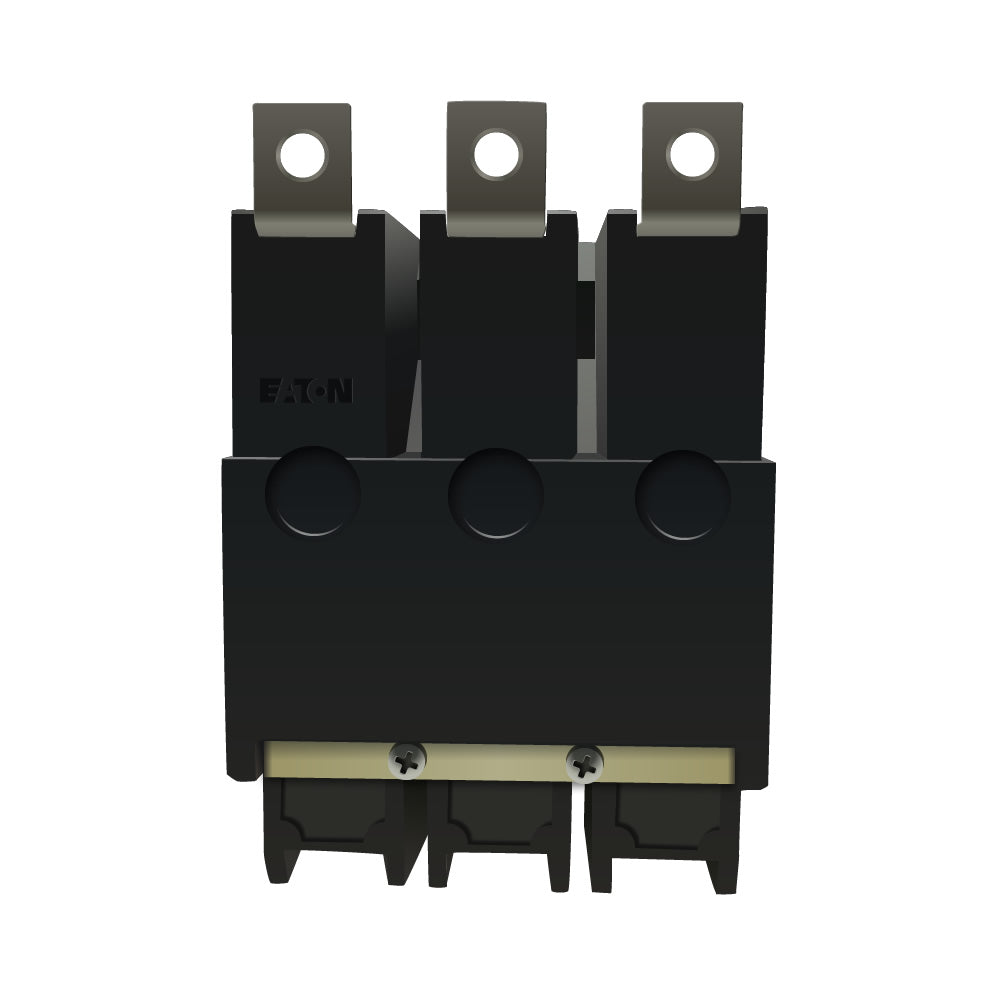

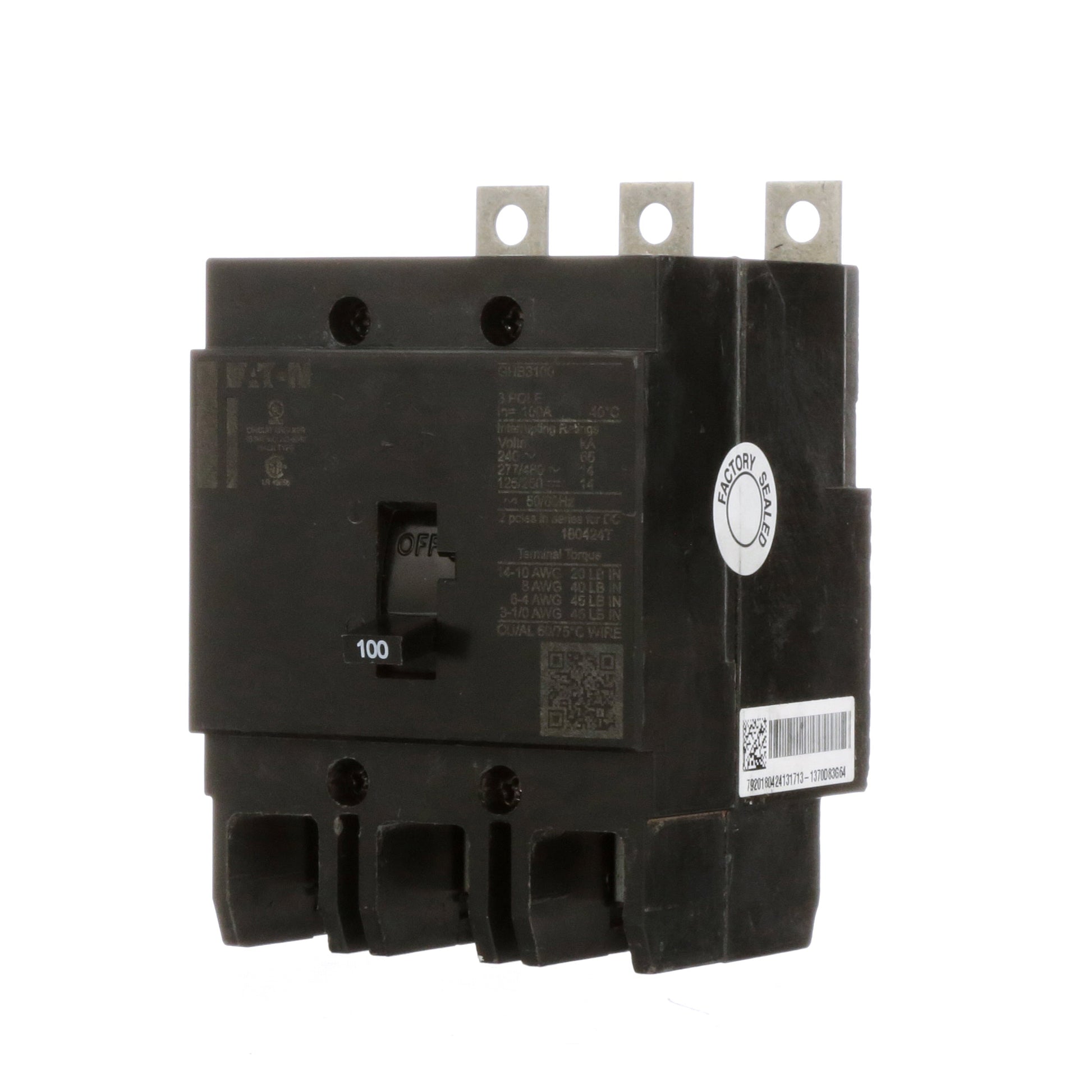

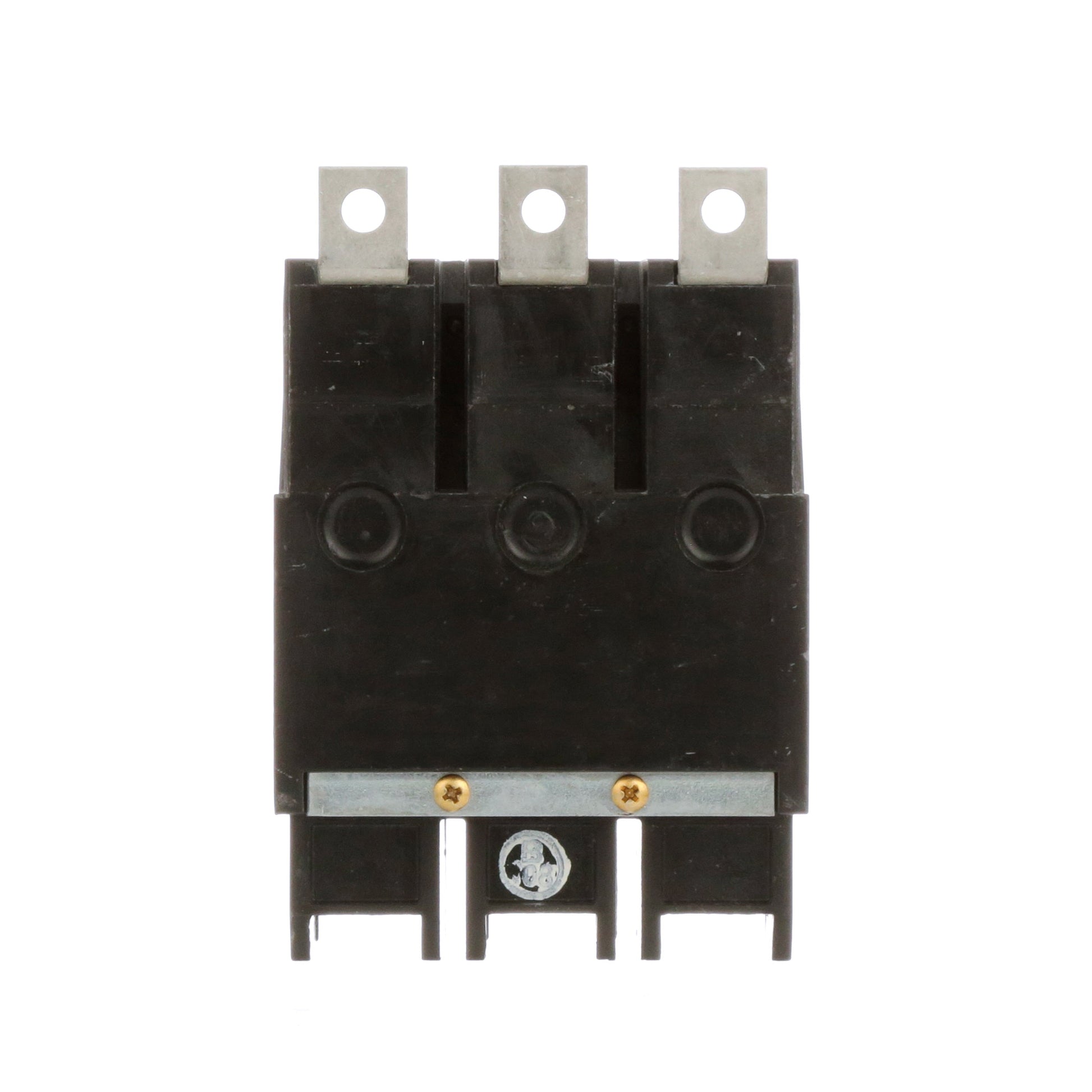

Eaton GHB3100 Circuit Breaker | 100A 3P 480V 14kA@480V Bolt-On GHB

Product Description:
The GHB3100 is a 100 amp, 3-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker provides dependable overcurrent protection for commercial and industrial panelboards. It features a thermal-magnetic trip unit and supports operation up to 480V with an interrupt rating of 14kA.

Key Features:
✔ Part Number: GHB3100
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ UPC: 786679911334
✔ GTIN: 00786679911334
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3 in x 4 in x 4 in
✔ Weight: 1.8 lb
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: UL 489
✔ Certification: CSA Certified, UL Listed
✔ Wire Size: 10 to 1/0 AWG
