Product Description:

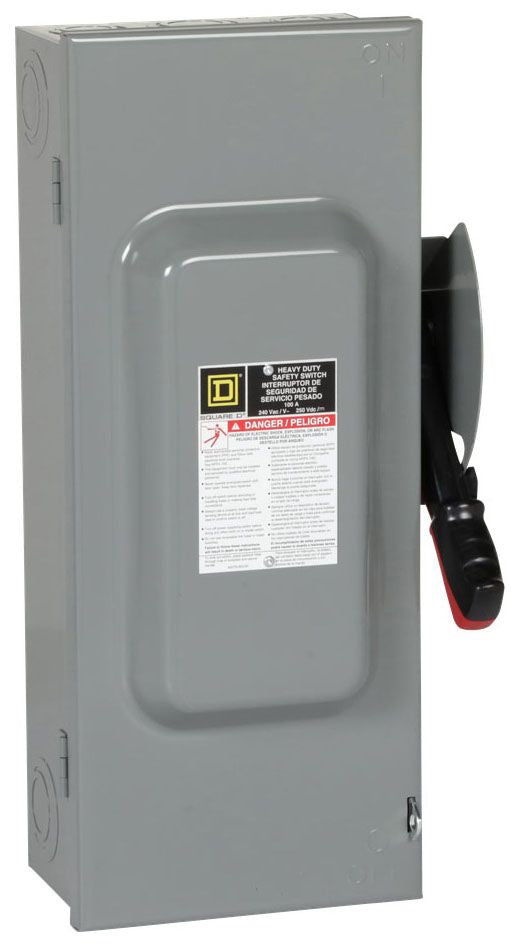

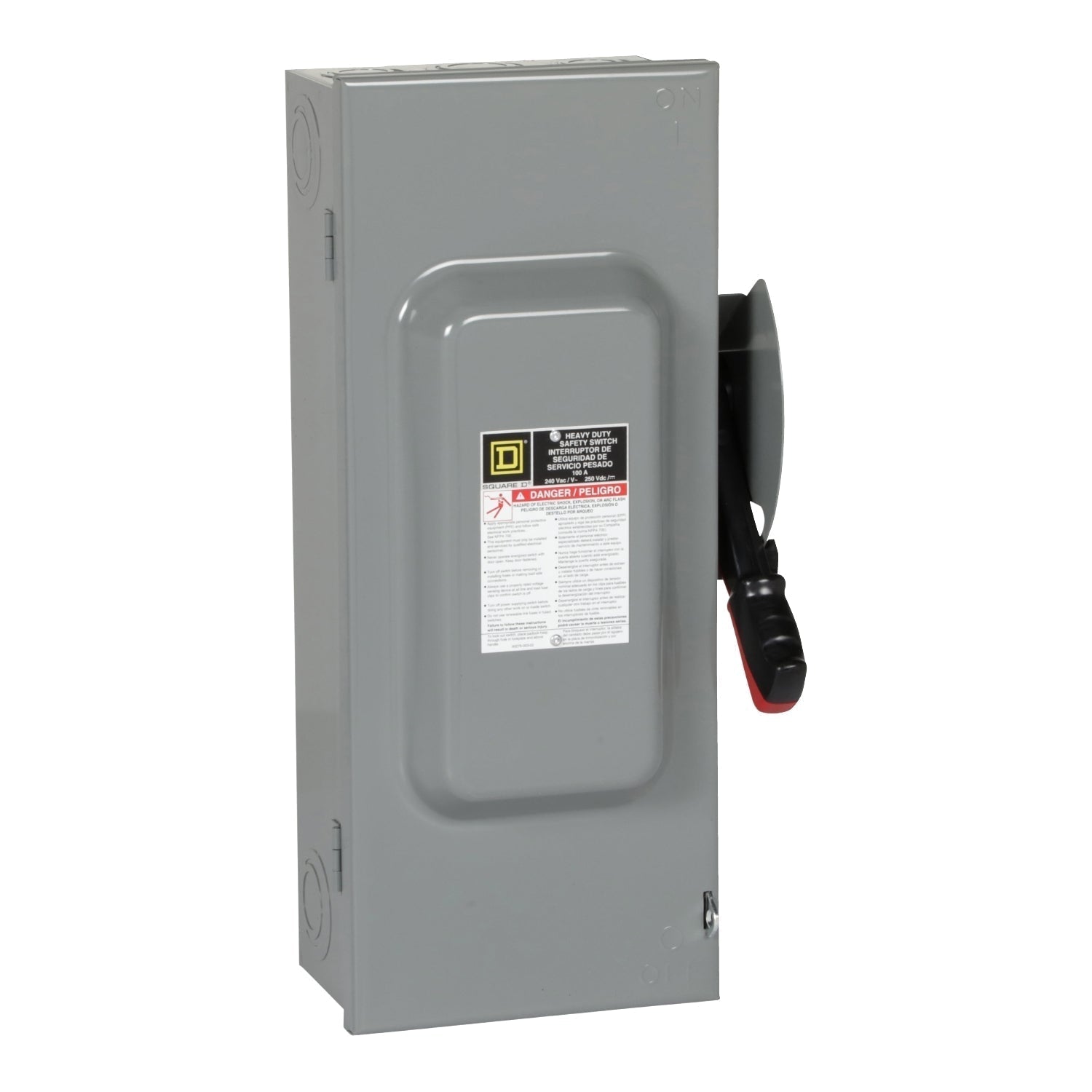

The Square D H223N is a 1-phase, 2-pole disconnect switch rated for 240V and 100A. It features a NEMA 1 enclosure and a high AIC rating of 200kA@240V. This fusible switch is part of the Series F family and is compatible with FAP frames.
Key Features:
✔ Part Number: H223N
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 200kA@240V
✔ Fuse Class: R
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 1
✔ Compatible Frames: FAP
✔ UPC: 785901477877
✔ GTIN: 00785901477877
✔ Dimensions: Depth 6.38 in (162.05 mm) Width 8.5 in (215.90 mm) Height 21.25 in (539.75 mm)
✔ Weight: 7.81
✔ Certification: UL Listed
