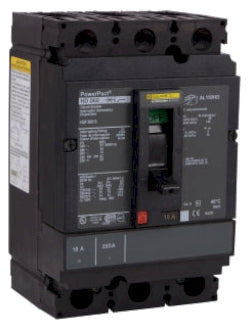

Square D HDF36015 Circuit Breaker | 600V 15A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D HDF36015 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 15 amp breaker with an 18kA@480V AIC rating and uses a Bolt-On connection. This circuit breaker provides Thermal Magnetic protection for reliable operation. It does not include lugs, which must be sourced separately based on wiring specifications.

Key Features:
✔ Part Number: HDF36015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901380115
✔ GTIN: 00785901380115
✔ Country of Origin: United States
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.88
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
