Square D
Square D HDF36025 Circuit Breaker | 600V 25A 3P 18kA@480V Bolt-On Powerpact
Square D HDF36025 Circuit Breaker | 600V 25A 3P 18kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$656.74 USD
Regular price
$0.00 USD
Sale price
$656.74 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:

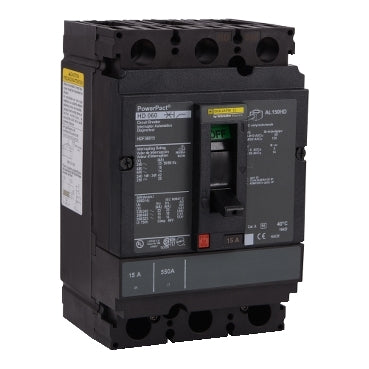

The Square D HDF36025 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 25A rating and an 18kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. Lugs are not included with this unit.
Key Features:
✔ Part Number: HDF36025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
The Square D HDF36025 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 25A rating and an 18kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. Lugs are not included with this unit.
Key Features:
✔ Part Number: HDF36025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
