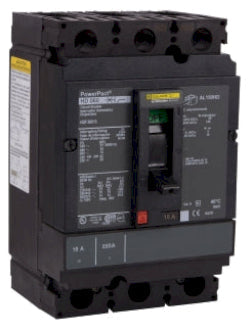

Square D HDF36020 Circuit Breaker | 600V 20A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D HDF36020 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and 20A amperage with an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection. It does not include lugs, which can be ordered separately.

Key Features:
✔ Part Number: HDF36020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901675624
✔ GTIN: 00785901675624
✔ Country of Origin: United States
✔ Dimensions: Depth 3.39 in (86 mm) Width 4.09 in (104 mm) Height 6.42 in (163 mm)
✔ Weight: 1.88
