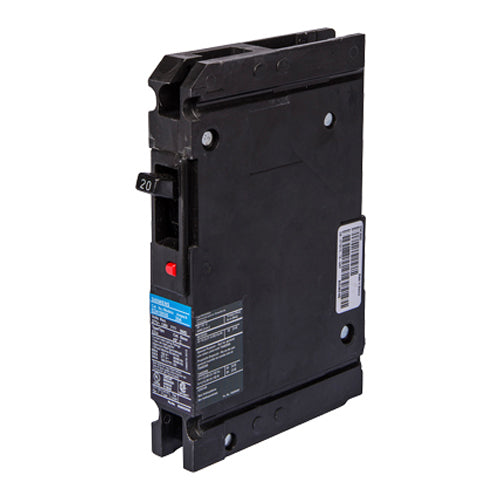

Siemens HED41B070 Circuit Breaker | 277V 70A 1P 25kA@277V Lug In Panelboard Sentron Series

Product Description:
The Siemens HED41B070 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 1-pole design with a 277V voltage rating and 70A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 25kA@277V. It is compatible with SB Switchboards and Sentron Panelboards.

Key Features:
✔ Part Number: HED41B070
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: HED
✔ Voltage: 277
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 25kA@277V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 4 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643209909
✔ GTIN: 00783643209909
✔ Country of Origin: Mexico
✔ Weight: 3
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: IEC 60947-2, UL 489
