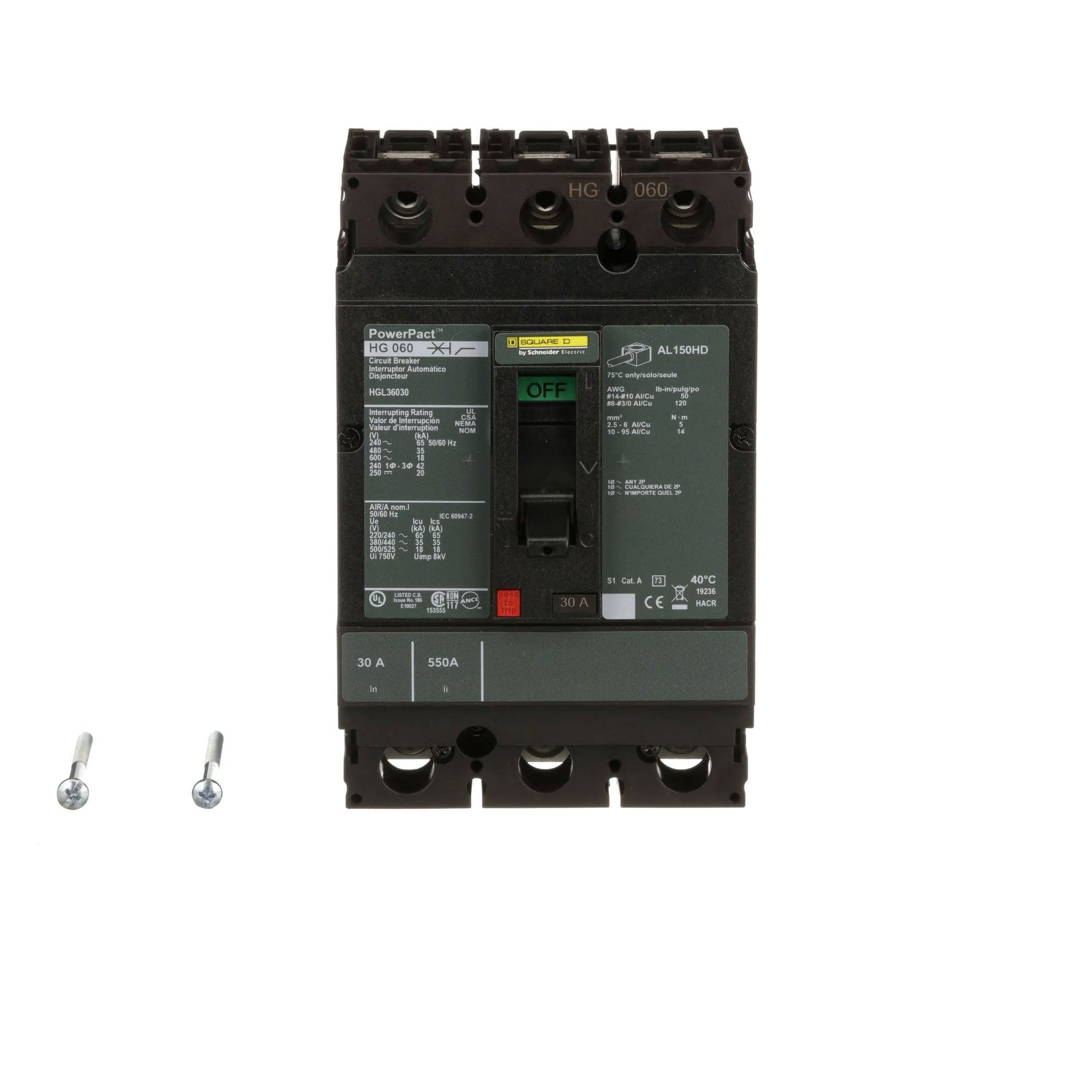

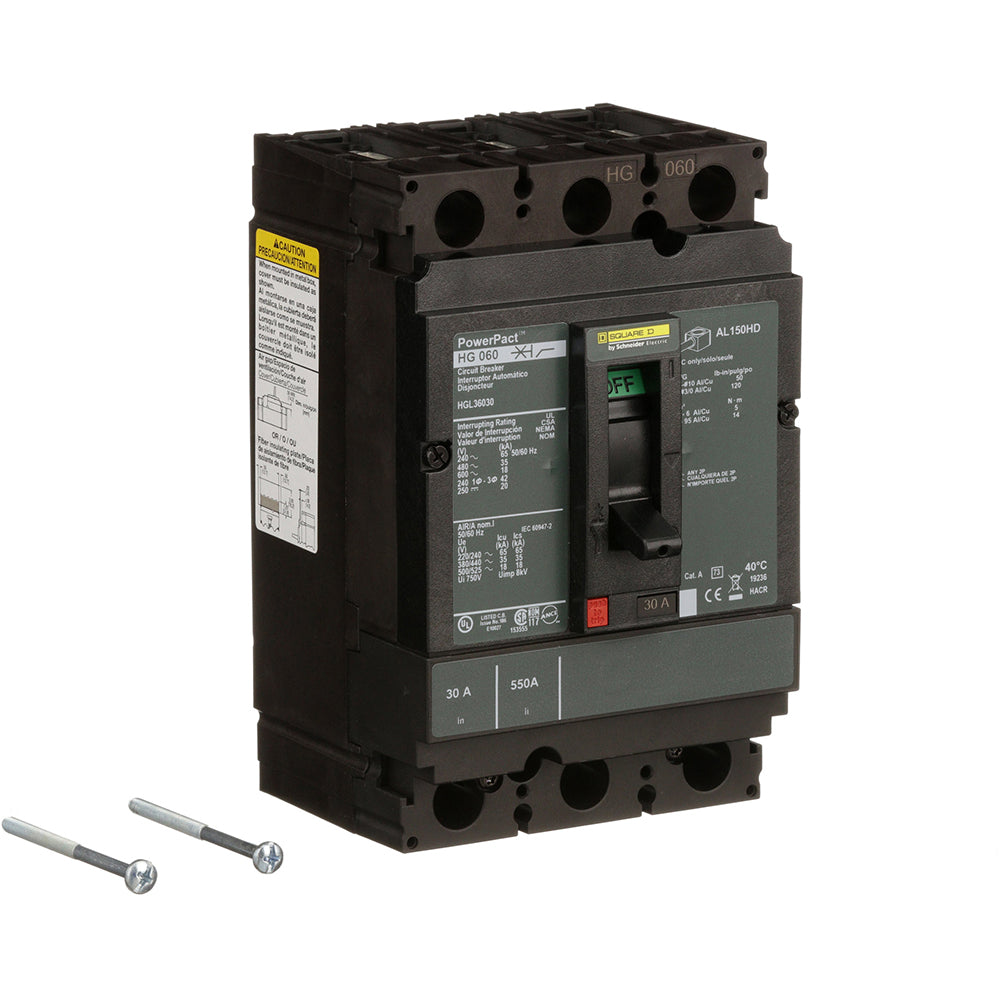

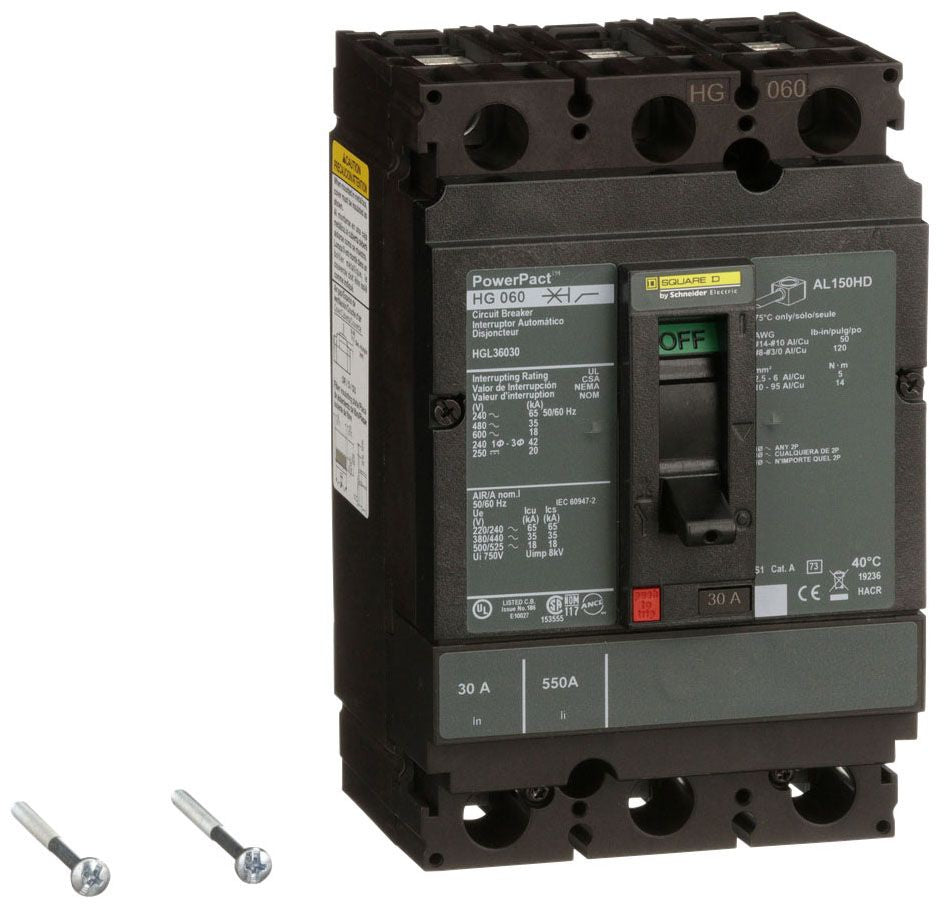

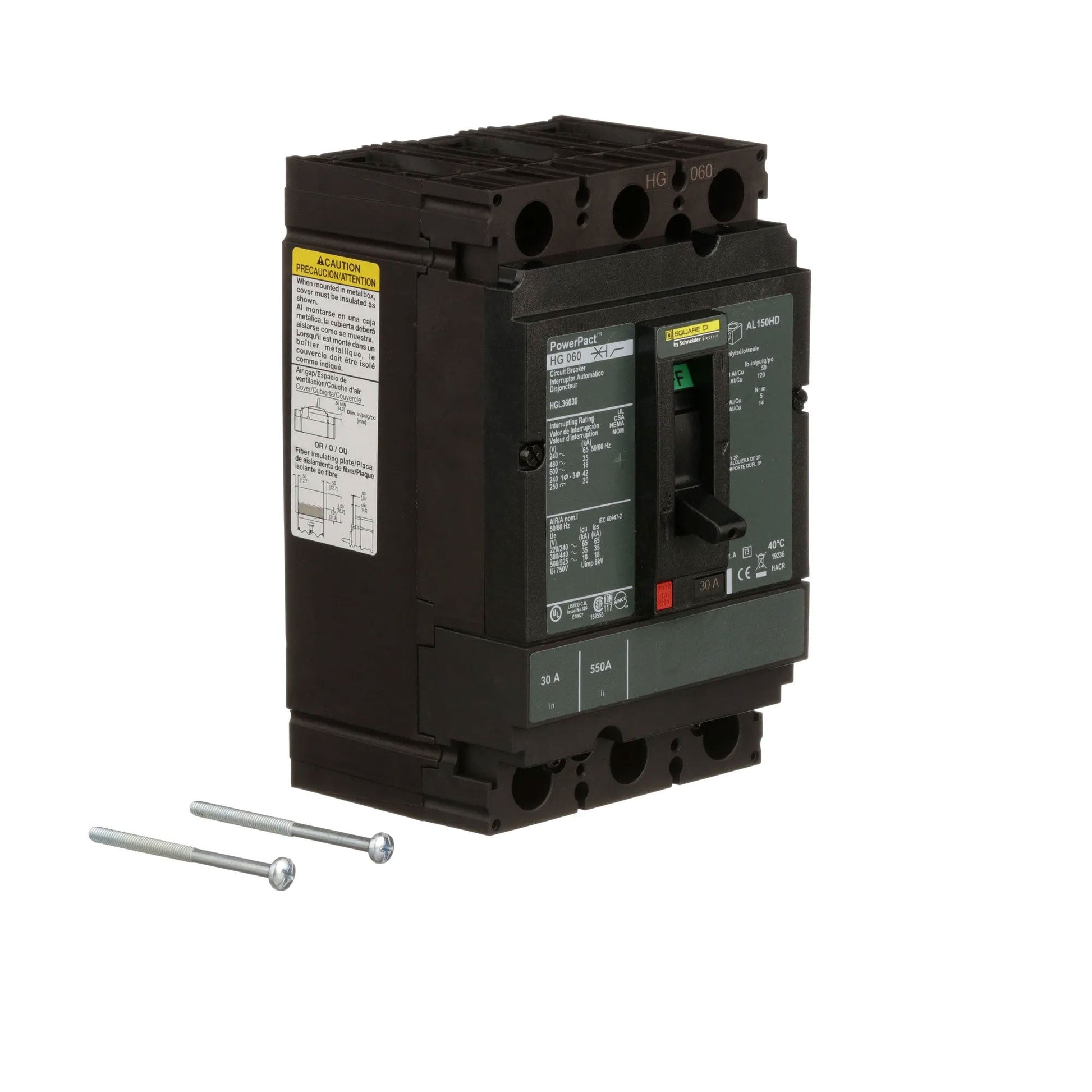

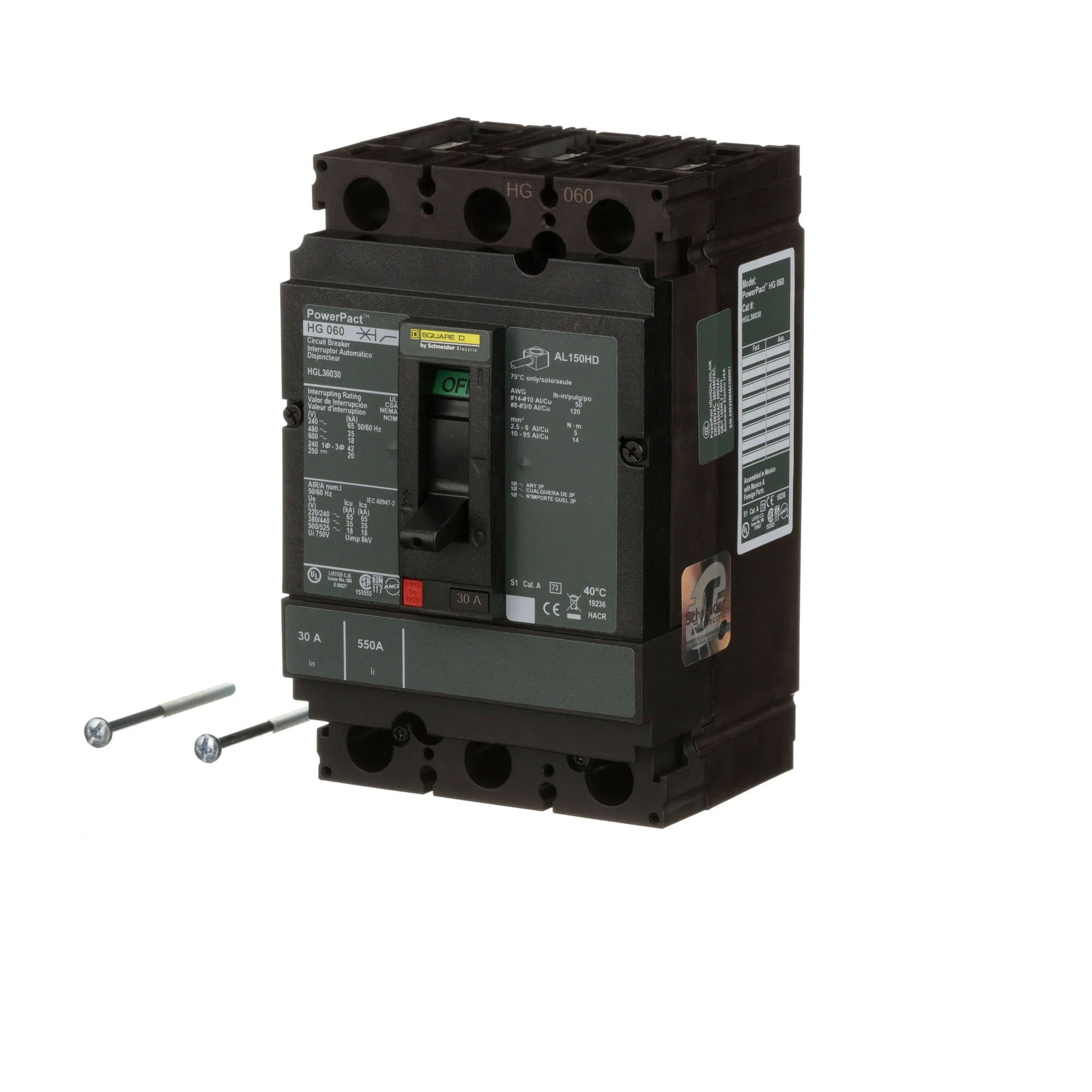

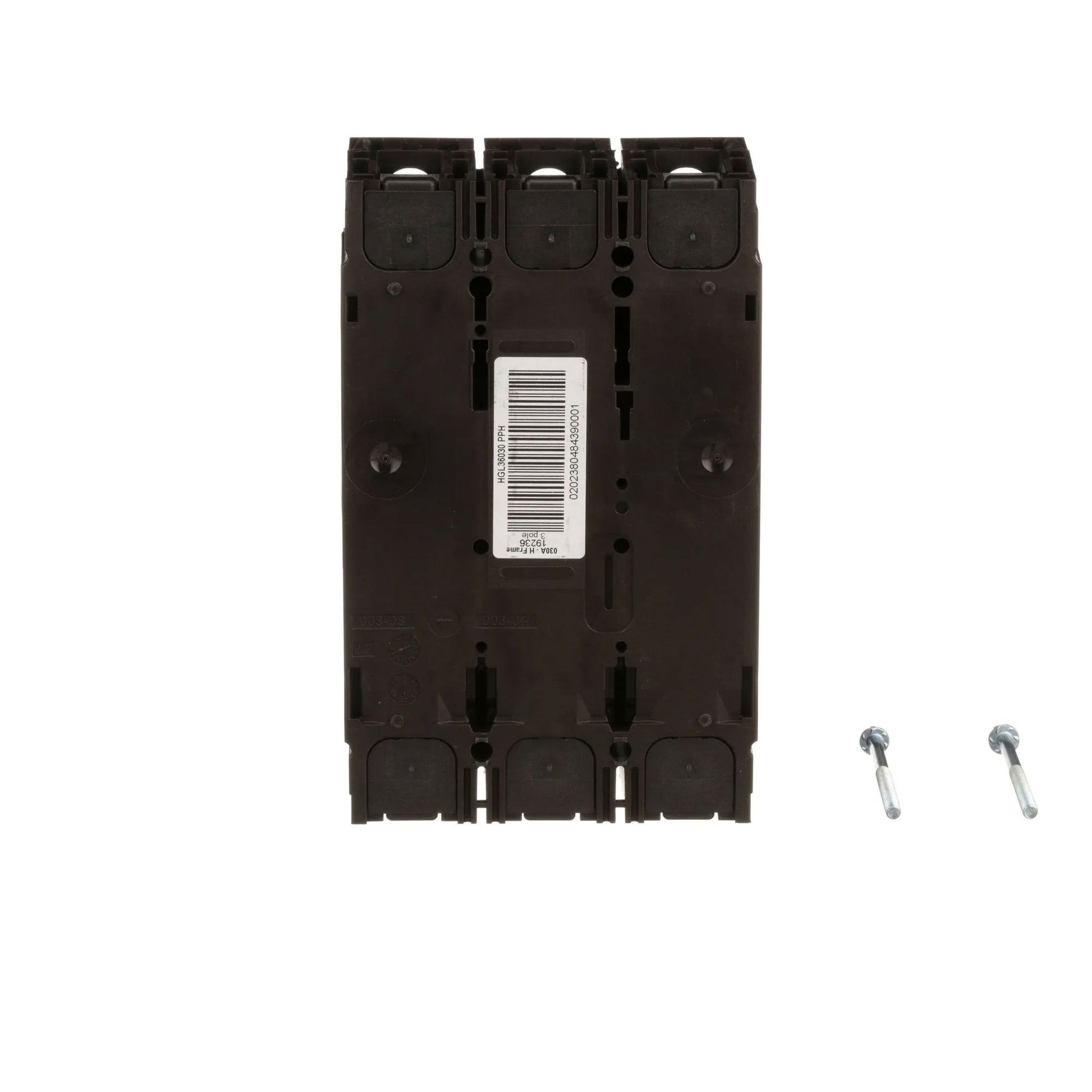

Square D HGL36030 Circuit Breaker | Powerpact HGL 600V 30A
Square D HGL36030 Circuit Breaker | Powerpact HGL 600V 30A
Price:
Sale
Sold out
Regular price
$537.94 USD
Regular price
$1,493.00 USD
Sale price
$537.94 USD
Unit price
per
Shipping calculated at checkout.
Stock:
95 in stock
Couldn't load pickup availability
Product Description:
The Square D HGL36030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 30A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HGL36030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ Wire Size: 14 AWG to 3 AWG
✔ Certification: CE, CSA, IEC, UL listed
✔ UPC: 785901598725
✔ GTIN: 00785901598725
✔ Country of Origin: Mexico
The Square D HGL36030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 30A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HGL36030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ Wire Size: 14 AWG to 3 AWG
✔ Certification: CE, CSA, IEC, UL listed
✔ UPC: 785901598725
✔ GTIN: 00785901598725
✔ Country of Origin: Mexico
