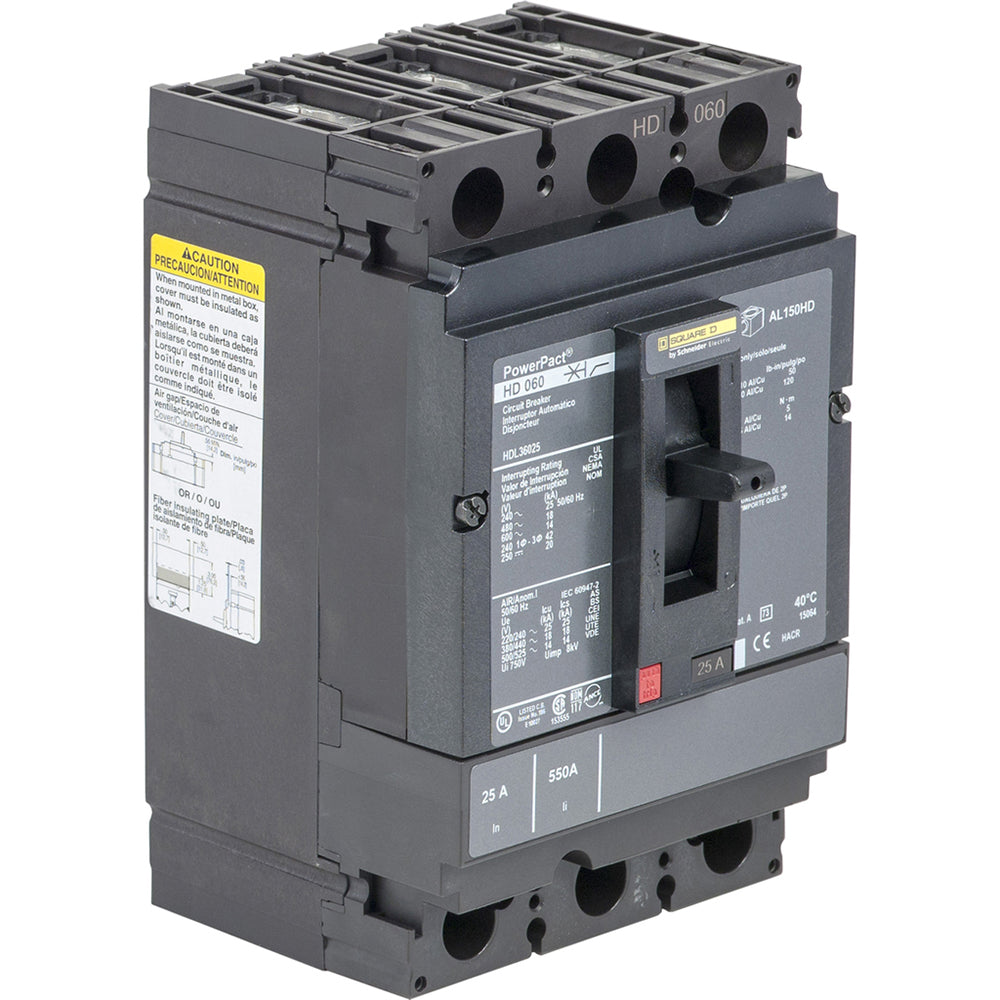

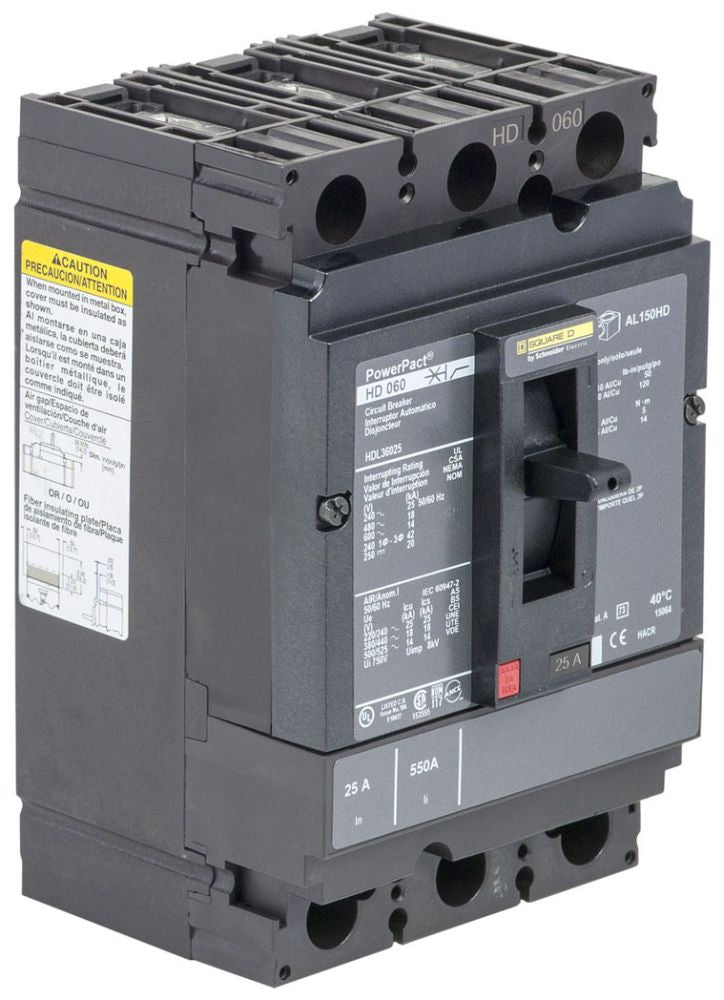

Images are for reference only
Square D
Square D HGL36045 Circuit Breaker | 600V 45A 3P 35kA@480V Bolt-On Powerpact HGL
Square D HGL36045 Circuit Breaker | 600V 45A 3P 35kA@480V Bolt-On Powerpact HGL
Price:
Sale
Sold out
Regular price
$528.08 USD
Regular price
$1,493.00 USD
Sale price
$528.08 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
Product Description:
The Square D HGL36045 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 45 amp breaker with a 35kA@480V AIC rating and uses a Bolt-On connection. This model provides reliable Thermal Magnetic protection for electrical systems.
Key Features:
✔ Part Number: HGL36045
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901683117
✔ GTIN: 00785901683117
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.88
✔ Standards: CE, CSA, IEC, UL Listed
✔ Certification: CSA, UL, CE, IEC
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
