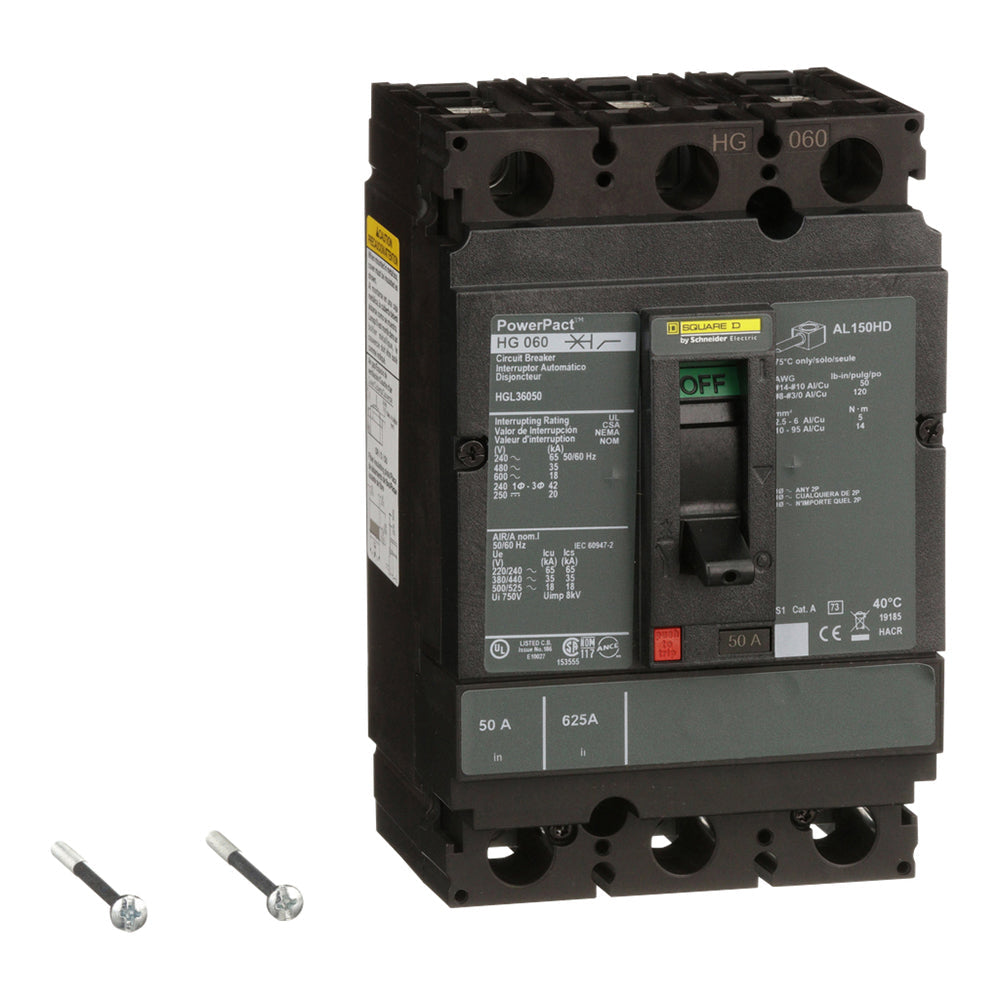

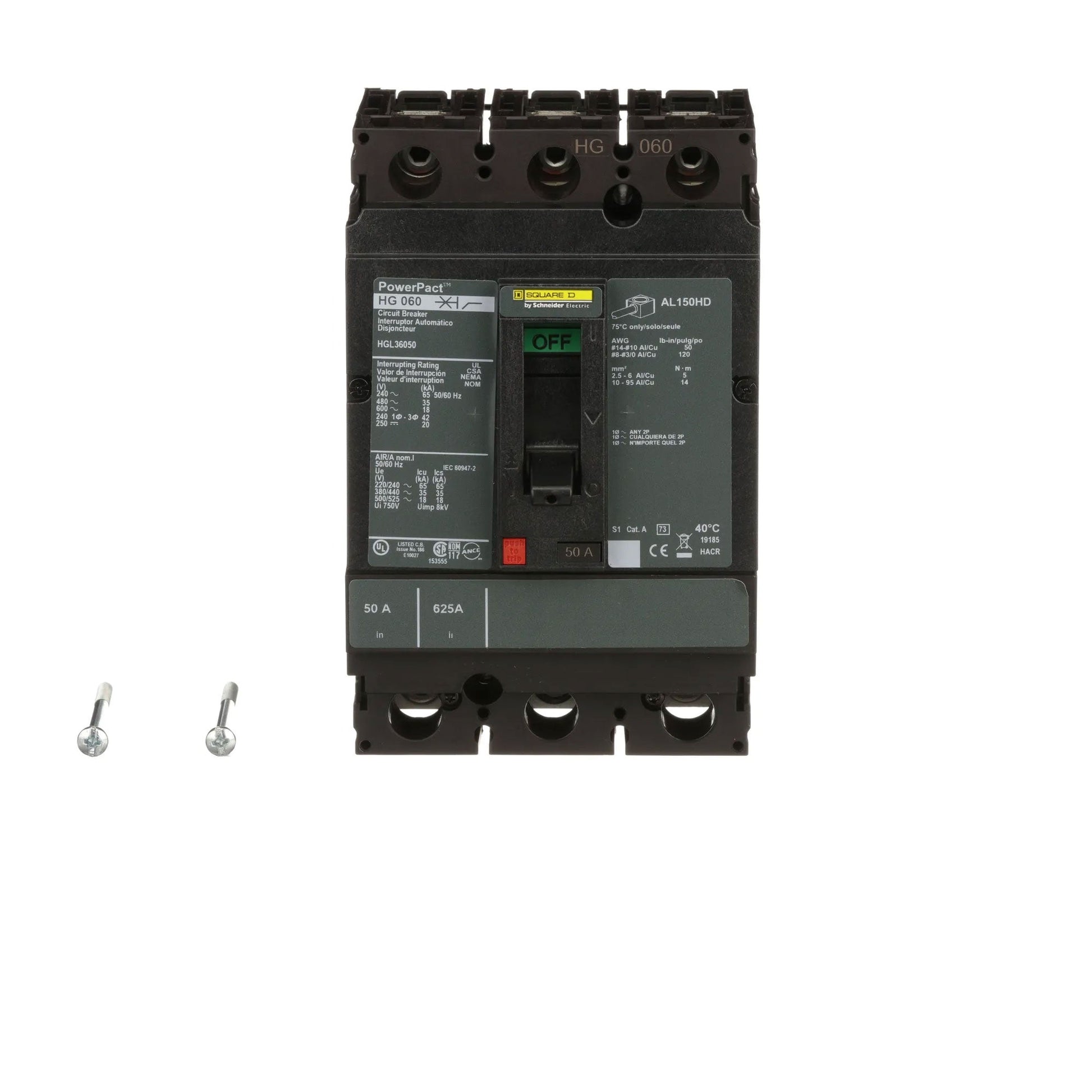

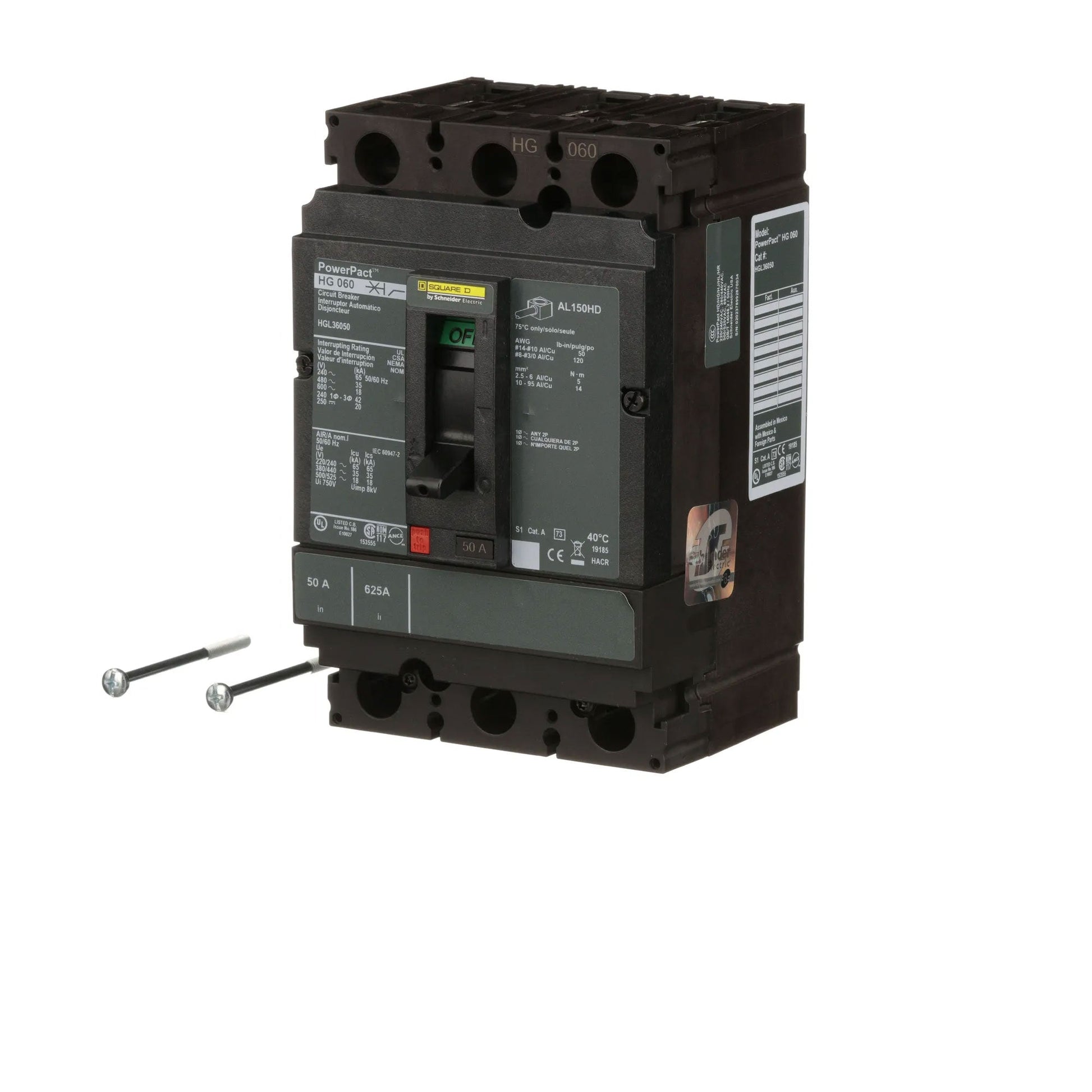

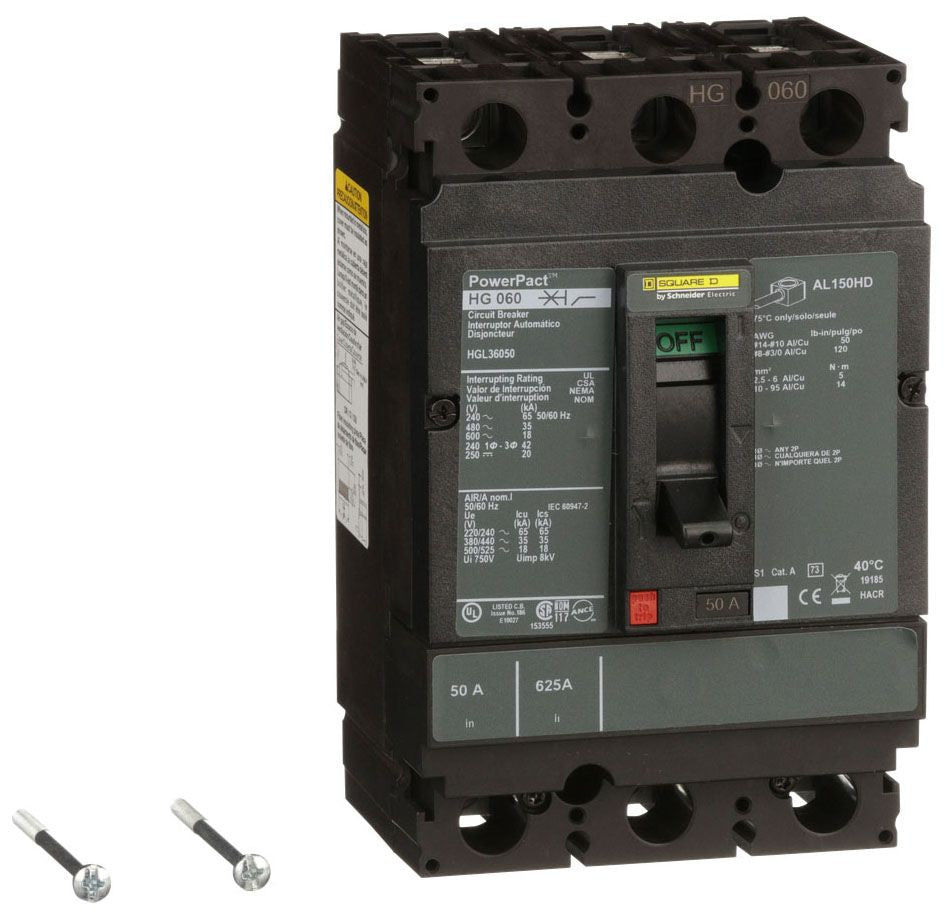

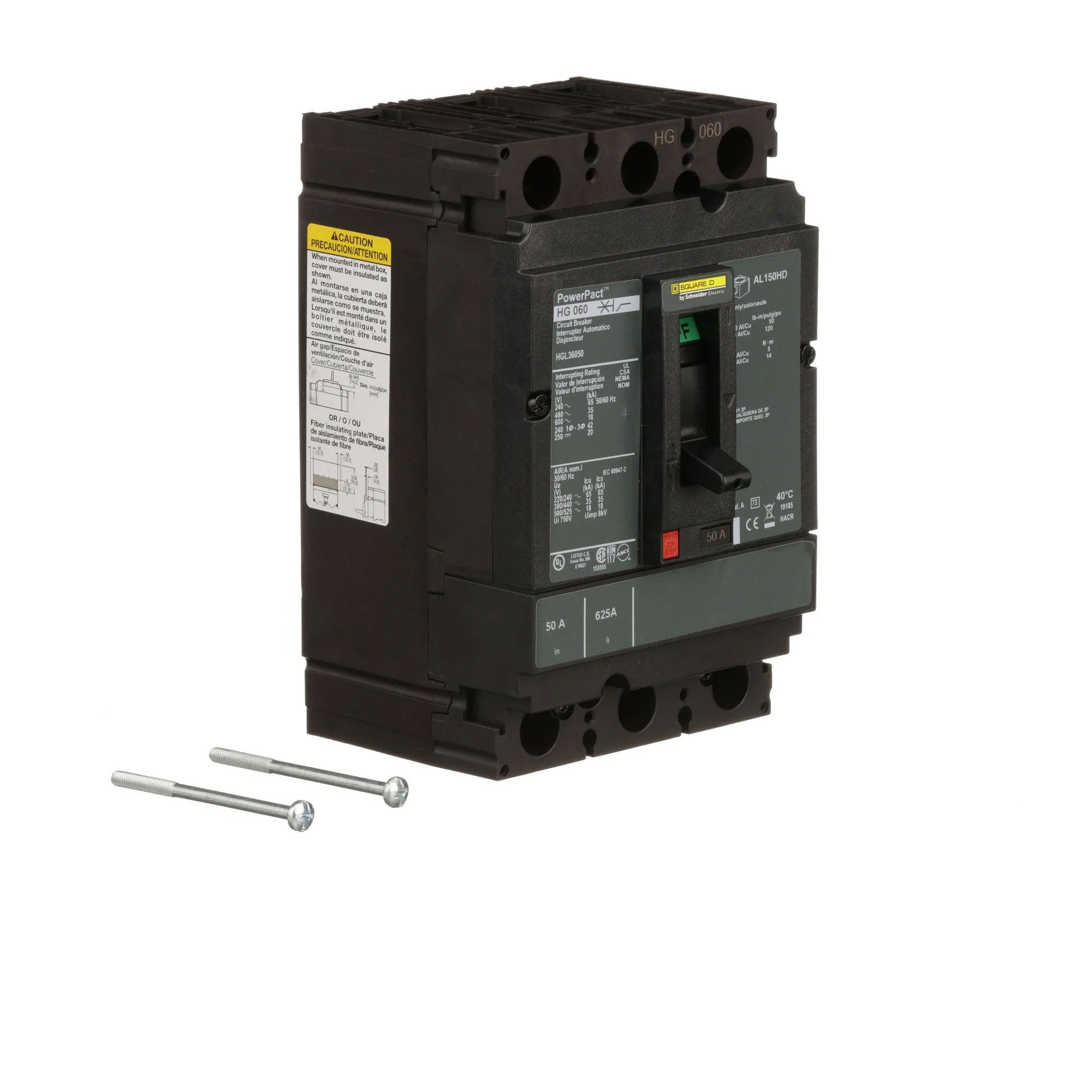

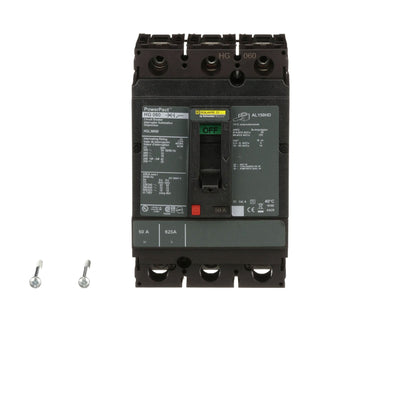

Square D HGL36050 Circuit Breaker | 600V 50A 3P 35kA@480V Bolt-On Powerpact HGL

Product Description:
The Square D HGL36050 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 50 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: HGL36050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 50
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901598763
✔ GTIN: 00785901598763
✔ Country of Origin: Mexico

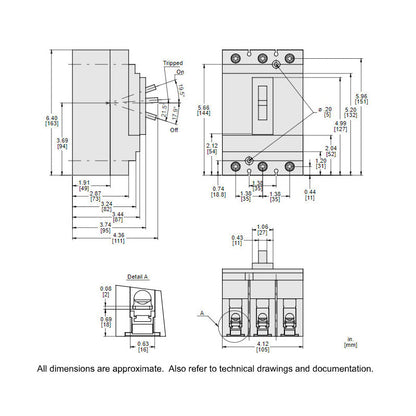

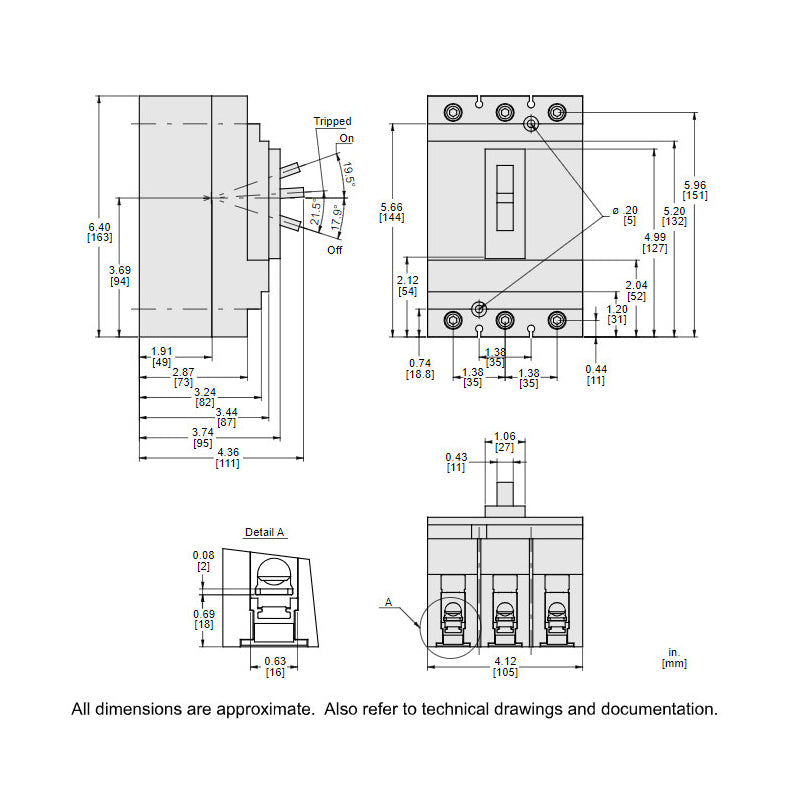

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.85
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
