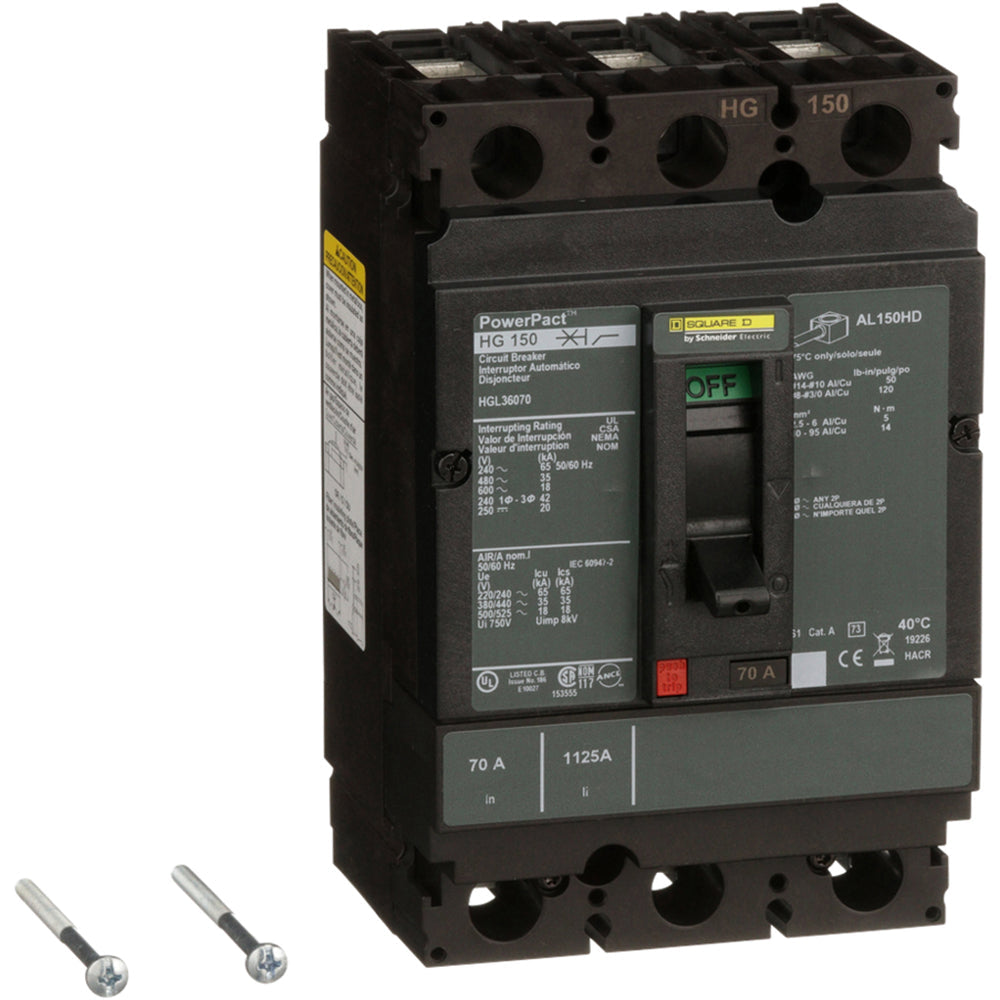

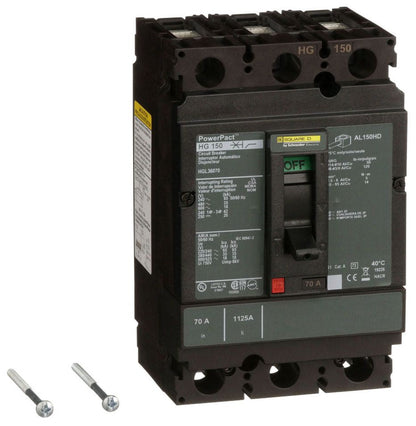

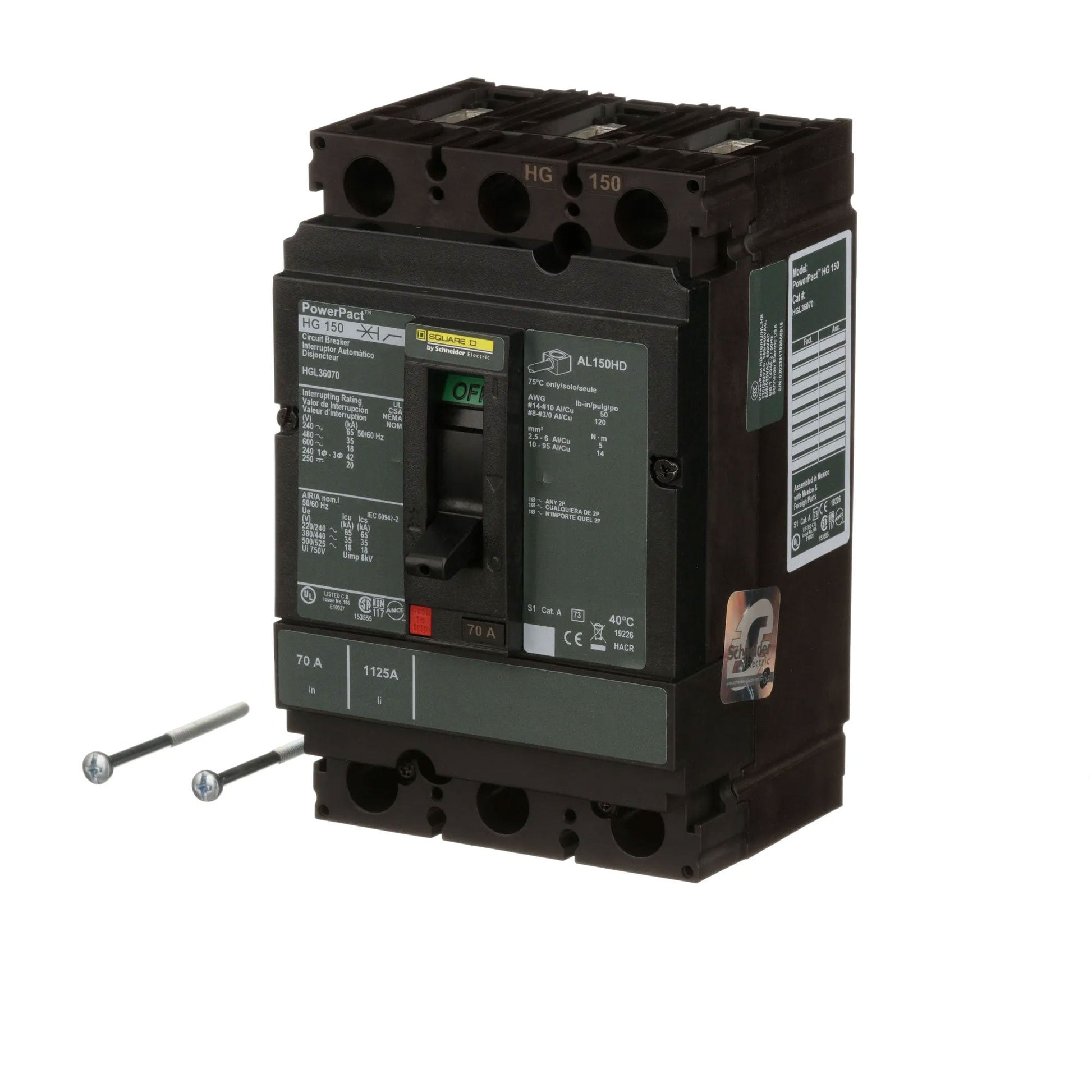

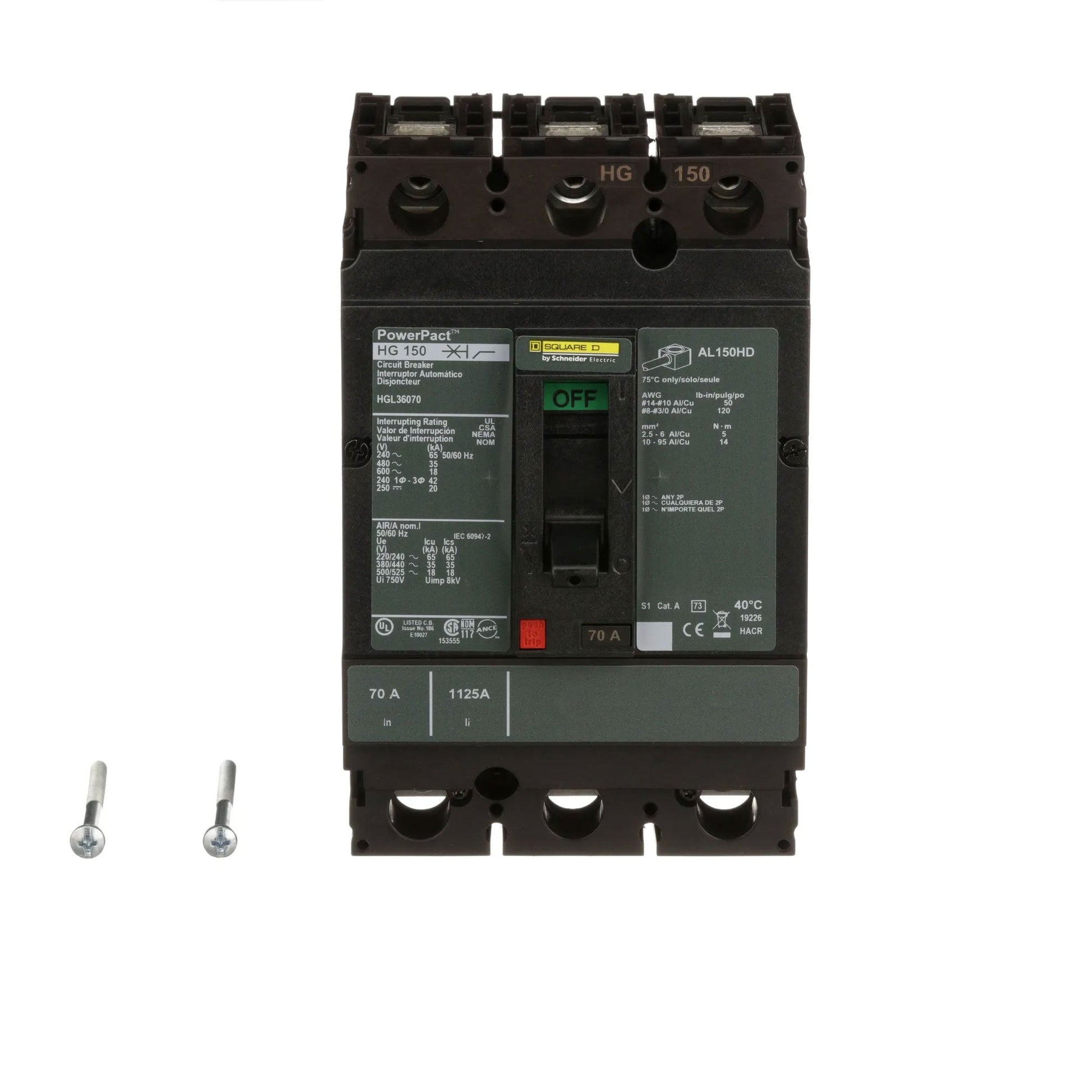

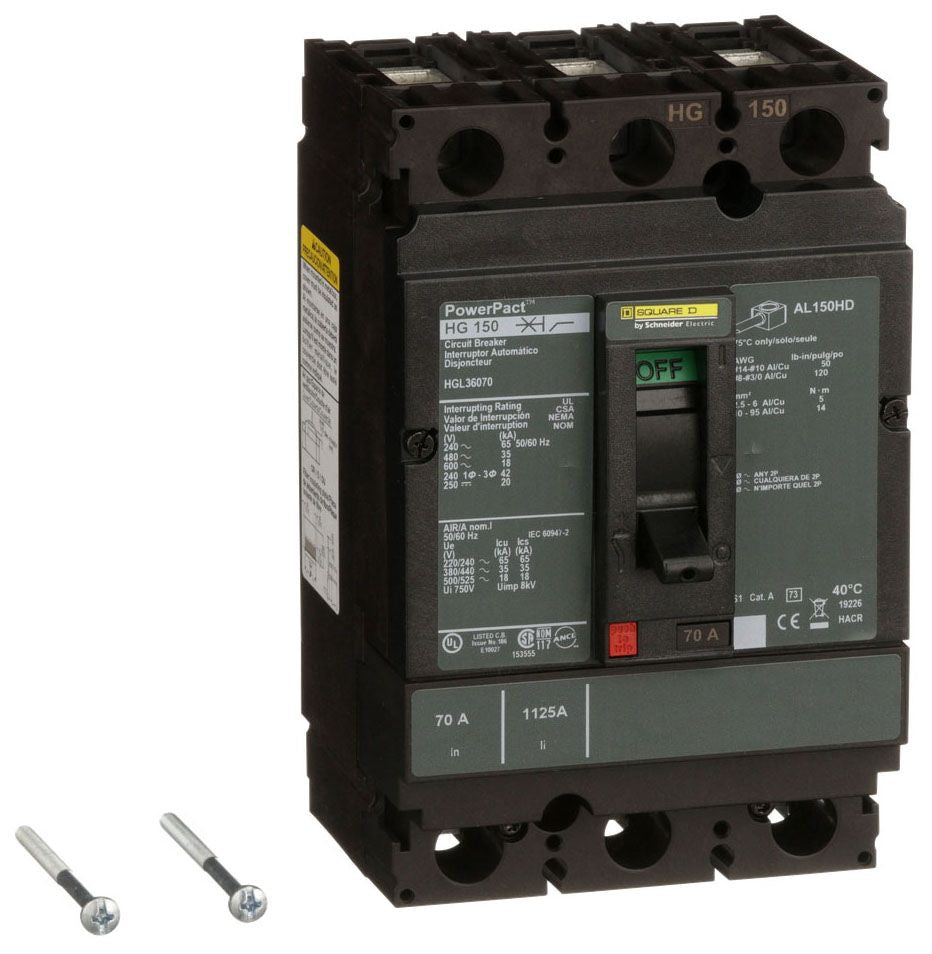

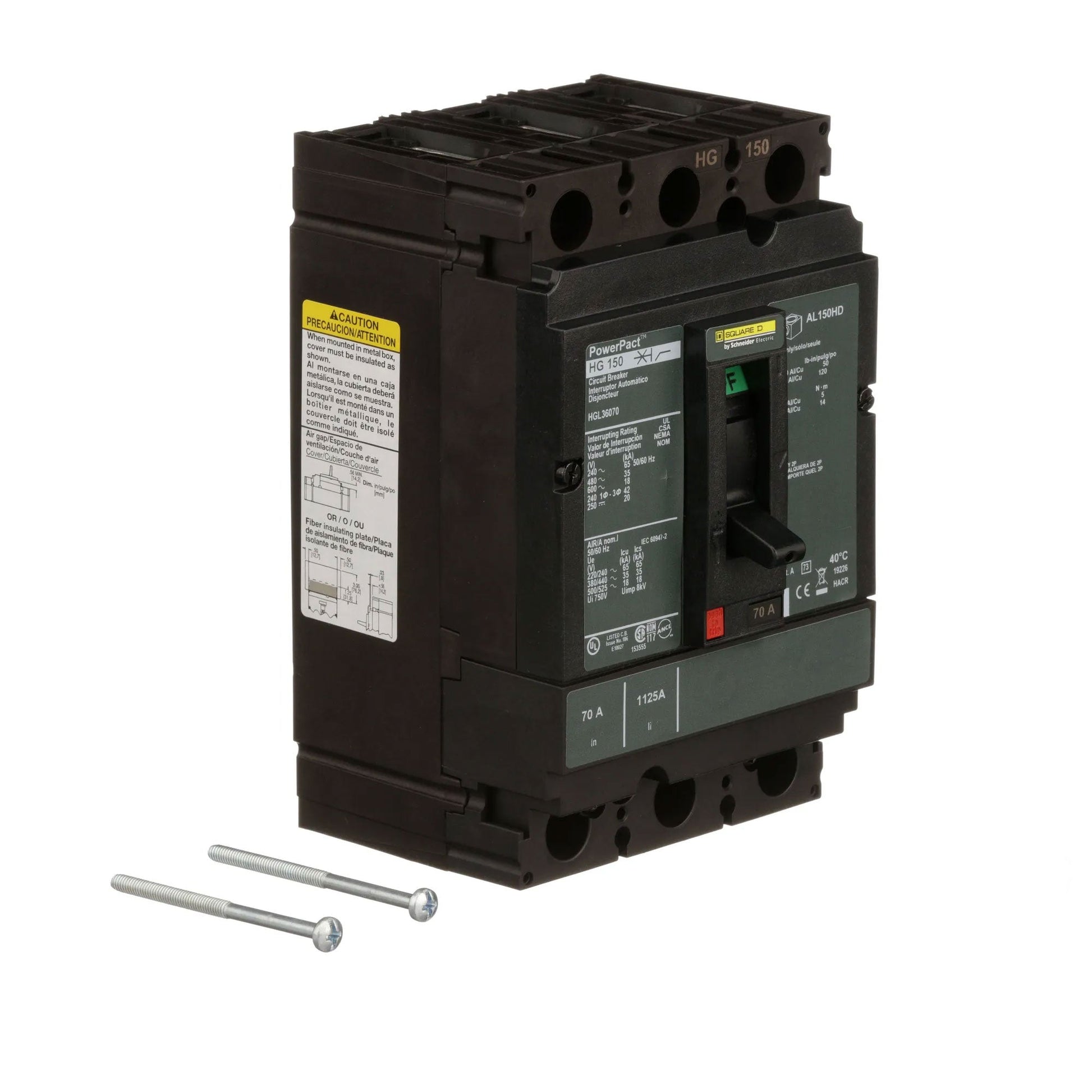

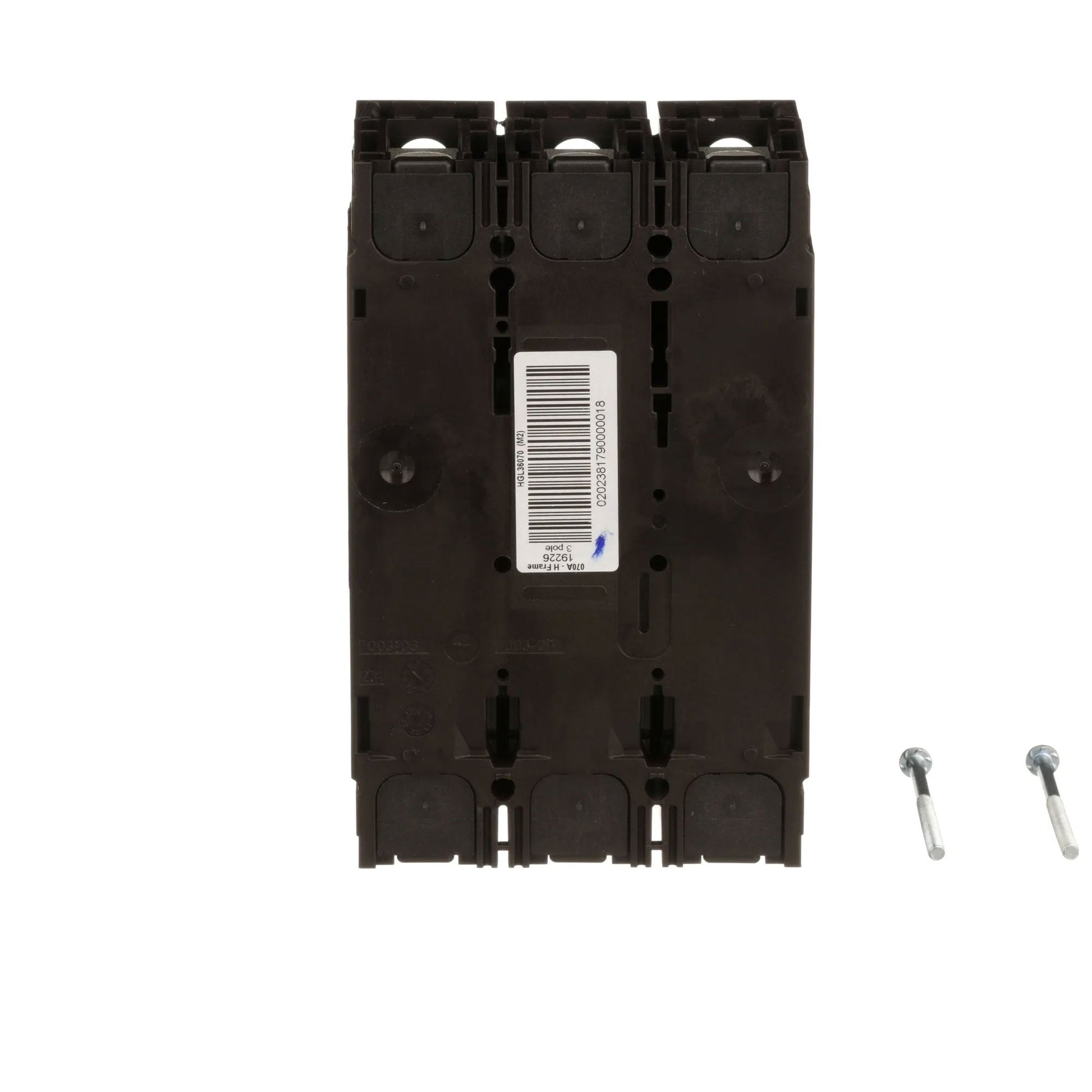

Square D HGL36070 Circuit Breaker | 600V 70A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D HGL36070 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 70 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This circuit breaker uses a Feed-Thru connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: HGL36070
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901598787
✔ GTIN: 00785901598787
✔ Country of Origin: Mexico

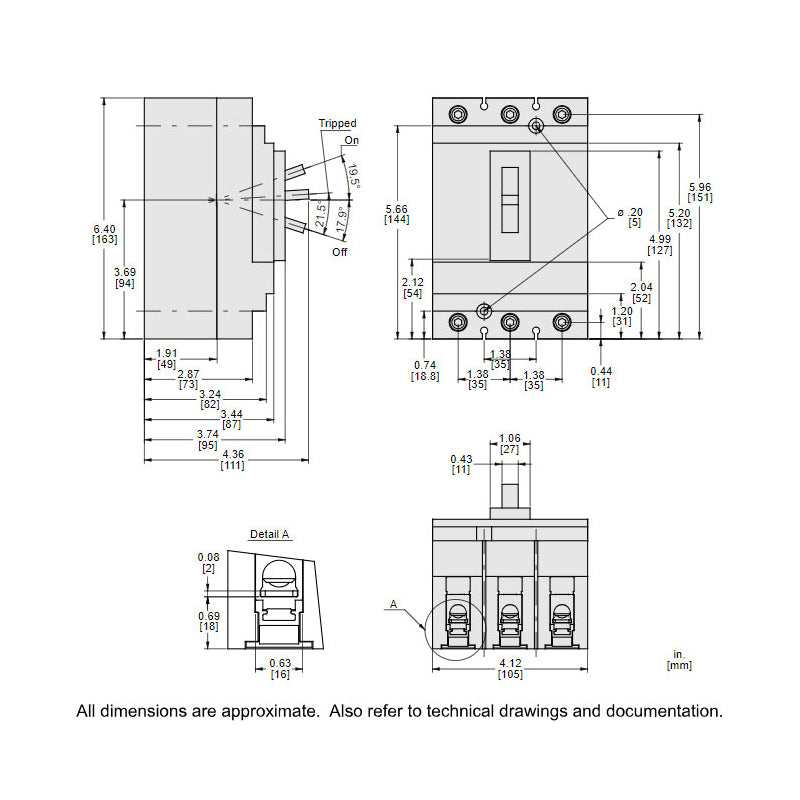

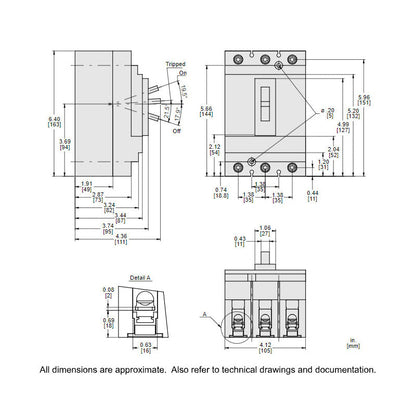

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.85
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
