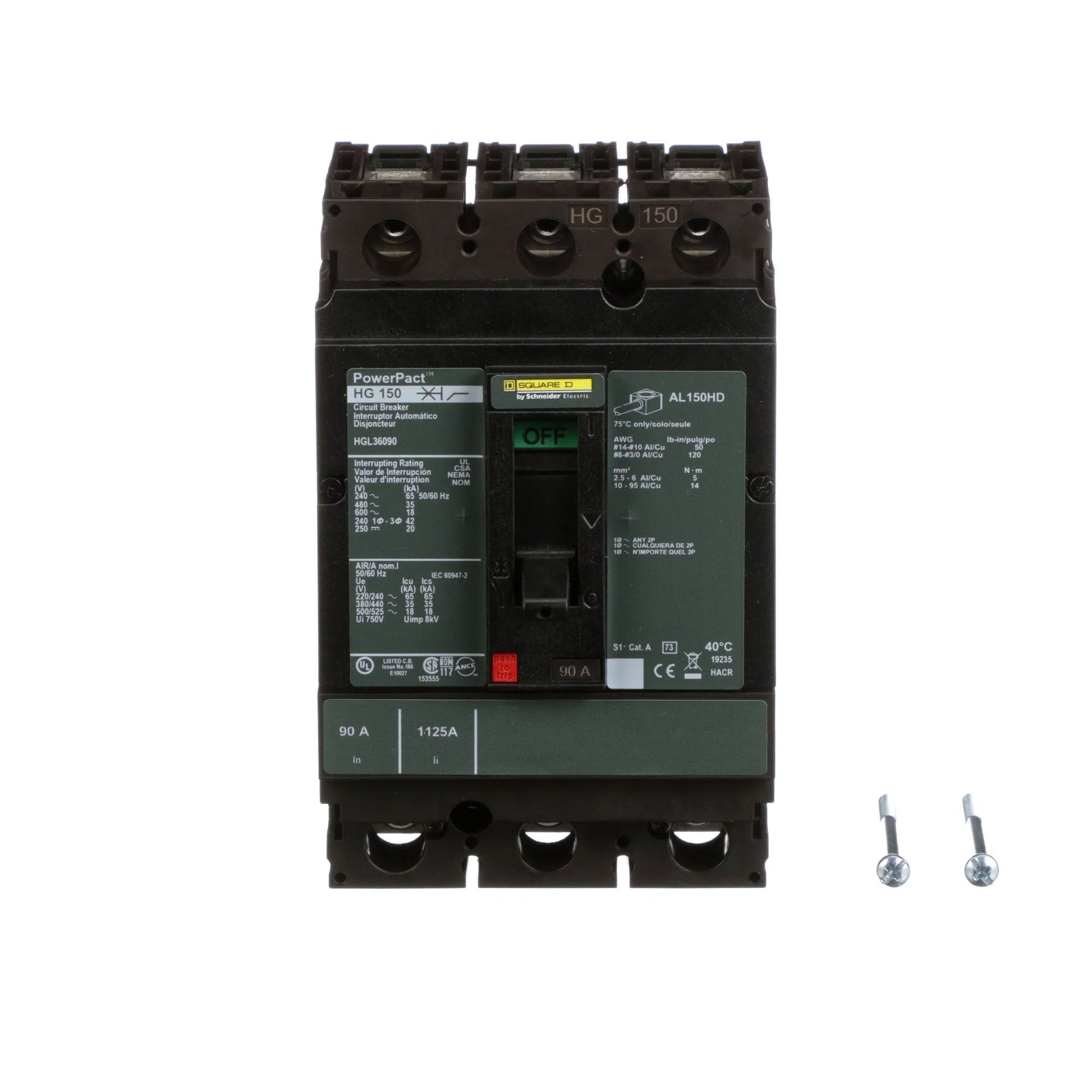

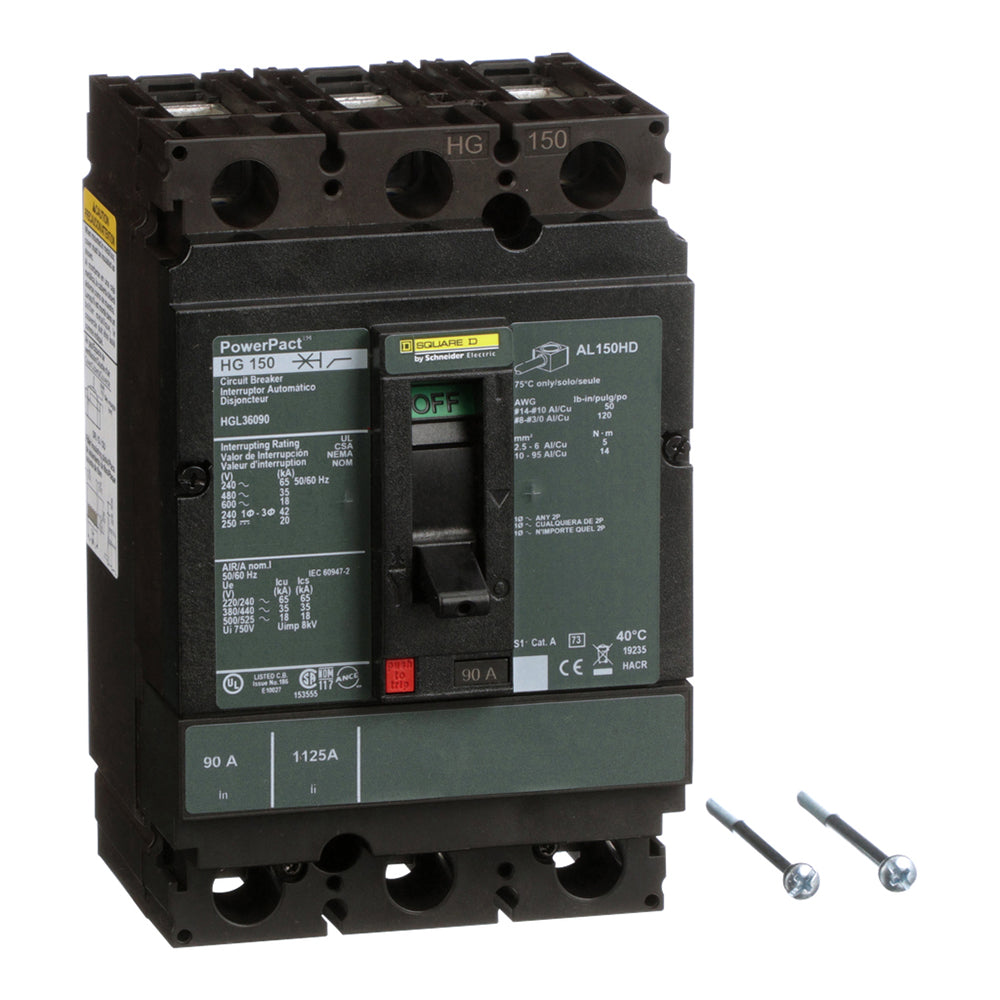

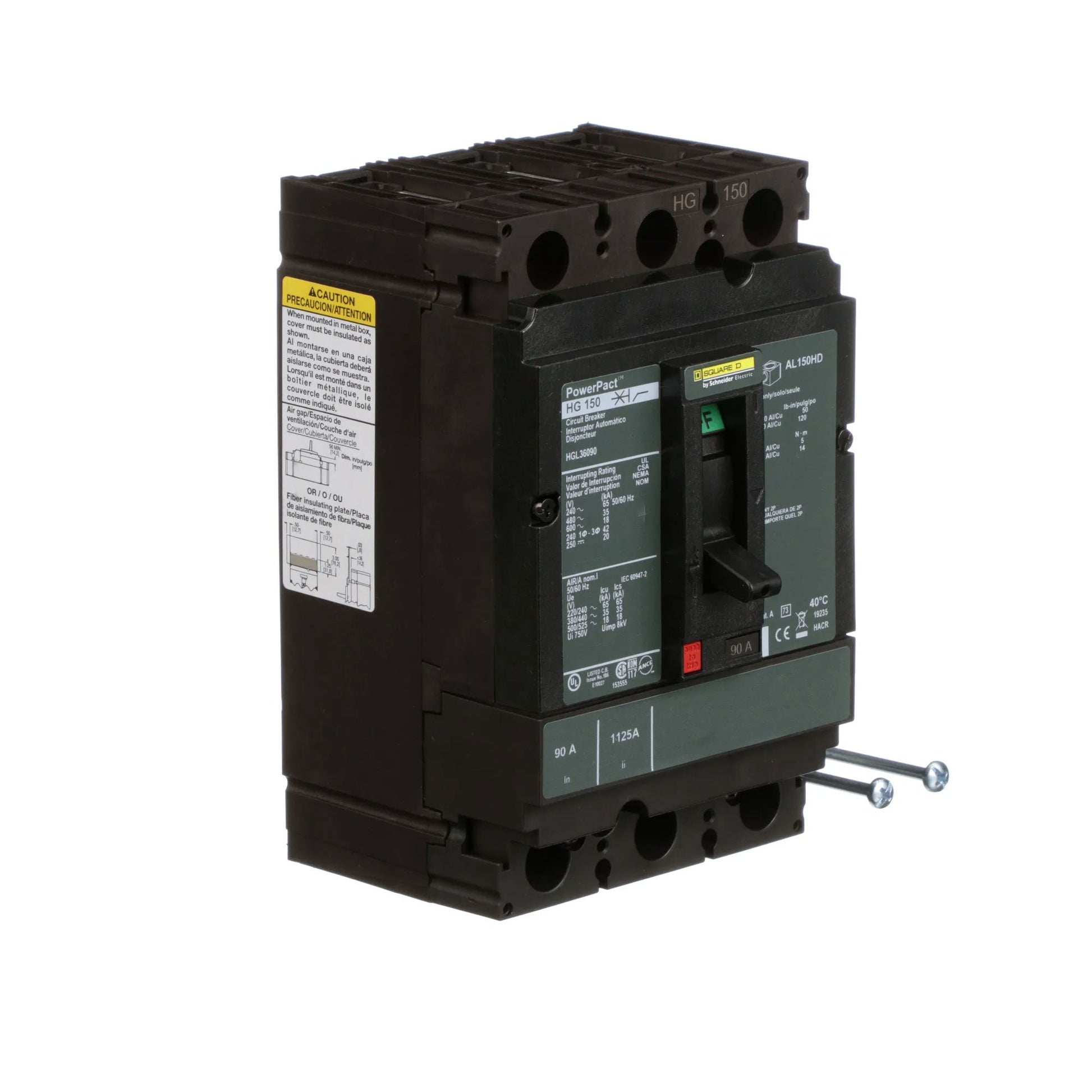

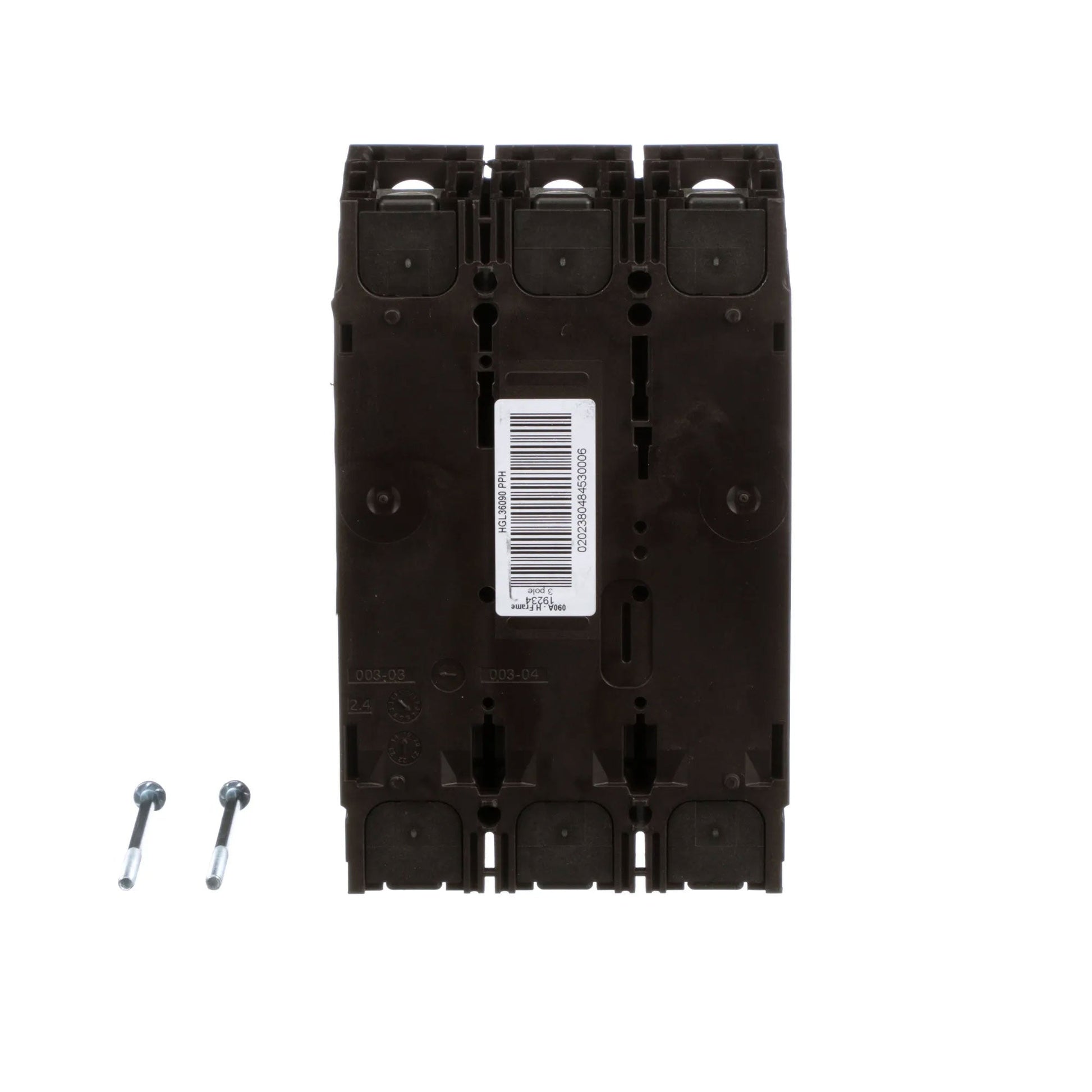

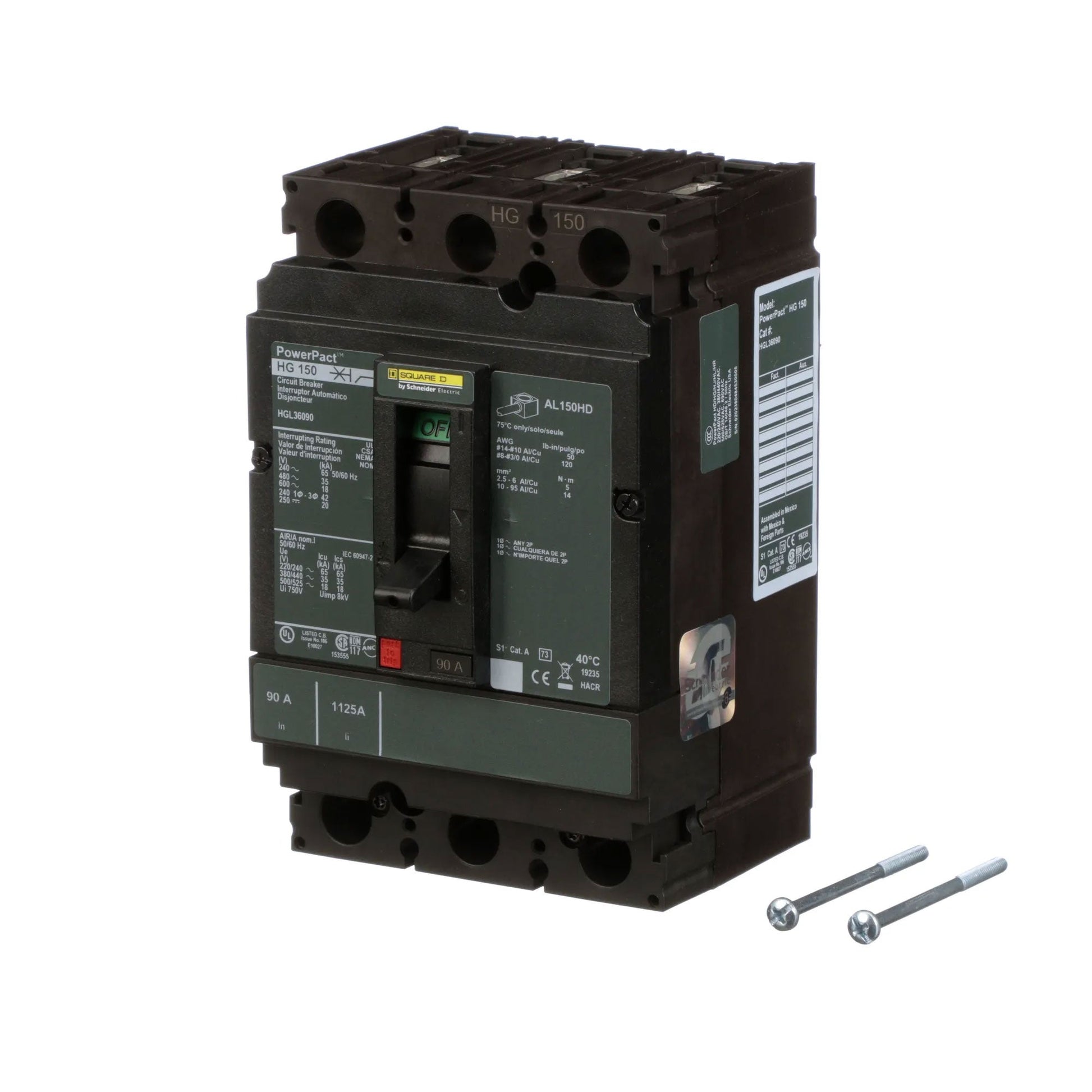

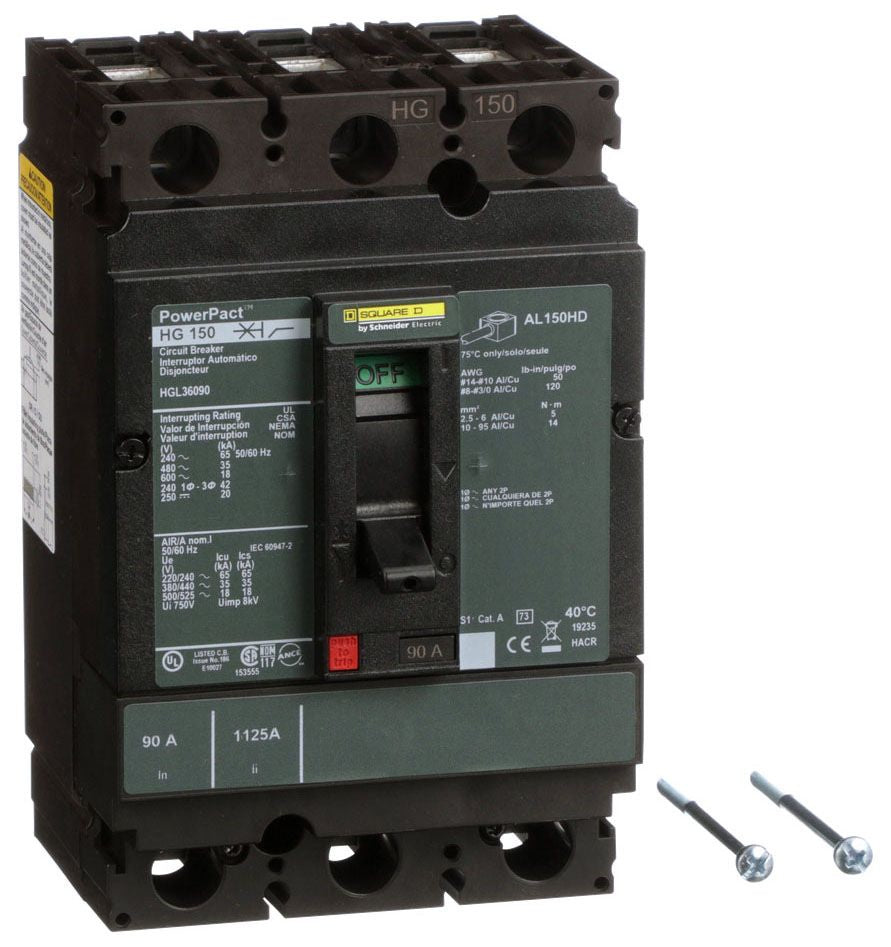

Square D HGL36090 Circuit Breaker | 600V 90A 3P 35kA@480V Bolt-On Powerpact HGL
Square D HGL36090 Circuit Breaker | 600V 90A 3P 35kA@480V Bolt-On Powerpact HGL
Price:
Sale
Sold out
Regular price
$734.55 USD
Regular price
$1,701.00 USD
Sale price
$734.55 USD
Unit price
per
Shipping calculated at checkout.
Stock:
17 in stock
Couldn't load pickup availability
Product Description:
The Square D HGL36090 is a Powerpact family molded case circuit breaker designed for industrial and commercial electrical systems. It is a 3-pole, 90 amp breaker rated for 600 volts with a 35kA interrupting capacity at 480V. This thermal magnetic circuit breaker provides reliable overcurrent protection and features a bolt-on connection for secure installation.
Key Features:
✔ Part Number: HGL36090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ Wire Size: Min. Wire Size 14 AWG Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901883722
✔ GTIN: 00785901883722
✔ Country of Origin: Mexico

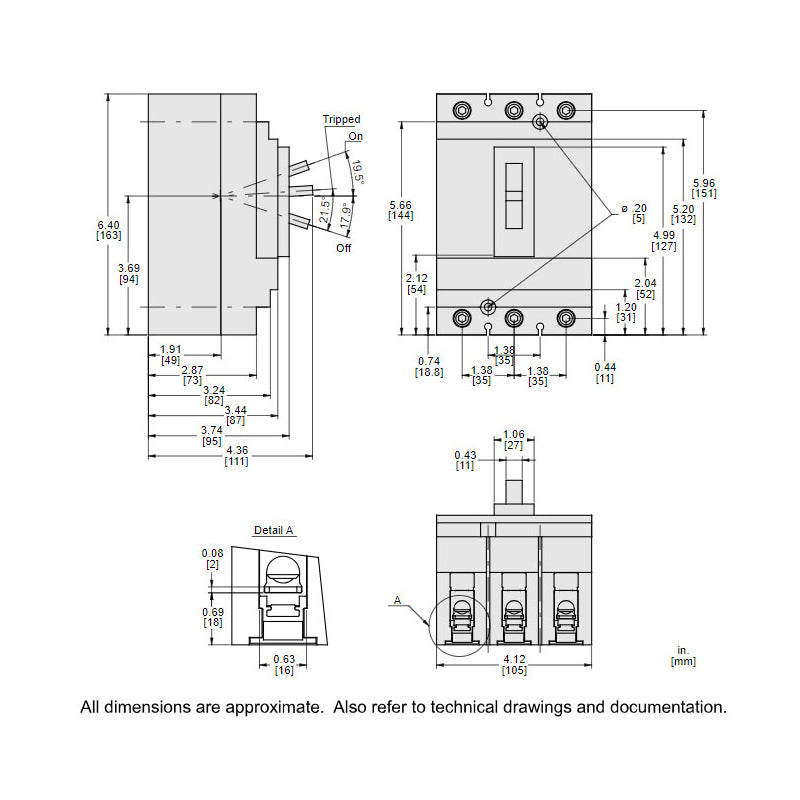

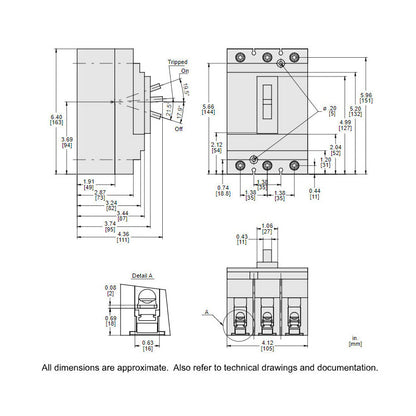

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.85
✔ Standards: CE, CSA, IEC, UL listed
✔ Certification: CE, CSA, IEC, UL listed
