Square D HGL36110 Circuit Breaker | 600V 110A 3P 35kA@480V Feed-Thru Powerpact HGL

Product Description:
The Square D HGL36110 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole unit rated for 600 Volts and 110 amps, with an AIC rating of 35kA@480V. This circuit breaker features Feed-Thru connections and Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: HGL36110
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 110
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901598824
✔ GTIN: 00785901598824
✔ Country of Origin: Mexico

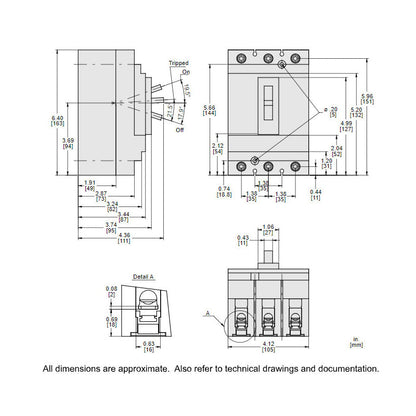

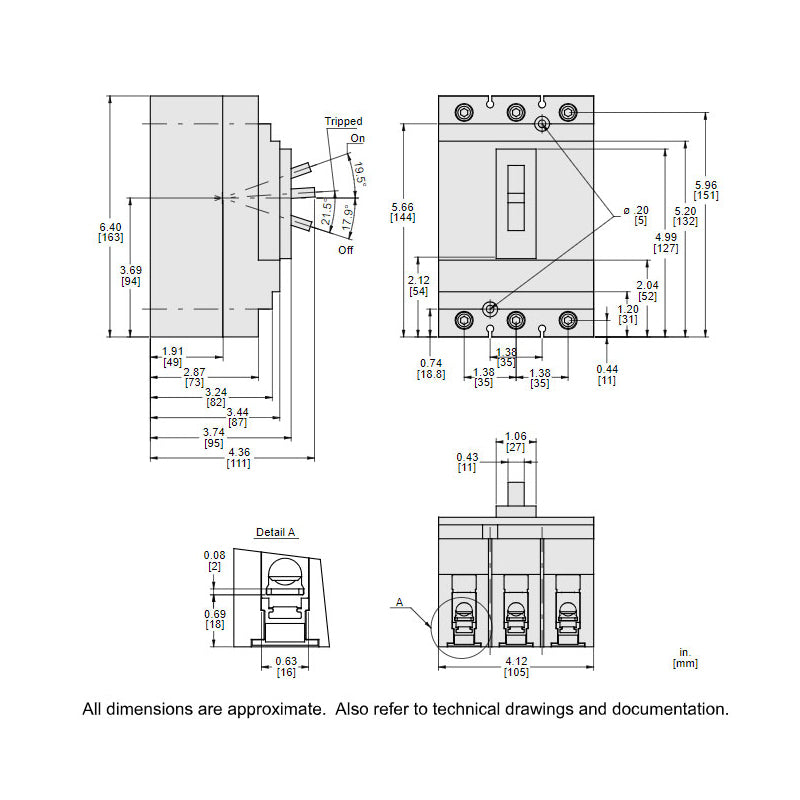

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.88
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
