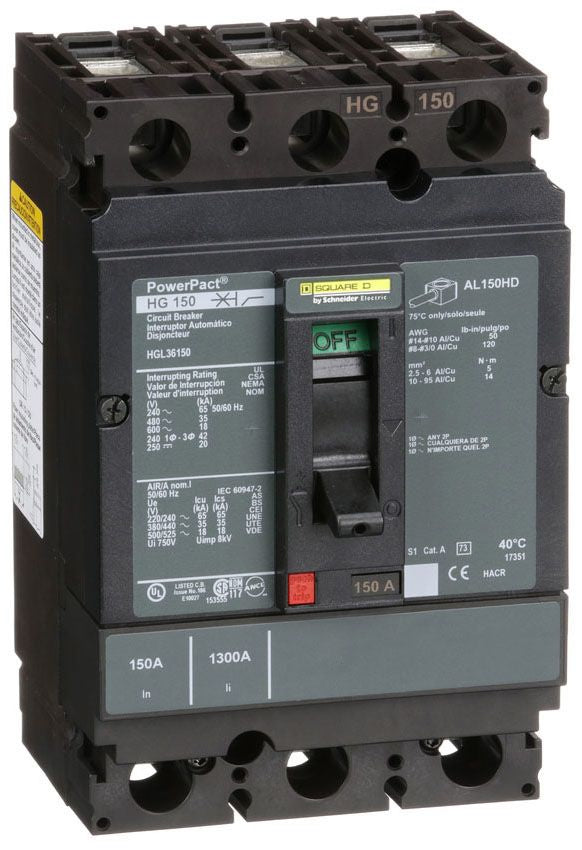

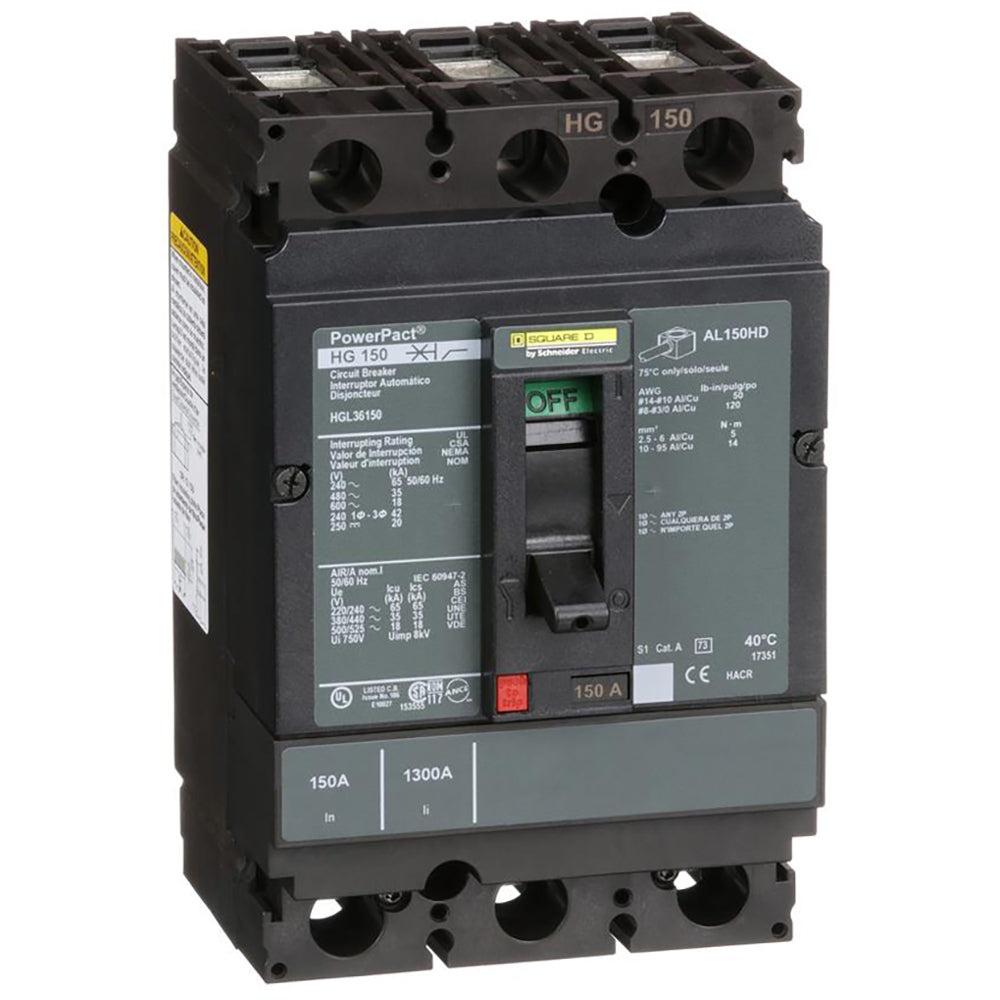

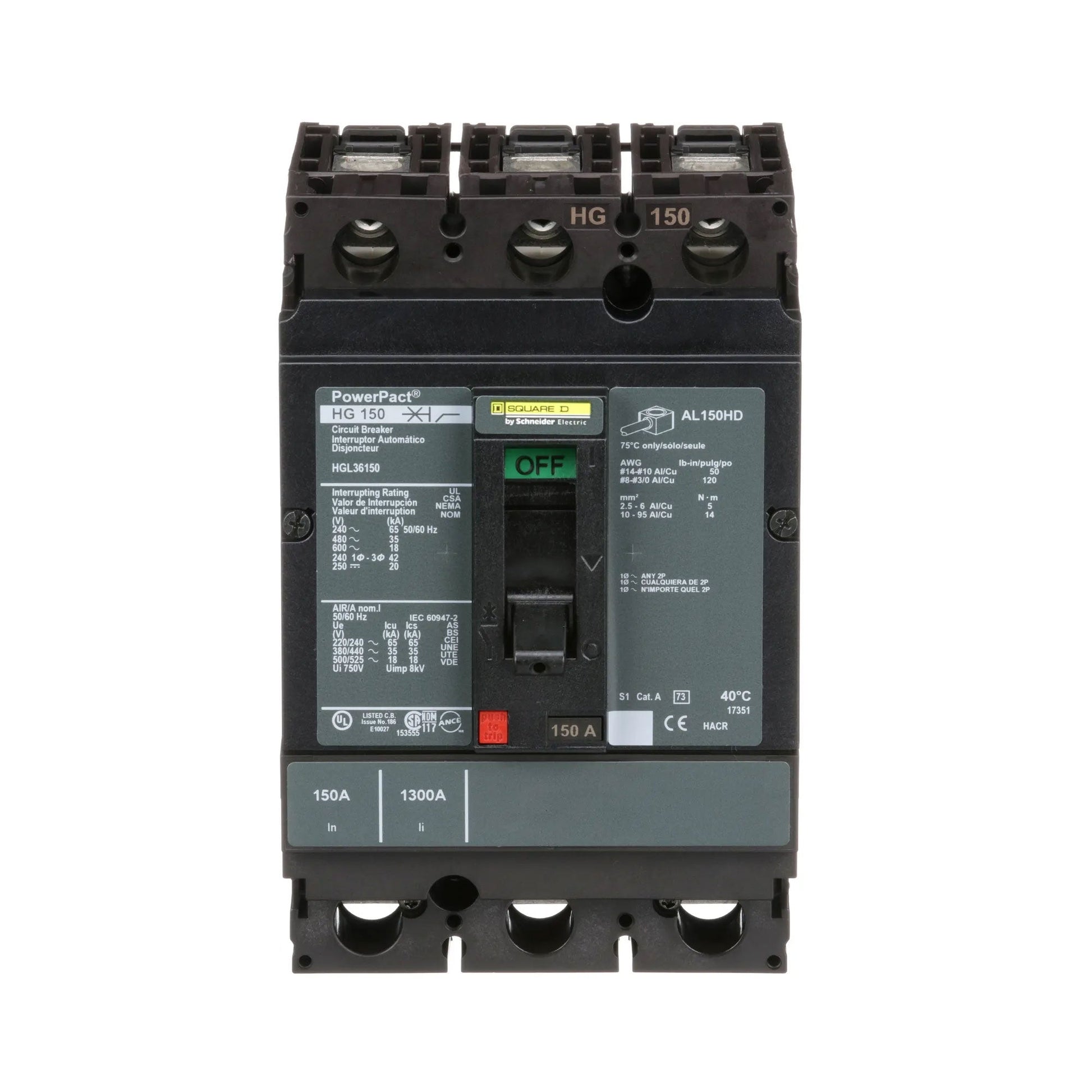

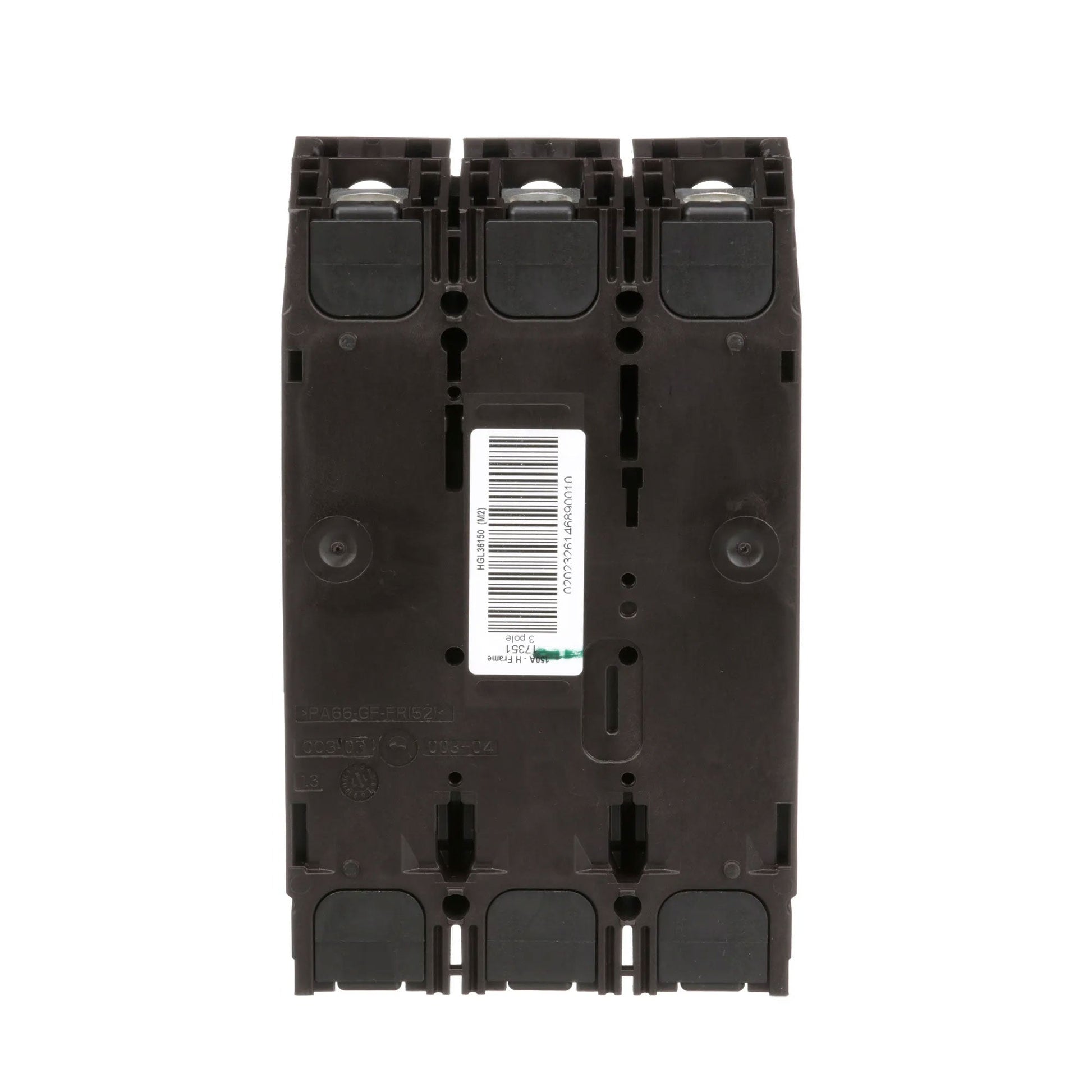

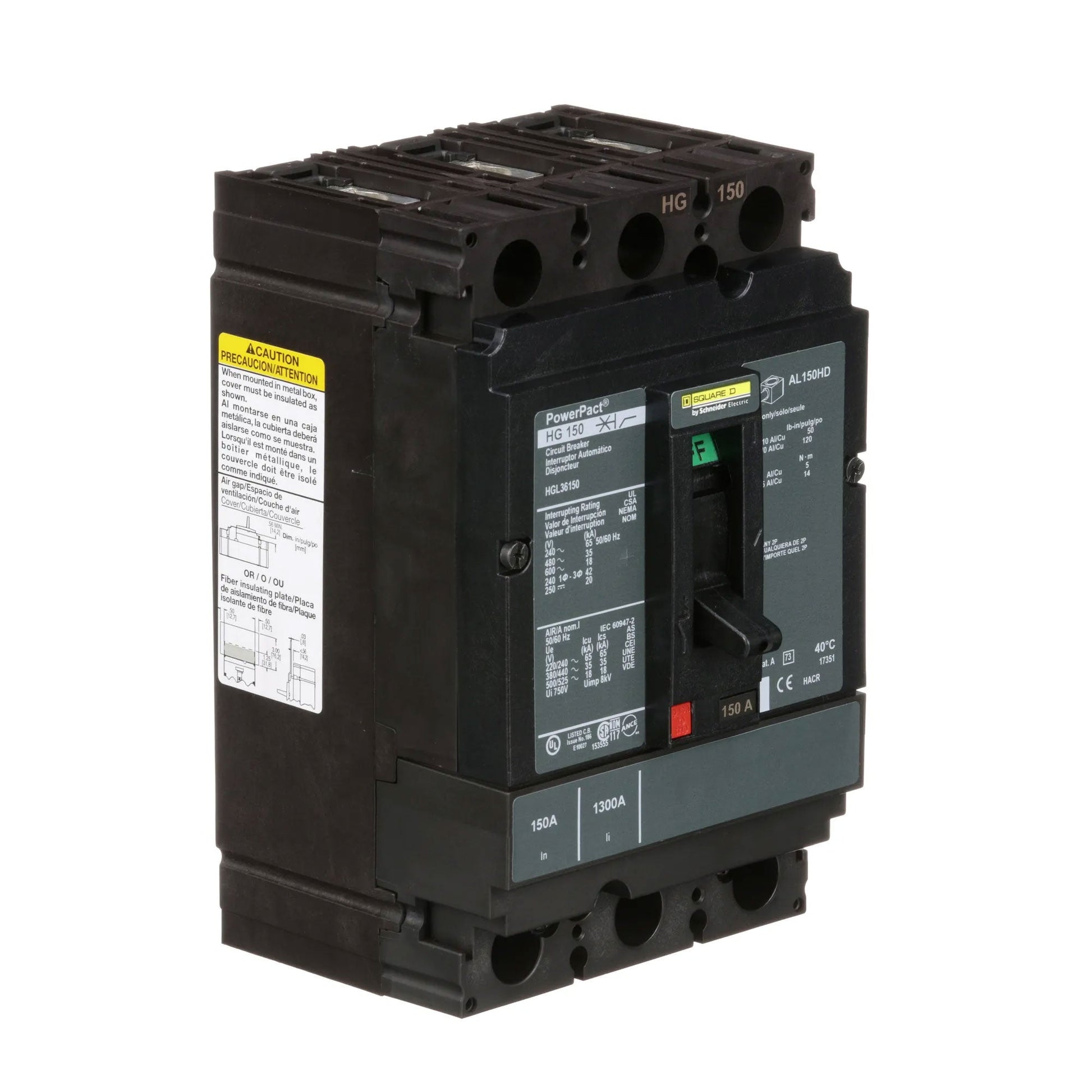

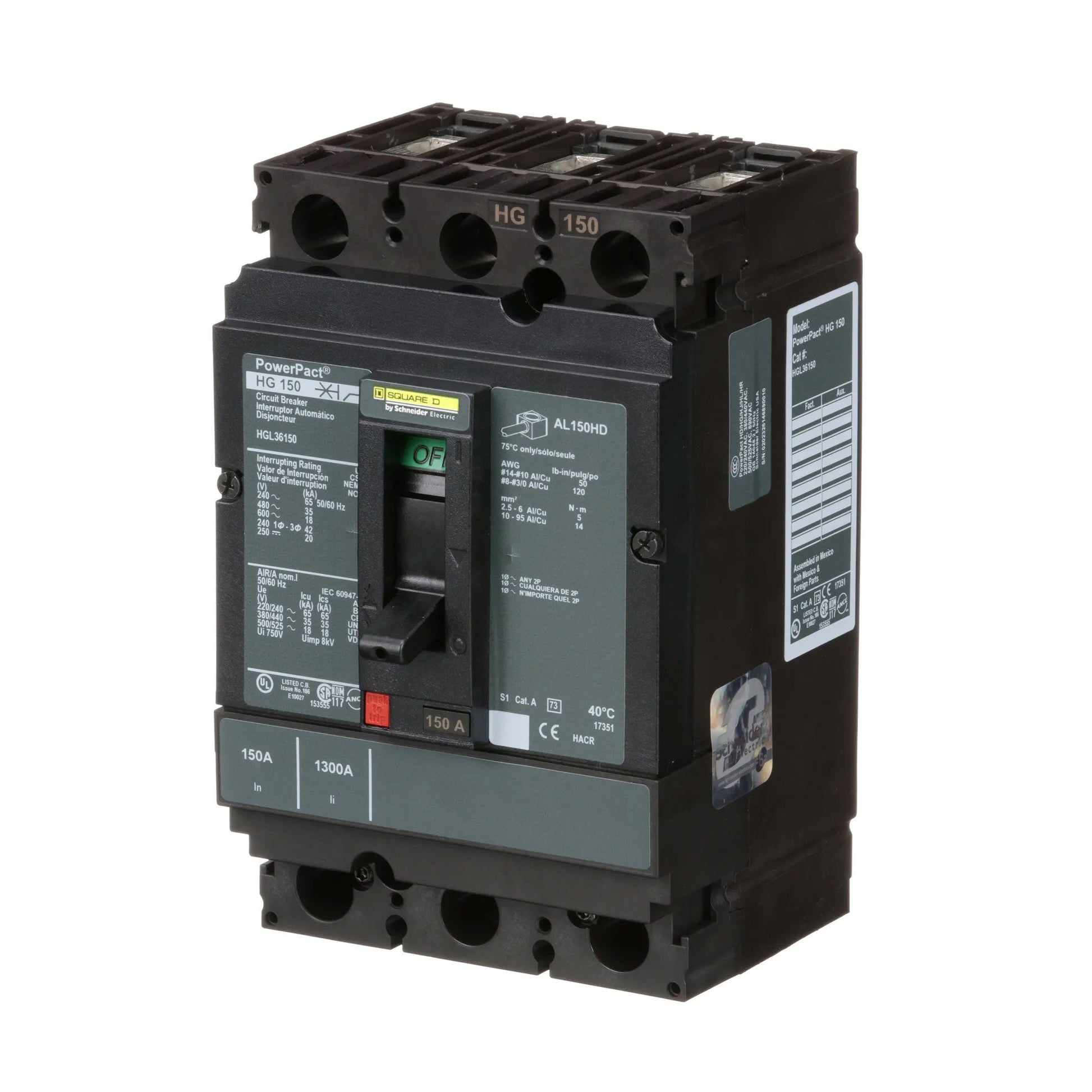

Square D HGL36150 Circuit Breaker | 600V 150A 3P 35kA@480V Feed-Thru Powerpact
Square D HGL36150 Circuit Breaker | 600V 150A 3P 35kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$941.84 USD
Regular price
$3,599.00 USD
Sale price
$941.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D HGL36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: HGL36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HGL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/HG
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901433927
✔ GTIN: 00785901433927
✔ Country of Origin: Mexico

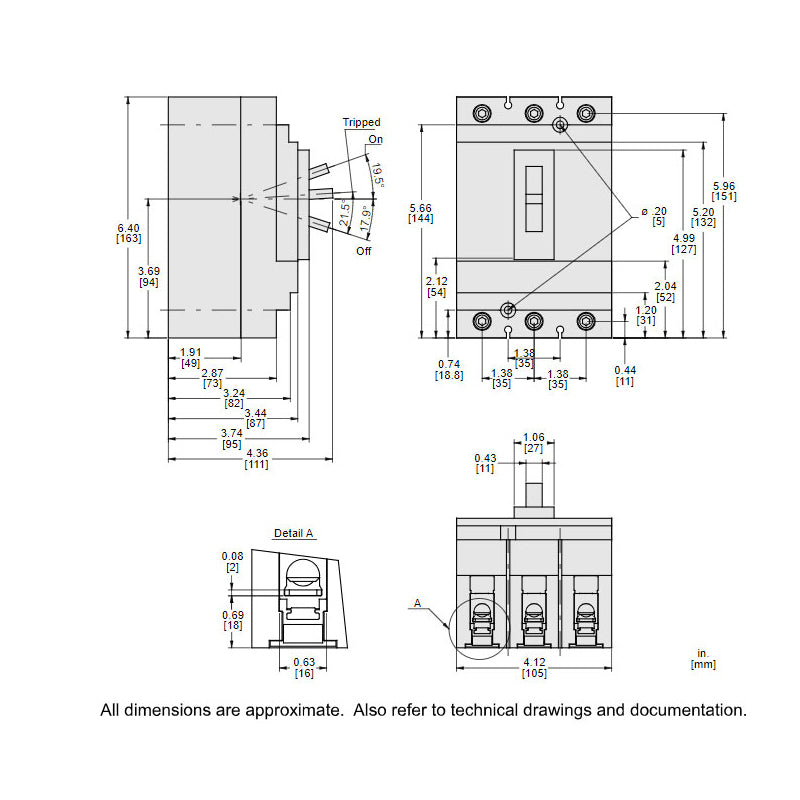

✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.86
✔ Standards: CE, CSA, IEC, UL Listed
✔ Certification: CE, CSA, IEC, UL Listed
The Square D HGL36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
