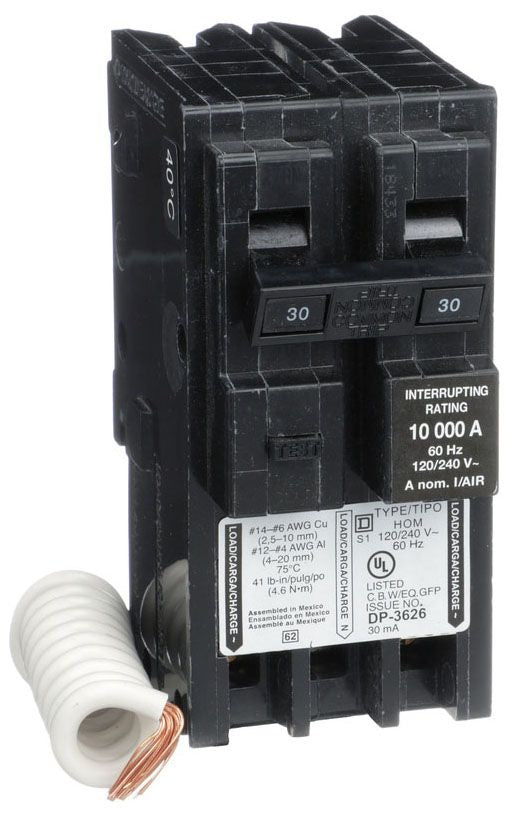

Square D HOM230EPD Circuit Breaker | 240V 30A 2P 10kA@240V HOMELINE

Product Description:
The Square D HOM230EPD is a 2-pole, 30 amp Molded Case Circuit Breaker from the HOMELINE family, designed for 240V applications. It features a Plug-In connection and Thermal Magnetic protection for reliable performance. With an AIC rating of 10kA@240V, it ensures safety and durability in electrical systems. This breaker is UL Listed and suitable for both residential and commercial use.

Key Features:
✔ Part Number: HOM230EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp Terminals
✔ Wire Size: Min. 14 AWG, Max. 8 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901682769
✔ GTIN: 00785901682769
✔ Country of Origin: Mexico
✔ Dimensions: Depth 10.53 in, Width 16 in, Height 52.5 in
✔ Standards: UL Listed
✔ Certification: UL Listed
