Product Description:

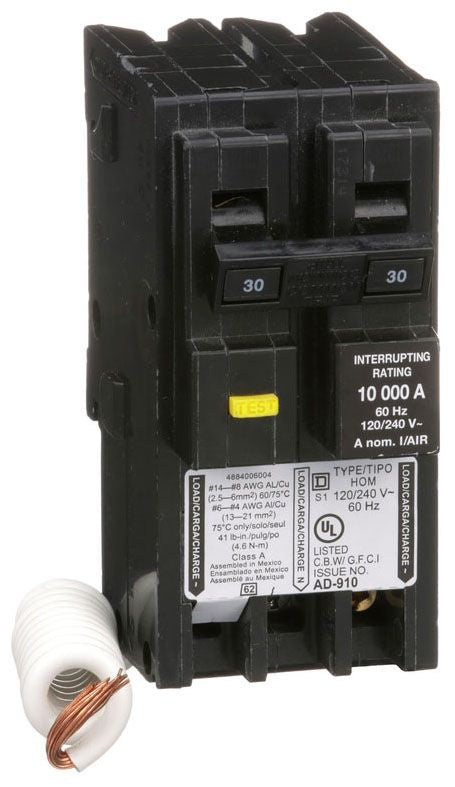

The Square D HOM230GFI is a 2-pole Molded Case Circuit Breaker from the HOMELINE family, designed for 120/240 VAC applications. It offers a 30 amp rating with a 10kA@240V AIC rating and features Plug-In connections for easy installation. This breaker includes Thermal Magnetic protection and complies with CSA, HACR, and UL standards. Ideal for residential and light commercial electrical panels.
Key Features:
✔ Part Number: HOM230GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240 VAC
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901303237
✔ GTIN: 00785901303237
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1 lb
✔ Panel Type: Homeline Load Center
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: CSA Certified, HACR, UL Listed
✔ Wire Size: 12 to 4 AWG (Aluminum), 14 to 6 AWG (Copper)
