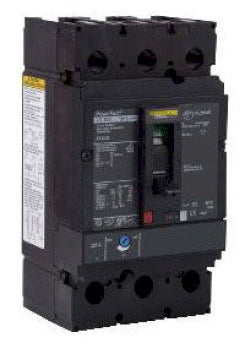

Square D JDF36150 Circuit Breaker | 600V 150A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D JDF36150 is a Powerpact family molded case circuit breaker designed for industrial and commercial electrical systems. It is a 3-pole, 150 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This thermal magnetic circuit breaker provides reliable protection with a bolt-on connection for secure installation.

Key Features:
✔ Part Number: JDF36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDF
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: CB
✔ UPC: 785901906254
✔ GTIN: 00785901906254
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 1.98
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
