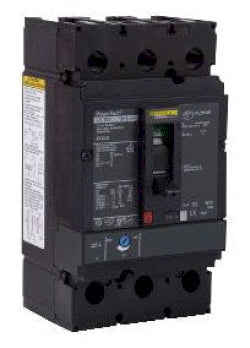

Square D JDF36175 Circuit Breaker | 600V 175A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D JDF36175 is a Powerpact family molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 175 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V. This unit features thermal magnetic protection and a bolt-on connection for secure installation.

Key Features:
✔ Part Number: JDF36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDF
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 785901834397
✔ GTIN: 00785901834397
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.04
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
