Square D JDF36225 Circuit Breaker | Powerpact JDF 600V 225A

Product Description:

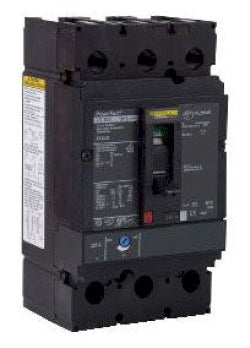

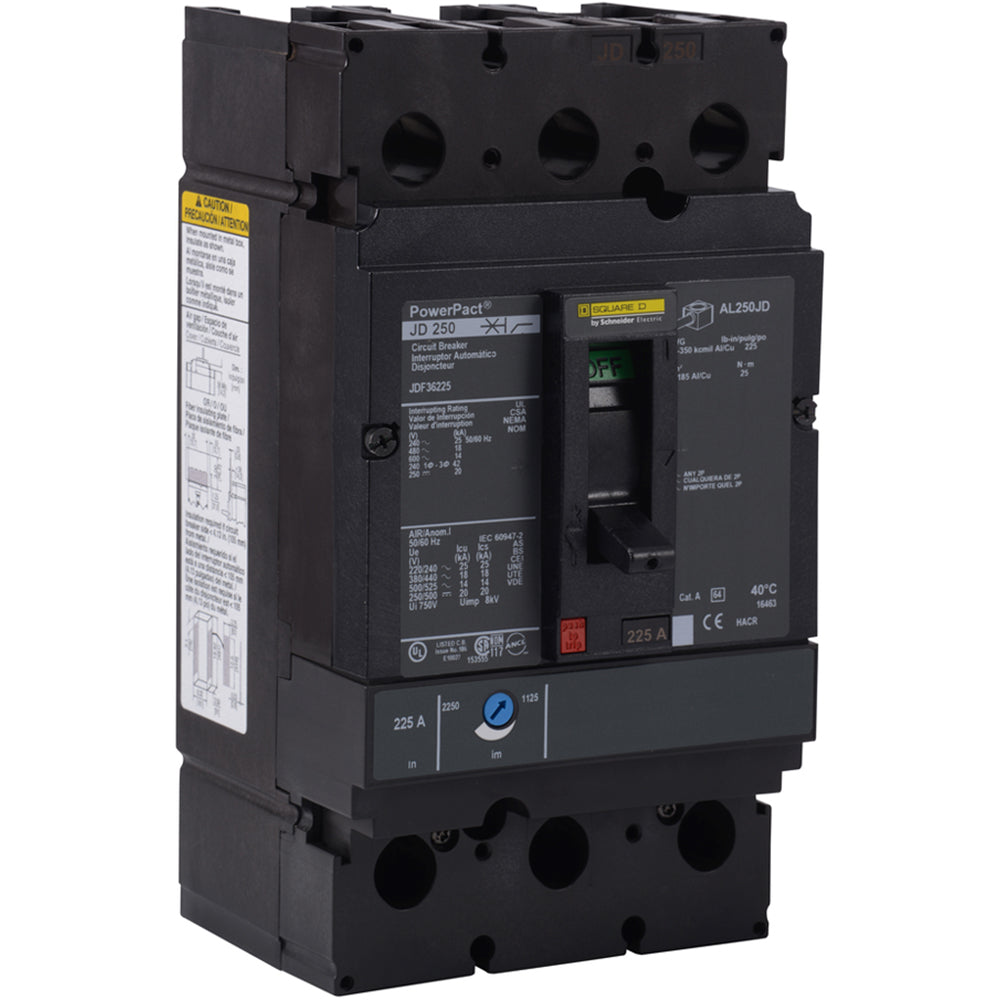

The Square D JDF36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and an 18kA@480V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: JDF36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JDF
✔ Voltage: 600V
✔ Amperage: 225A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: CA
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901995203
✔ GTIN: 00785901995203
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 4.5 lbs
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
