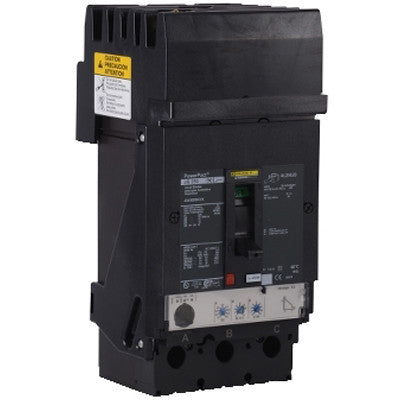

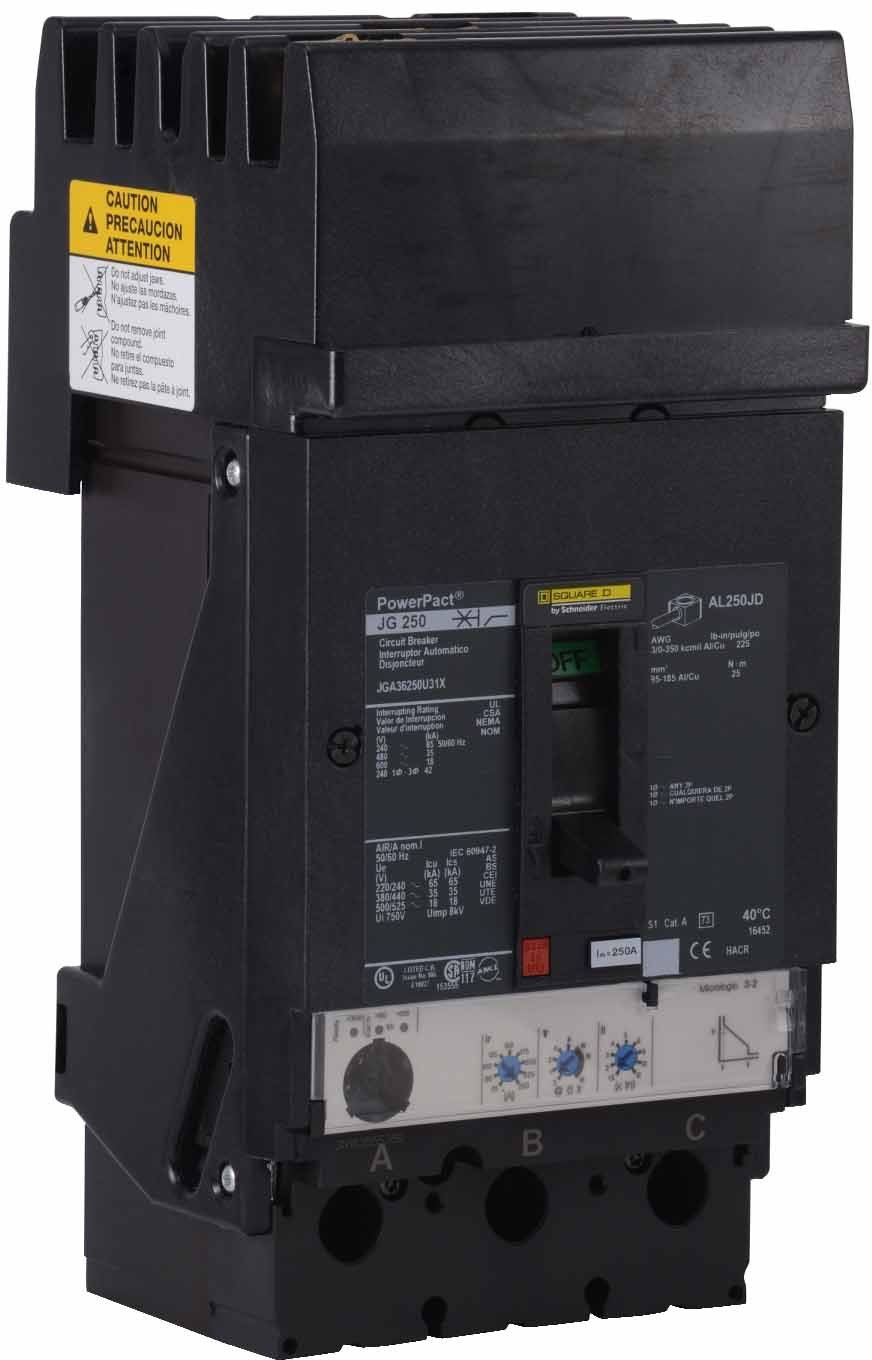

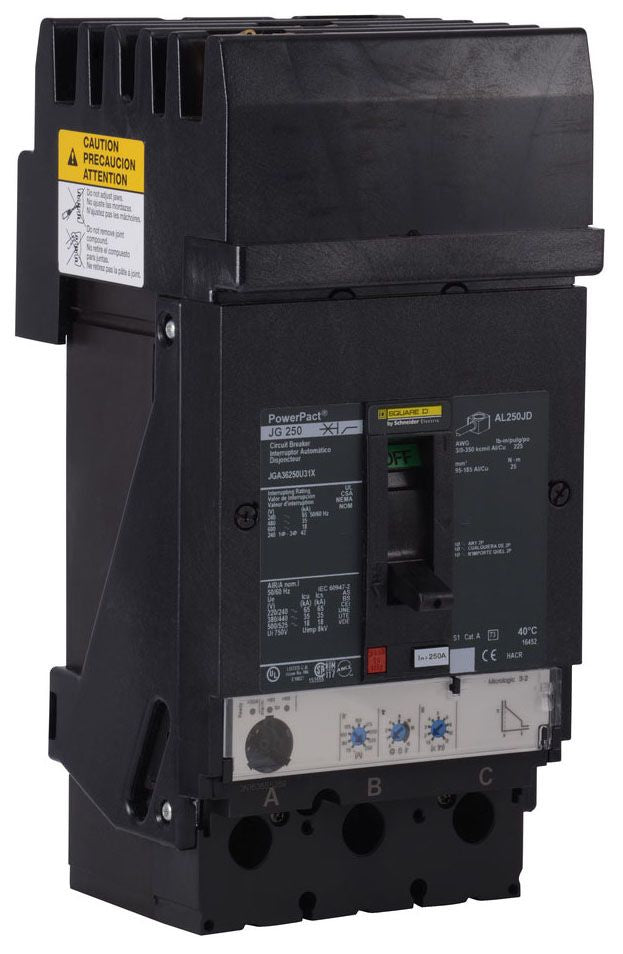

Square D JGA36250U31X Circuit Breaker | 600V 250A 3P 35kA@480V Powerpact
Square D JGA36250U31X Circuit Breaker | 600V 250A 3P 35kA@480V Powerpact
Price:
Sale
Sold out
Regular price
$2,738.97 USD
Regular price
$4,226.00 USD
Sale price
$2,738.97 USD
Unit price
per
Shipping calculated at checkout.
Stock:
2 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D JGA36250U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 250A amperage rating with a 35kA@480V AIC rating. This breaker uses a Plug In Panelboard connection and includes Solid State protection for reliable performance.
Key Features:
✔ Part Number: JGA36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: G
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901965749
✔ GTIN: 00785901965749
✔ Country of Origin: Mexico

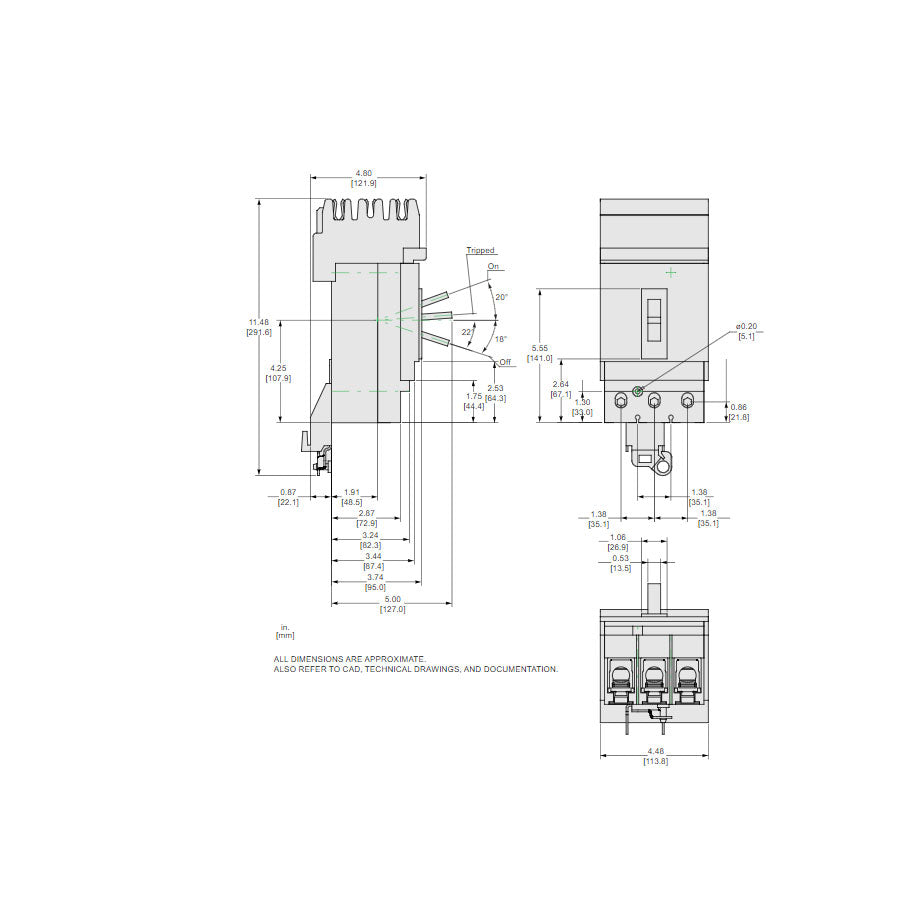

✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 3.24
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
The Square D JGA36250U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 250A amperage rating with a 35kA@480V AIC rating. This breaker uses a Plug In Panelboard connection and includes Solid State protection for reliable performance.
Key Features:
✔ Part Number: JGA36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: G
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901965749
✔ GTIN: 00785901965749
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 3.24
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
