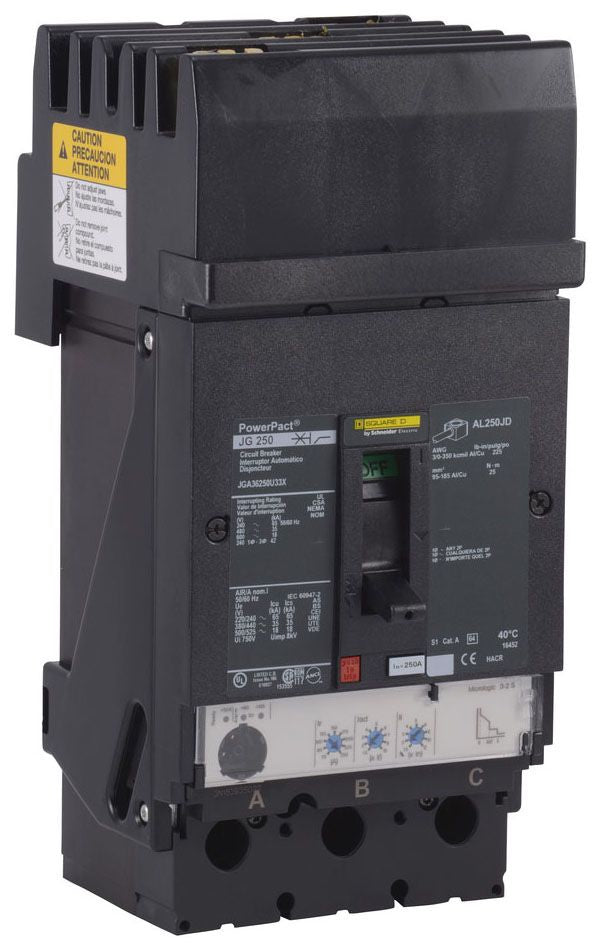

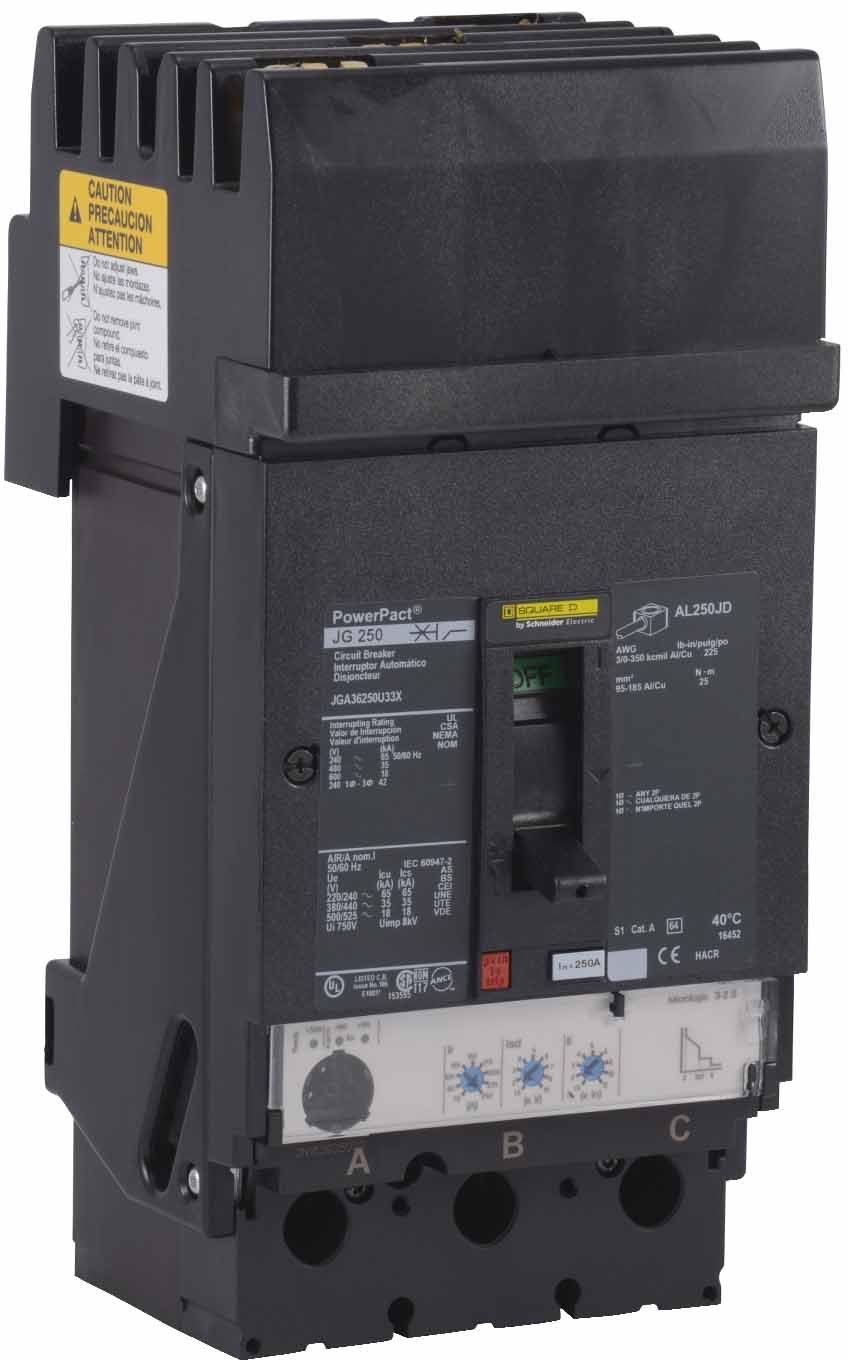

Square D JGA36250U33X Circuit Breaker | 600V 250A 3P 35kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JGA36250U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: JGA36250U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: G
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901104452
✔ GTIN: 00785901104452
✔ Country of Origin: United States

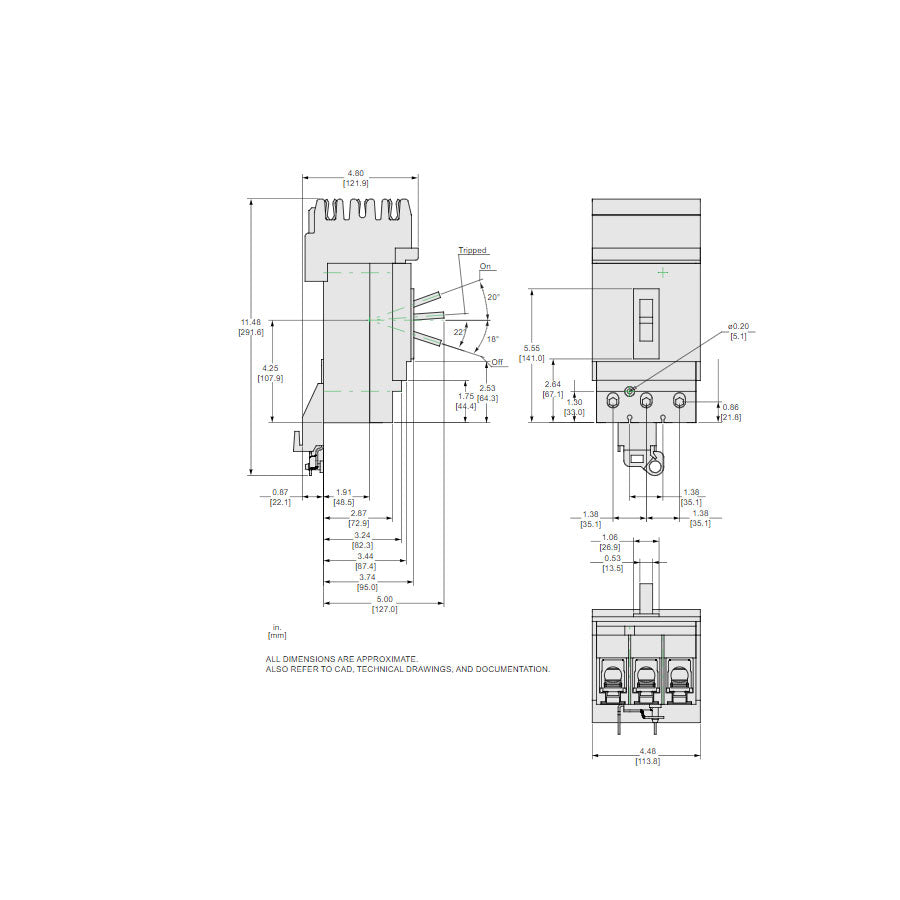

✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 3.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
