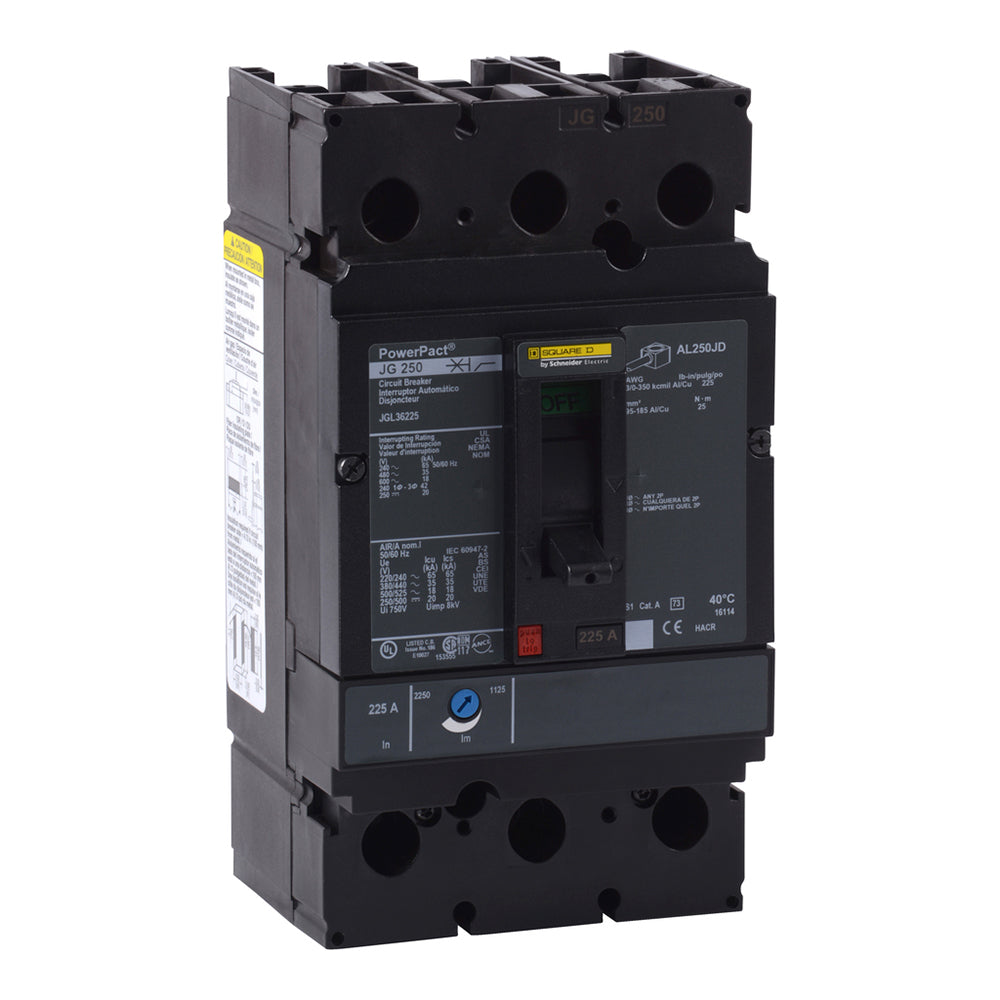

Square D JGL36175C Circuit Breaker | 600V 175A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D JGL36175C is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 175A rating and an AIC rating of 35kA@480V. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JGL36175C
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: CBA
✔ UPC: 785901583226
✔ Country of Origin: United States
✔ Dimensions: 104 mm x 191 mm
✔ Weight: 2.04
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
