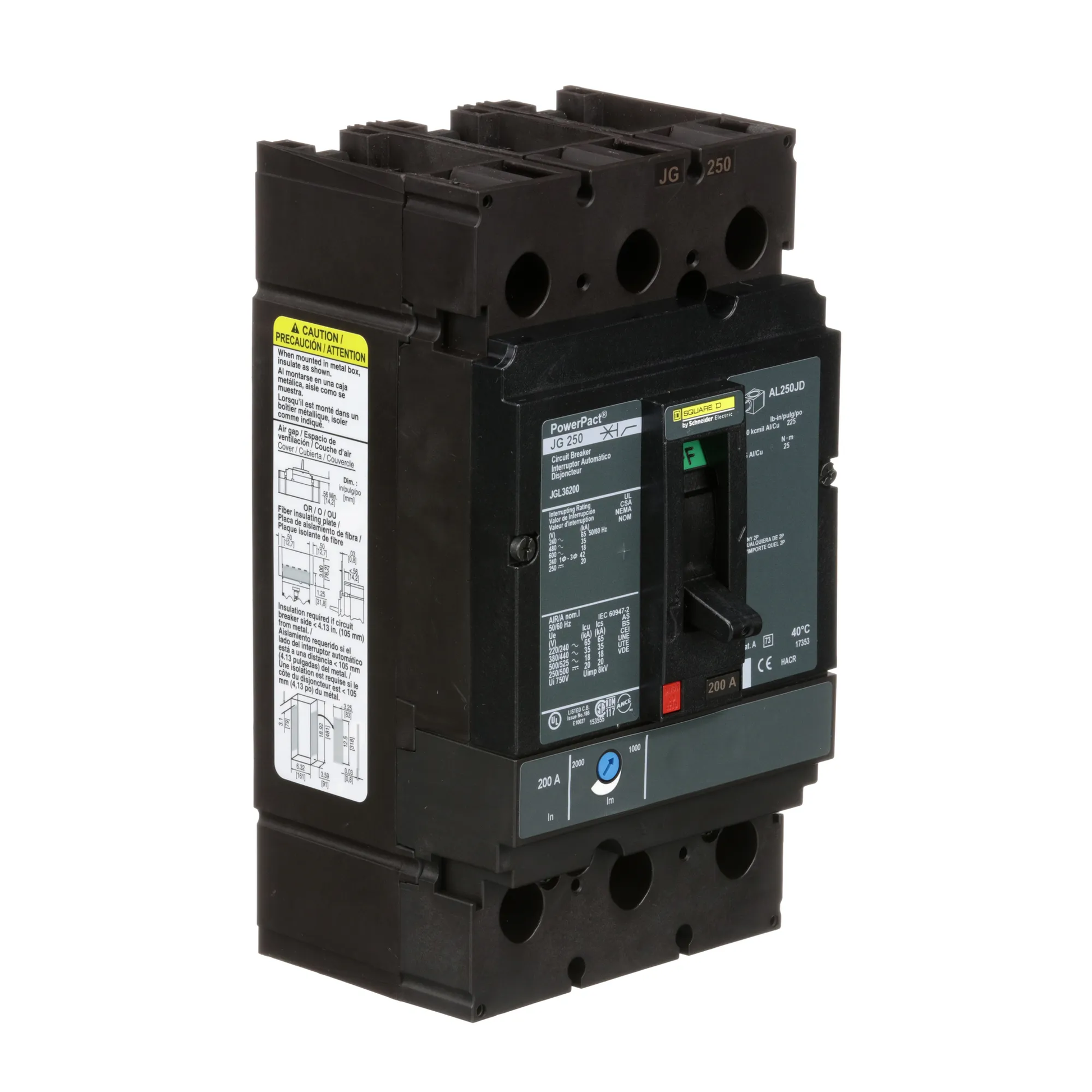

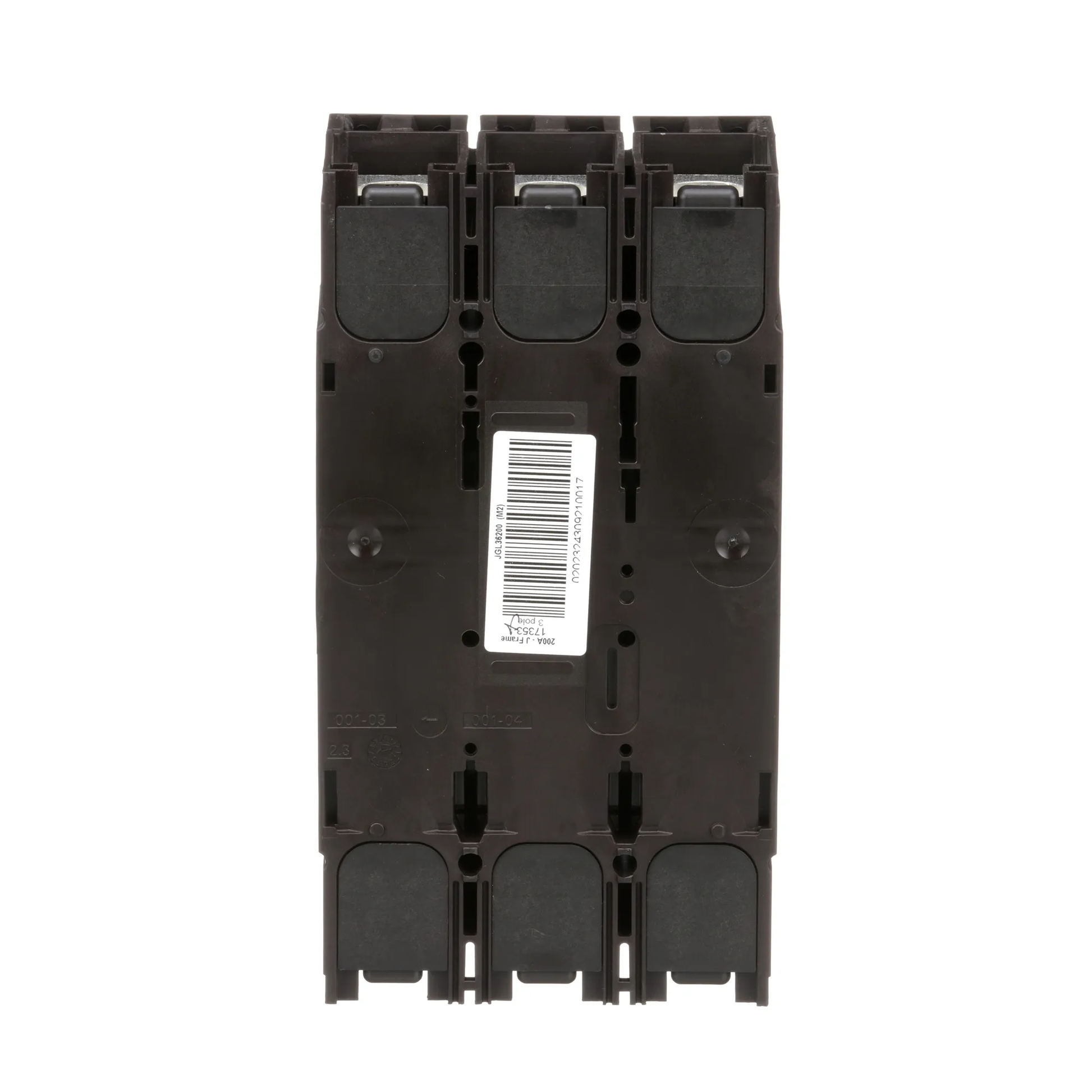

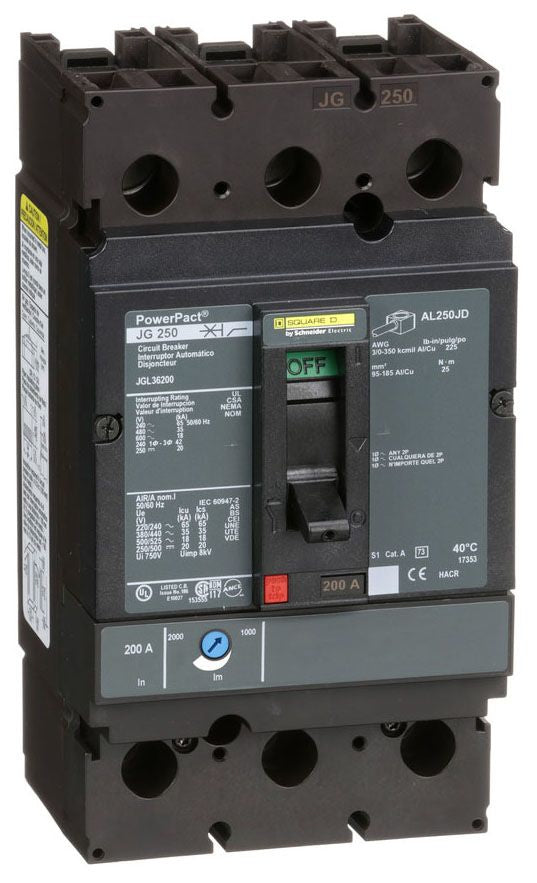

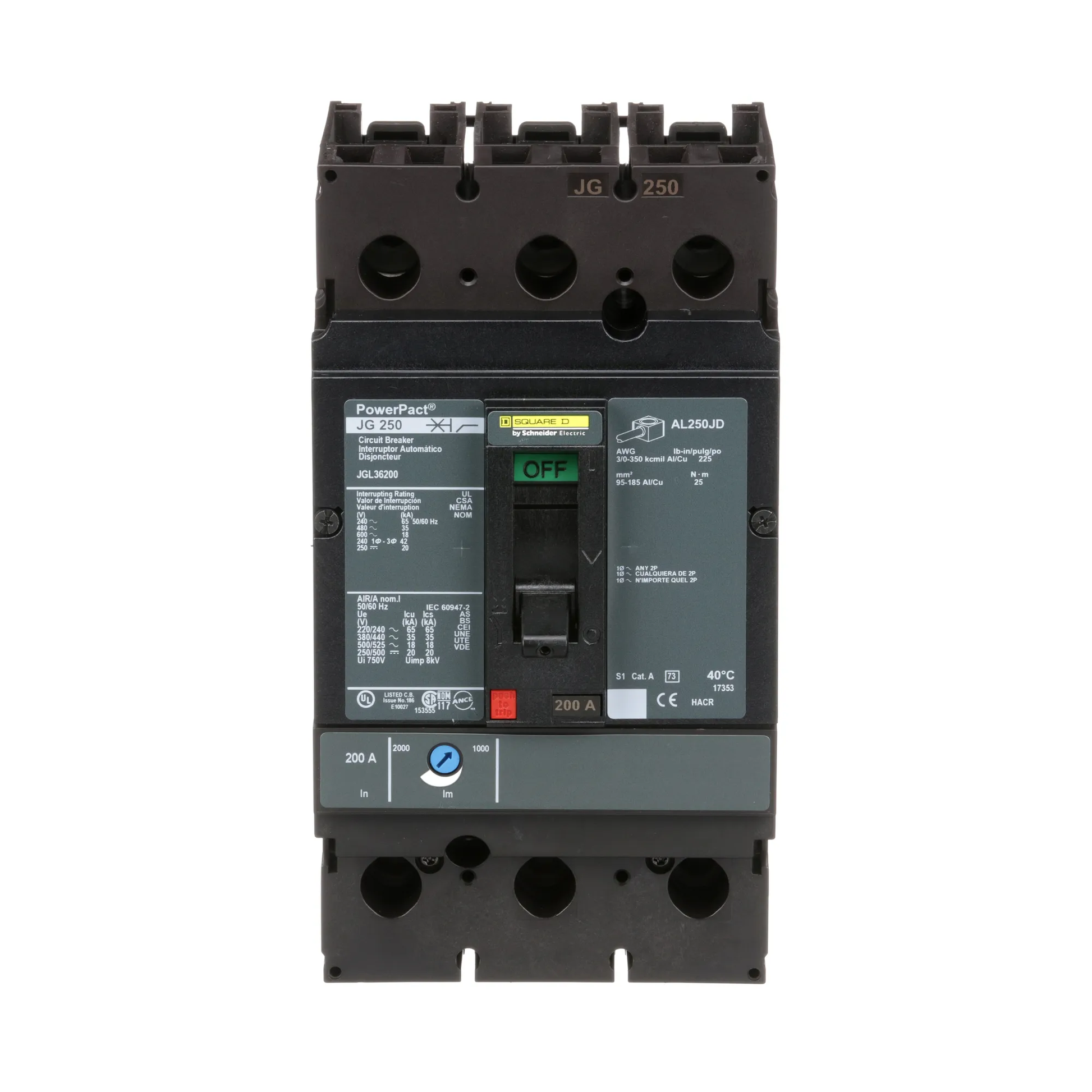

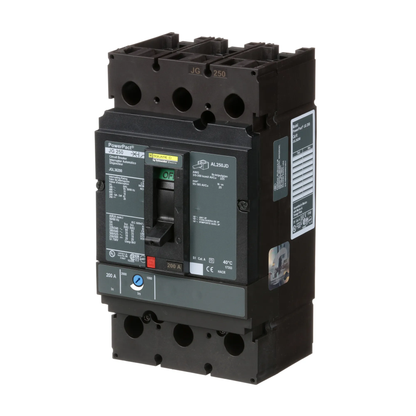

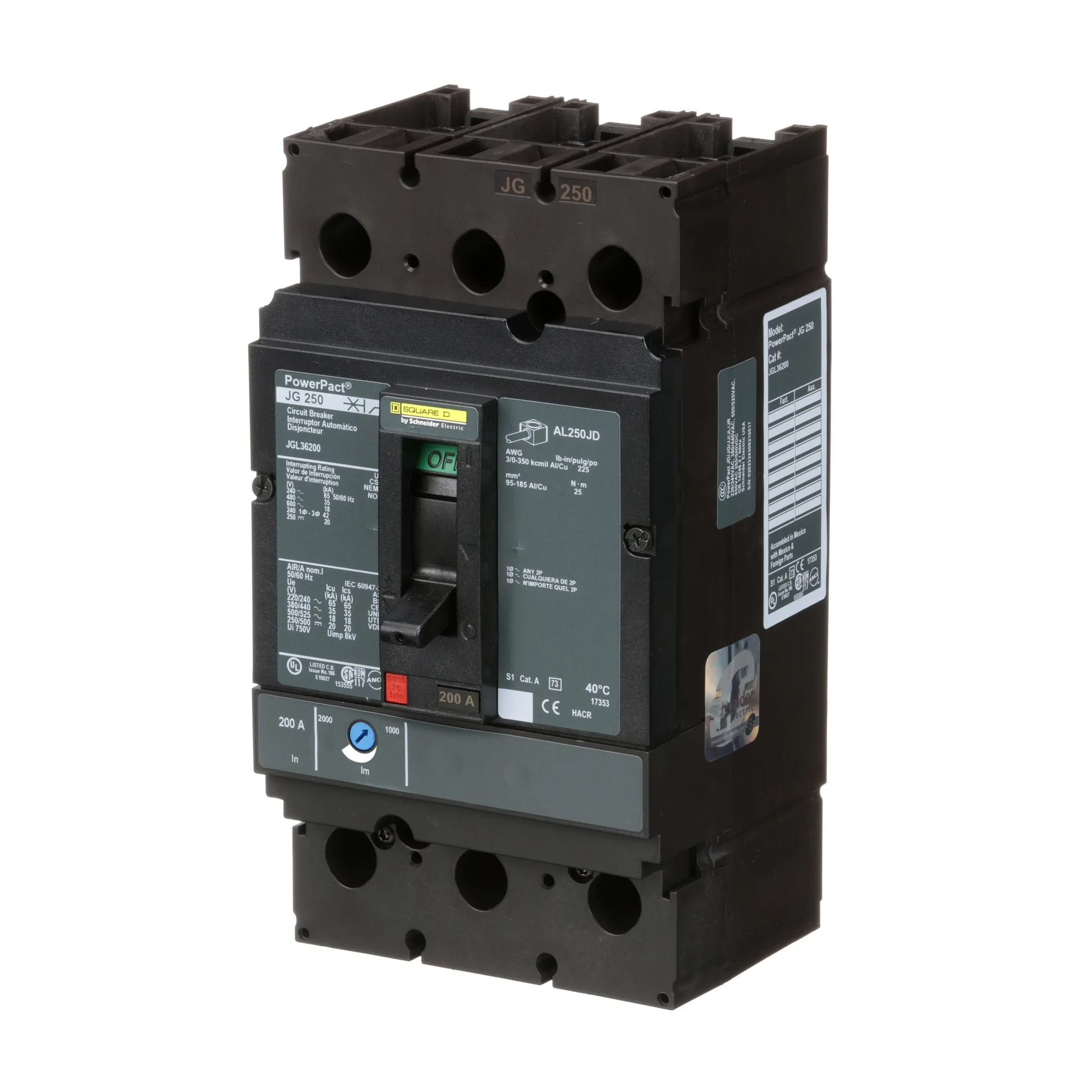

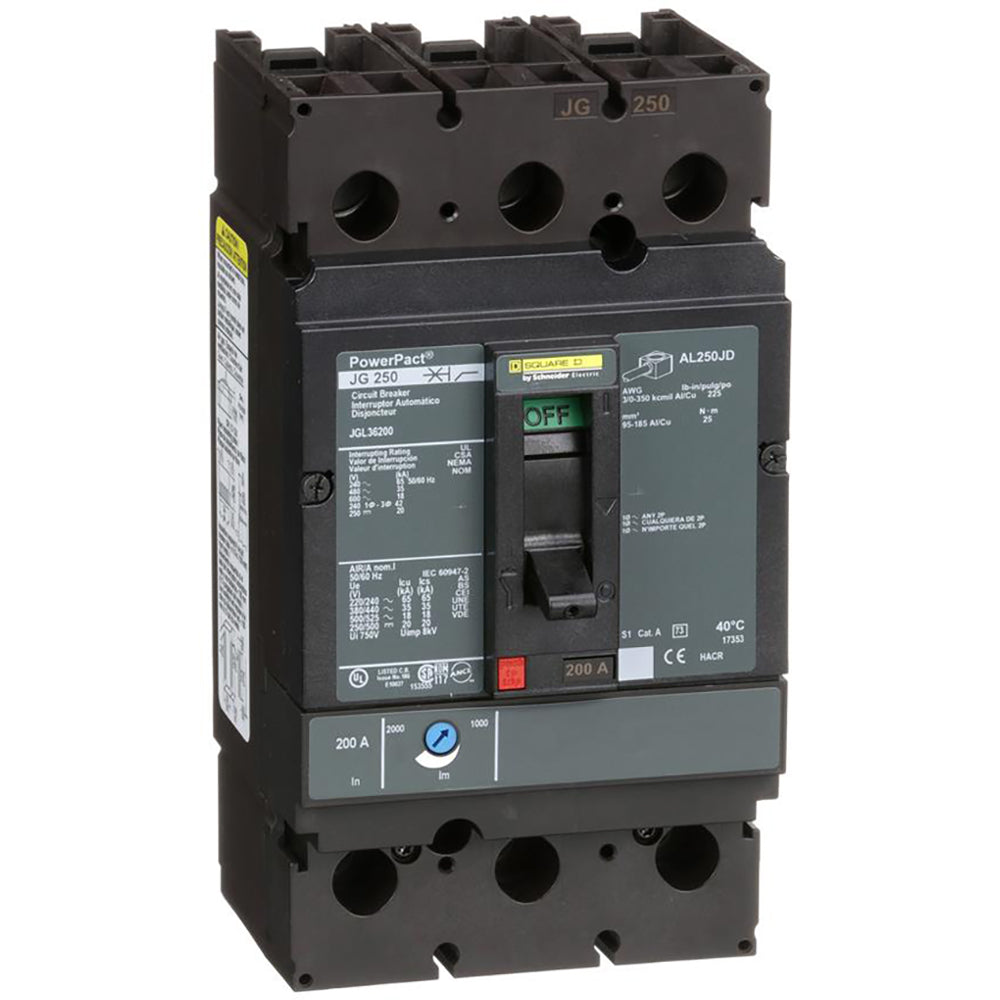

Square D JGL36200 Circuit Breaker | 600V 200A 3P 35kA@480V Feed-Thru Powerpact
Square D JGL36200 Circuit Breaker | 600V 200A 3P 35kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,381.79 USD
Regular price
$3,779.00 USD
Sale price
$1,381.79 USD
Unit price
per
Shipping calculated at checkout.
Stock:
59 in stock
Couldn't load pickup availability
Product Description:
The Square D JGL36200 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 200 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This model features Thermal Magnetic protection and a Feed-Thru connection for reliable performance.
Key Features:
✔ Part Number: JGL36200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 3 AWG Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901683216
✔ GTIN: 00785901683216
✔ Country of Origin: Mexico

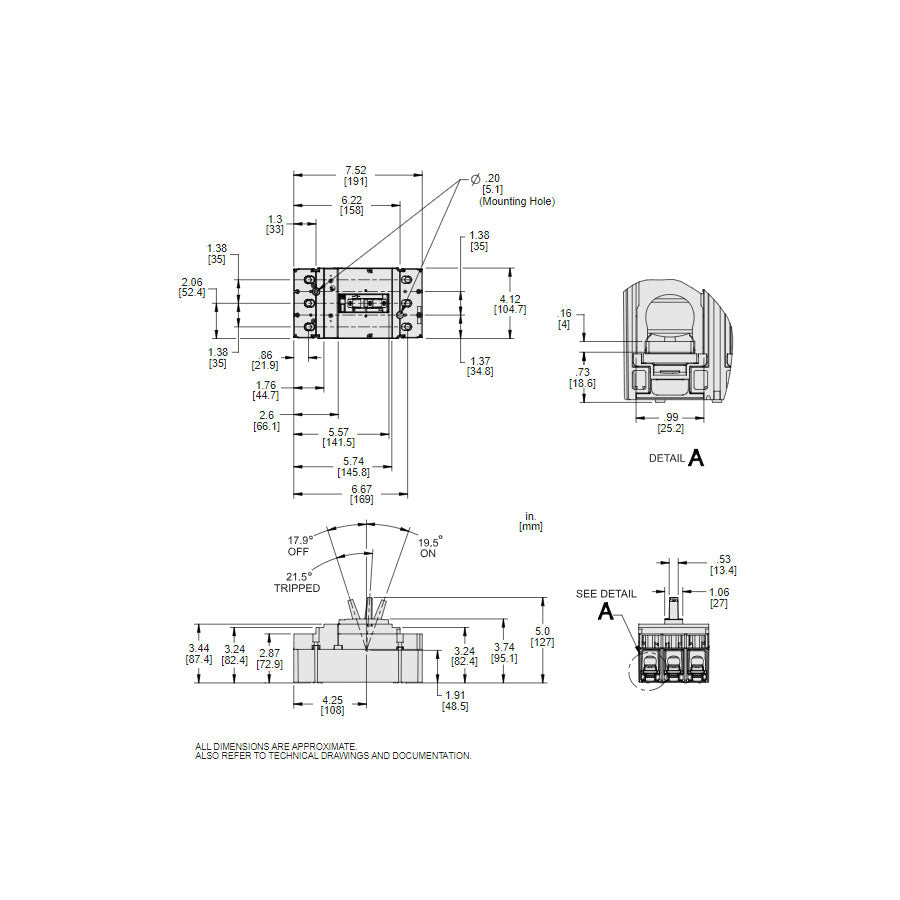

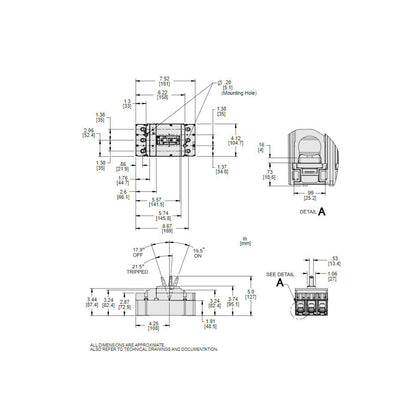

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.18
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
The Square D JGL36200 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 200 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This model features Thermal Magnetic protection and a Feed-Thru connection for reliable performance.
Key Features:
✔ Part Number: JGL36200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JG
✔ MCM Size: Min. Wire Size 3 AWG Max. Wire Size 350 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901683216
✔ GTIN: 00785901683216
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.18
✔ Panel Type: I Line Panelboards
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
