Square D

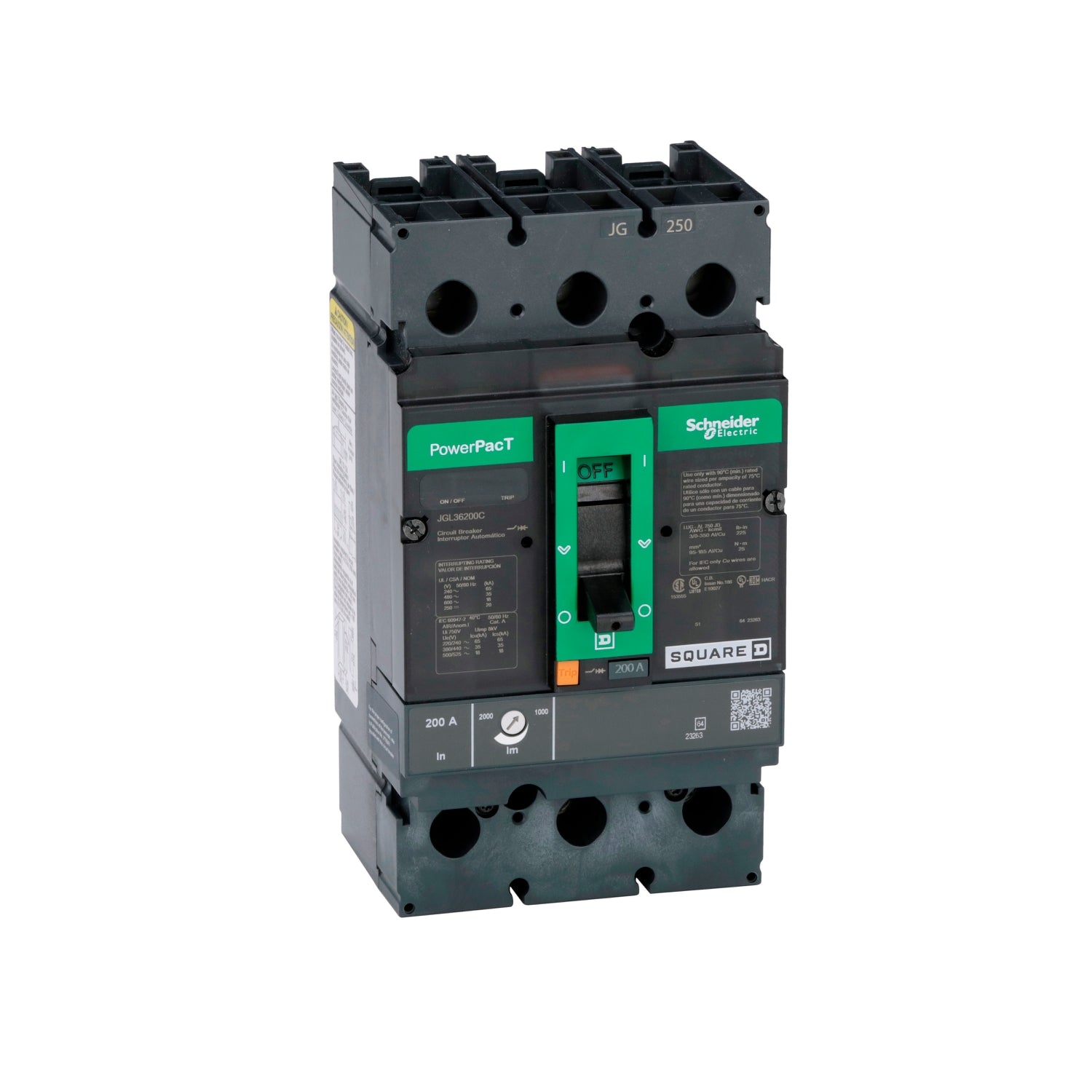

Square D JGL36200C Circuit Breaker | 600V 200A 3P Powerpact
Square D JGL36200C Circuit Breaker | 600V 200A 3P Powerpact
Price:
Sale
Sold out
Regular price
$0.00 USD
Regular price
$4,535.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Couldn't load pickup availability
Product Description:
The Square D PowerPact JGL molded case circuit breaker is designed for three-phase electrical distribution applications. It provides 600V and 200A capacity with thermal-magnetic protection and long-time/instantaneous functions. The unit-mount, feed-thru breaker features lug terminal connections and supports copper or aluminum conductors.
Key Features:
Manufacturer: Schneider Electric
Brand: Square D
Item Subcategory: Molded Case
Family: Powerpact
Type: JGL
Voltage Rating: 600V
Current Rating: 200A
Phase: 3
Poles: 3
AIC rating: 35kA@480V
Connection: Feed-Thru
Functions: LI - Long-Time and Instantaneous
Terminal Connection: Lug
Frame Size: J
Temp Rating: 28°F to 158°F (-2°C to 70°C)
MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
Circuit Breaker Mounting Style: Unit Mount
Protection: Thermal Magnetic
The Square D PowerPact JGL molded case circuit breaker is designed for three-phase electrical distribution applications. It provides 600V and 200A capacity with thermal-magnetic protection and long-time/instantaneous functions. The unit-mount, feed-thru breaker features lug terminal connections and supports copper or aluminum conductors.
Key Features:
Manufacturer: Schneider Electric
Brand: Square D
Item Subcategory: Molded Case
Family: Powerpact
Type: JGL
Voltage Rating: 600V
Current Rating: 200A
Phase: 3
Poles: 3
AIC rating: 35kA@480V
Connection: Feed-Thru
Functions: LI - Long-Time and Instantaneous
Terminal Connection: Lug
Frame Size: J
Temp Rating: 28°F to 158°F (-2°C to 70°C)
MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
Circuit Breaker Mounting Style: Unit Mount
Protection: Thermal Magnetic
