Square D

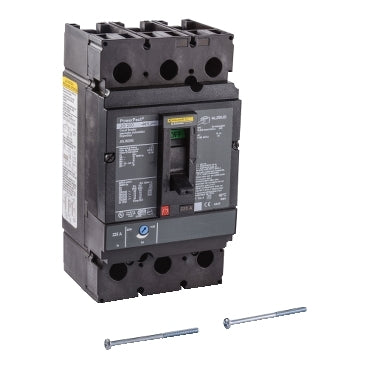

Square D JGL36225C Circuit Breaker | 600V 225A 3P 35kA@480V Bolt-On Powerpact JGL
Square D JGL36225C Circuit Breaker | 600V 225A 3P 35kA@480V Bolt-On Powerpact JGL
Price:
Sale
Sold out
Regular price
$1,758.57 USD
Regular price
$4,535.00 USD
Sale price
$1,758.57 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Couldn't load pickup availability
Product Description:
The Square D JGL36225C is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 225 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation. It is designed for reliable circuit protection in industrial and commercial applications.
Key Features:
✔ Part Number: JGL36225C
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901668510
✔ GTIN: 00785901668510
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.21
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
The Square D JGL36225C is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 225 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation. It is designed for reliable circuit protection in industrial and commercial applications.
Key Features:
✔ Part Number: JGL36225C
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901668510
✔ GTIN: 00785901668510
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.21
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
