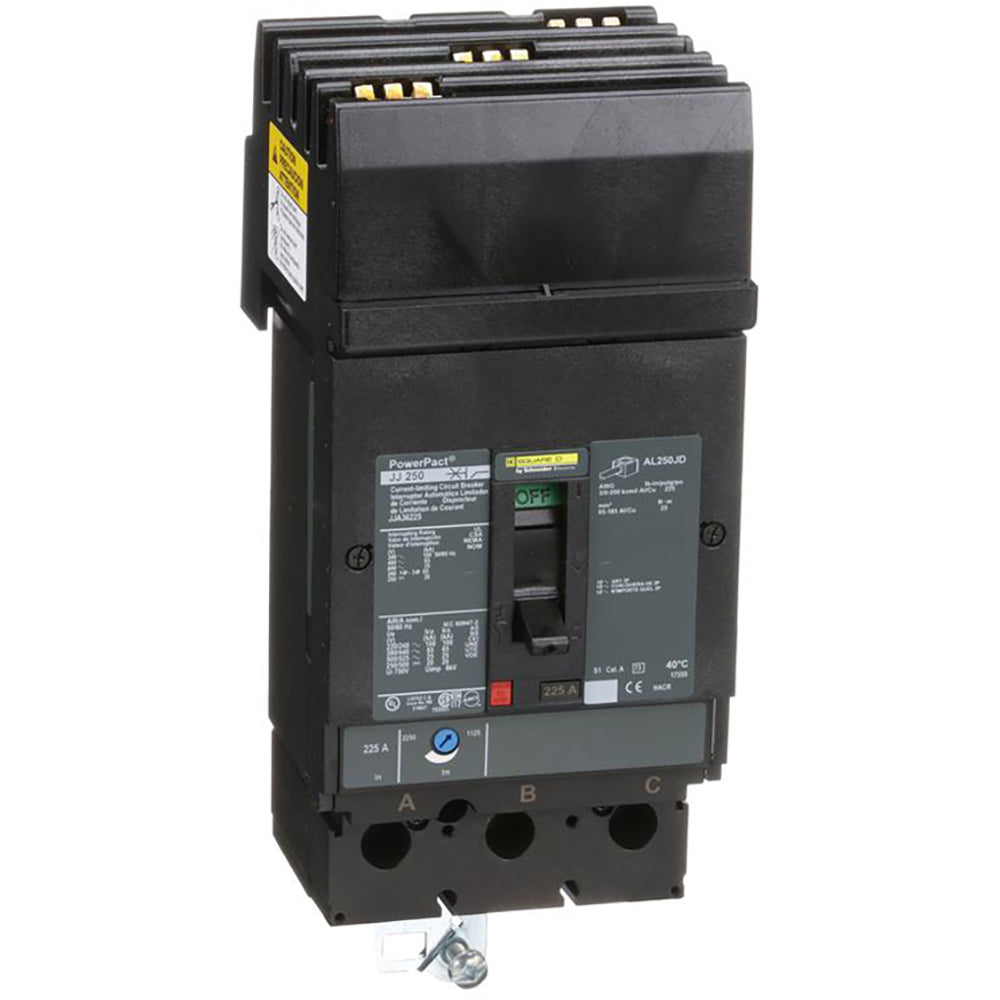

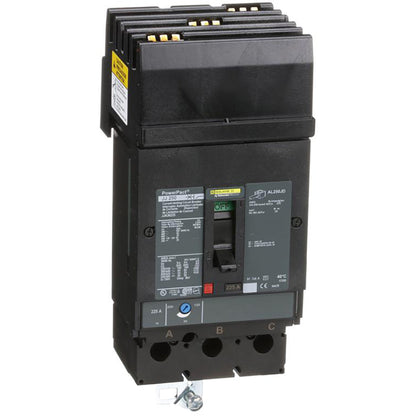

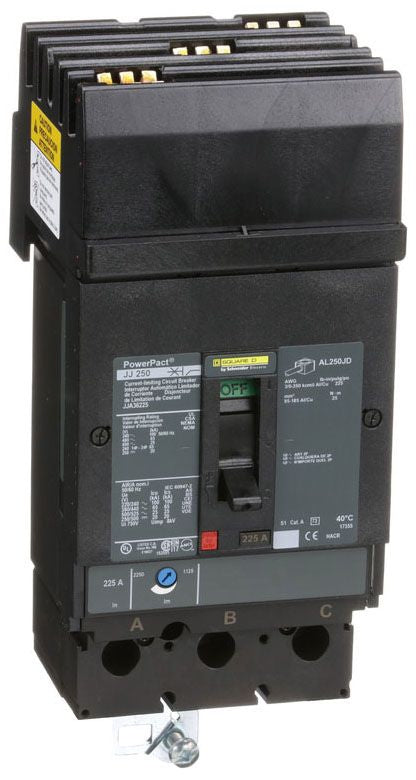

Square D JJA36225 Circuit Breaker | 600V 225A 3P 65kA@480V I-Line Style Plug-In Powerpact
Square D JJA36225 Circuit Breaker | 600V 225A 3P 65kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$1,585.00 USD
Regular price
$5,705.00 USD
Sale price
$1,585.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
77 in stock
Couldn't load pickup availability
Product Description:
The Square D JJA36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JJA36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901795681
✔ GTIN: 00785901795681
✔ Country of Origin: Mexico

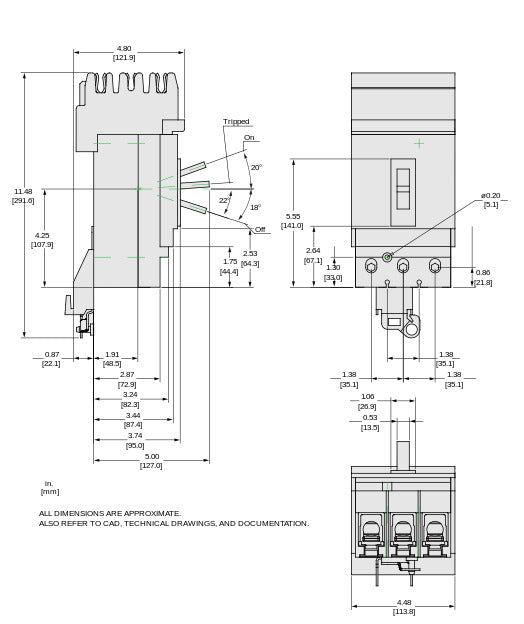

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 3.5 lb
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
