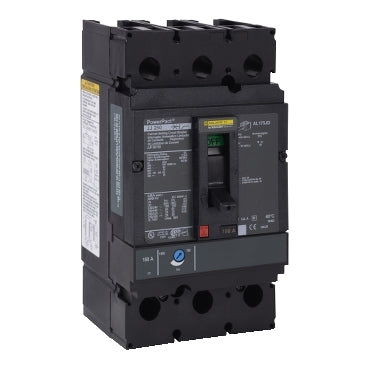

Square D JJL36175T Circuit Breaker | 600V 175A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D JJL36175T is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 175 amps, with an AIC rating of 65kA at 480V. This circuit breaker features Feed-Thru connections and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: JJL36175T
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901751175
✔ GTIN: 00785901751175
✔ Country of Origin: United States
✔ Dimensions: Height 7.52 in (191 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 4.5
✔ Certification: CCC-UL LISTED-CE-IEC-CSA
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
