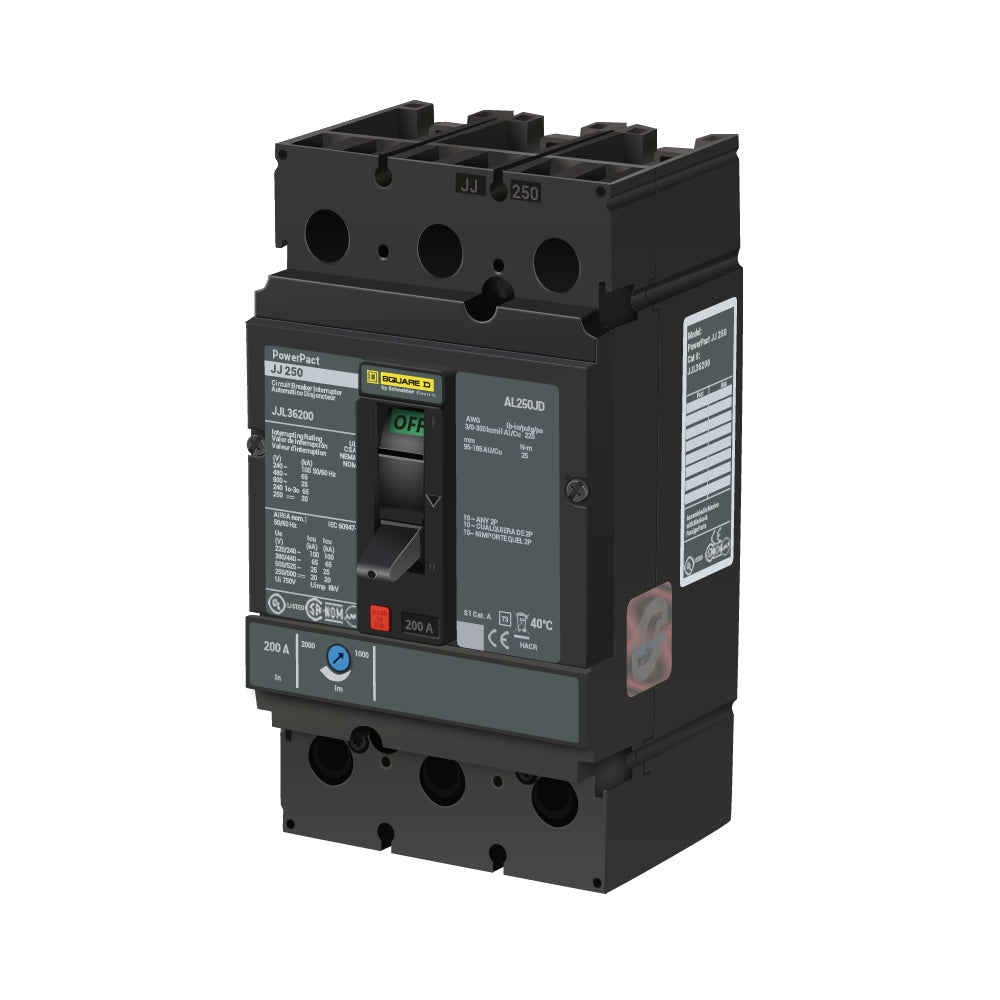

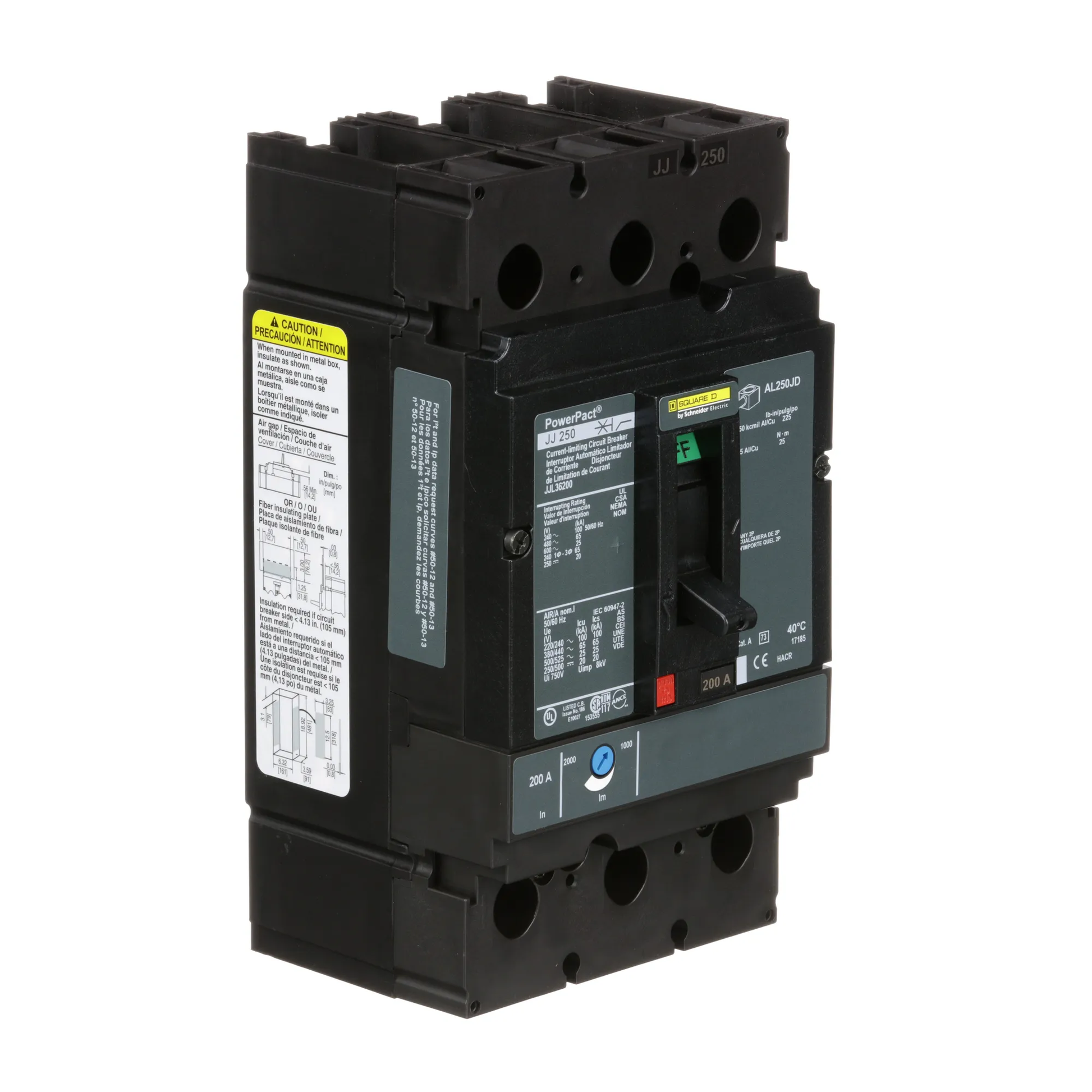

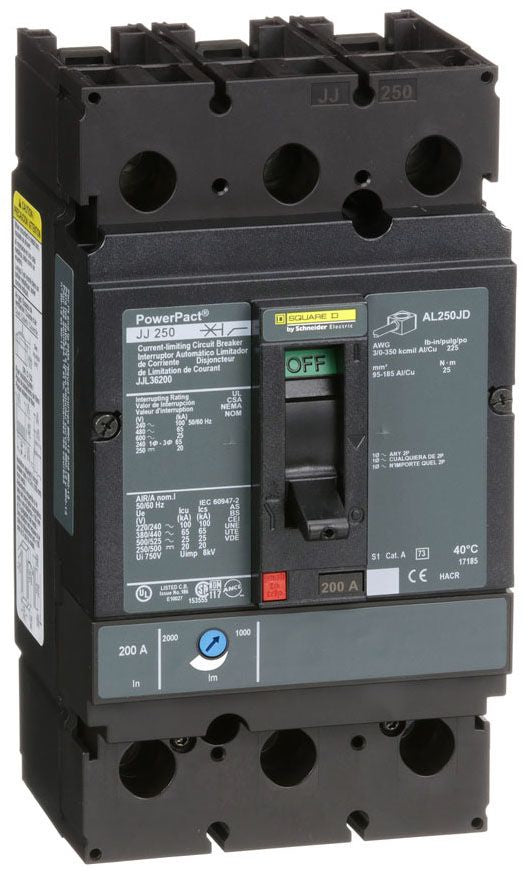

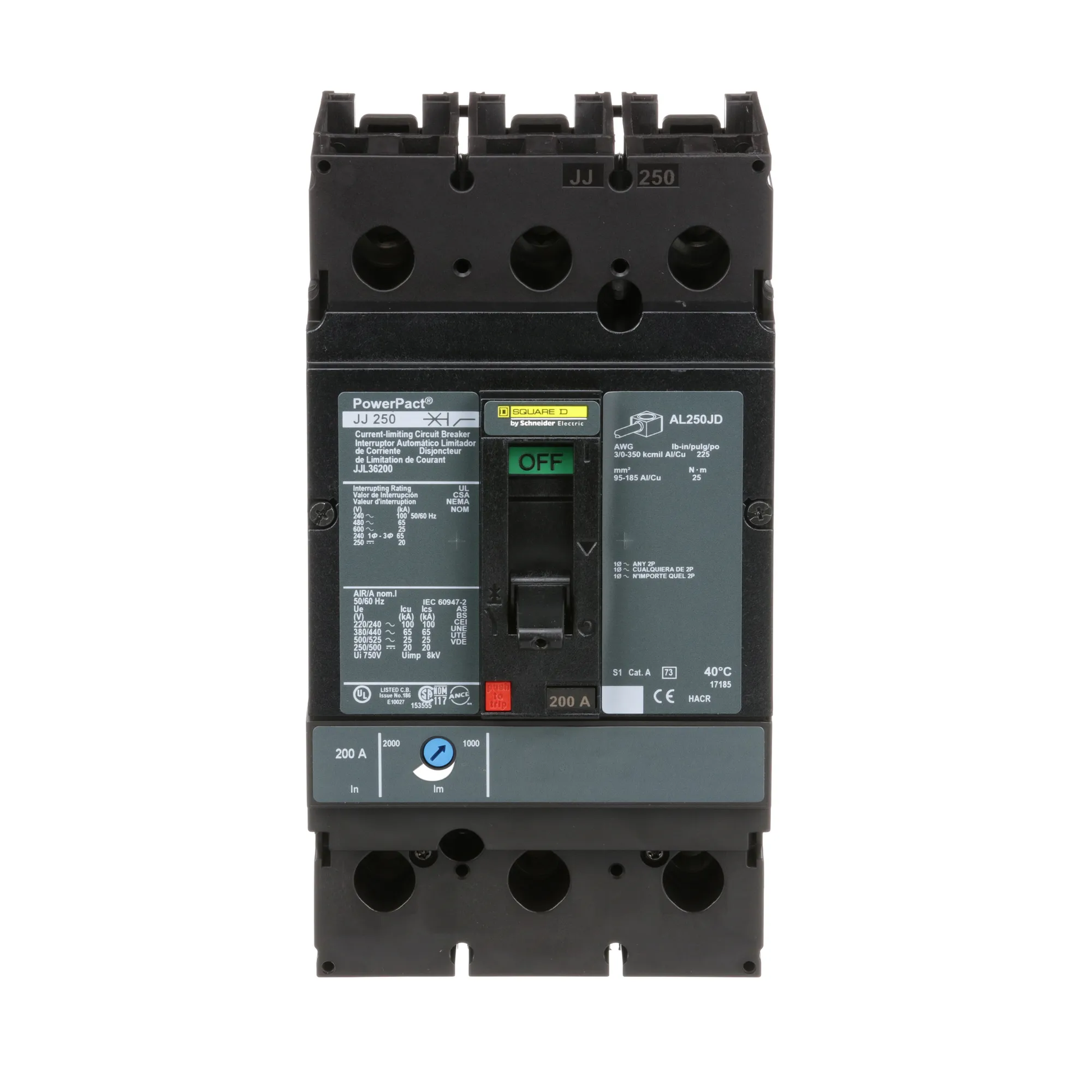

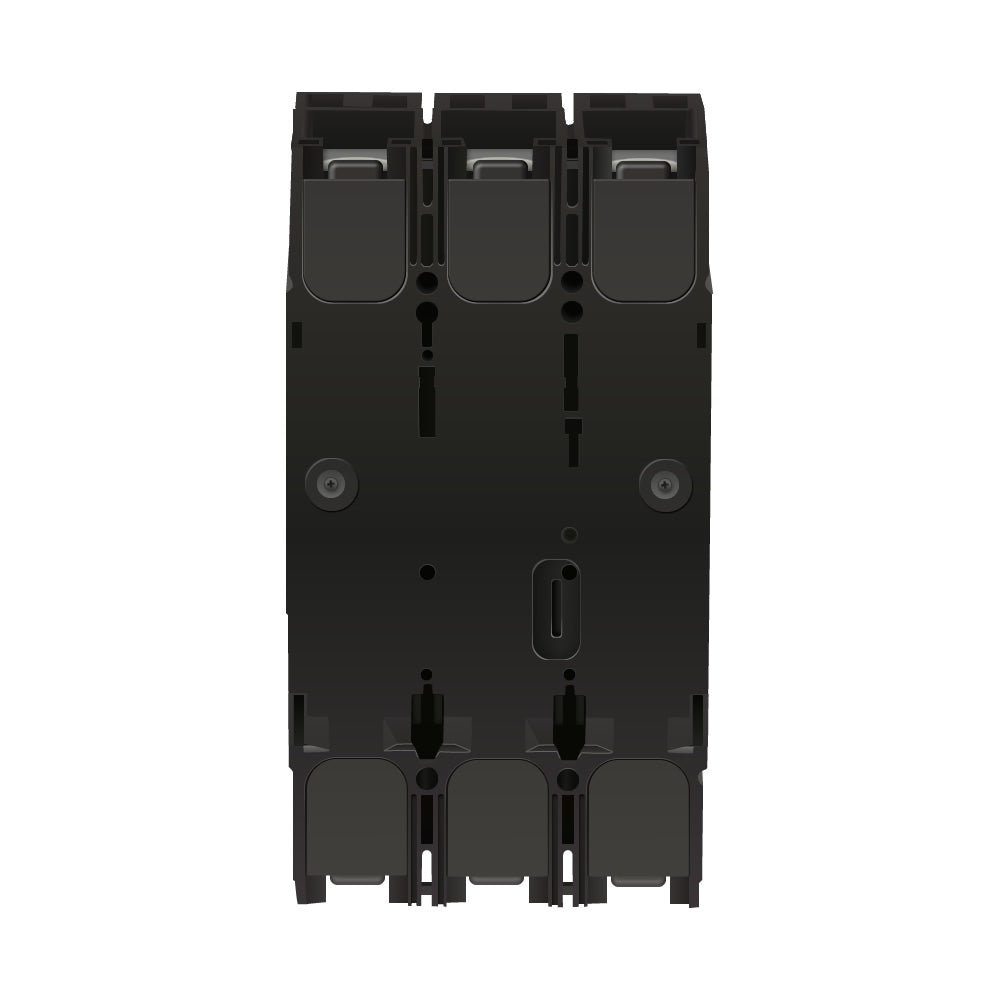

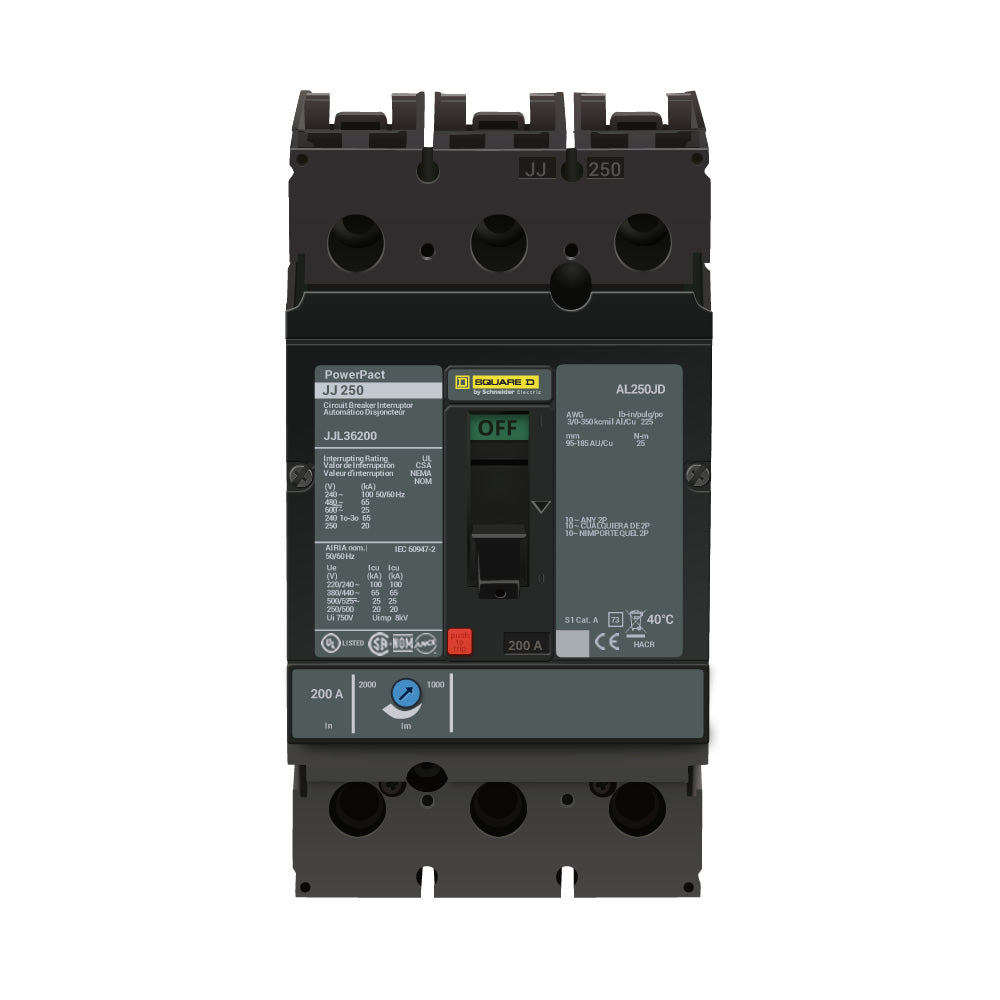

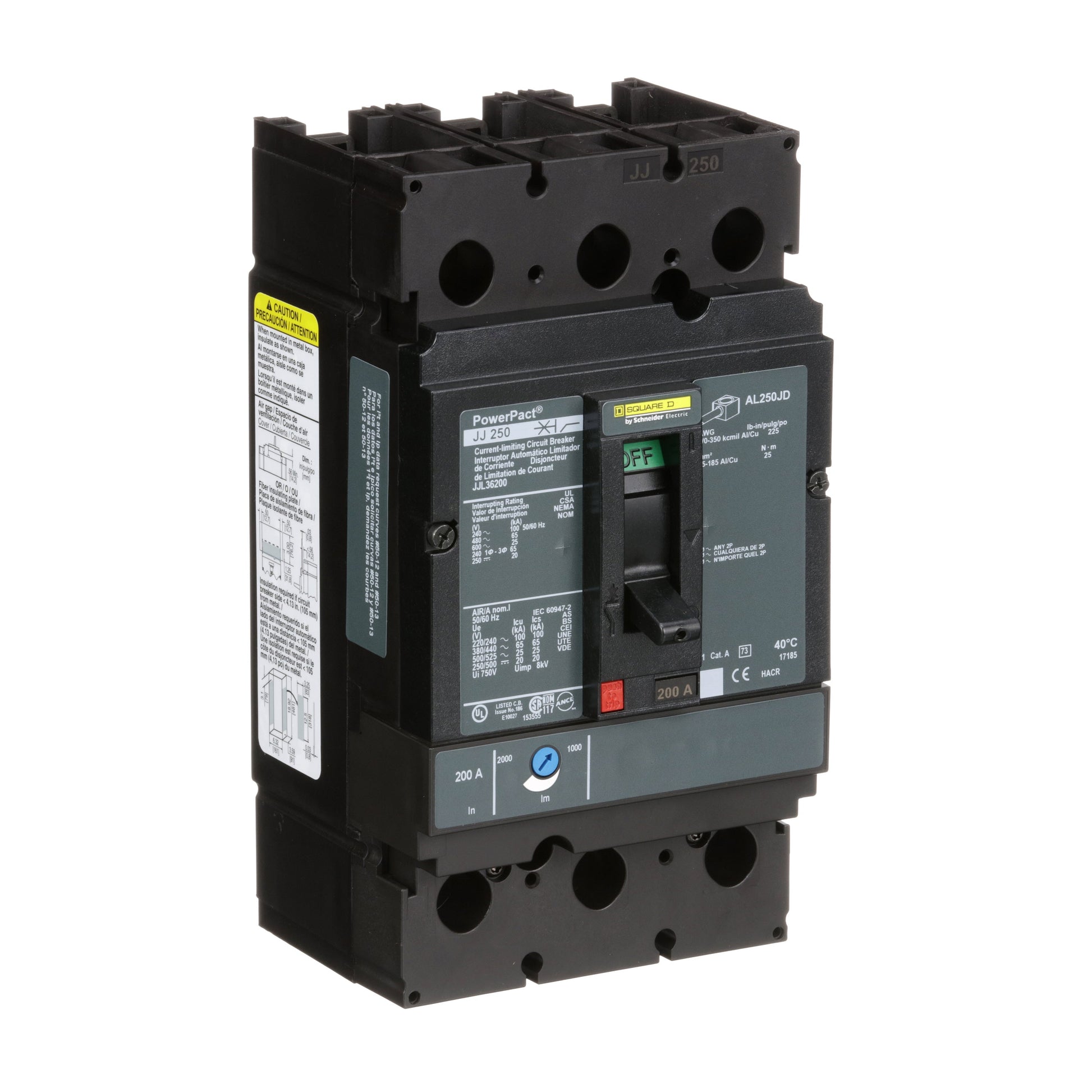

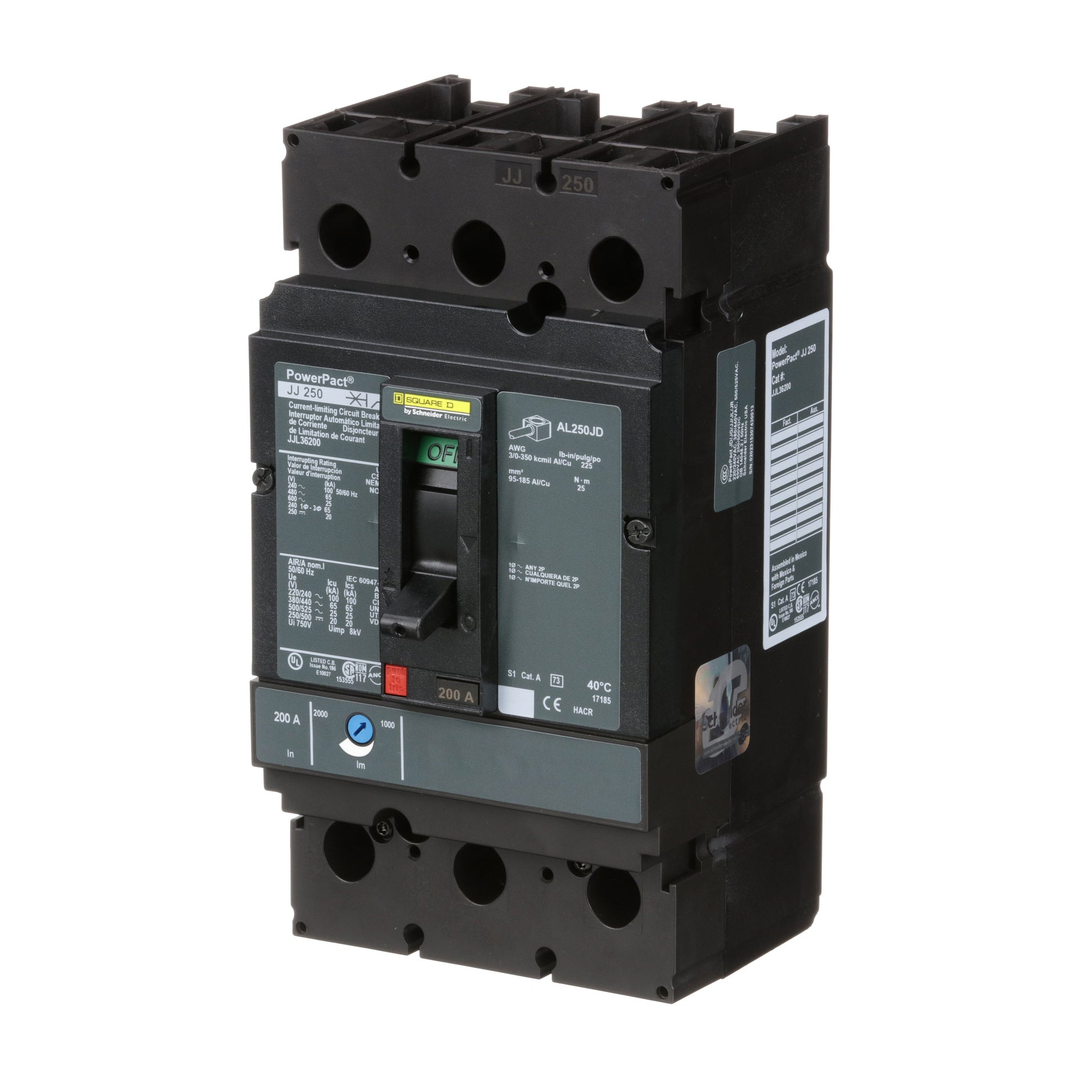

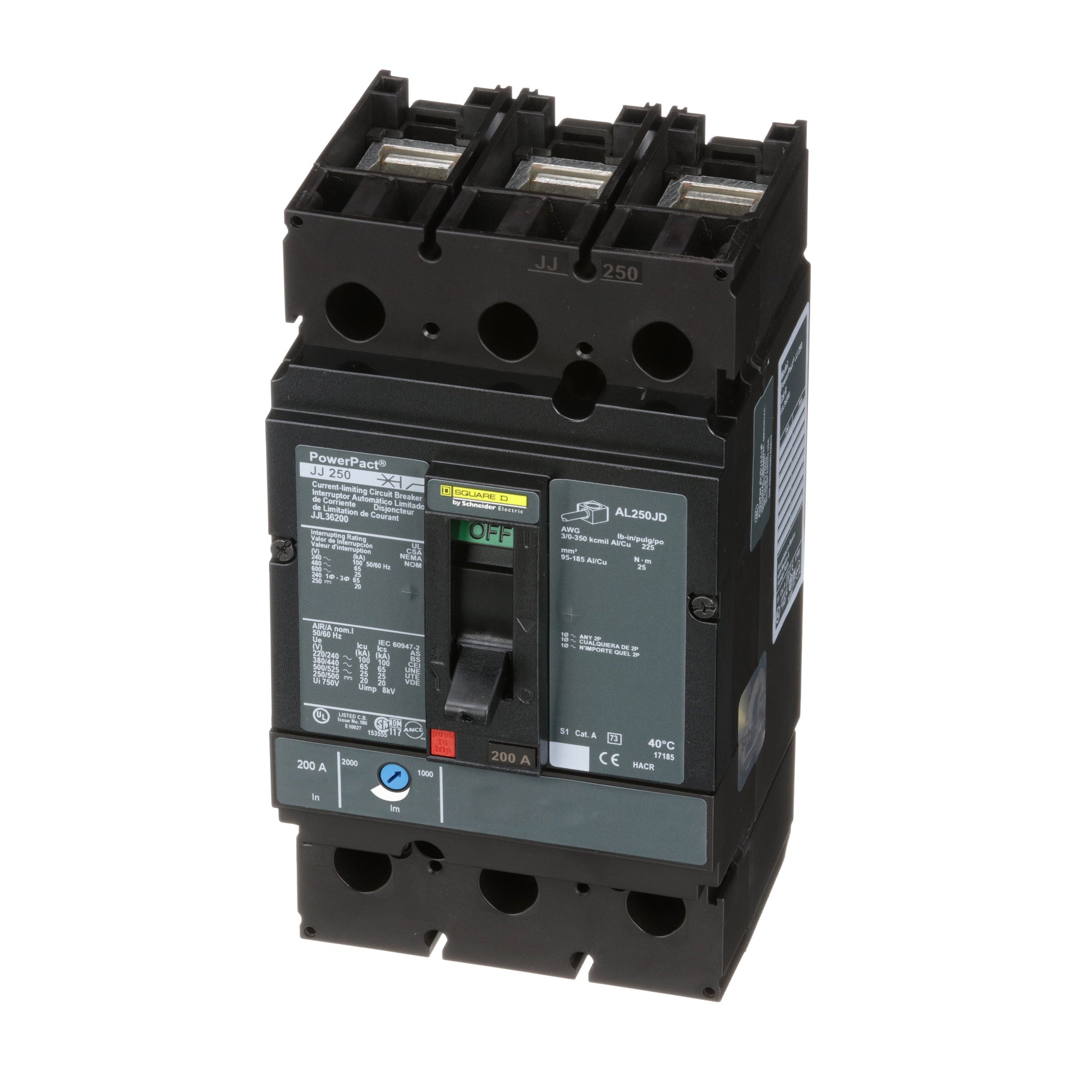

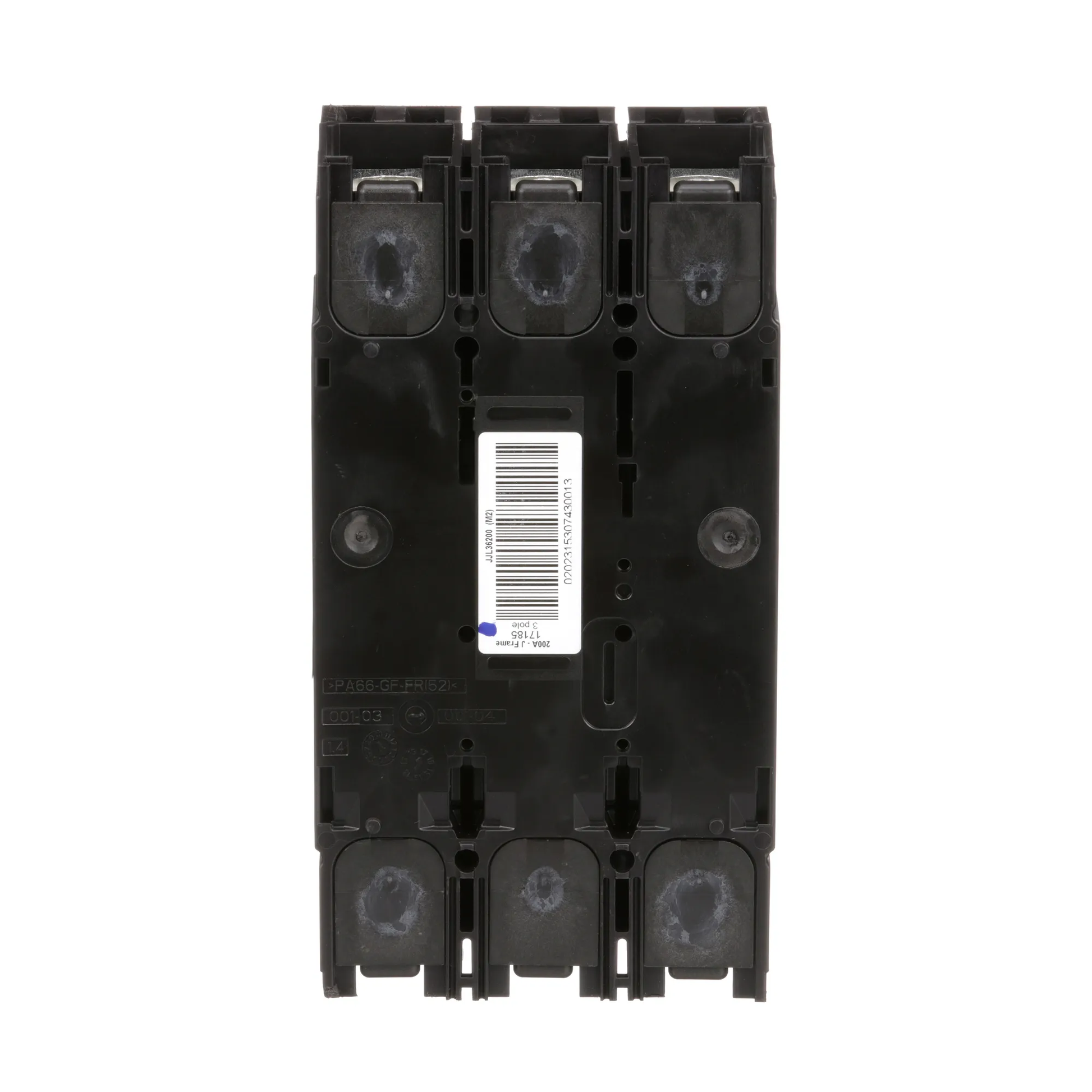

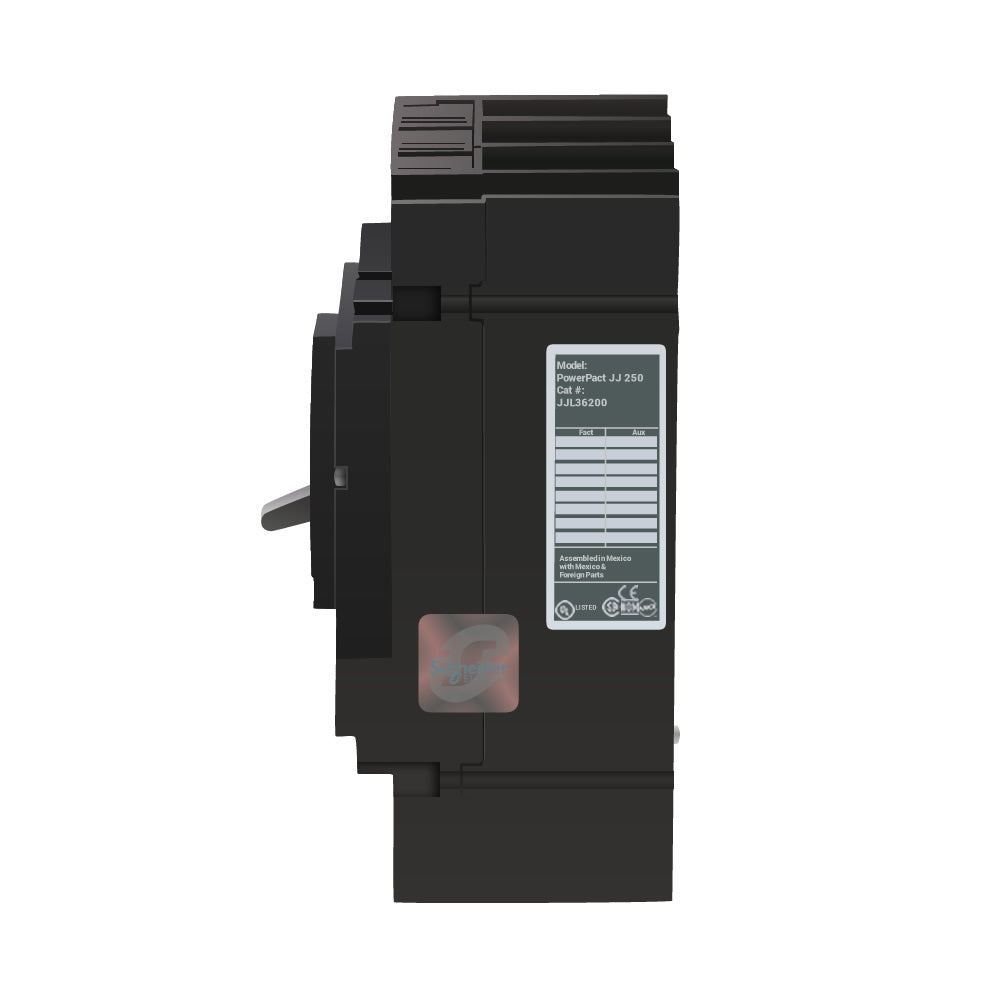

Square D JJL36200 Circuit Breaker | 600V 200A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D JJL36200 is a Powerpact family molded case circuit breaker designed for reliable electrical protection. It is a 3-pole, 200 amp breaker rated for 600 volts with a 65kA interrupting capacity at 480V. This model features thermal magnetic protection and a feed-thru lug connection for straightforward installation.

Key Features:
✔ Part Number: JJL36200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901461937
✔ GTIN: 00785901461937
✔ Country of Origin: Mexico

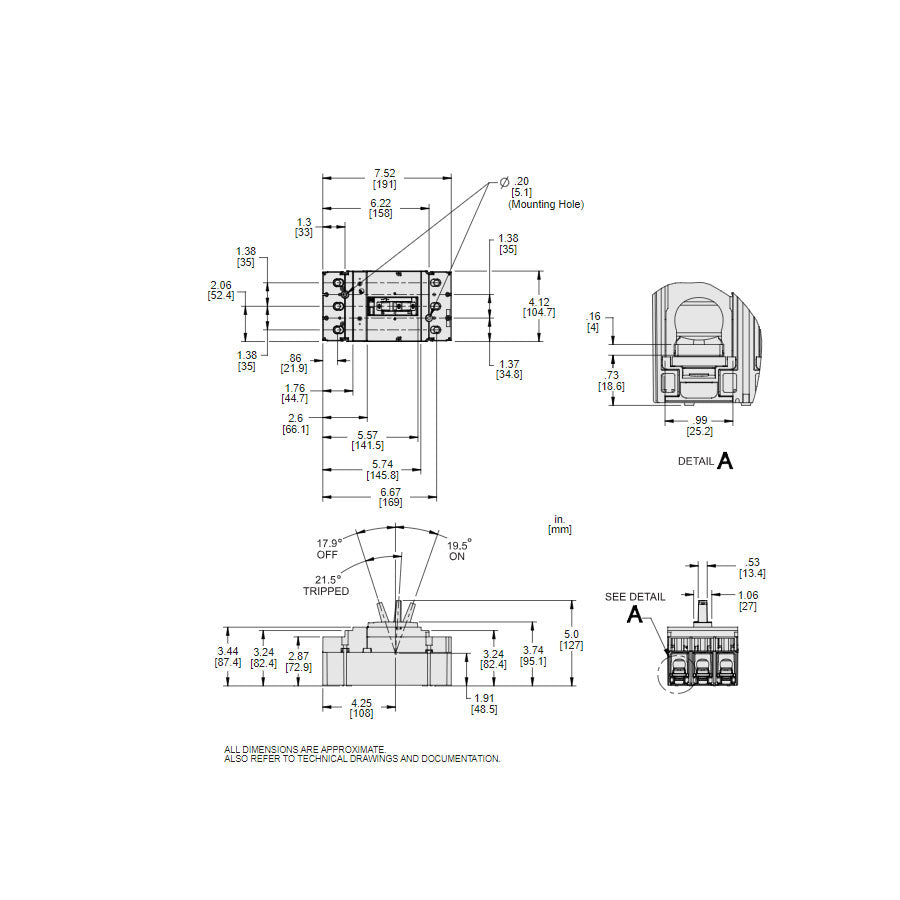

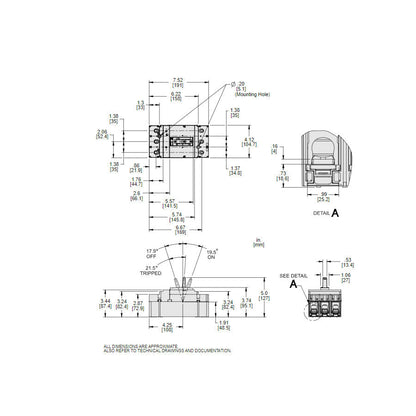

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.18
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
