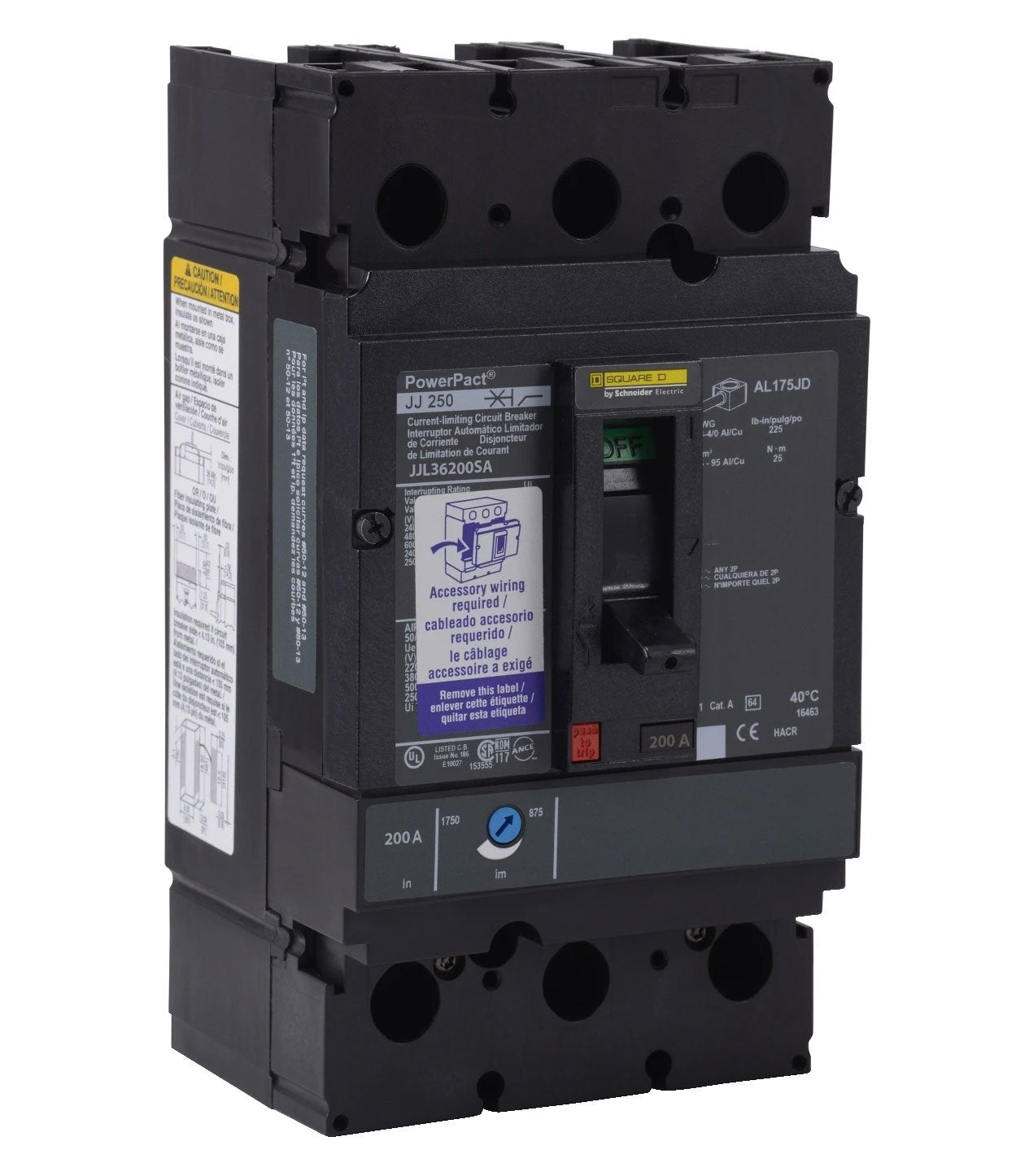

Square D JJL36200SA Circuit Breaker | 600V 200A 3P 65kA@480V Feed-Thru JJL Powerpact

Product Description:
The Square D JJL36200SA is a Molded Case Circuit Breaker from the Powerpact family, designed for robust electrical protection. It is a 3-pole, 200 amp breaker rated for 600 volts with an AIC rating of 65kA@480V. This model features a feed-thru connection and thermal magnetic protection for reliable performance. It is also complete with a 110Vac shunt trip.

Key Features:
✔ Part Number: JJL36200SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901583561
✔ GTIN: 00785901583561
✔ Country of Origin: United States
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
