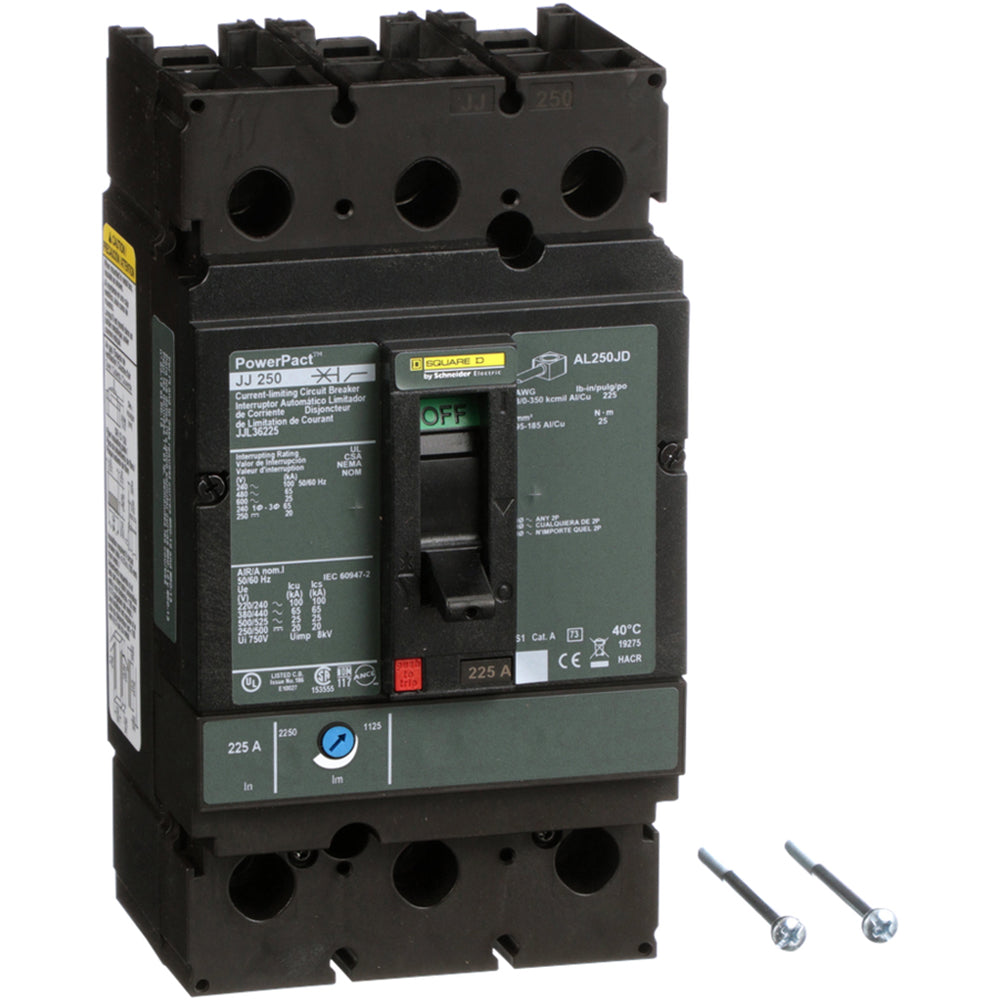

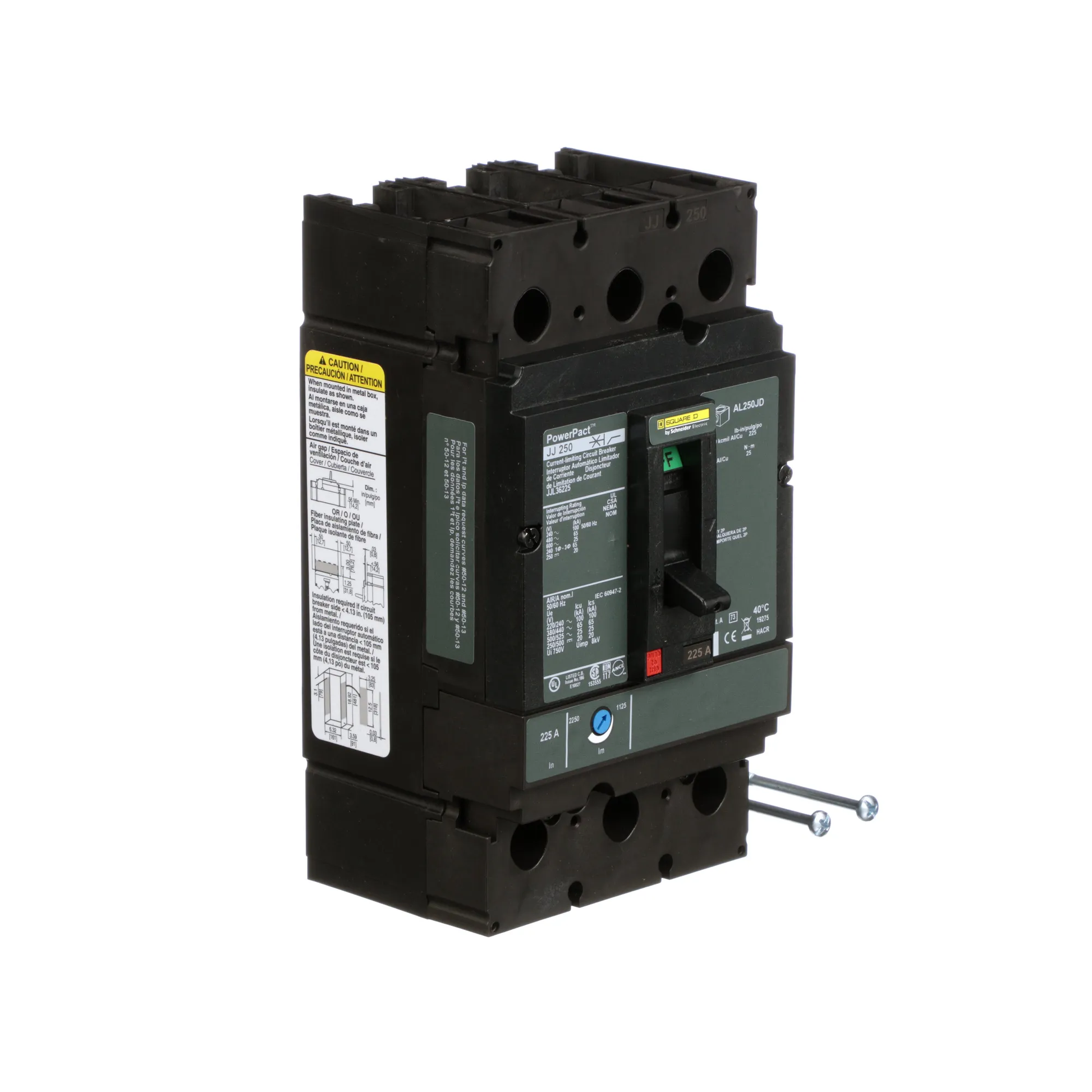

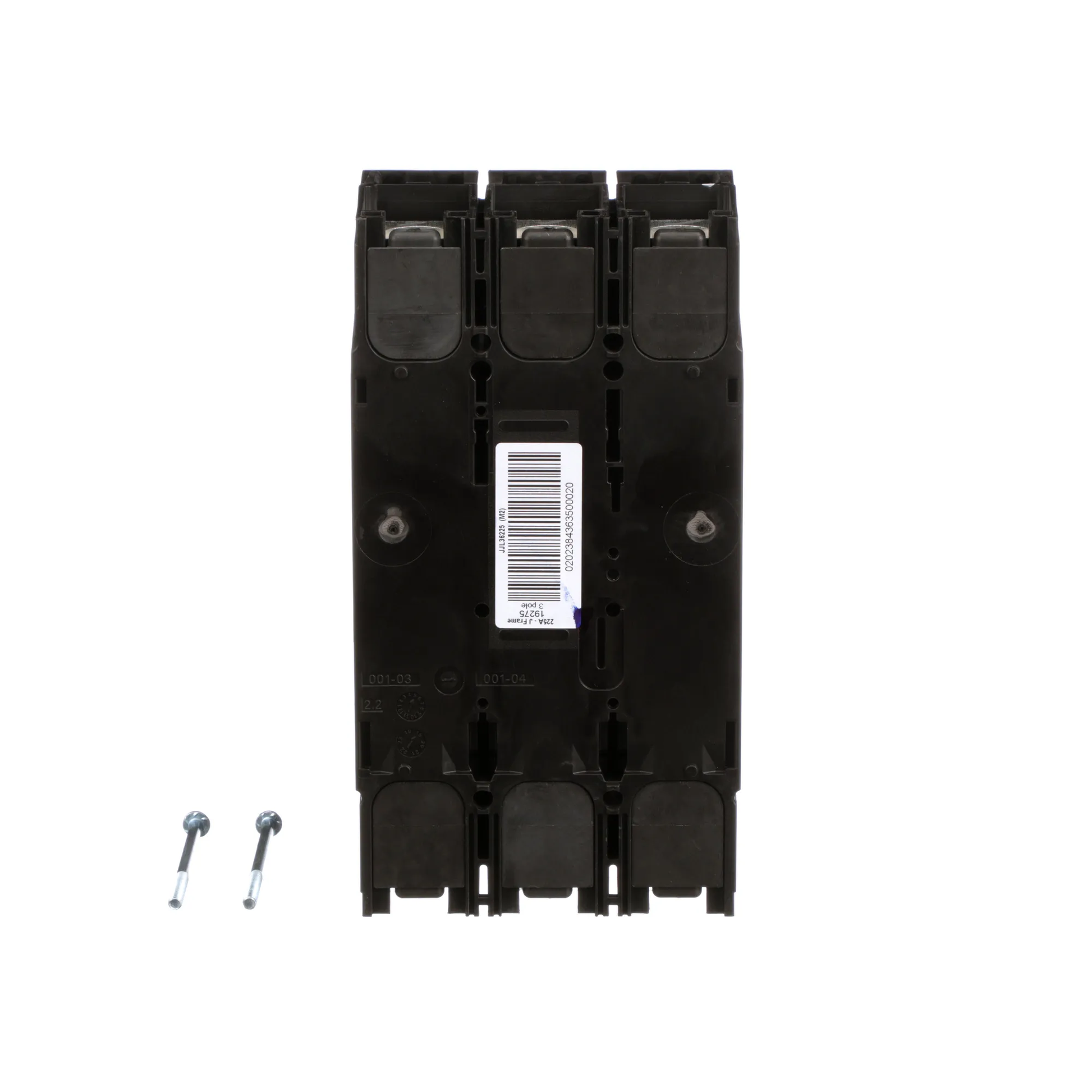

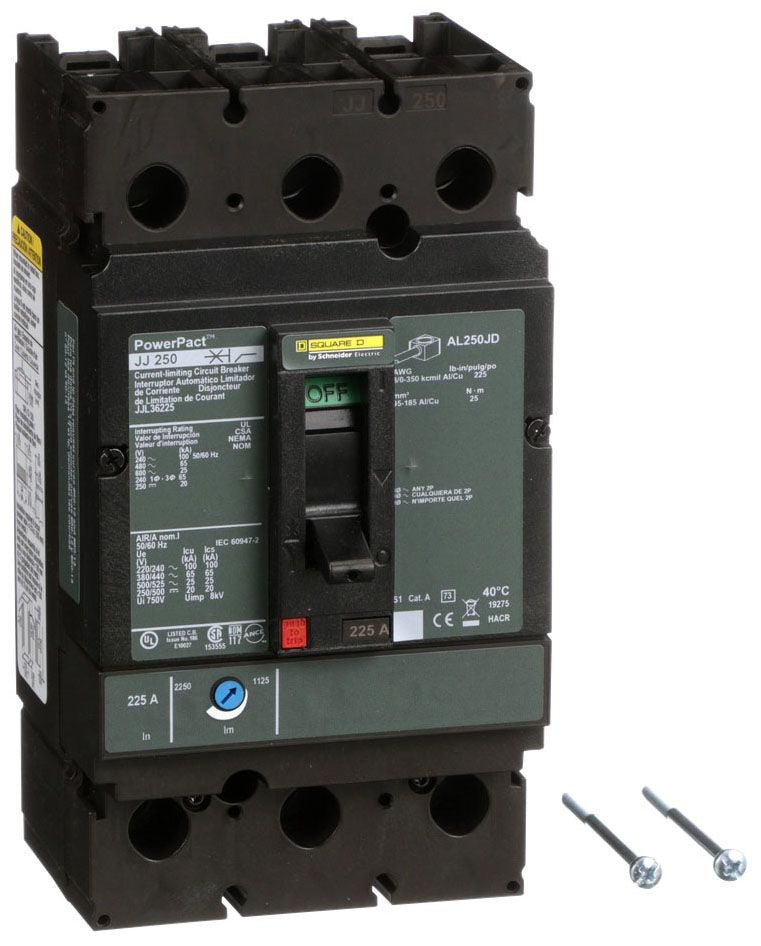

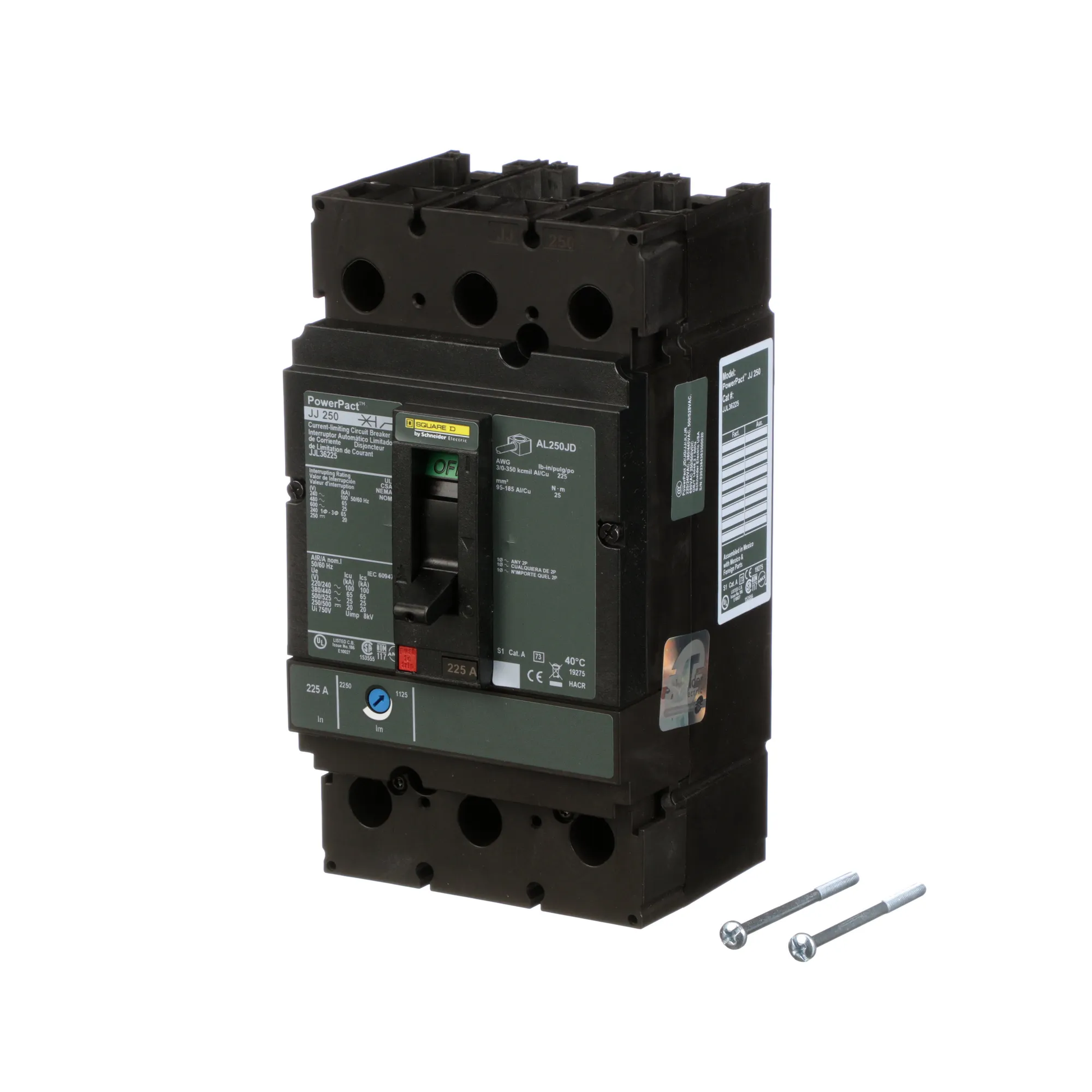

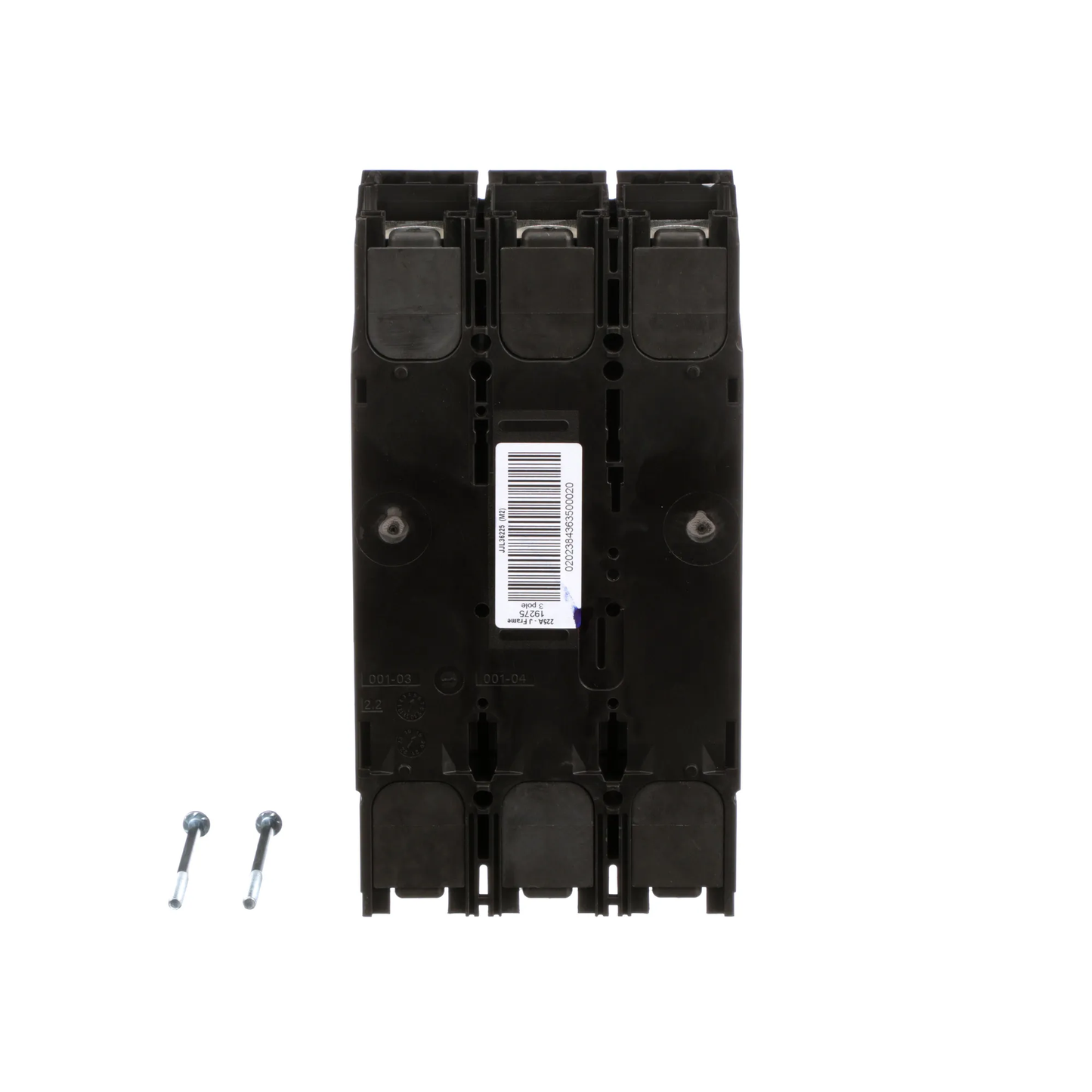

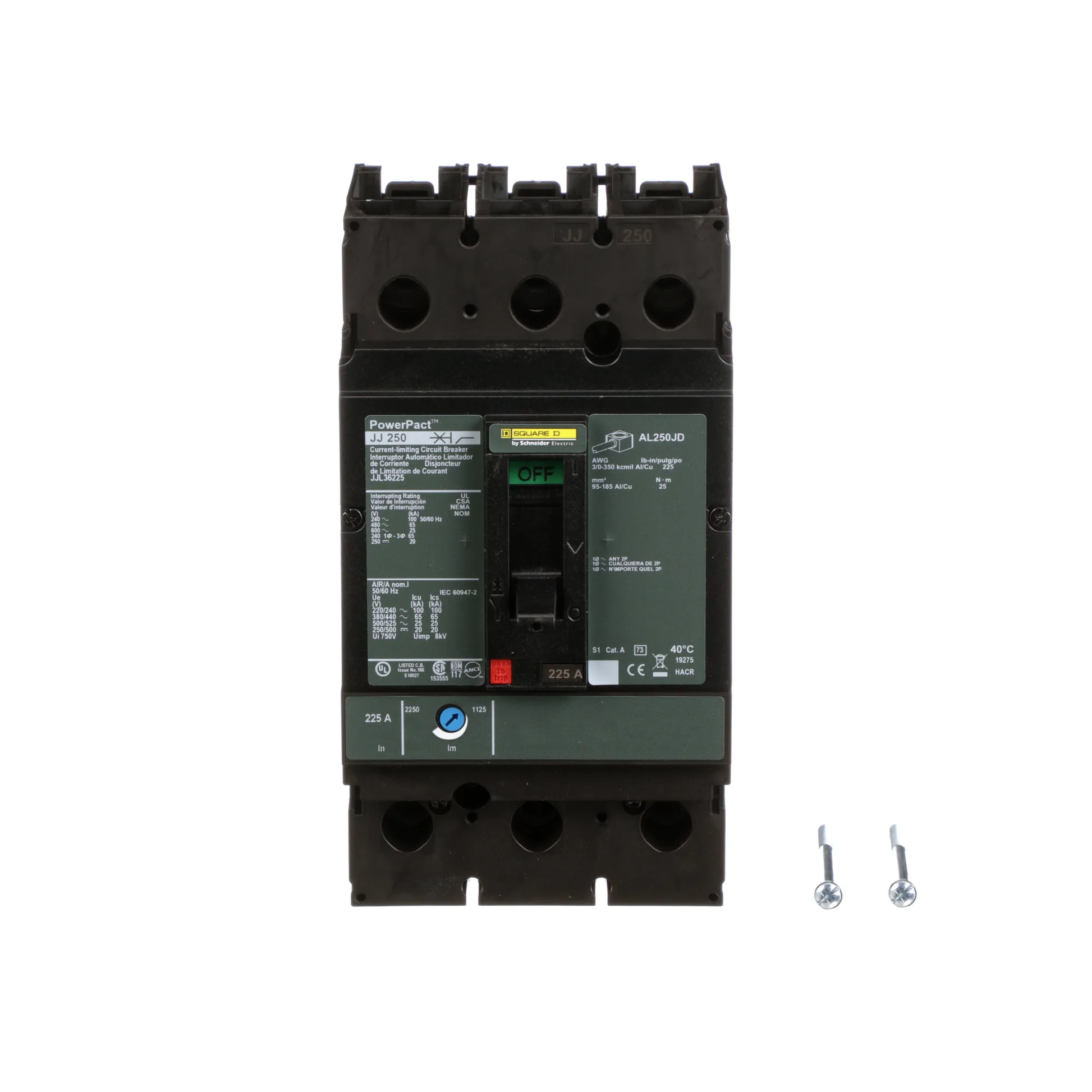

Square D JJL36225 Circuit Breaker | 600V 225A 3P 65kA@480V Feed-Thru Powerpact
Square D JJL36225 Circuit Breaker | 600V 225A 3P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$1,980.17 USD
Regular price
$5,432.00 USD
Sale price
$1,980.17 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 10 left
Couldn't load pickup availability
Product Description:
The Square D JJL36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and a 65kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection. It is suitable for industrial and commercial electrical systems.
Key Features:
✔ Part Number: JJL36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901839927
✔ GTIN: 00785901839927
✔ Country of Origin: Mexico

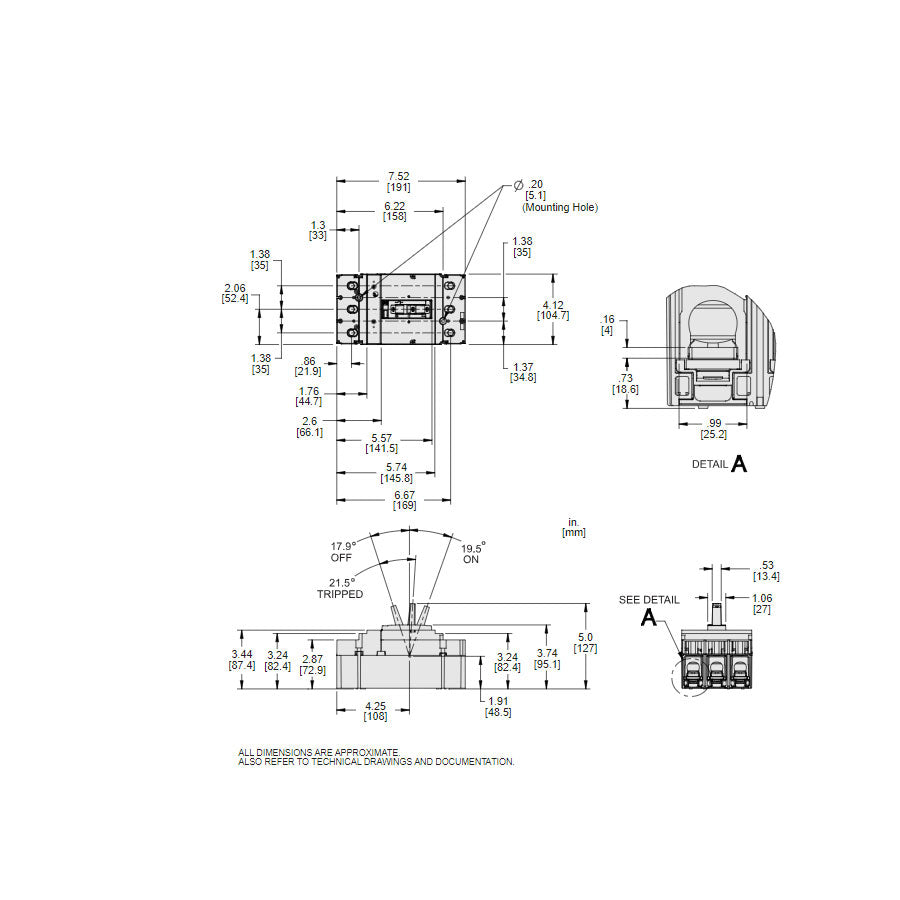

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.16
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
The Square D JJL36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and a 65kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection. It is suitable for industrial and commercial electrical systems.
Key Features:
✔ Part Number: JJL36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901839927
✔ GTIN: 00785901839927
✔ Country of Origin: Mexico
✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.16
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
