Square D LAL26350 Circuit Breaker | 600V 350A 2P 30kA@480V Feed-Thru LAL Series

Product Description:

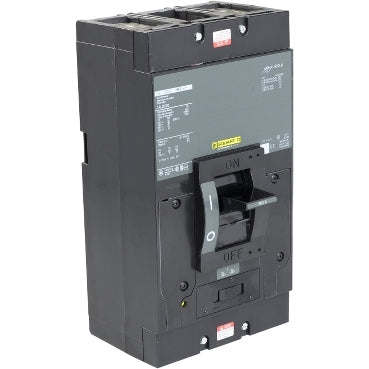

The Square D LAL26350 is a Molded Case Circuit Breaker from the LAL Series. It is a 2-pole, 350 amp breaker rated for 600 volts with an AIC rating of 30kA at 480V. This circuit breaker features thermal magnetic protection and a feed-thru connection for reliable performance.

Key Features:
✔ Part Number: LAL26350
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 350
✔ Poles: 2
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901426486
✔ GTIN: 00785901426486
✔ Country of Origin: United States
✔ Dimensions: Height 11 in (279.40 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 6.4
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: UL Listed; IEC; CSA
