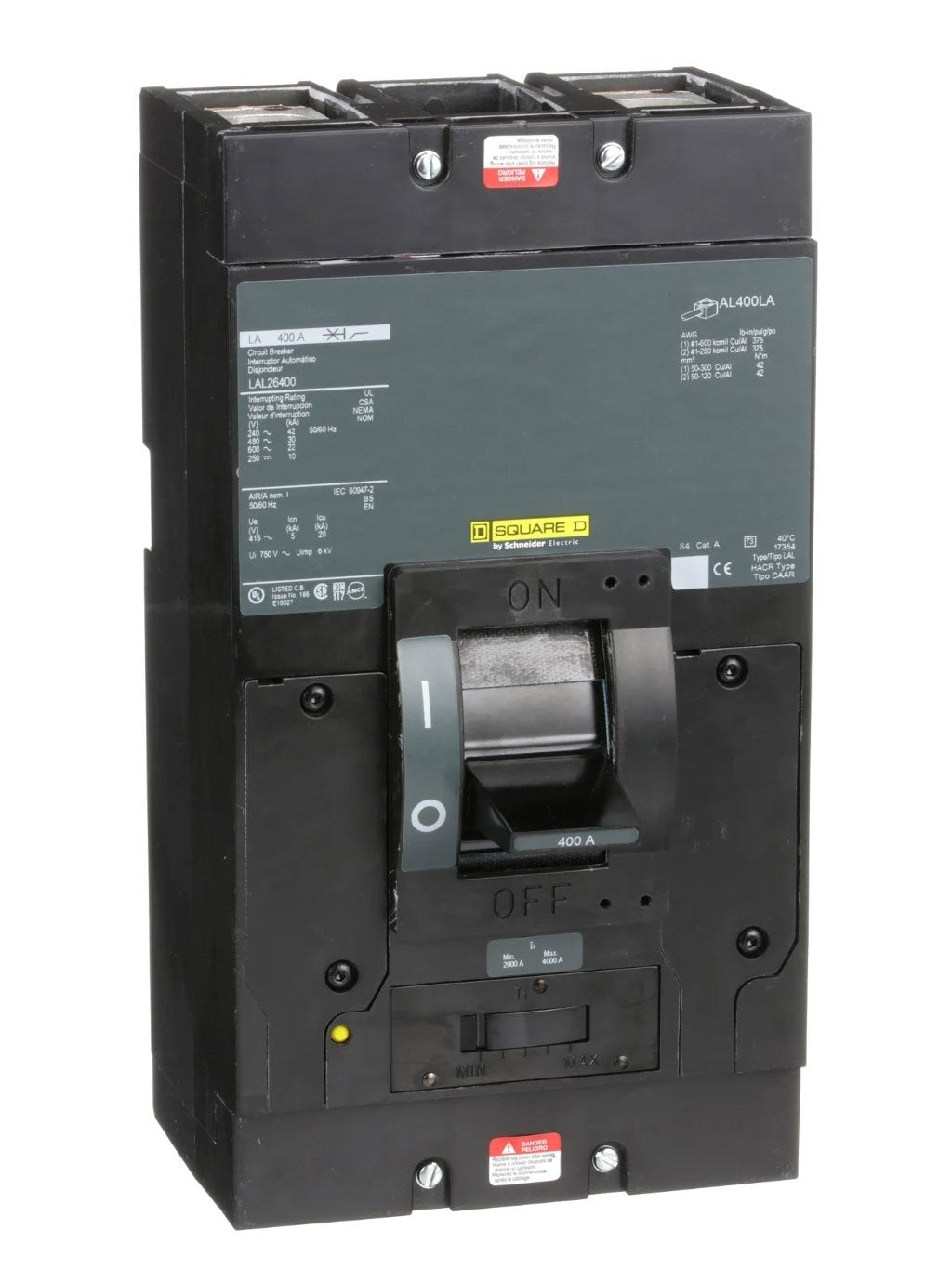

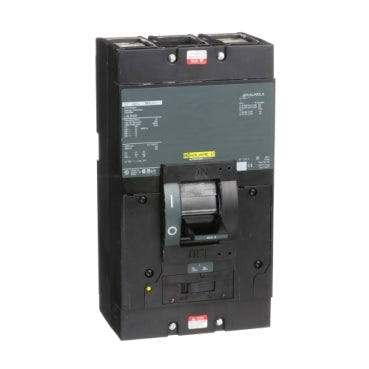

Square D LAL26400 Circuit Breaker | 600V 400A 2P 30kA@480V Bolt-On LAL Series

Product Description:
The Square D LAL26400 is a 2-pole molded case circuit breaker rated for 400 amps and 600 volts. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is suitable for use in panelboards, switchboards, and motor control centers. It meets industry standards including CSA, IEC, and UL listings.

Key Features:
✔ Part Number: LAL26400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 400
✔ Poles: 2
✔ AIC rating: 30kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901426523
✔ GTIN: 00785901426523
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 6.58
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
