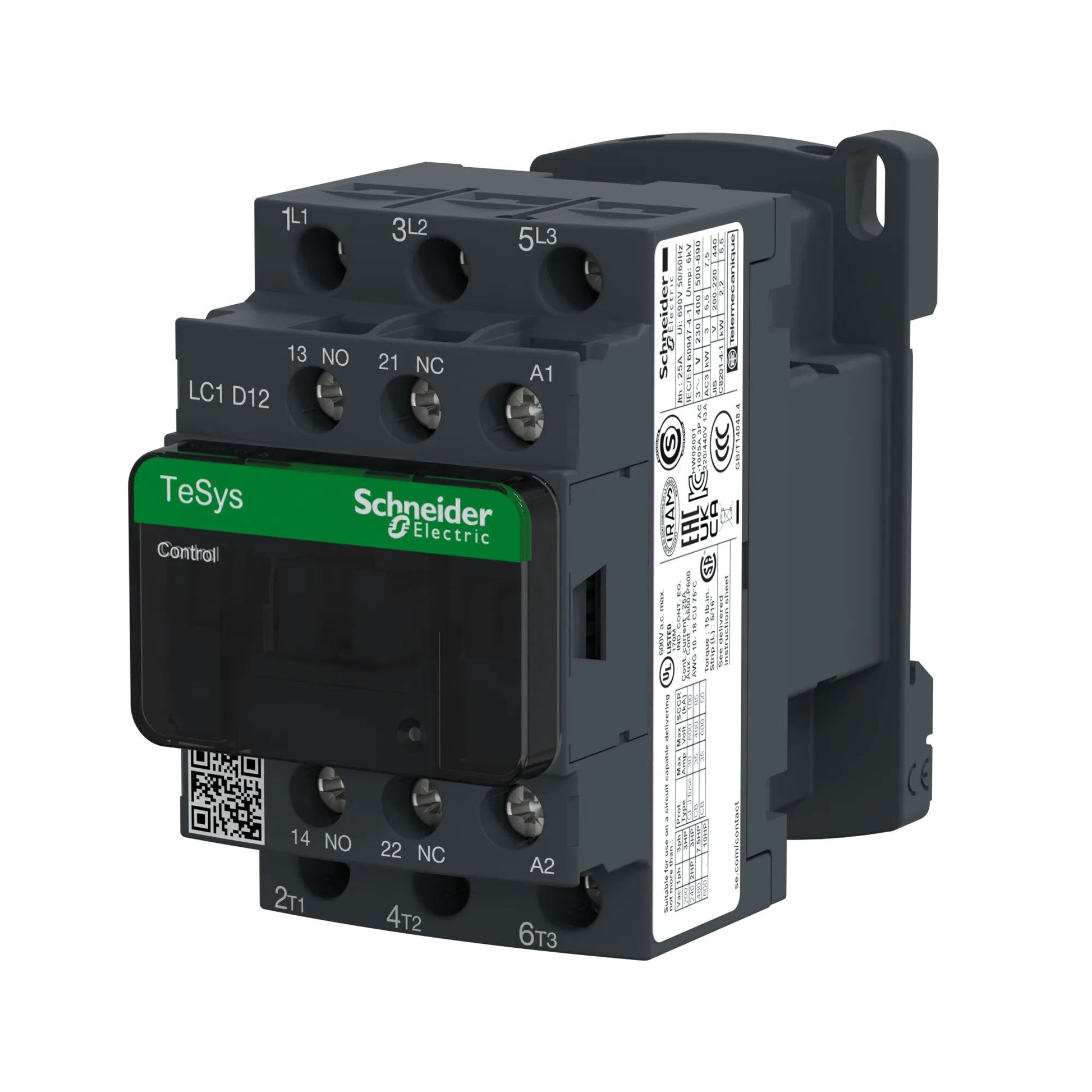

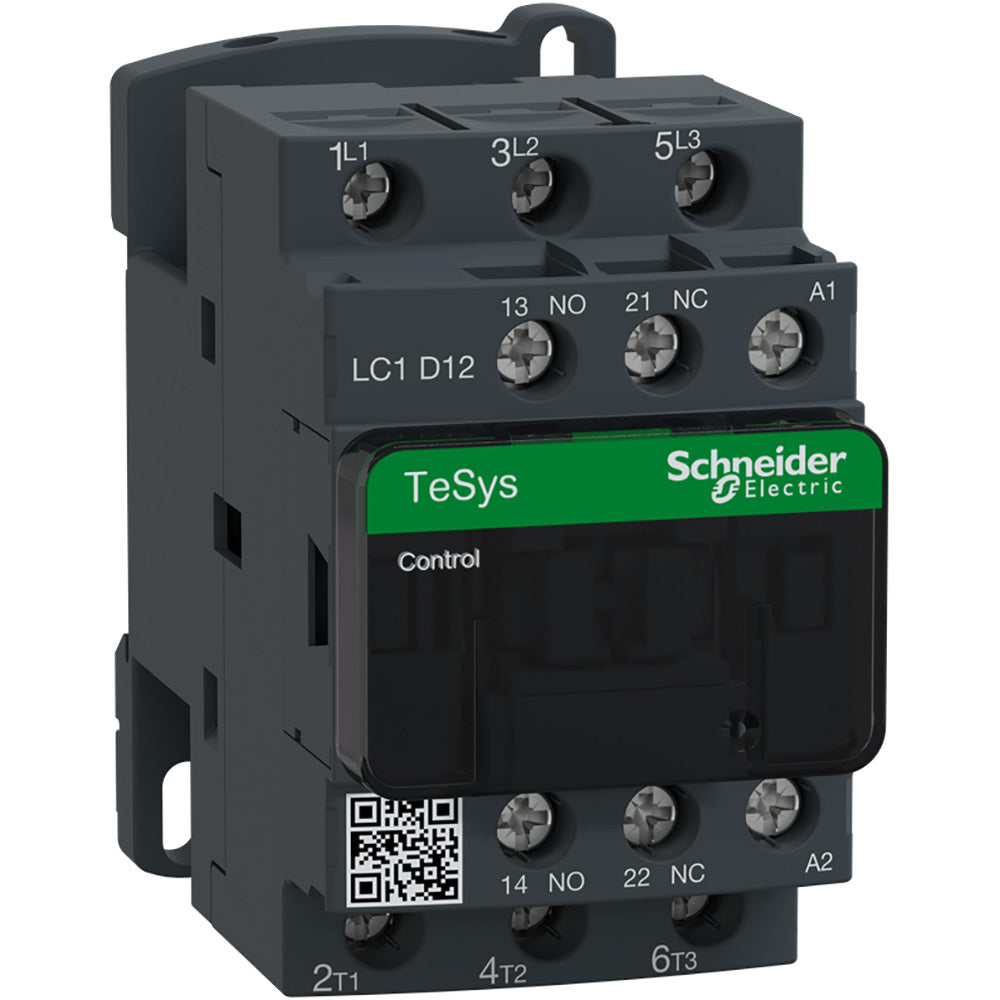

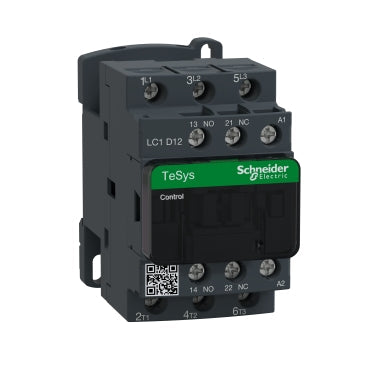

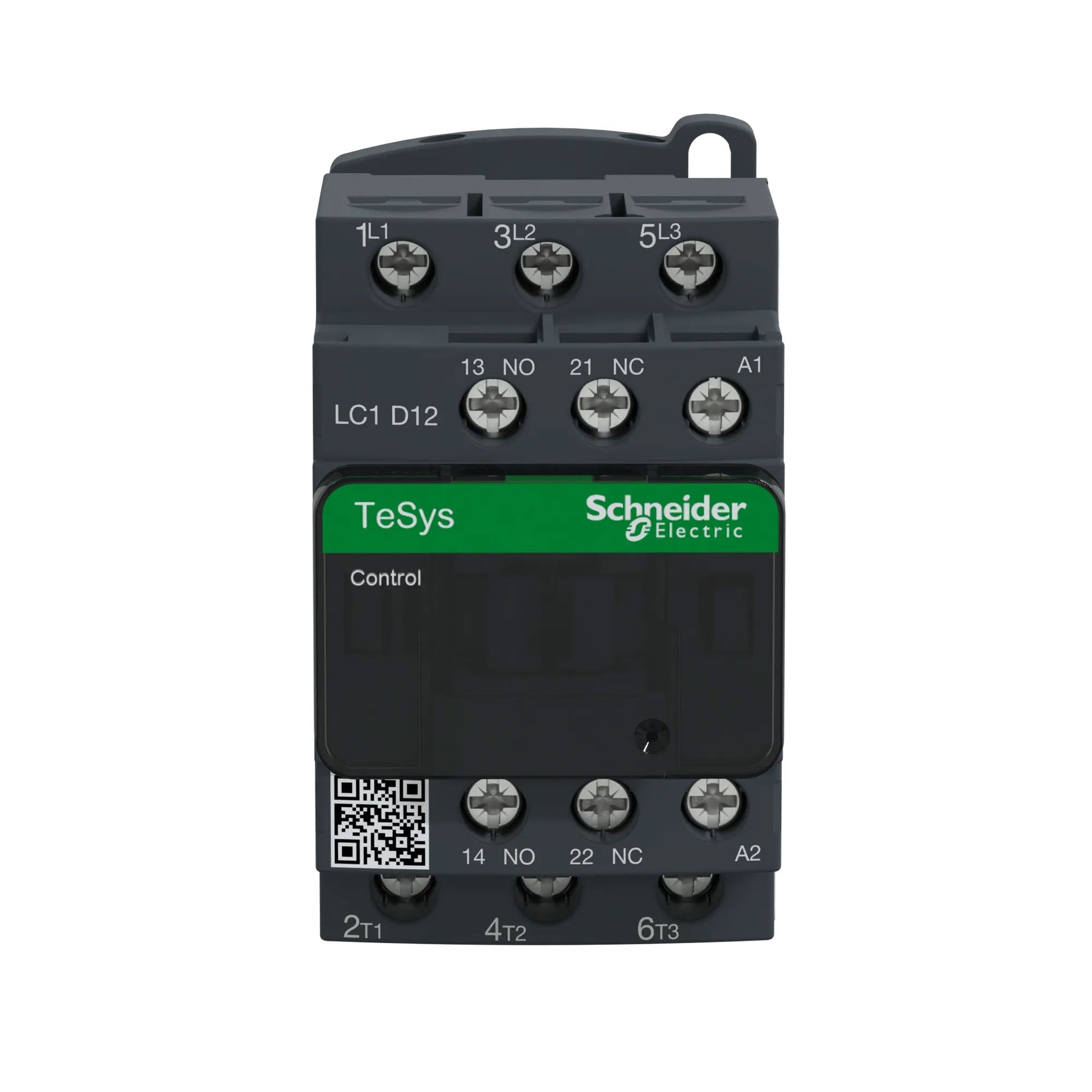

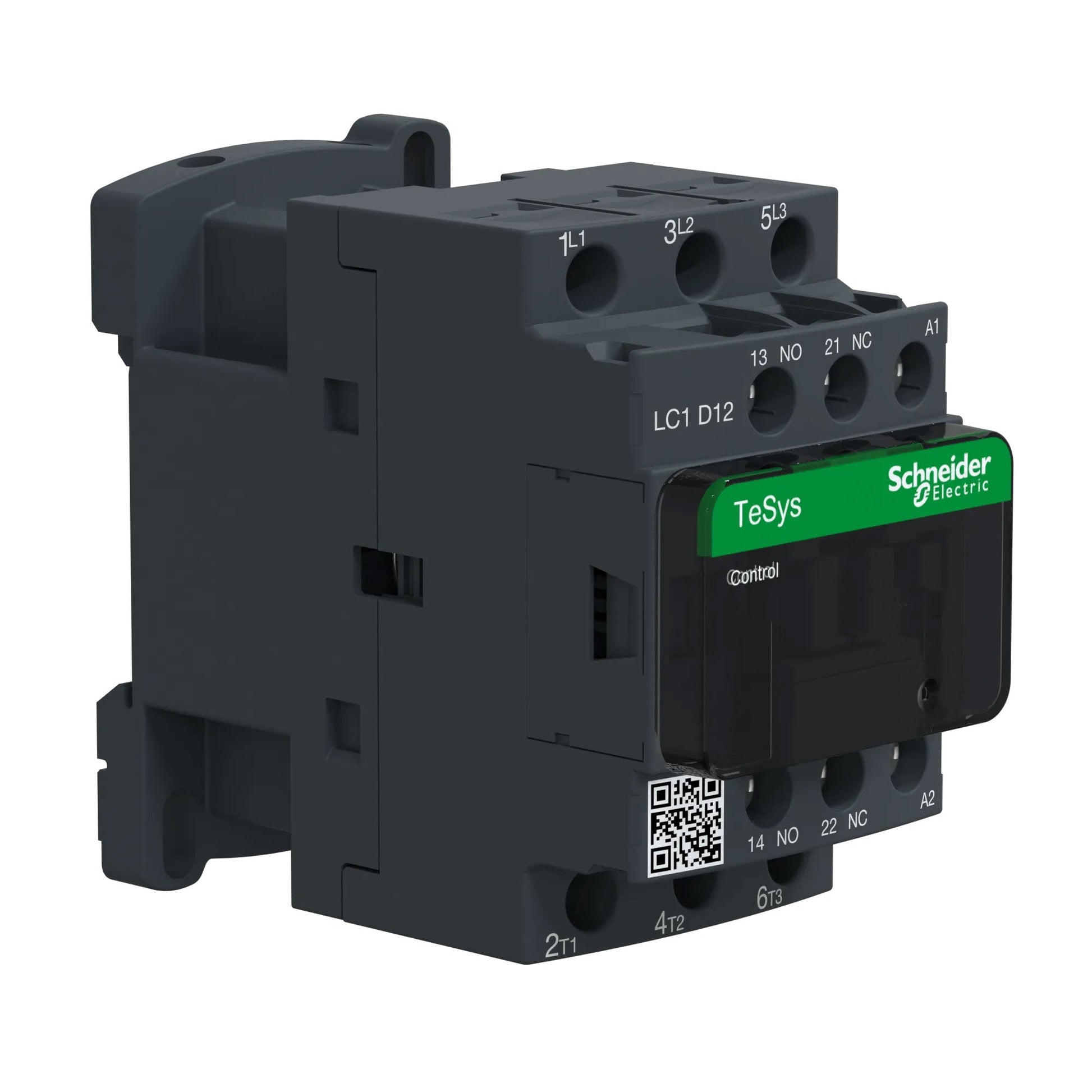

Schneider Electric LC1D12G7 Contactor | 3 Pole 690V 12A 1NO/1NC

Product Description:
The Schneider Electric LC1D12G7 is a 3-pole contactor designed for motor starting applications with a maximum voltage rating of 690V.
It supports a range of horsepower ratings for both single-phase and three-phase motors across various voltages.
This contactor is built for reliable performance in industrial motor control systems.

Key Features:
✔ Part Number: LC1D12G7
✔ Manufacturer: Schneider Electric/Telemecanique
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 690
✔ Poles: 3
✔ Horse Power: 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 1NO/1NC
✔ Full Load Amps: Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
✔ UPC: 785901207047
✔ GTIN: 03389110349245
✔ Country of Origin: Czechia
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 0.8
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
