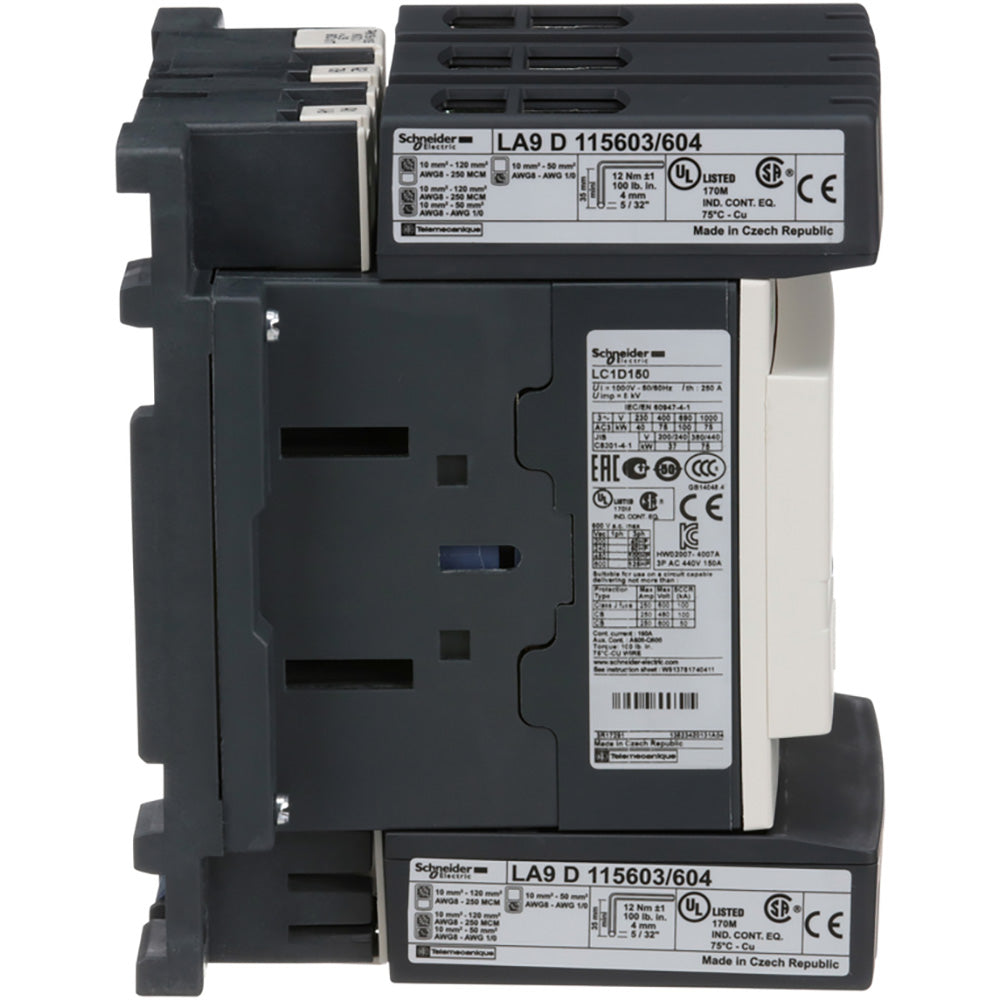

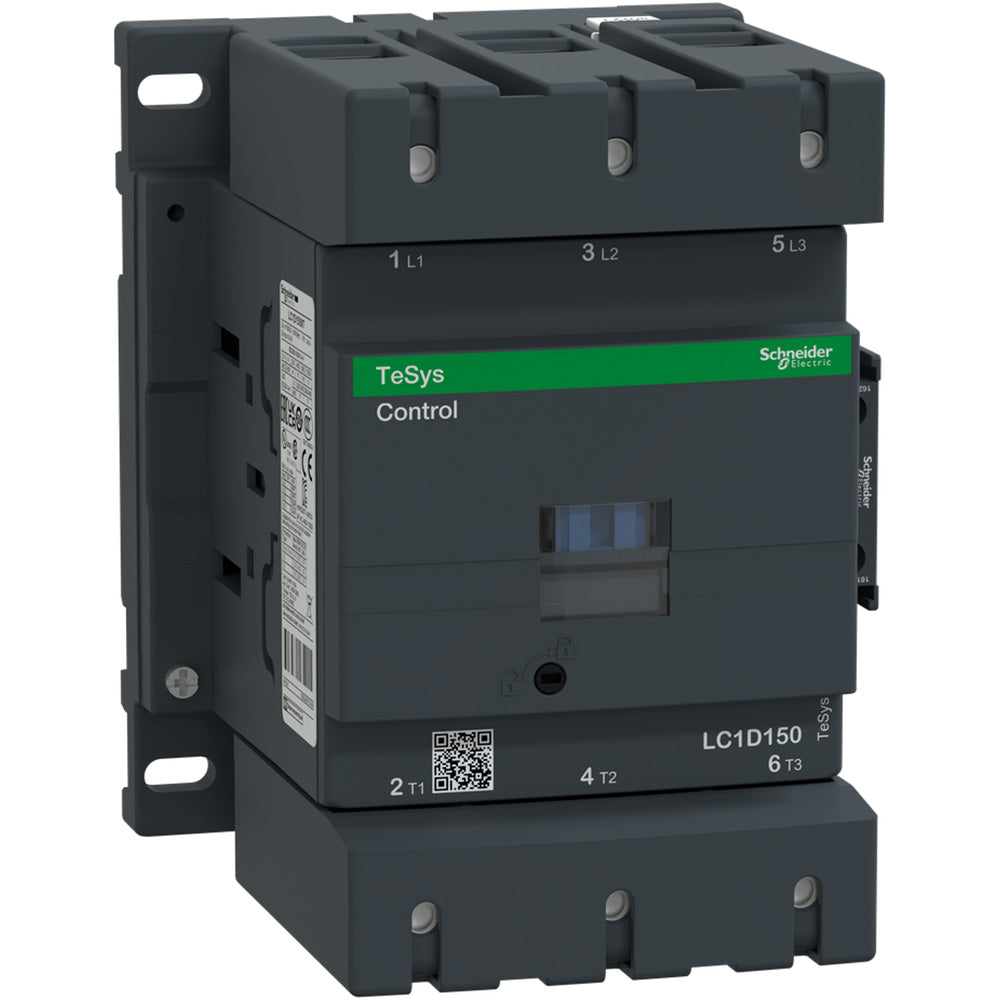

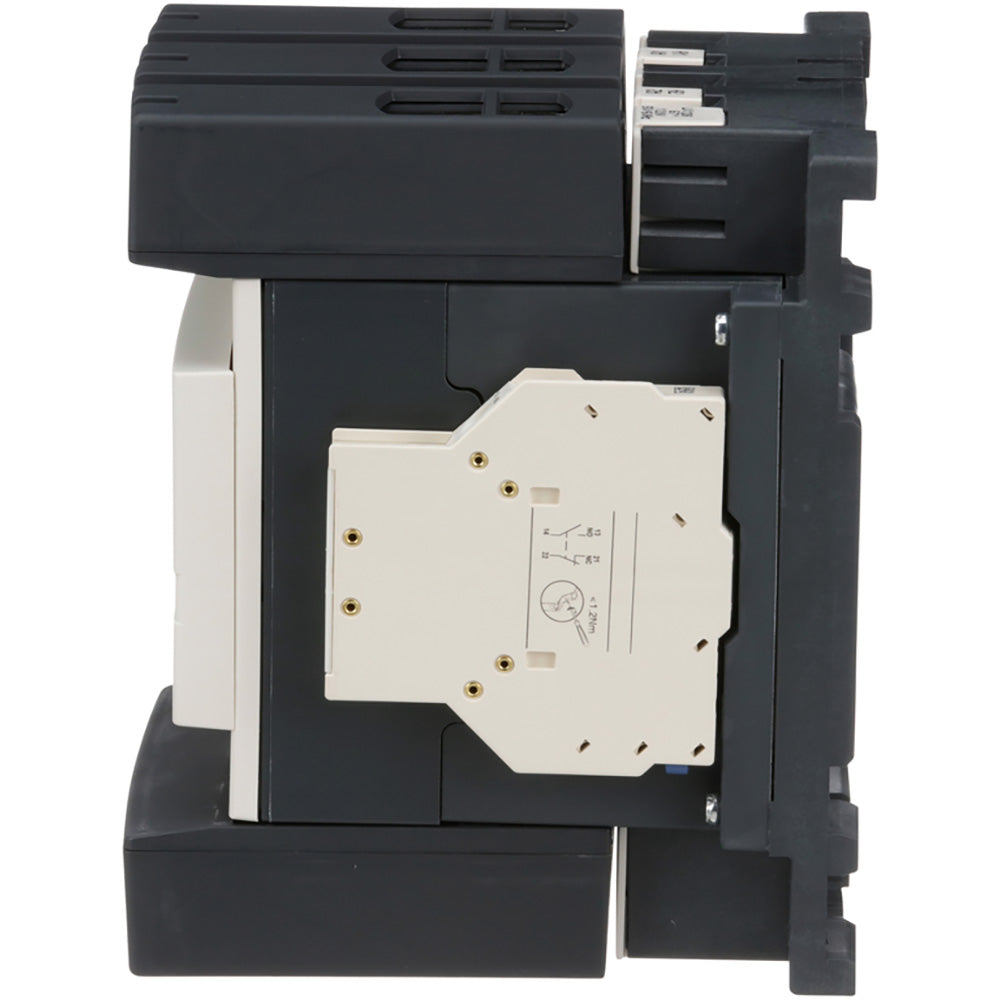

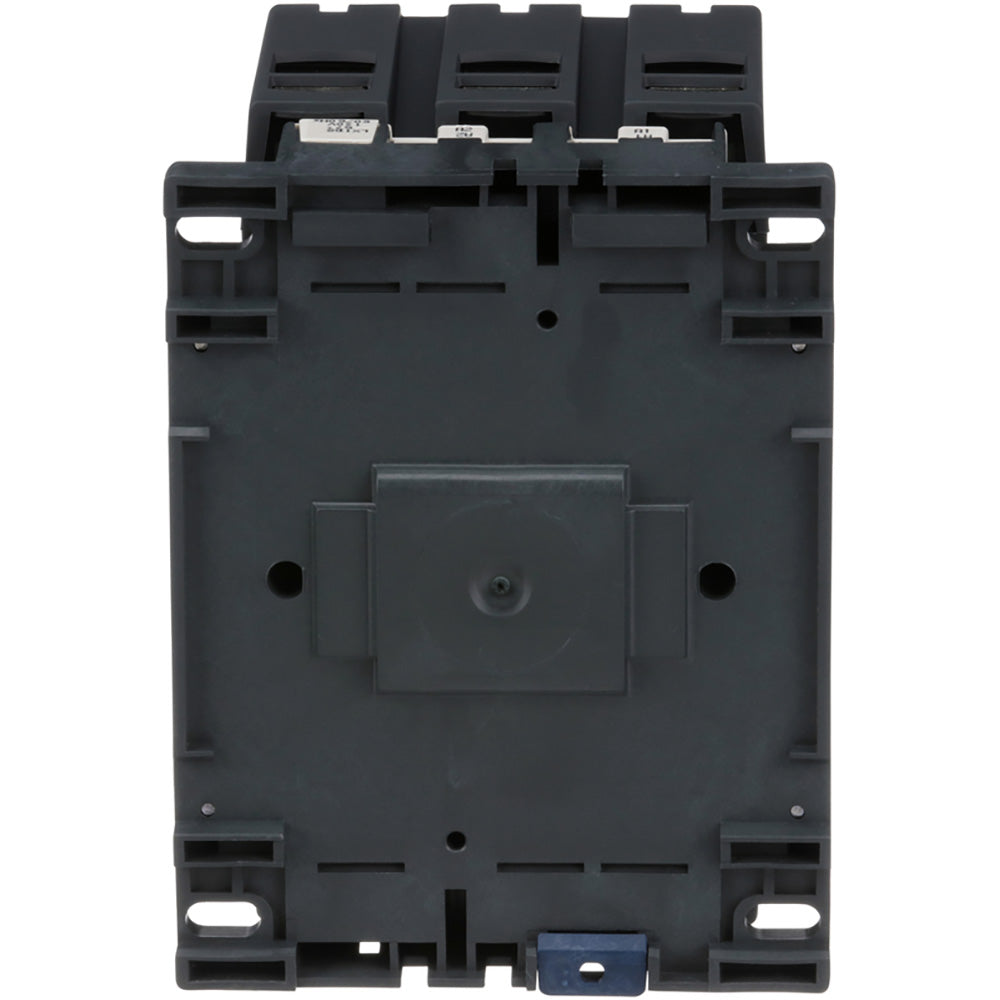

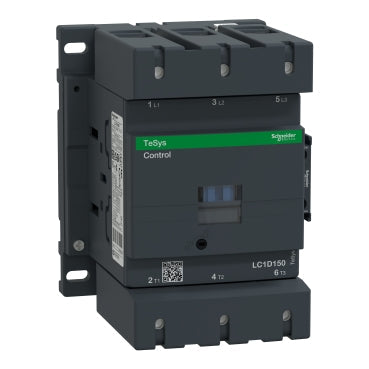

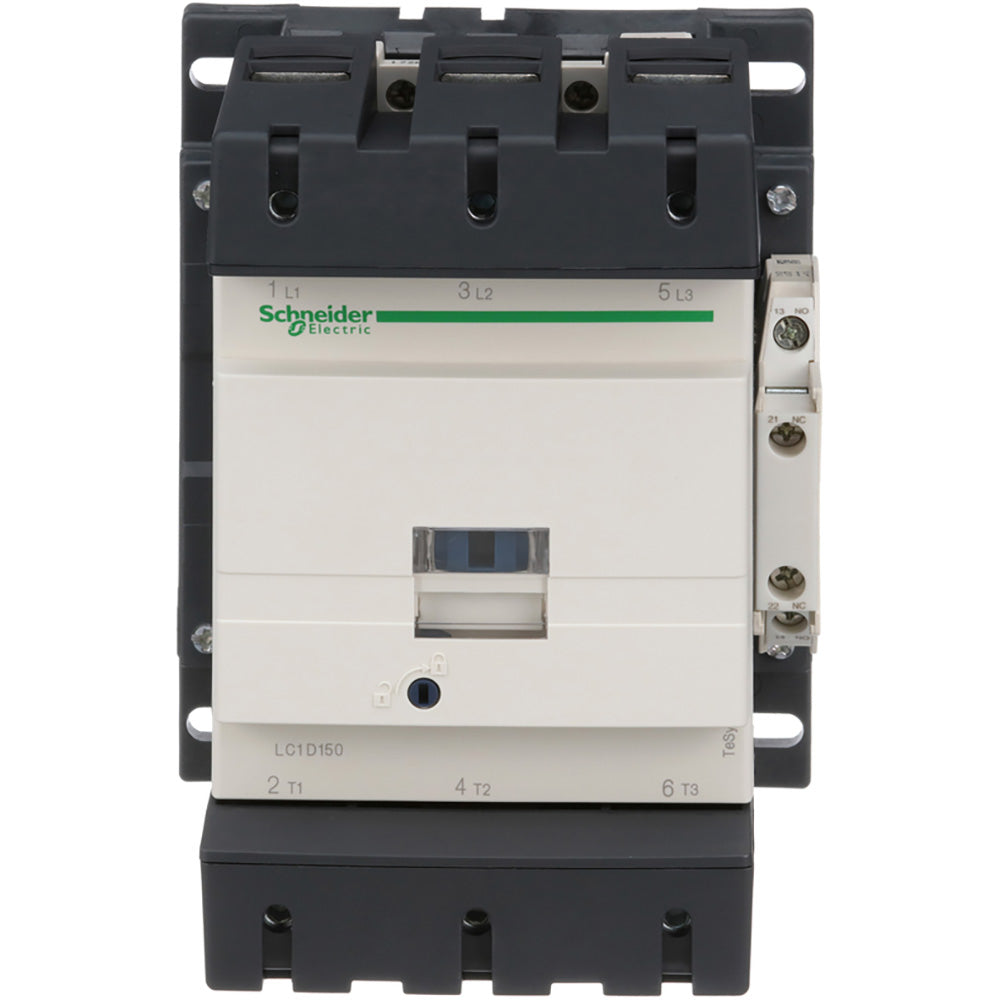

Schneider Electric LC1D150G7 Contactor 3P 600V 150A 120V Coil TeSys D

Product Description:
This Schneider Electric LC1D150G7 is a 3-pole contactor designed for motor starting applications. It operates at 600V and 150A, with horsepower ratings up to 125 hp depending on the voltage. The unit is equipped with a 120V AC coil for reliable operation. It is suitable for controlling three-phase motors in various industrial settings.

Key Features:
✔ Part Number: LC1D150G7
✔ Manufacturer: Schneider Electric/Telemecanique
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 150
✔ Poles: 3
✔ Horse Power: 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors-50 hp at 230/240 V AC 50/60 Hz for 3 phases motors-100 hp at 460/480 V AC 50/60 Hz for 3 phases motors-125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 150A Full Load Amps-Resistive 200A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50/60 Hz
✔ UPC: 785901214519
✔ GTIN: 03389110527537
✔ Country of Origin: Czechia
✔ Dimensions: 4.33 in x 4.33 in
✔ Weight: 7
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
