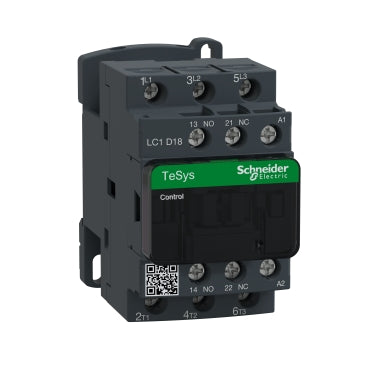

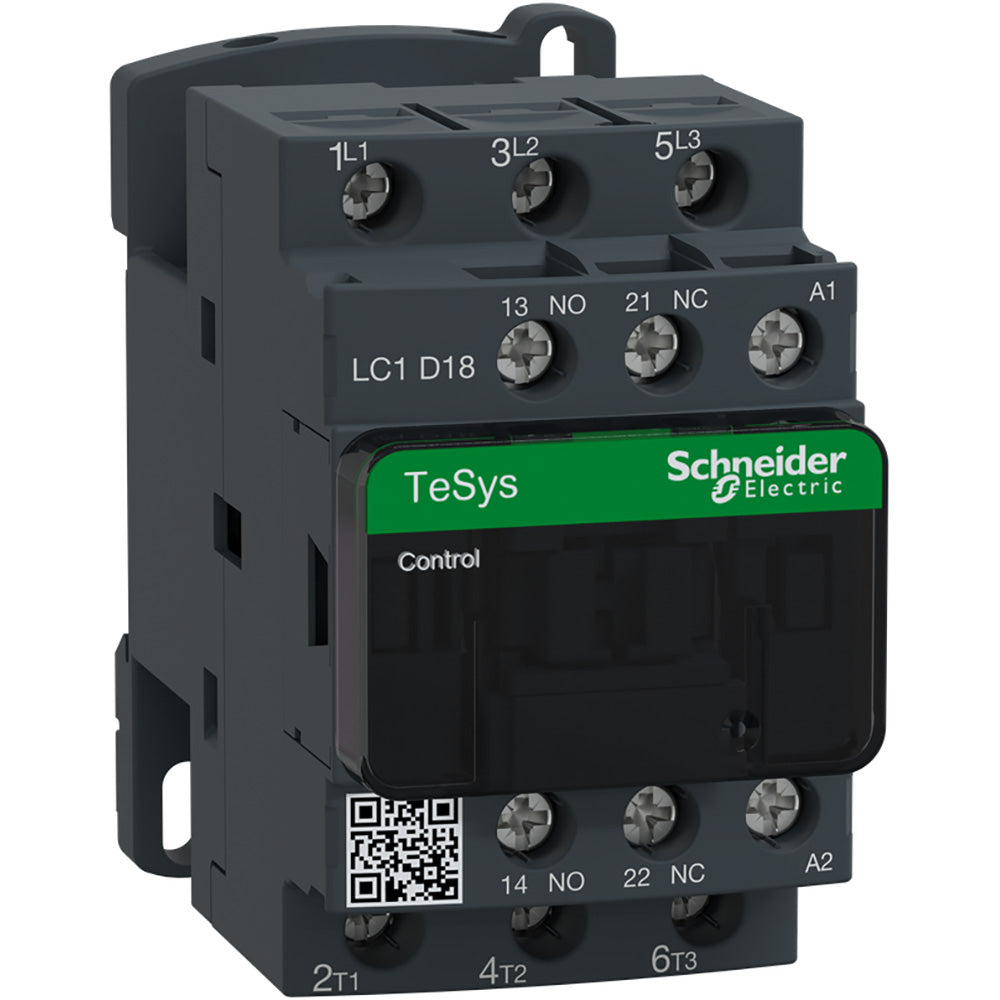

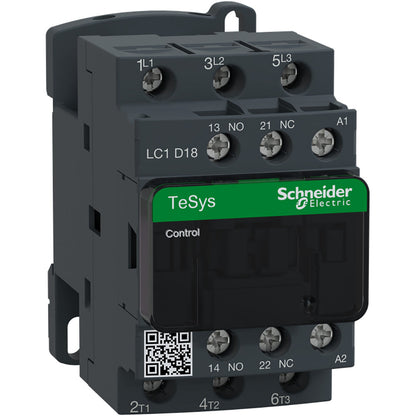

Schneider Electric LC1D18B7 Contactor | 3P 600V 32A 24V Coil TeSys D

Product Description:
The Schneider Electric LC1D18B7 is a 3-pole contactor designed for motor starting applications with a voltage rating of 600V and a current rating of 32A. It is suitable for a wide range of horsepower ratings across different voltages and phases, including 1 hp at 115V AC and up to 15 hp at 575/600V AC. This unit operates with a 24V AC coil and is built for reliable performance in industrial control systems.

Key Features:
✔ Part Number: LC1D18B7
✔ Manufacturer: Schneider Electric/Telemecanique
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 32
✔ Poles: 3
✔ Horse Power: 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 24
✔ Full Load Amps: Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
✔ Coil Voltage Minimum: 24
✔ Frequency: 50/60 Hz
✔ UPC: 785901207078
✔ GTIN: 03389110349399
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 0.79
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
