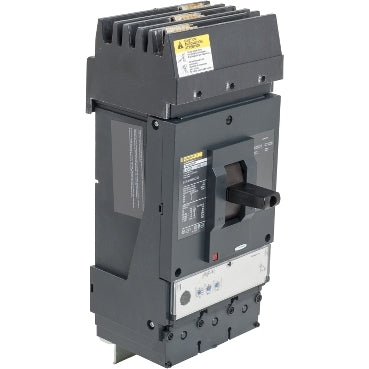

Square D LLA36400CU31X Circuit Breaker | 600V 400A 3P 100kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D LLA36400CU31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 Volts and 400 amps, with an interrupting capacity of 100kA at 480V. This unit features a solid state protection system and uses an I-Line Style Plug-In connection for easy installation.

Key Features:
✔ Part Number: LLA36400CU31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 060648628397
✔ GTIN: 03606486283974
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.71
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
