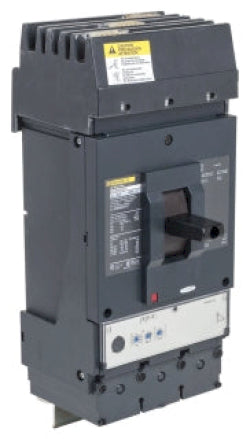

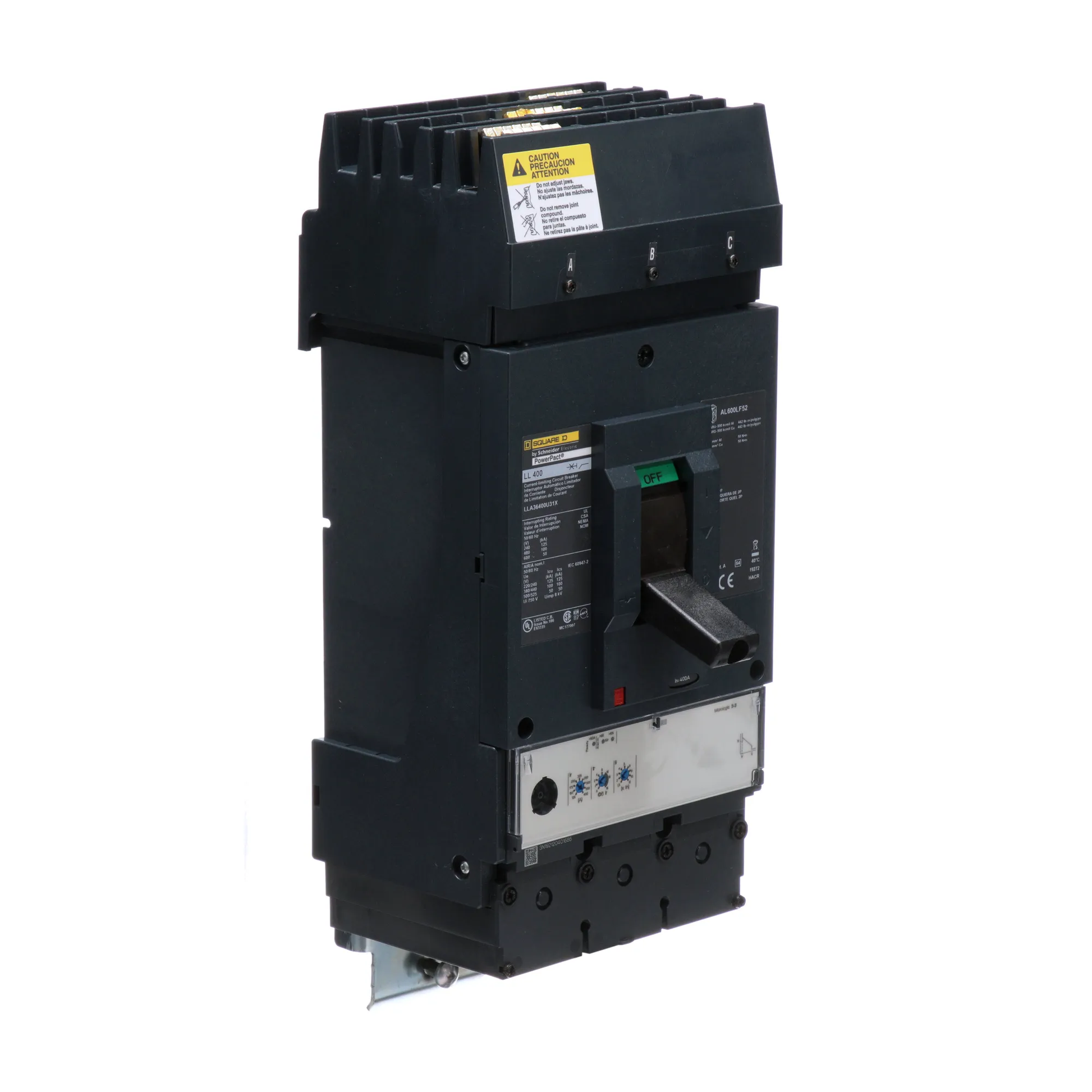

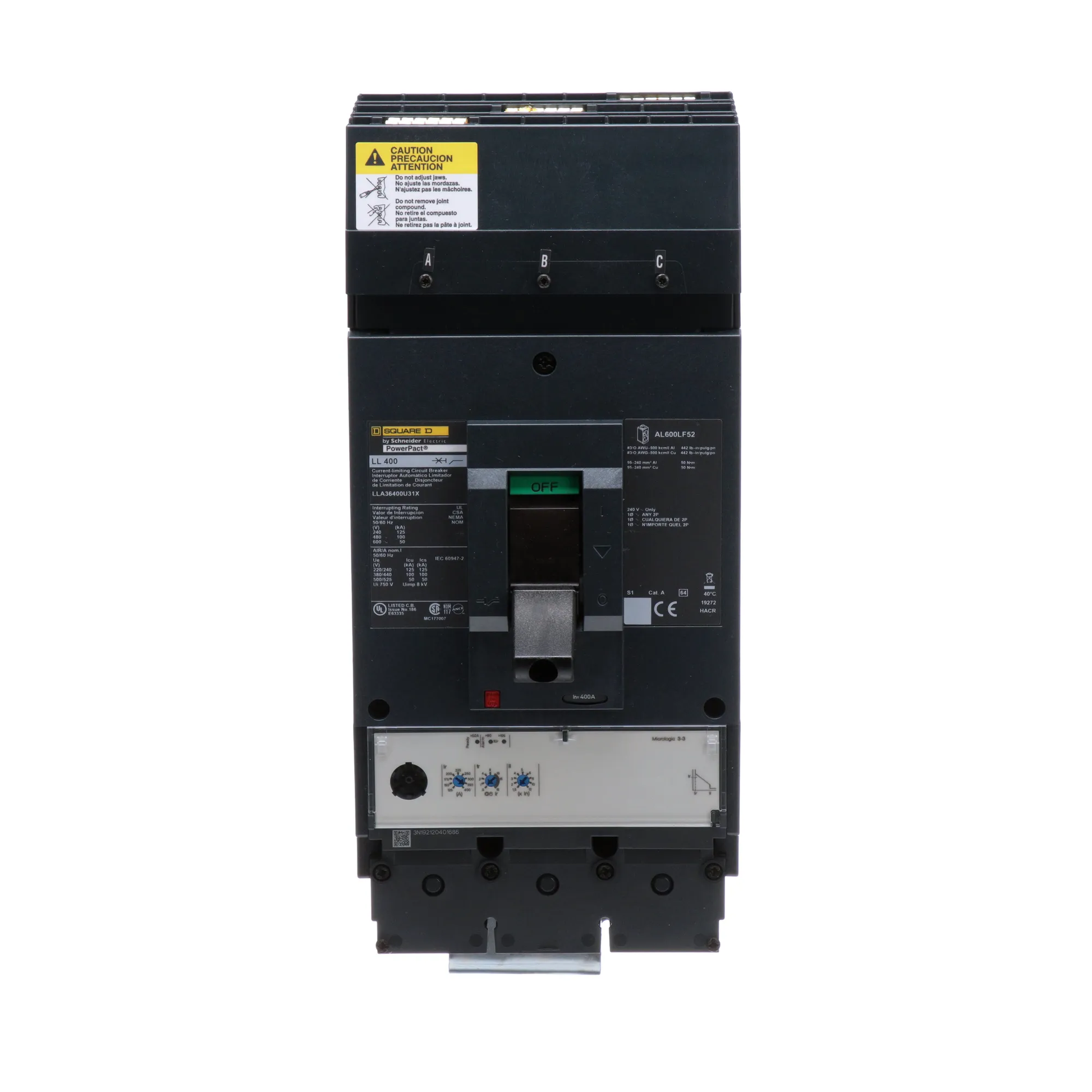

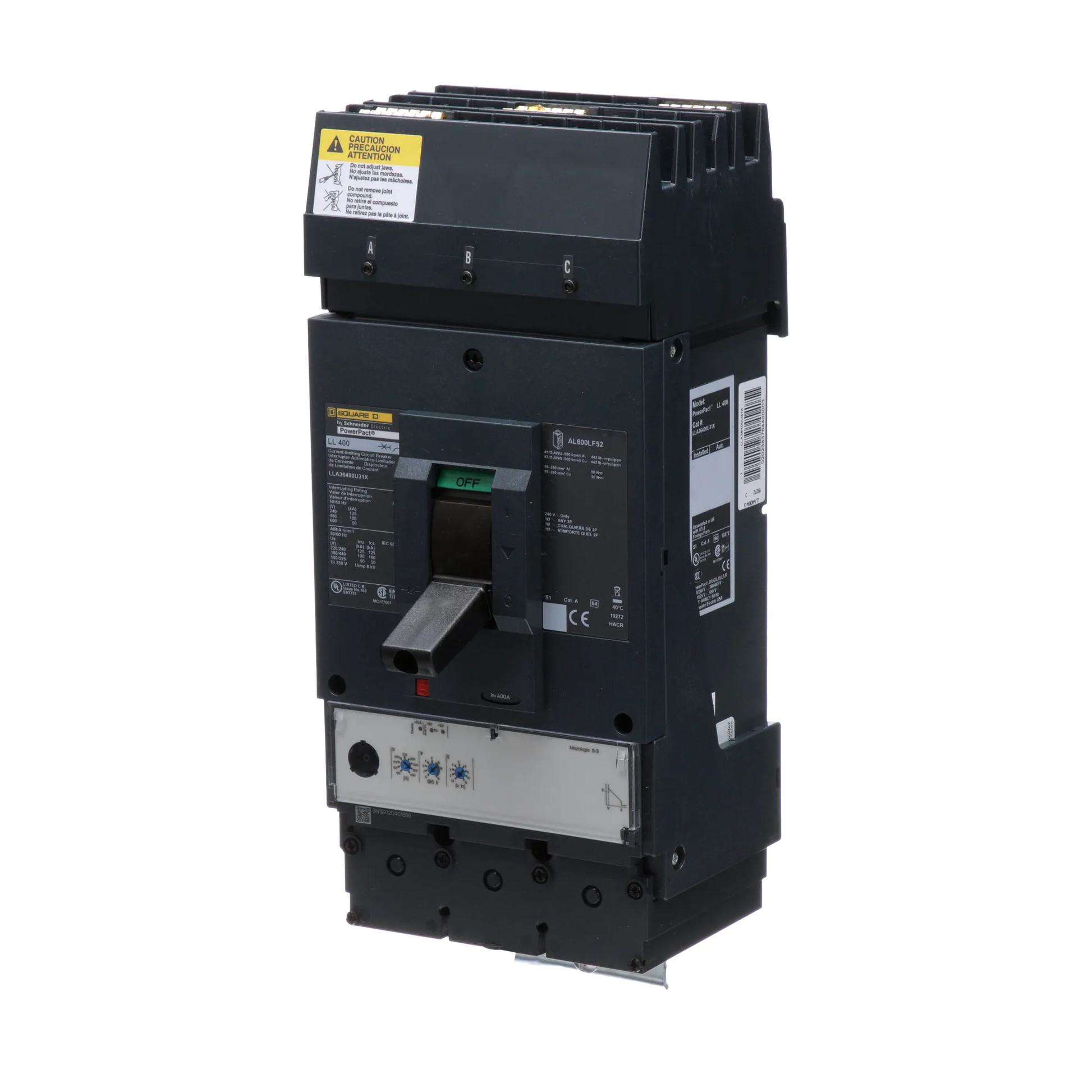

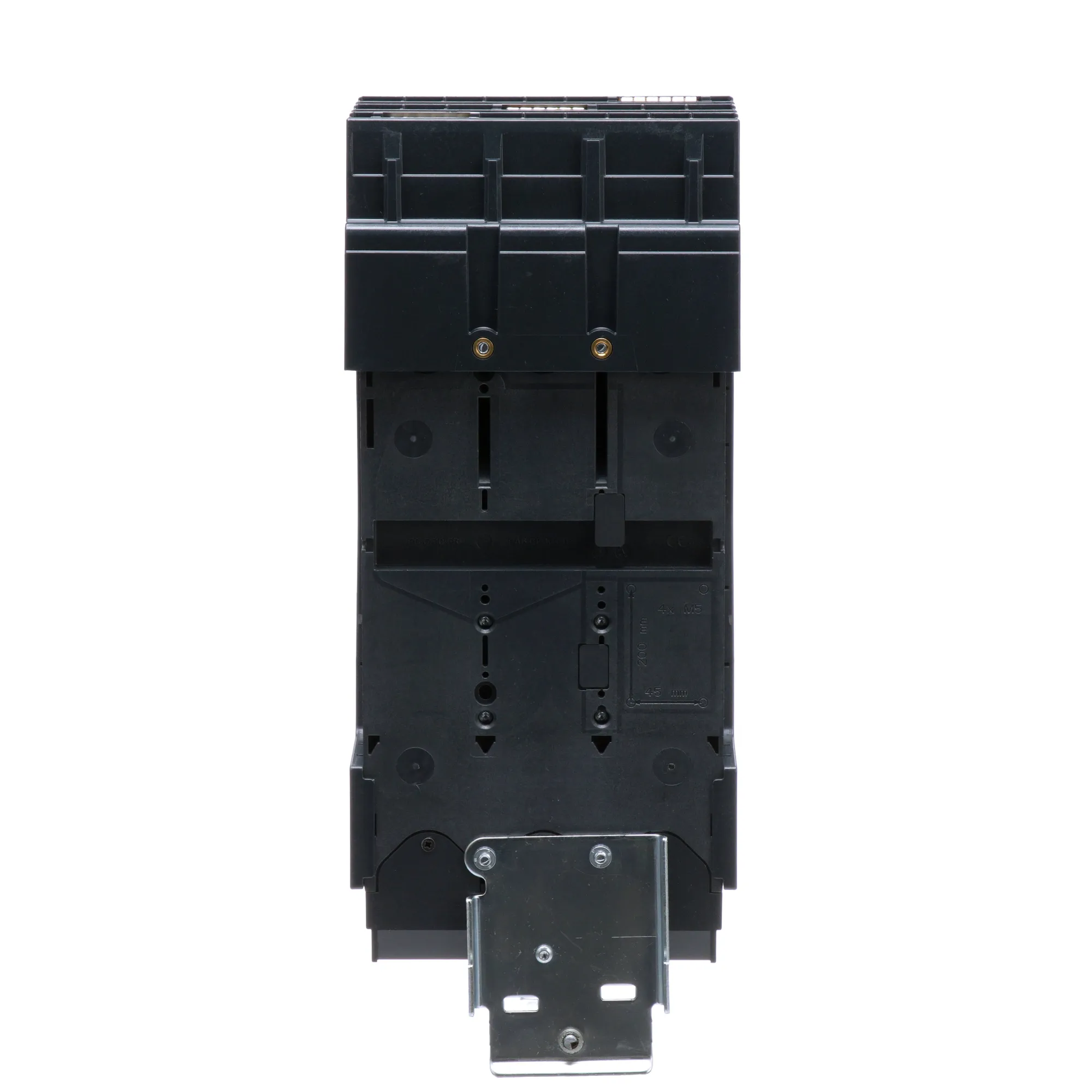

Square D LLA36400U31X Circuit Breaker | 600V 400A 3P 100kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D LLA36400U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: LLA36400U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901401308
✔ GTIN: 00785901401308
✔ Country of Origin: United States

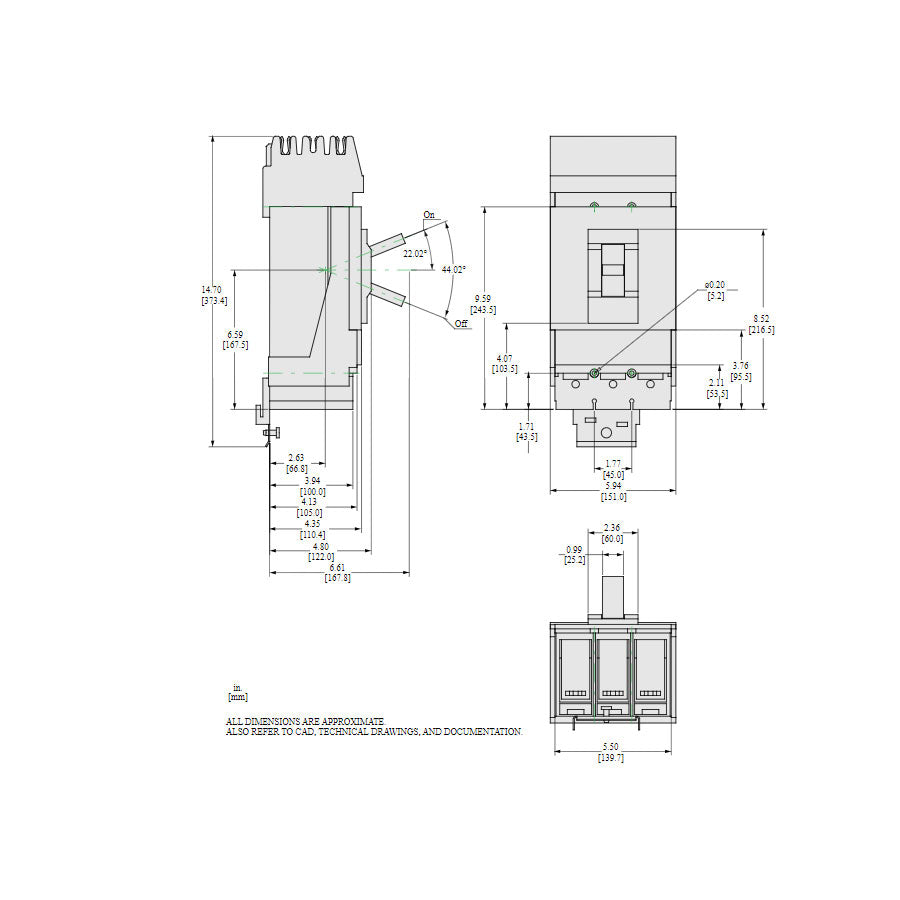

✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 8.26
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: AWG 3/0...500 kcmil aluminum/copper
