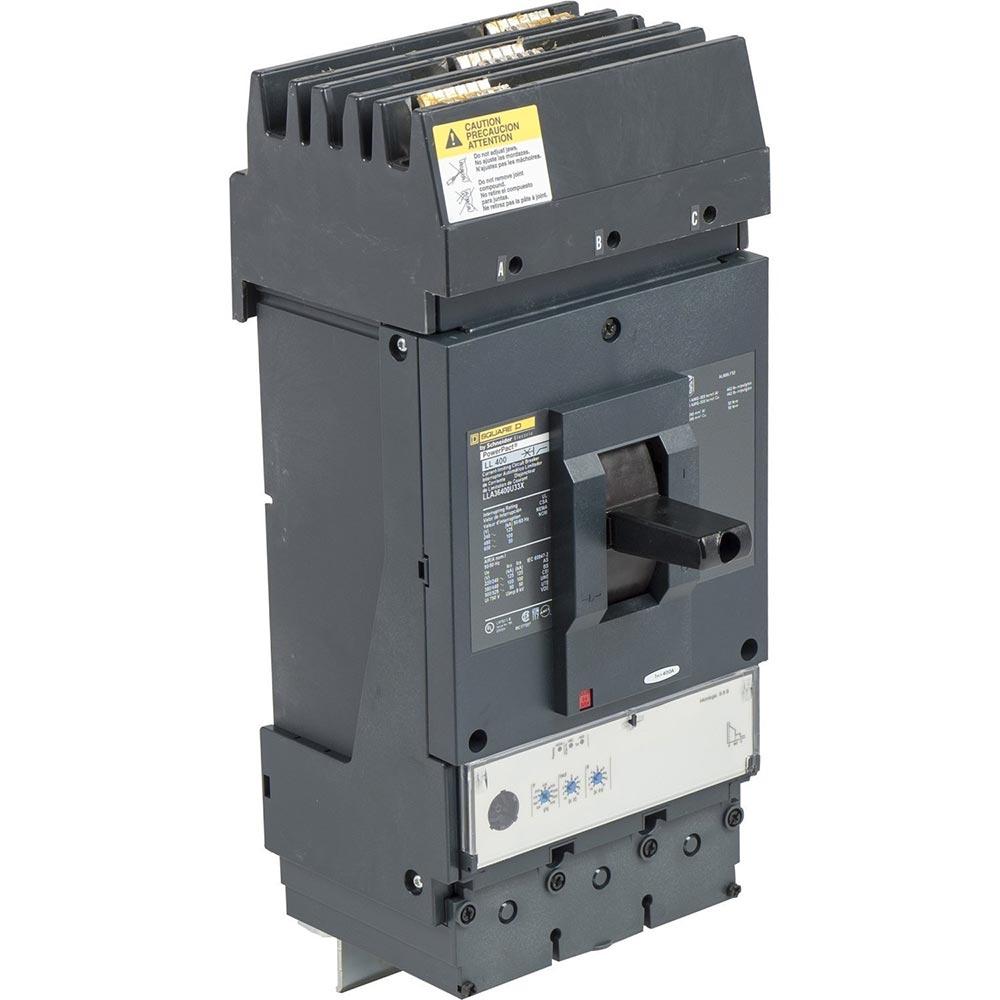

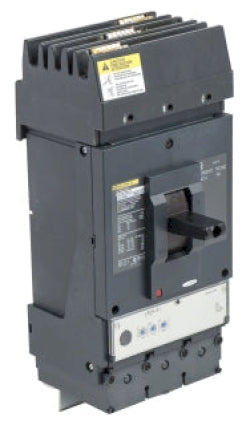

Square D LLA36400U33X Circuit Breaker | 600V 400A 3P 100kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D LLA36400U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V and 400A rating, plus a 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers solid-state protection with LSI functions.

Key Features:
✔ Part Number: LLA36400U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901808725
✔ GTIN: 00785901808725

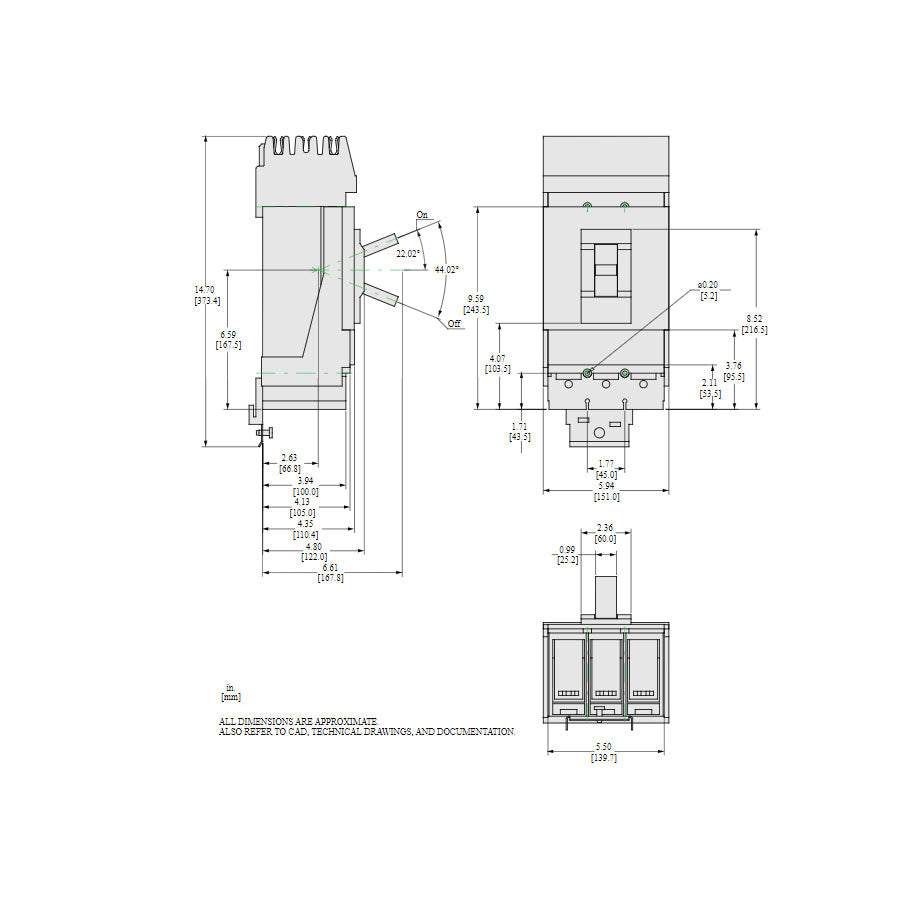

✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 8.68
✔ Wire Size: AWG 3/0...500 kcmil aluminum/copper
