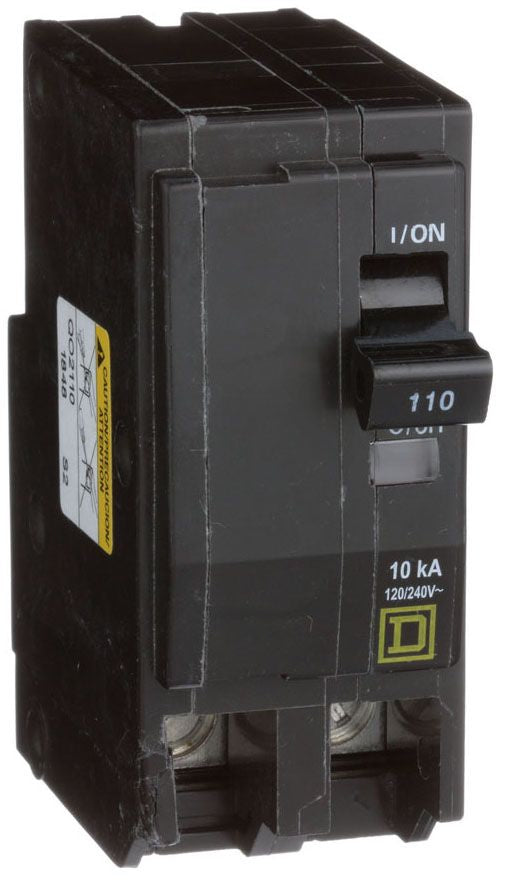

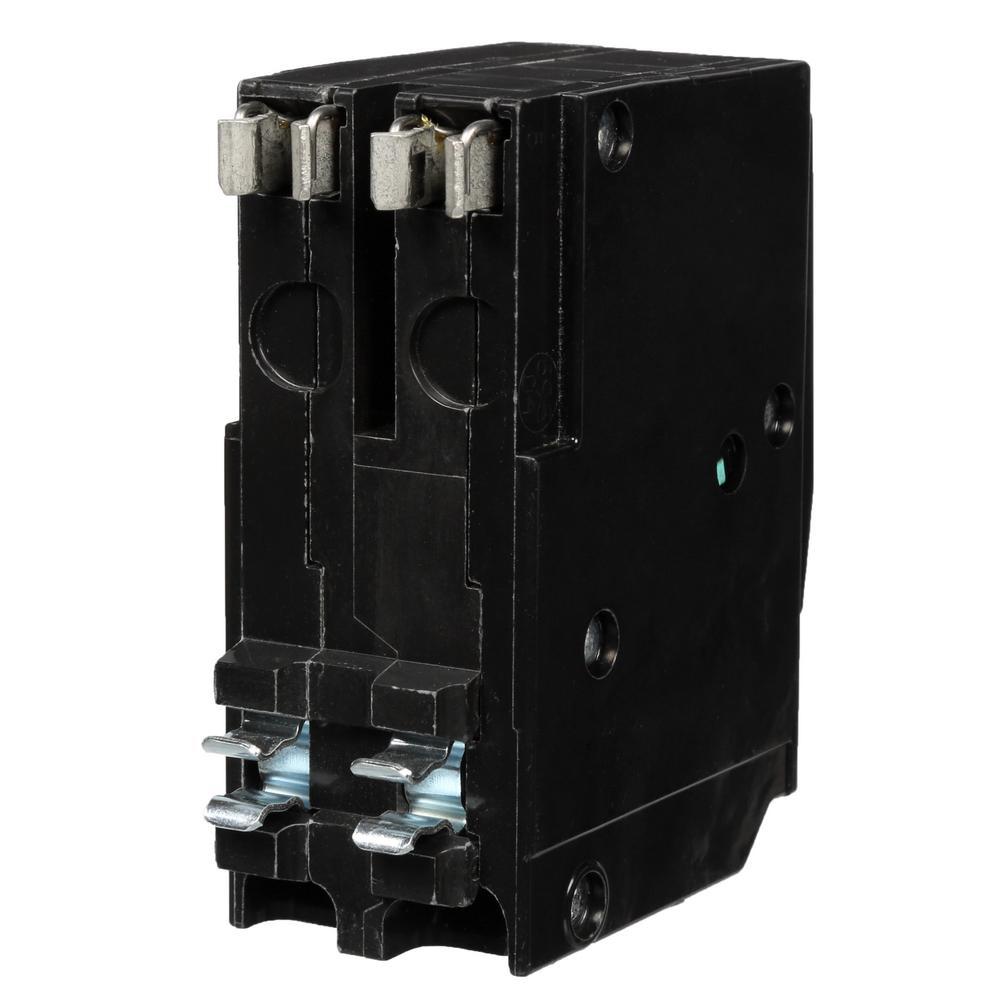

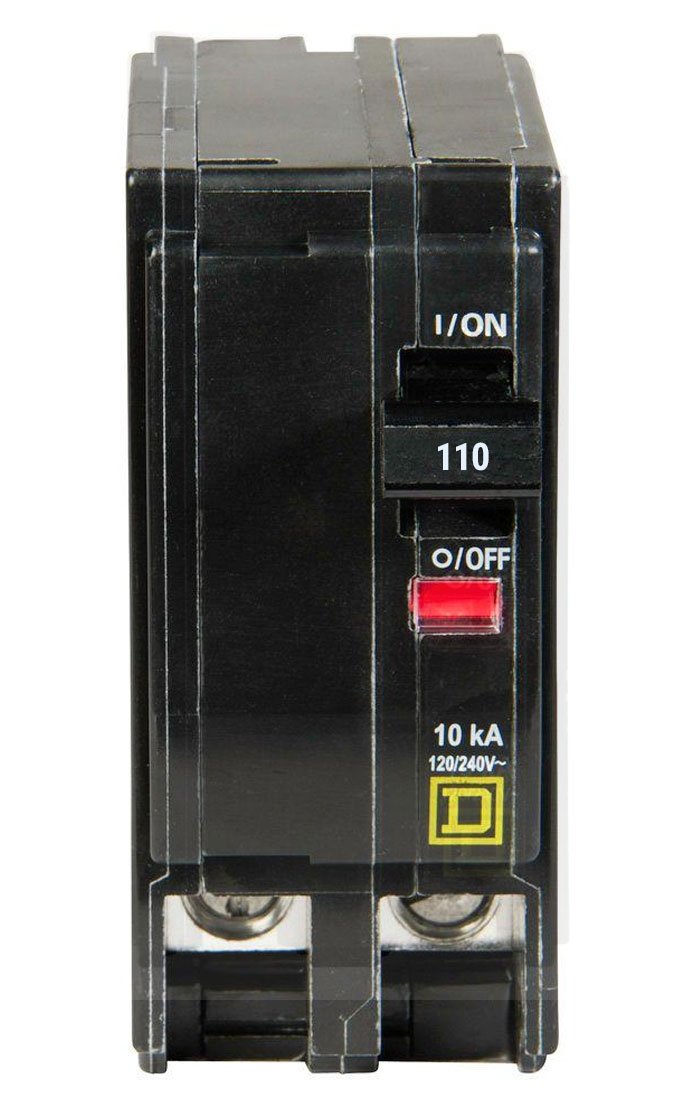

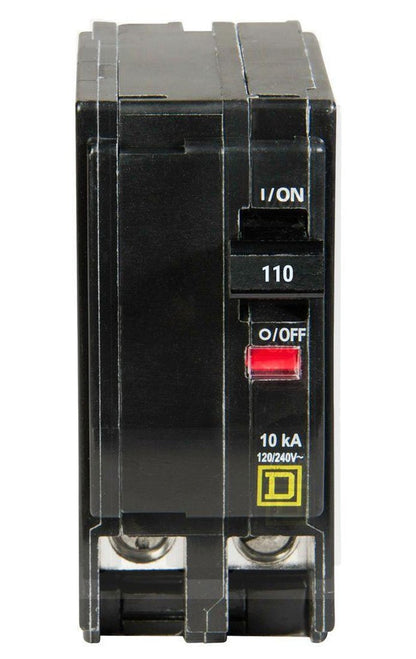

Square D QO2110 Circuit Breaker | 120/240V 110A 2P 10kA@240V Plug-In QO Series

Product Description:
The Square D QO2110 is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 110 amp breaker rated for 120/240V systems with a 10kA interrupting capacity. This plug-in style breaker features thermal magnetic protection for both long-time and instantaneous overcurrent events. It is compatible with QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QO2110
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 110
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901031086
✔ GTIN: 00785901031086
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
