Images are for reference only
Square D

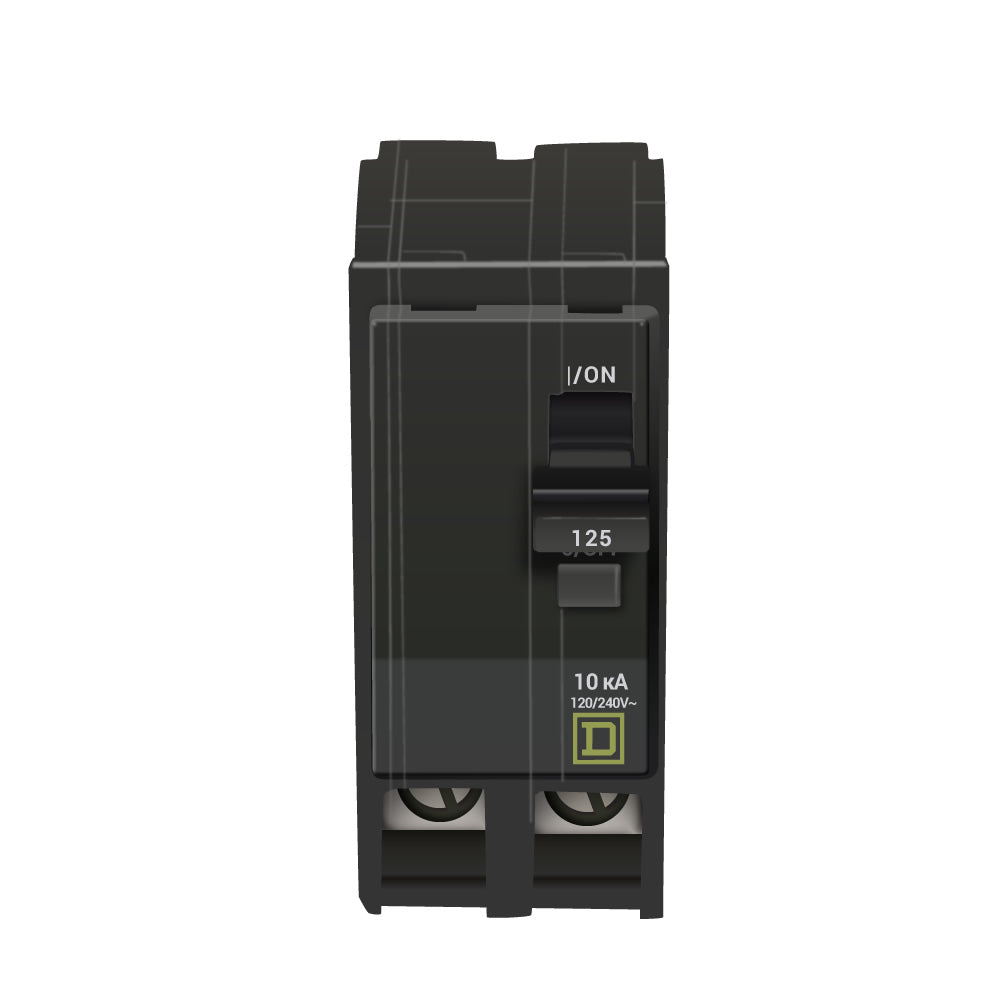

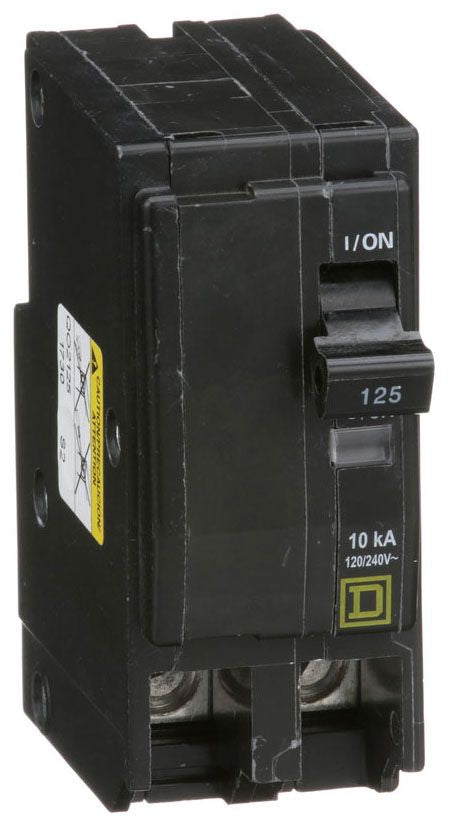

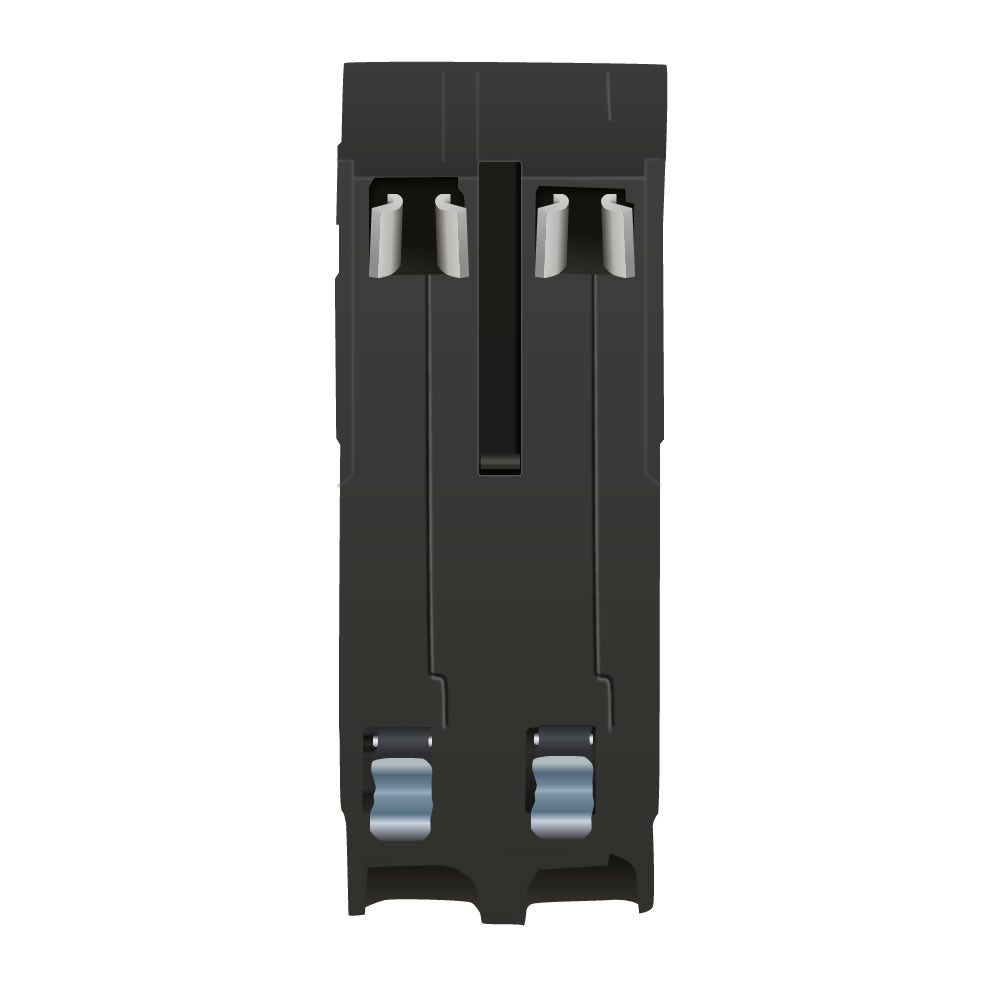

Square D QO2125 Circuit Breaker 120/240V 125A 2P 10kA@240V Plug-In QO Series
Square D QO2125 Circuit Breaker 120/240V 125A 2P 10kA@240V Plug-In QO Series
Price:
Sale
Sold out
Regular price
$97.30 USD
Regular price
$428.00 USD
Sale price
$97.30 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D QO2125 is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 125 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This model features thermal magnetic protection and a plug-in connection type. It is designed for use in QO load centers and NQ panelboards.
Key Features:
✔ Part Number: QO2125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 125
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ Wire Size: Min. 1/0 AWG, Max. 300 MCM
✔ Breaker Type: Standard
✔ Phase: 1
✔ UPC: 785901031093
✔ GTIN: 00785901031093
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 3 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
The Square D QO2125 is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 125 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This model features thermal magnetic protection and a plug-in connection type. It is designed for use in QO load centers and NQ panelboards.
Key Features:
✔ Part Number: QO2125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 125
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ Wire Size: Min. 1/0 AWG, Max. 300 MCM
✔ Breaker Type: Standard
✔ Phase: 1
✔ UPC: 785901031093
✔ GTIN: 00785901031093
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 3 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
- Accessories
- Related Products
| Part | Manufacturer | Sub Category |
|---|---|---|
| lk100an | Schneider Electric | Lug Terminal Kit |
