Product Description:

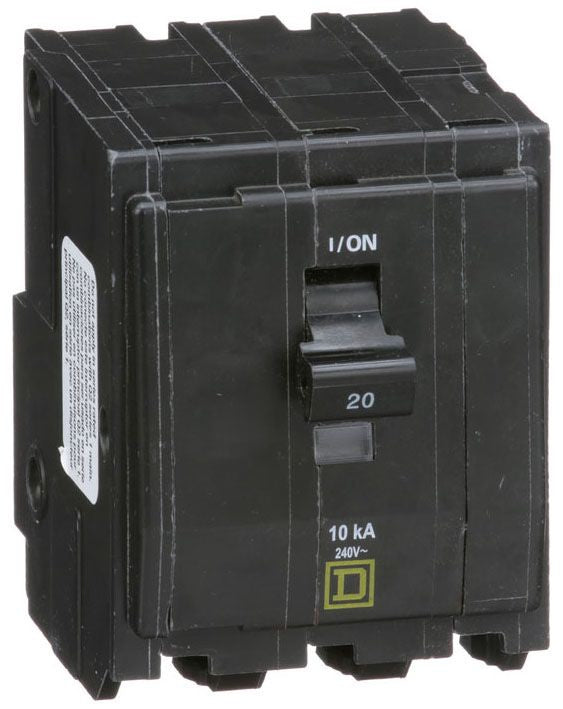

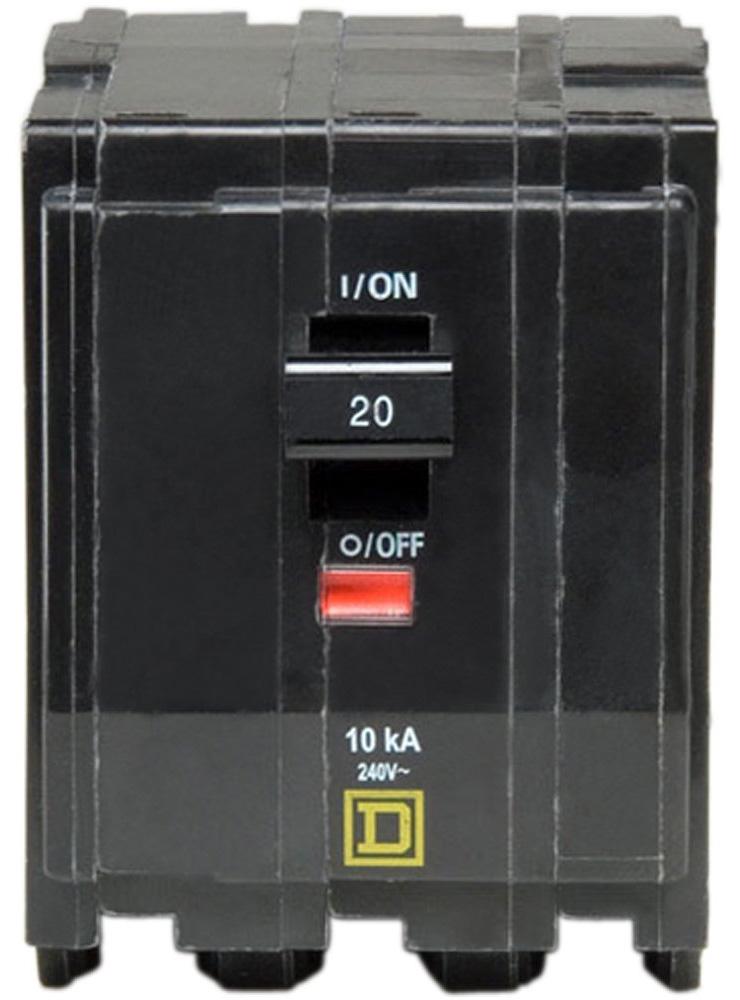

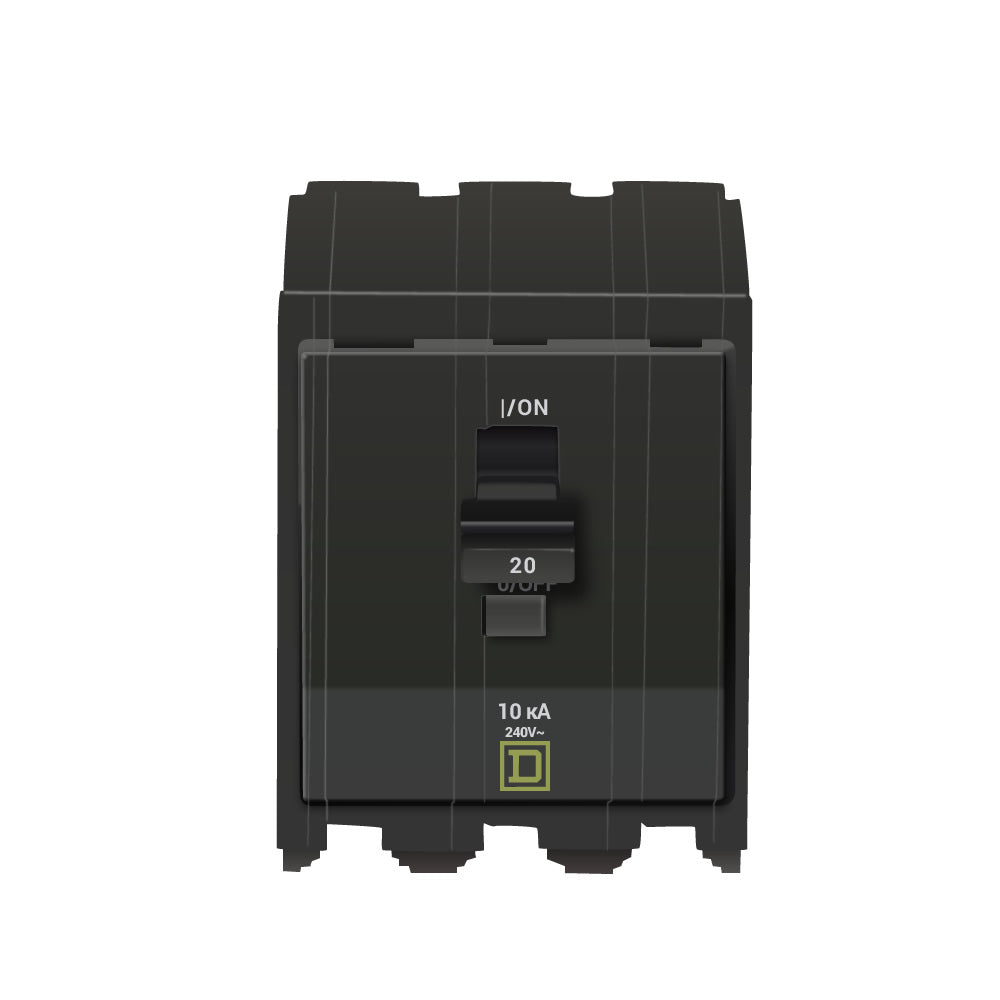

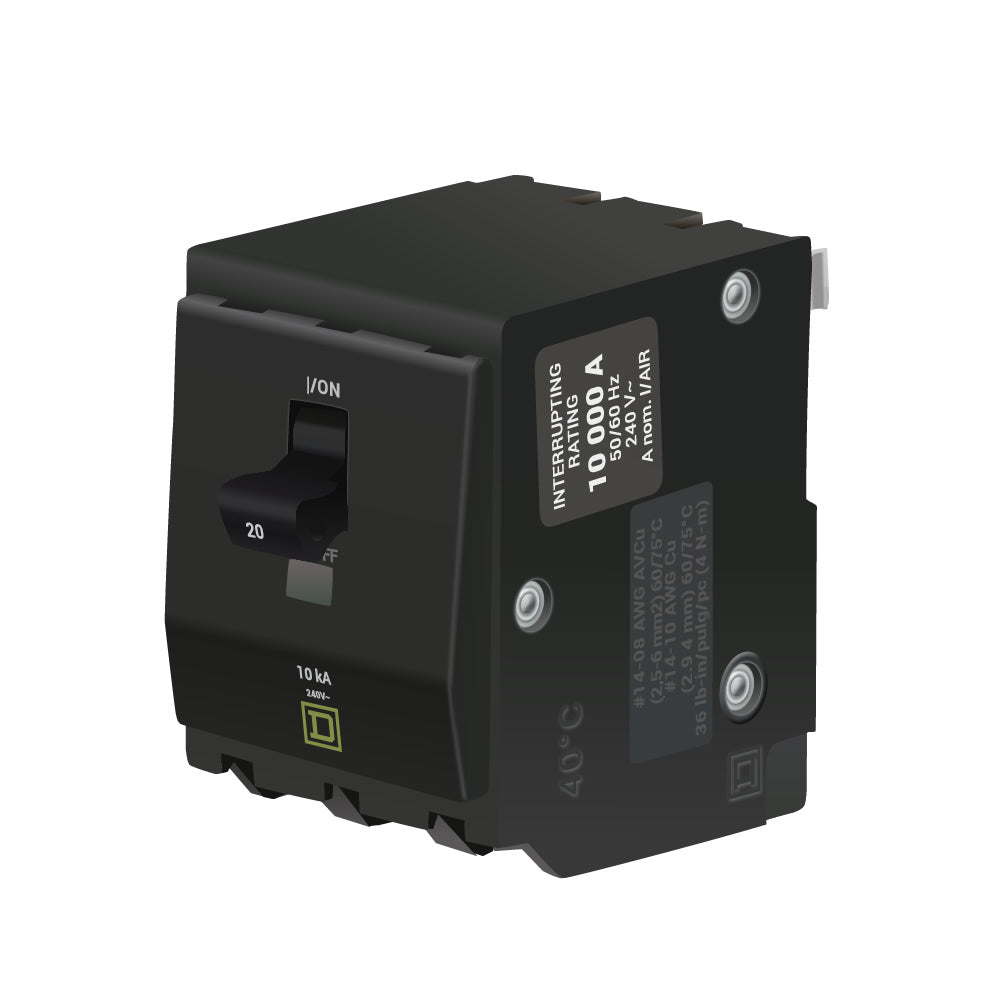

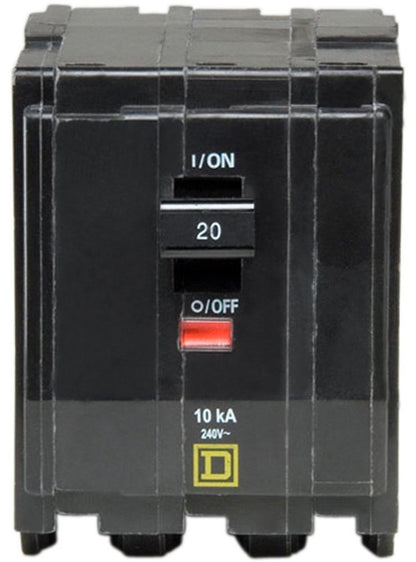

The Square D QO320 is a 3-pole molded case circuit breaker with a 240VAC voltage rating and 20 amp capacity. It features thermal magnetic protection and a plug-in connection for easy installation. This breaker is part of the QO Series family and is designed for use in QO load centers and NQ panelboards. It meets CSA, HACR, and UL standards for safety and performance.
Key Features:
✔ Part Number: QO320
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 240VAC
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3

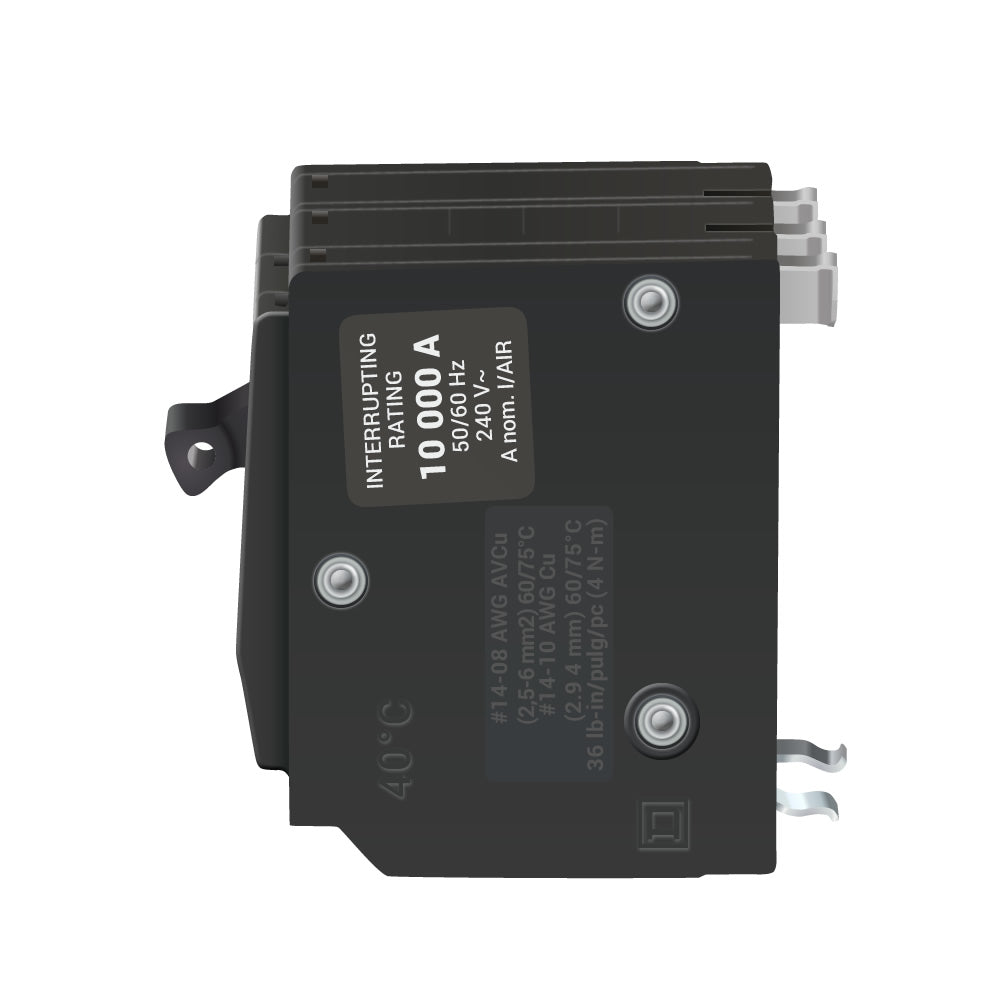

✔ AIC Rating: 10kA@240V

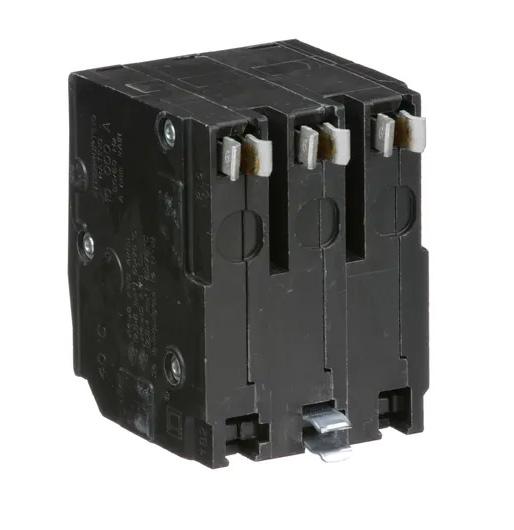

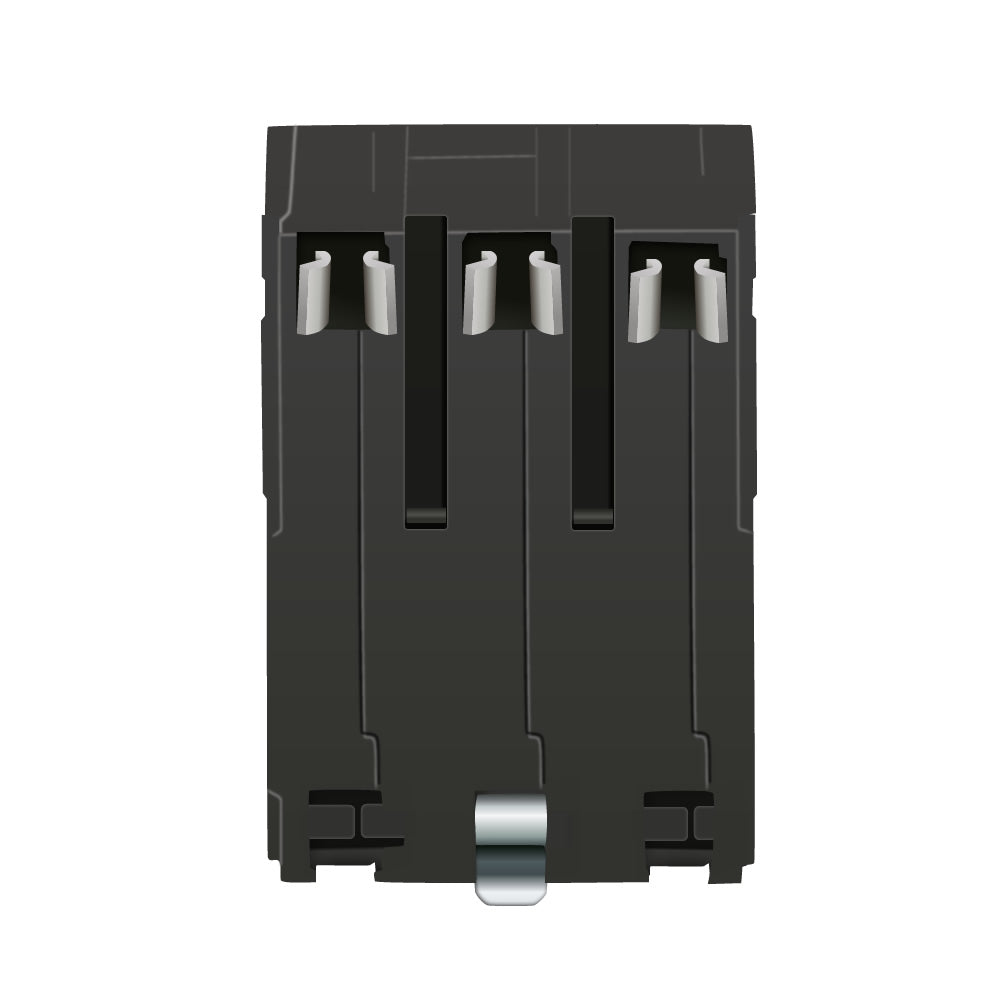

✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901400684
✔ GTIN: 00785901400684
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3 in x 2.99 in
✔ Weight: 0.8
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper) (2) 14 To 10 Awg (Copper)
