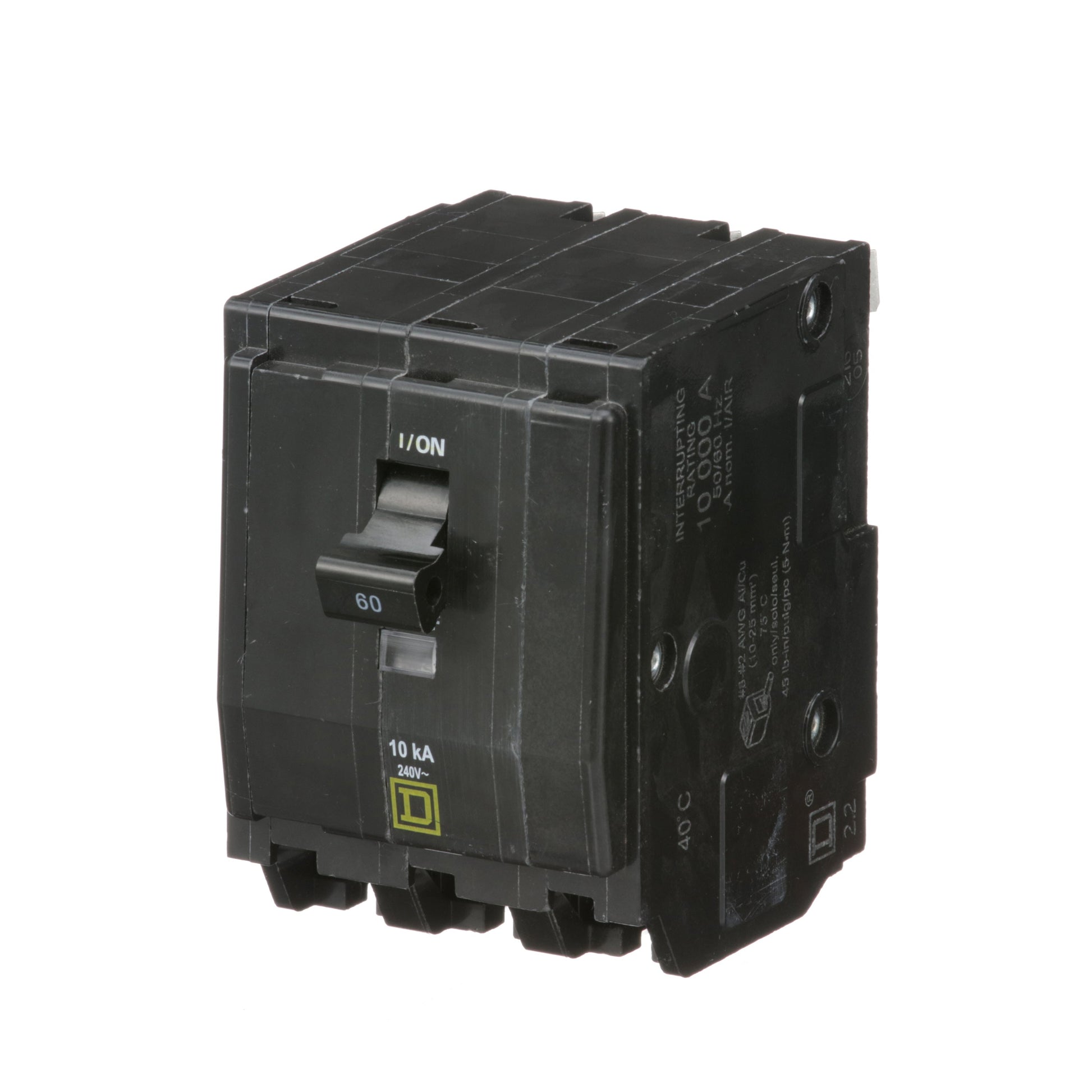

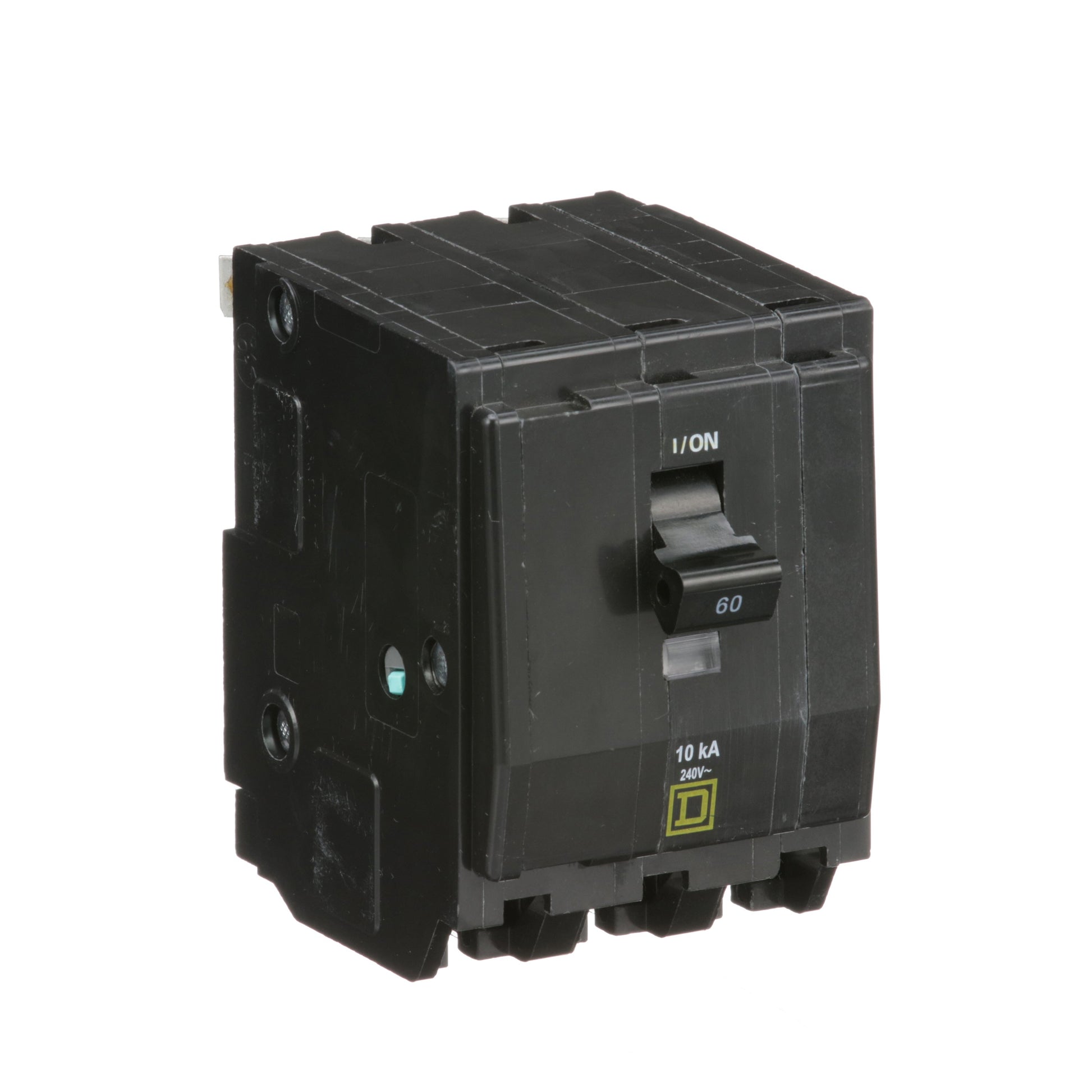

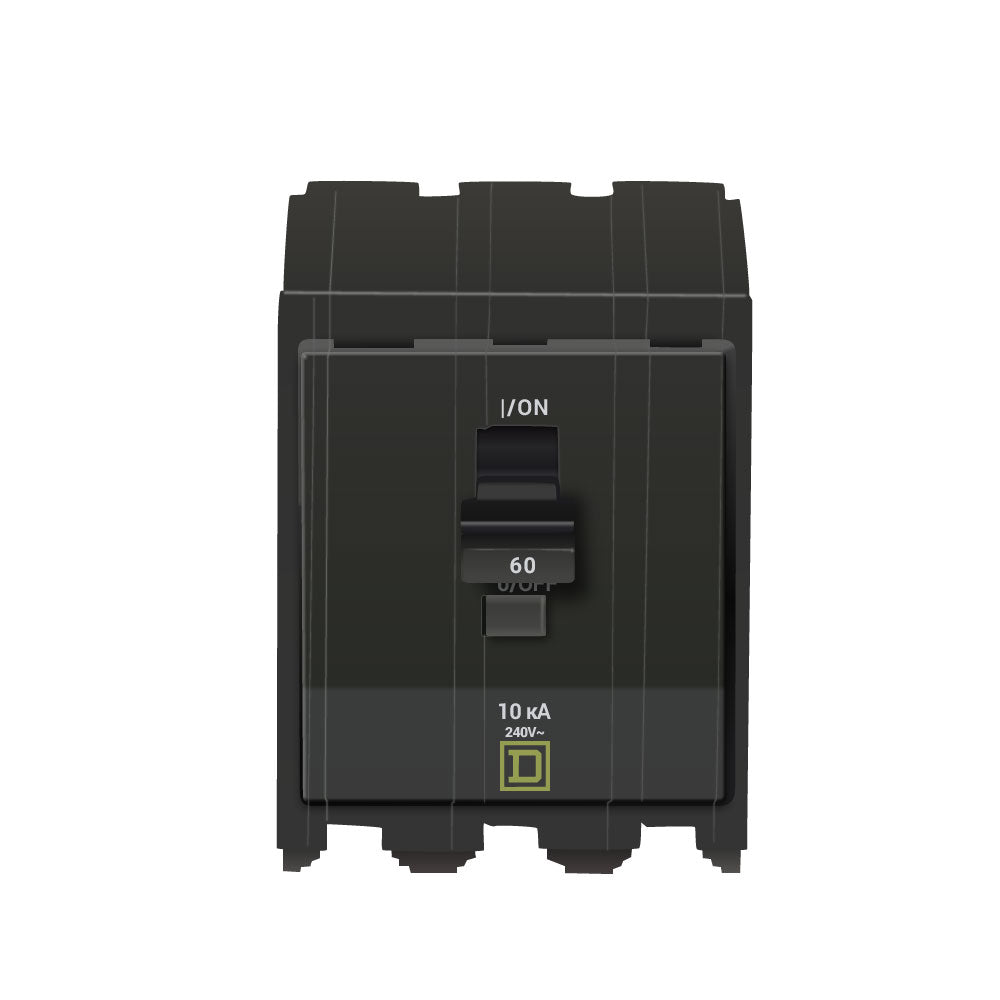

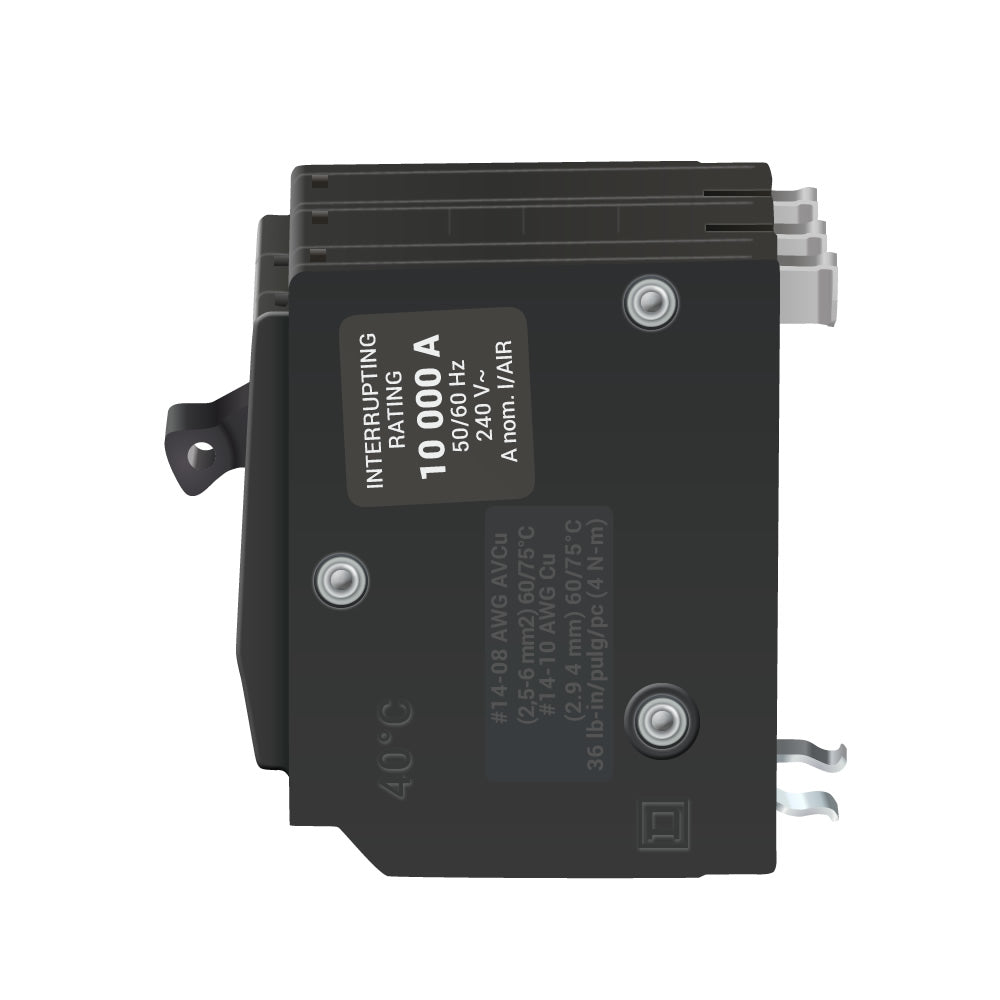

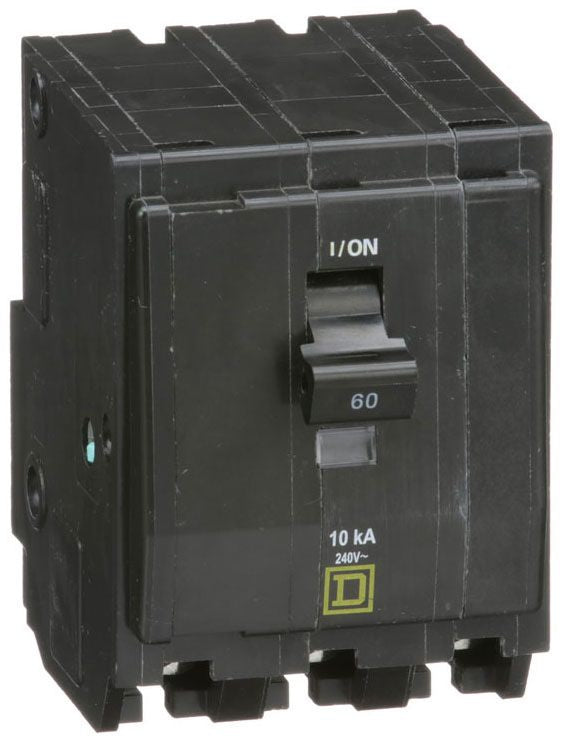

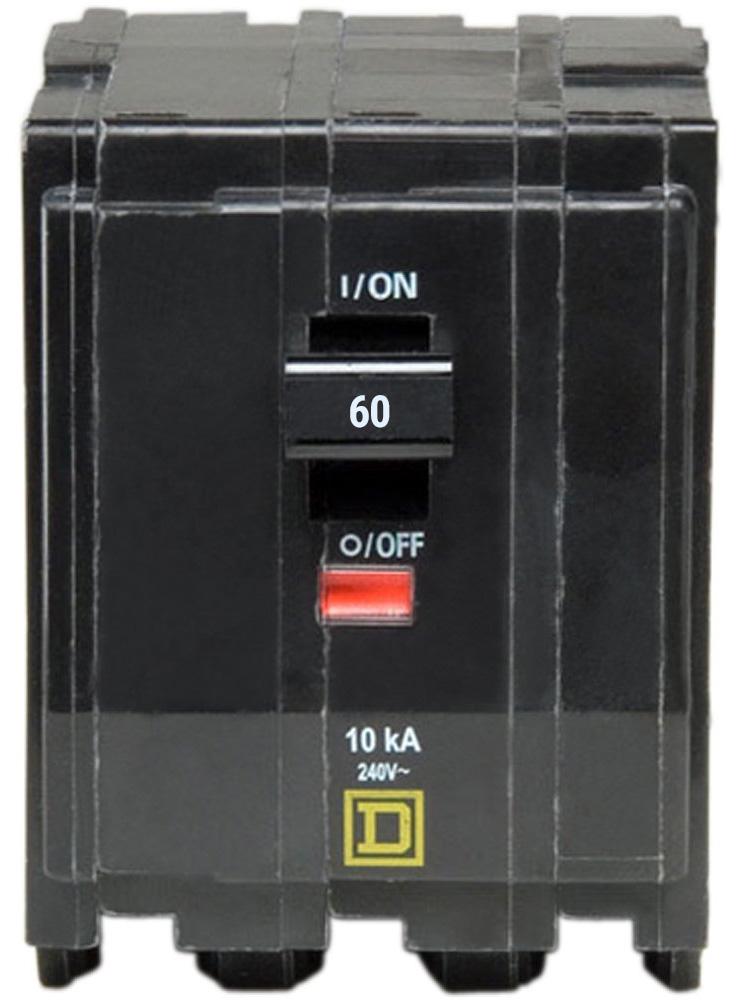

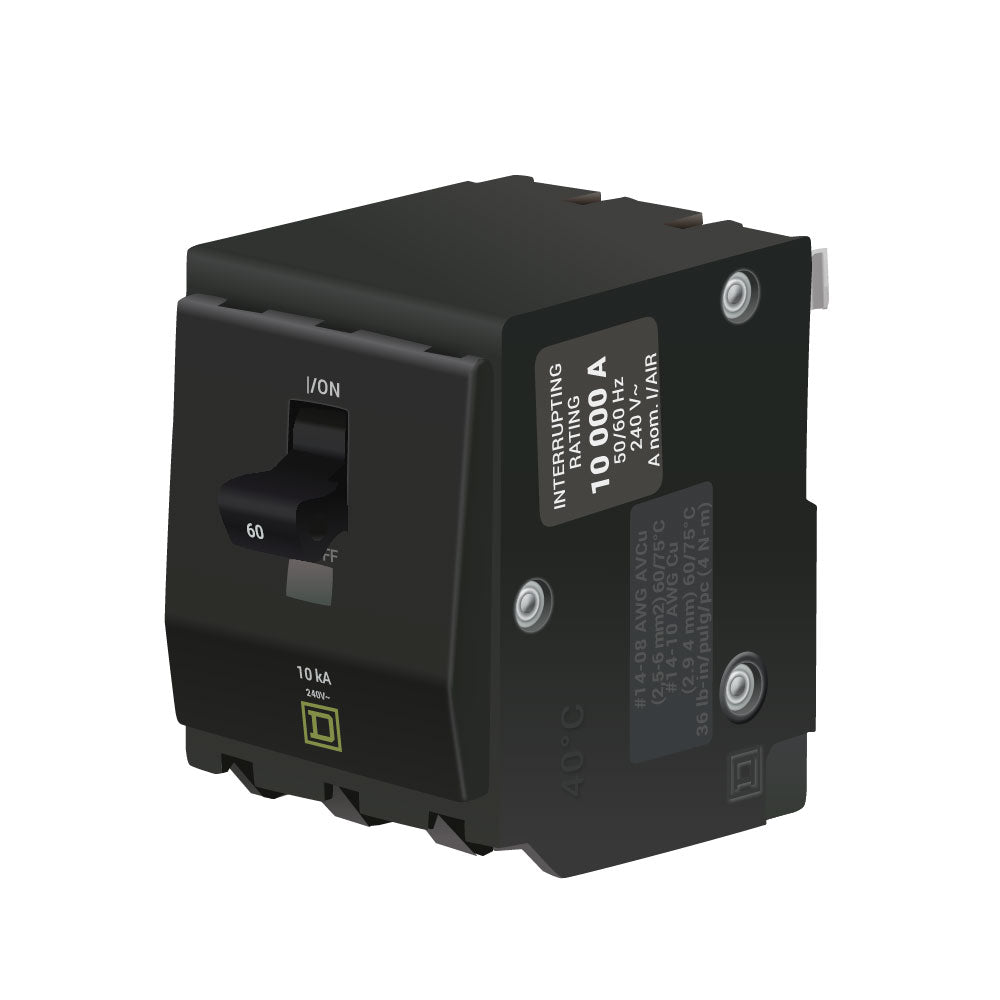

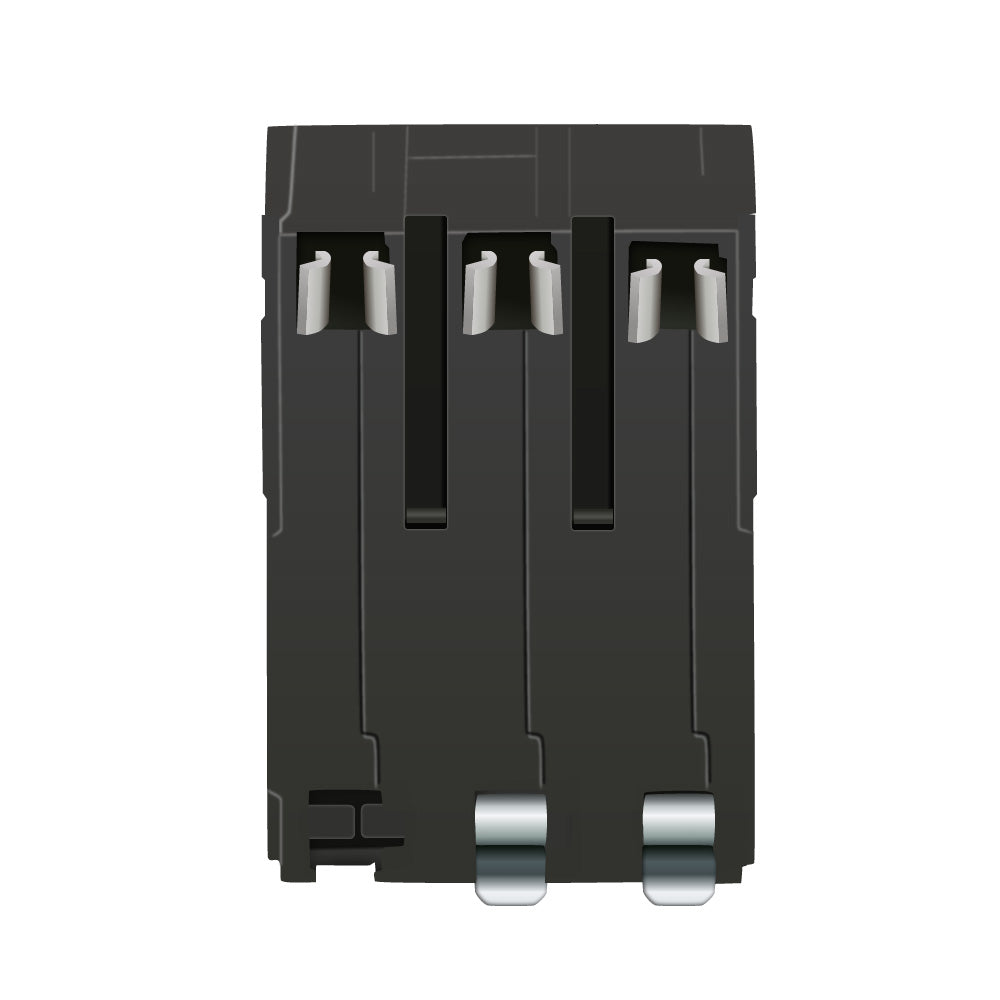

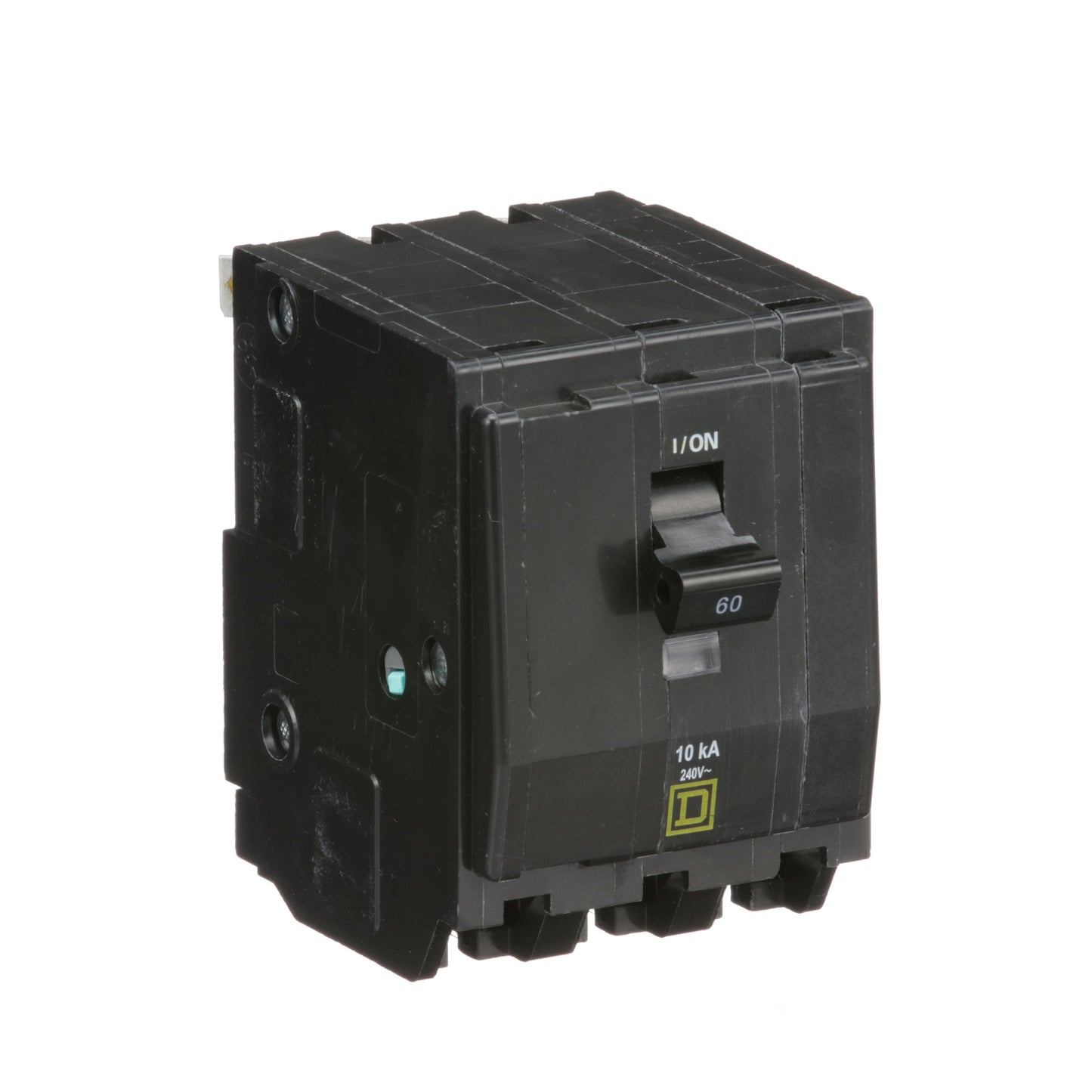

Square D QO360 Circuit Breaker | 240V 60A 3P 10kA@240V QO Series

Product Description:
The Square D QO360 is a Molded Case Circuit Breaker from the QO Series family. It is a 3-pole, 60 amp breaker rated for 240 volts with a 10kA interrupting capacity. This plug-in circuit breaker provides thermal magnetic protection and is designed for use in QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QO360
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901400844
✔ GTIN: 00785901400844
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3.12 in x 3.11 in
✔ Weight: 0.75
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
