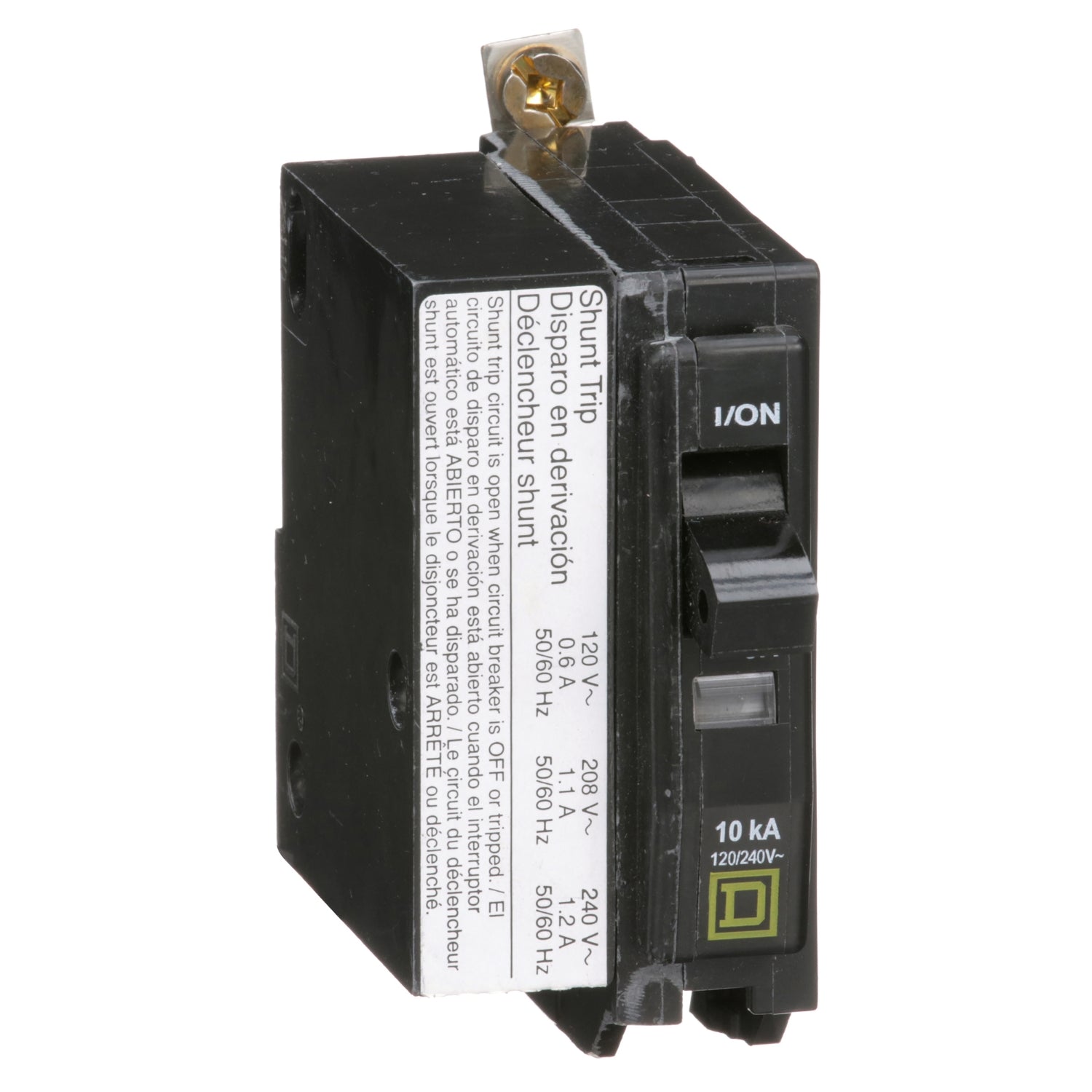

Square D QOB1151021 Circuit Breaker | 120/240V 15A 1P 10kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB1151021 is a Molded Case Circuit Breaker from the QOB Series family. It is a 1-pole, 15 amp breaker rated for 120/240 Volt applications with an AIC rating of 10kA@120V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation and is designed for use in compatible Square D panelboards.

Key Features:
✔ Part Number: QOB1151021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901494188
✔ GTIN: 00785901494188
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3 in x 2.99 in
✔ Weight: 0.66
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
