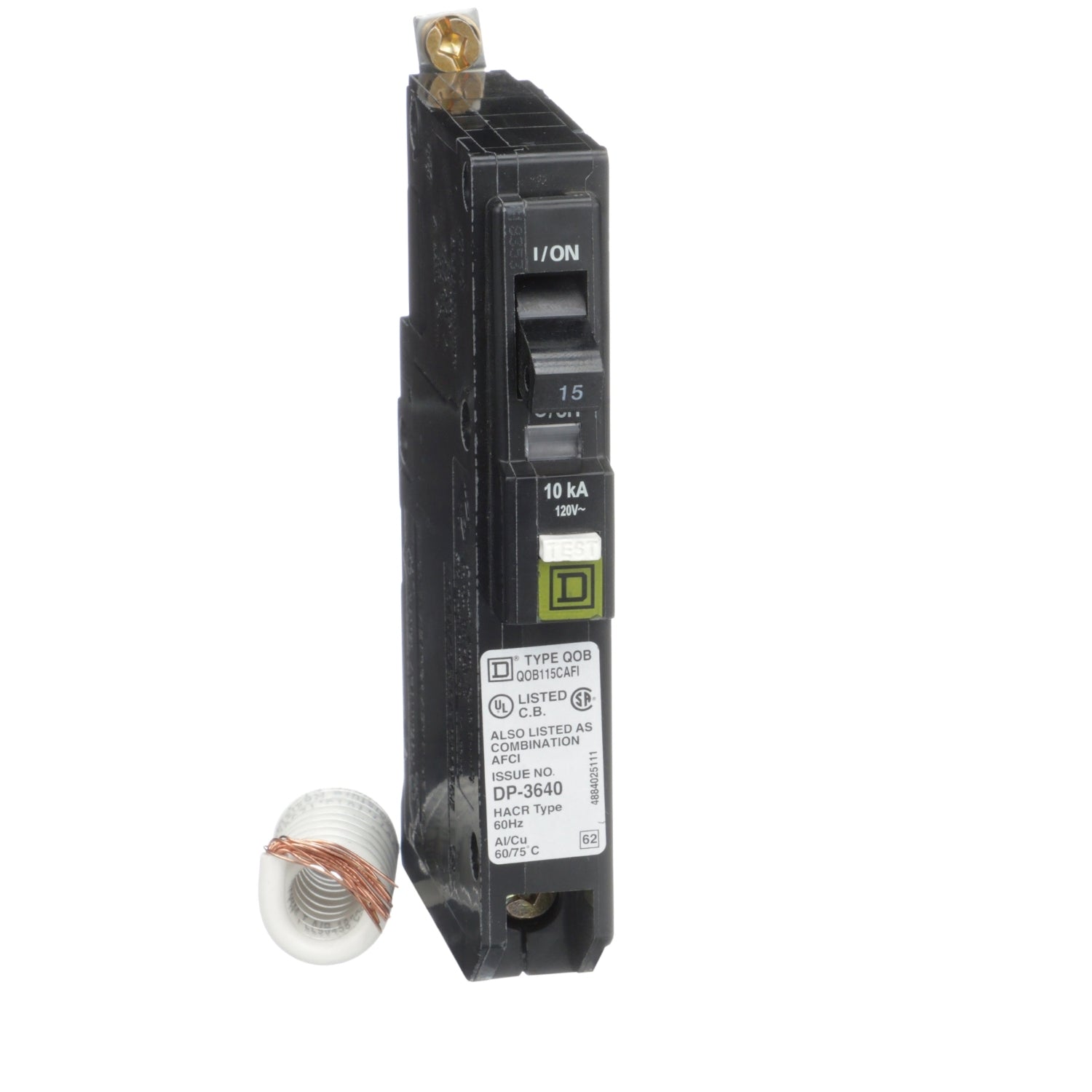

Square D QOB115CAFI Circuit Breaker | 120V 15A 1P 10kA@120V Bolt-On Arc Fault Interrupter QOB Series

Product Description:
The Square D QOB115CAFI is a Molded Case Circuit Breaker from the QOB Series. It is a 1 pole, 120 Volt, 15 amp rated breaker with a 10kA@120V AIC rating and uses a Bolt-On connection. This model includes Thermal Magnetic protection and is designed for use in QO Load Centers and NQ Panelboards. It meets CSA and UL Listed standards for safety and performance.

Key Features:
✔ Part Number: QOB115CAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901478782
✔ GTIN: 00785901478782
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.75 in x 4.76 in
✔ Weight: 0.55
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
