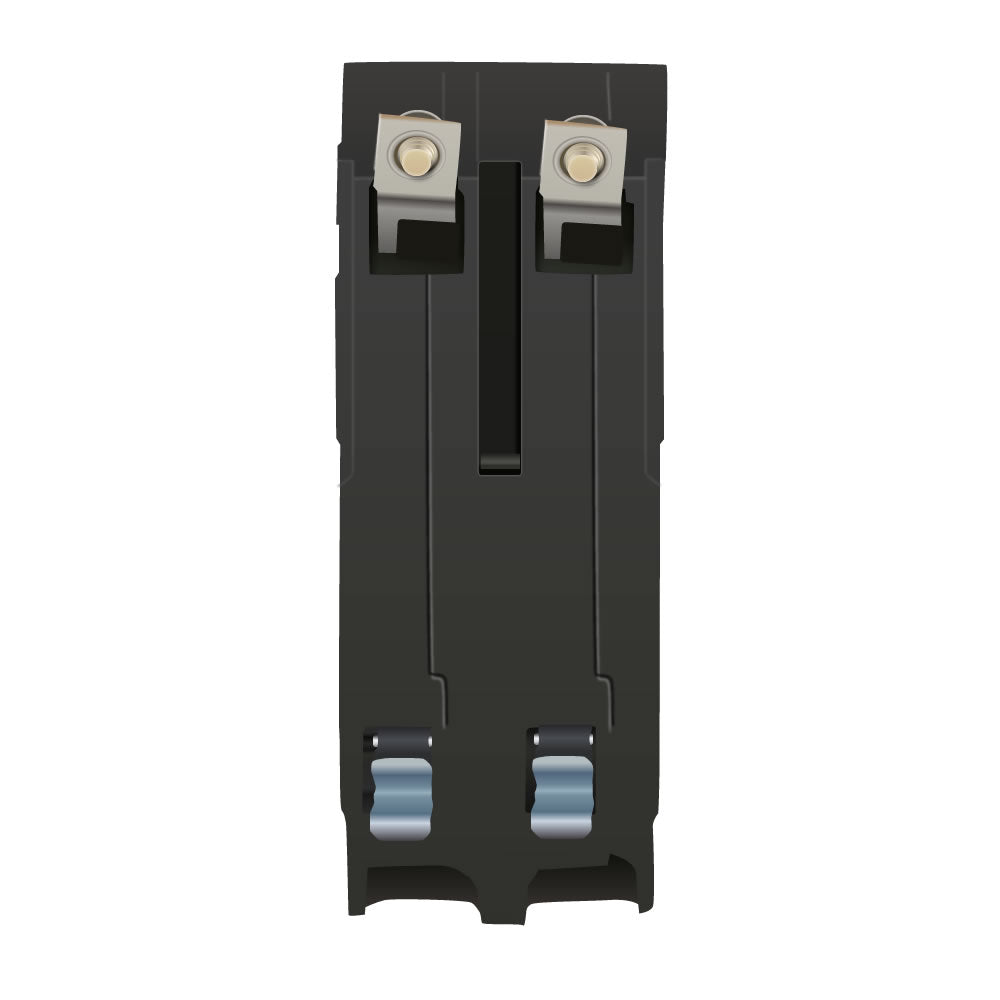

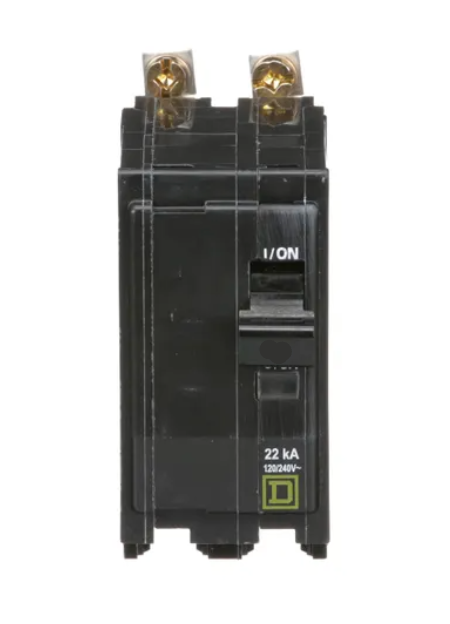

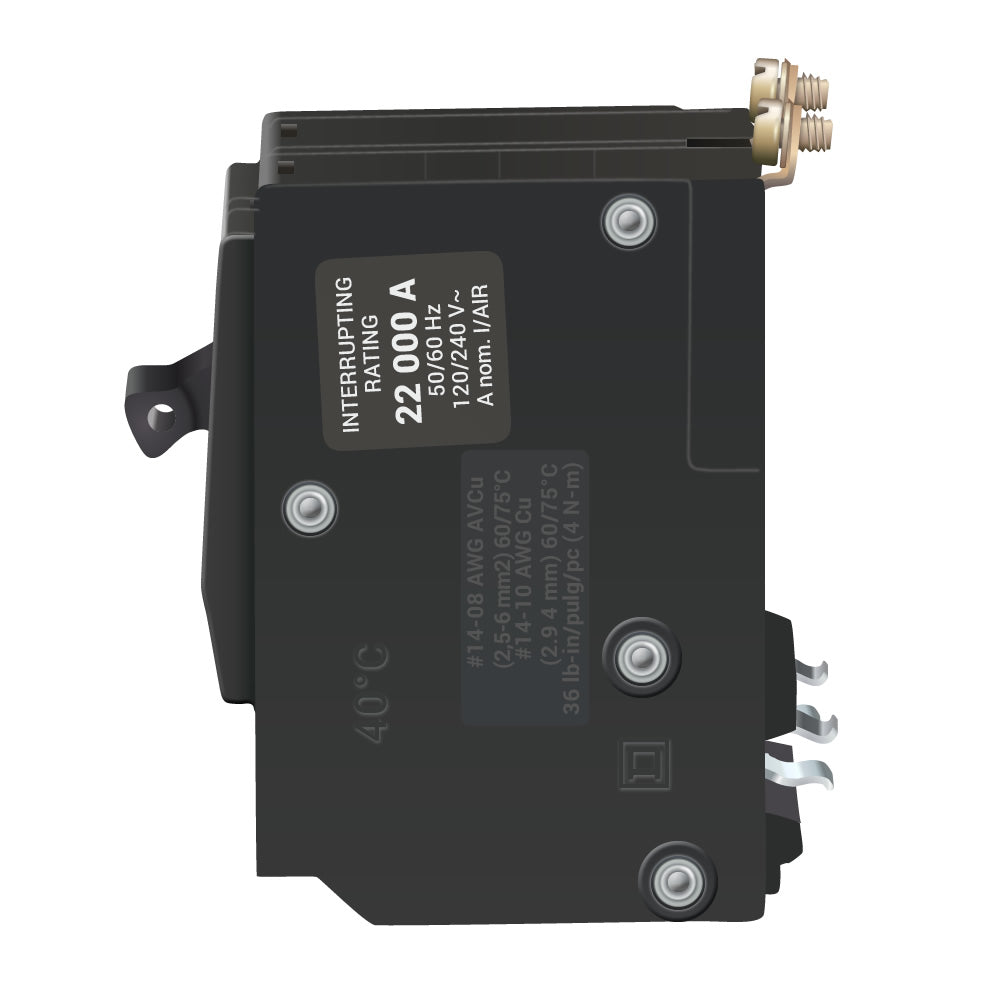

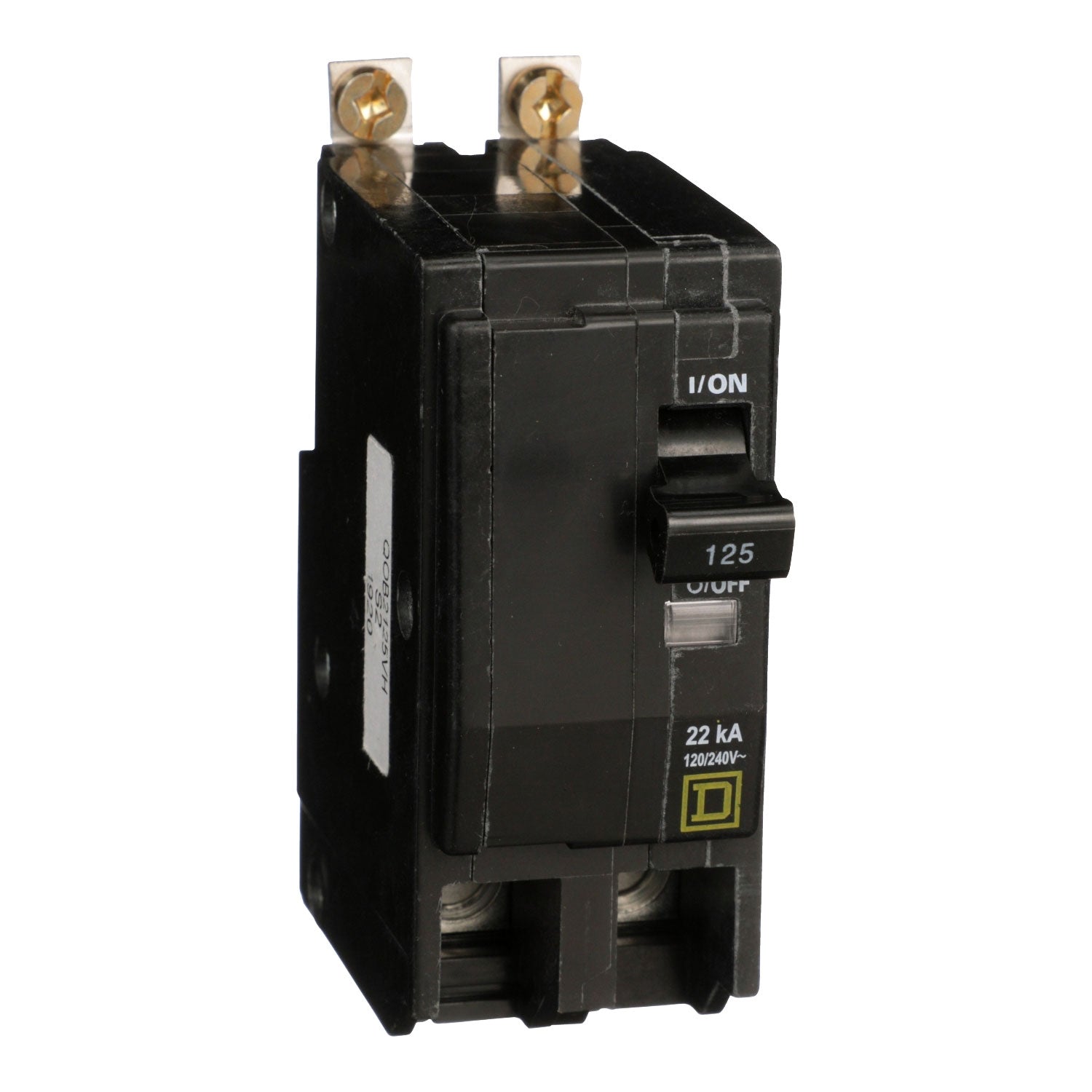

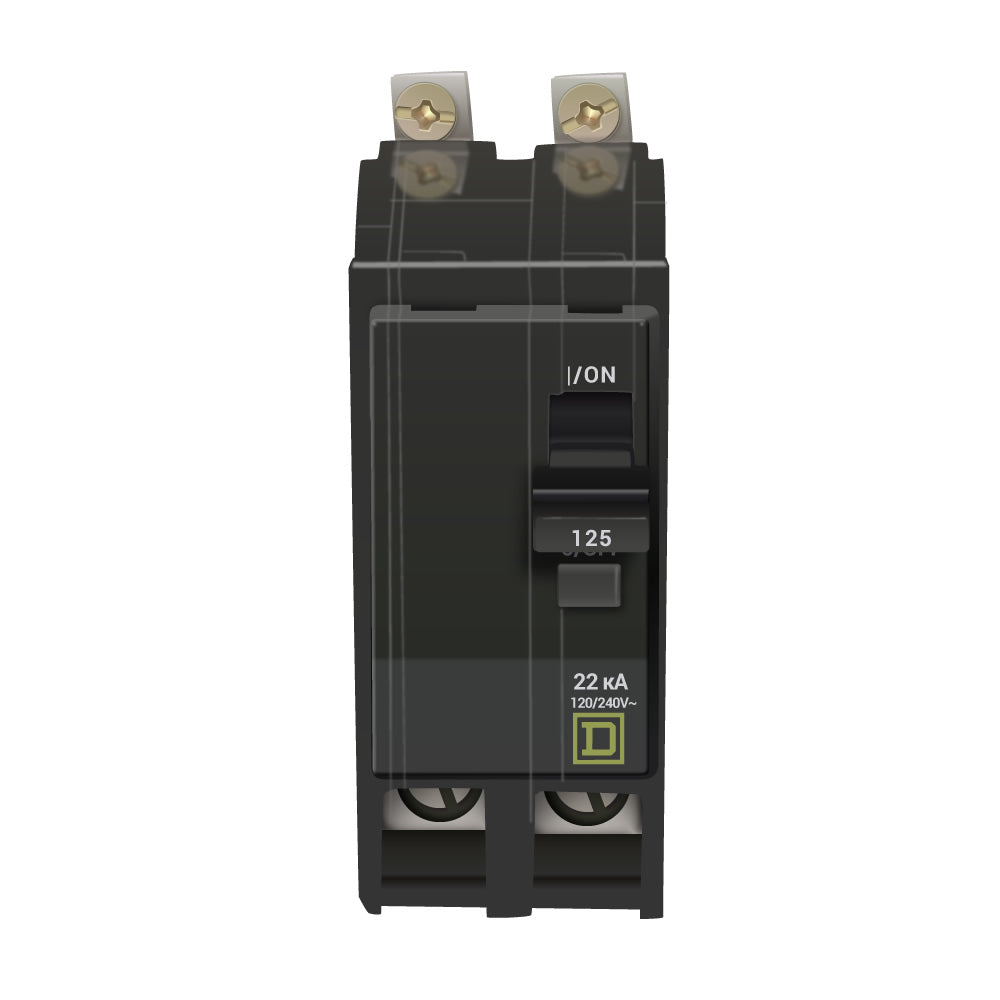

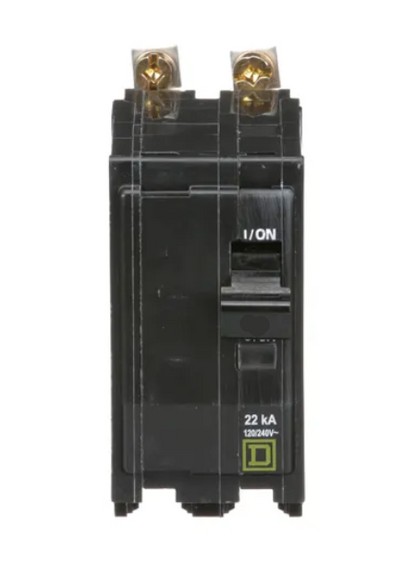

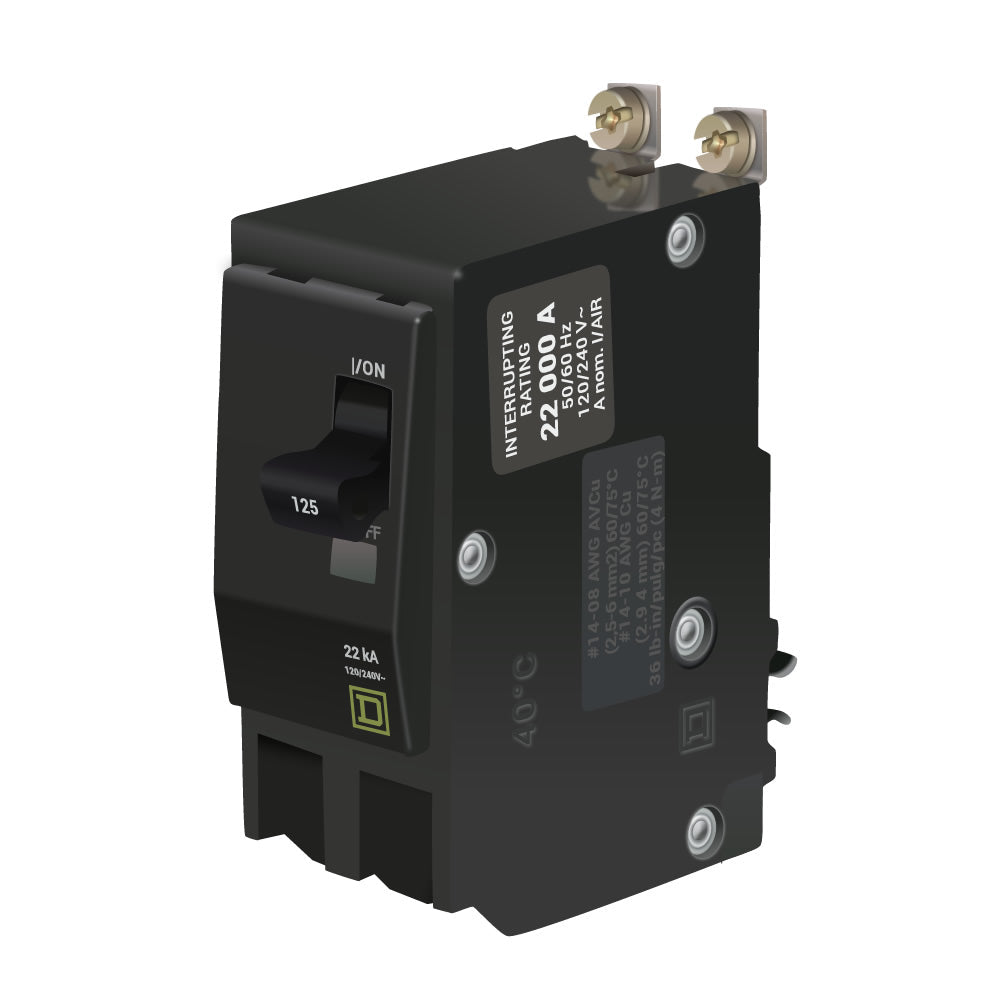

Square D QOB2125VH Circuit Breaker | 240V 125A 2P 22kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB2125VH is a 2-pole molded case circuit breaker designed for 240V applications. It provides reliable thermal magnetic protection with a 125A current rating and a 22kA interrupting capacity. This bolt-on breaker is part of the QOB Series and is suitable for use in Square D NQOD panelboards.

Key Features:
✔ Part Number: QOB2125VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 125
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901120650
✔ GTIN: 00785901120650
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
