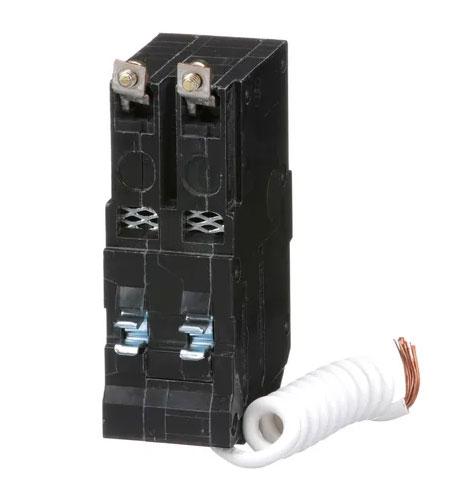

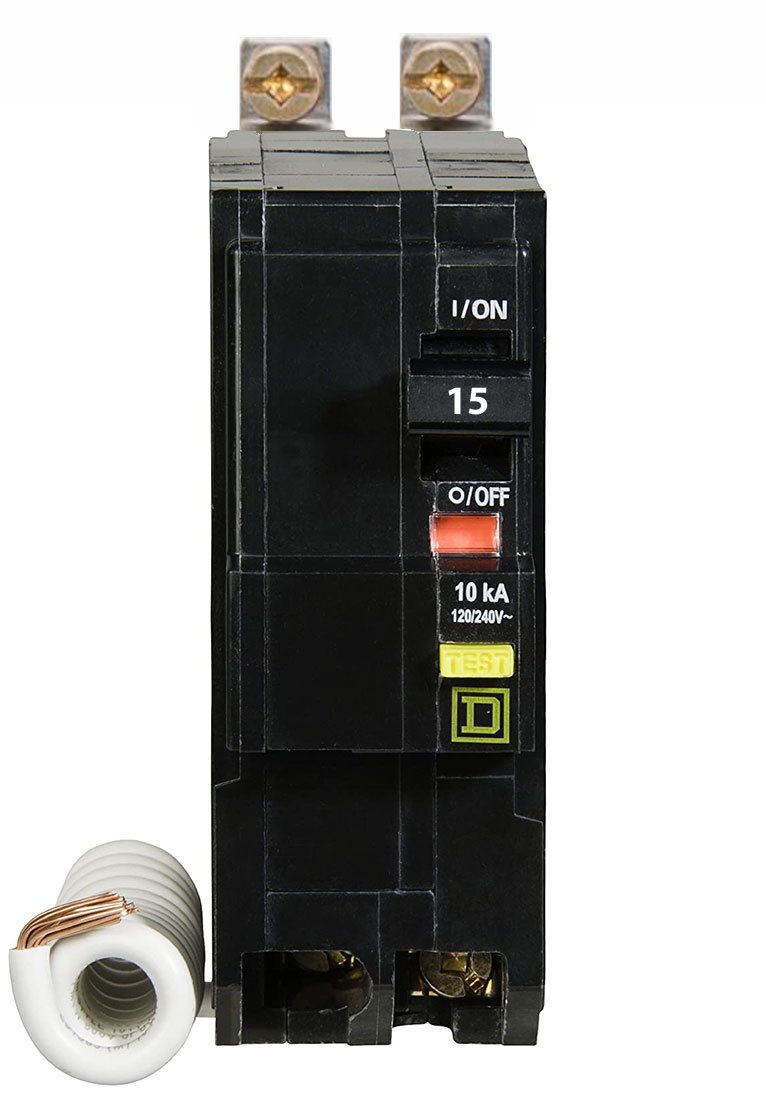

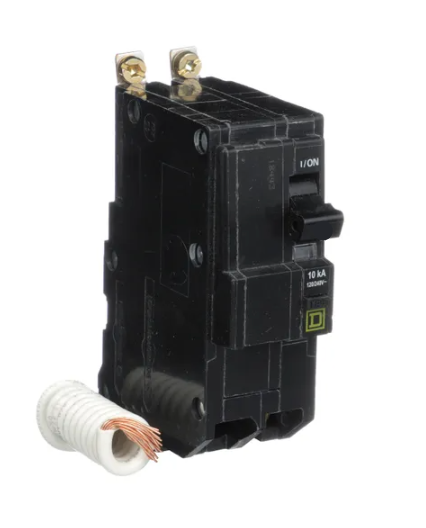

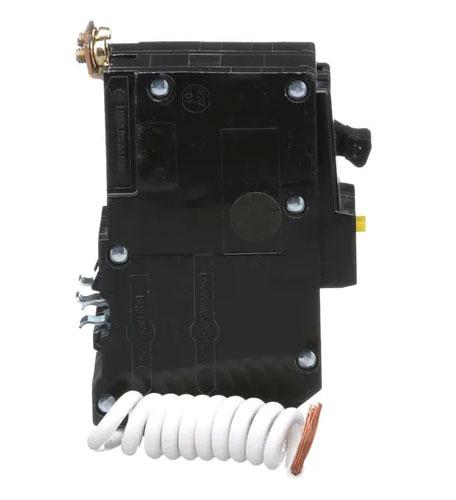

Square D QOB215EPD Circuit Breaker 120/240V 15A 2P 10kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB215EPD is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 15 amp breaker rated for 120/240 volts with a 10kA interrupting capacity. This thermal magnetic circuit breaker features a bolt-on connection and is suitable for use in QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QOB215EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ UPC: 785901120766
✔ GTIN: 00785901120766
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.12 in x 4.13 in
✔ Weight: 0.94
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
