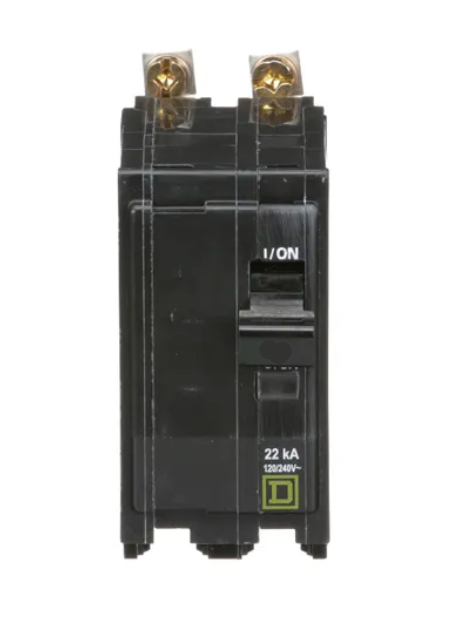

Square D QOB215VH Circuit Breaker | 120/240V 15A 2P 22kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB215VH is a 2-pole molded case circuit breaker designed for 120/240V electrical systems. It features a 15-amp rating and a high 22kA interrupting capacity at 240V for reliable protection. This thermal magnetic breaker uses a bolt-on connection for secure installation in compatible panels.

Key Features:
✔ Part Number: QOB215VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 15
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Protection: Thermal Magnetic
✔ Frame Size: 100A/QO
✔ Wire Size: Min. 14 AWG Max. 8 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Terminal Connection: Pressure Plate
✔ UPC: 785901371915
✔ GTIN: 00785901371915
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3 in x 2.99 in
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
