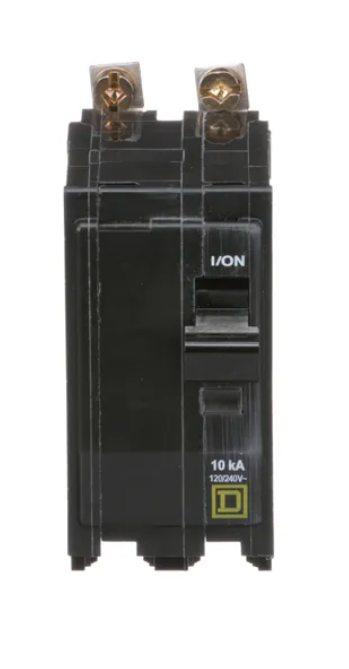

Square D QOB220H Circuit Breaker | 240V 20A 10kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB220H is a Molded Case Circuit Breaker from the QOB Series. It is rated for 240 Volts and 20 amps, with an AIC rating of 10kA@240V. This circuit breaker features a bolt-on connection and provides thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: QOB220H
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 1
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901368274
✔ GTIN: 00785901368274
✔ Country of Origin: Mexico
✔ Dimensions: 38 mm x 2.99 in
✔ Weight: 0.55
✔ Standards: UL Listed, CSA
✔ Certification: UL Listed, CSA
