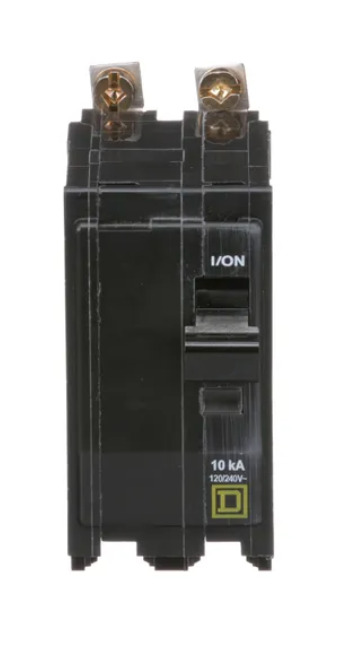

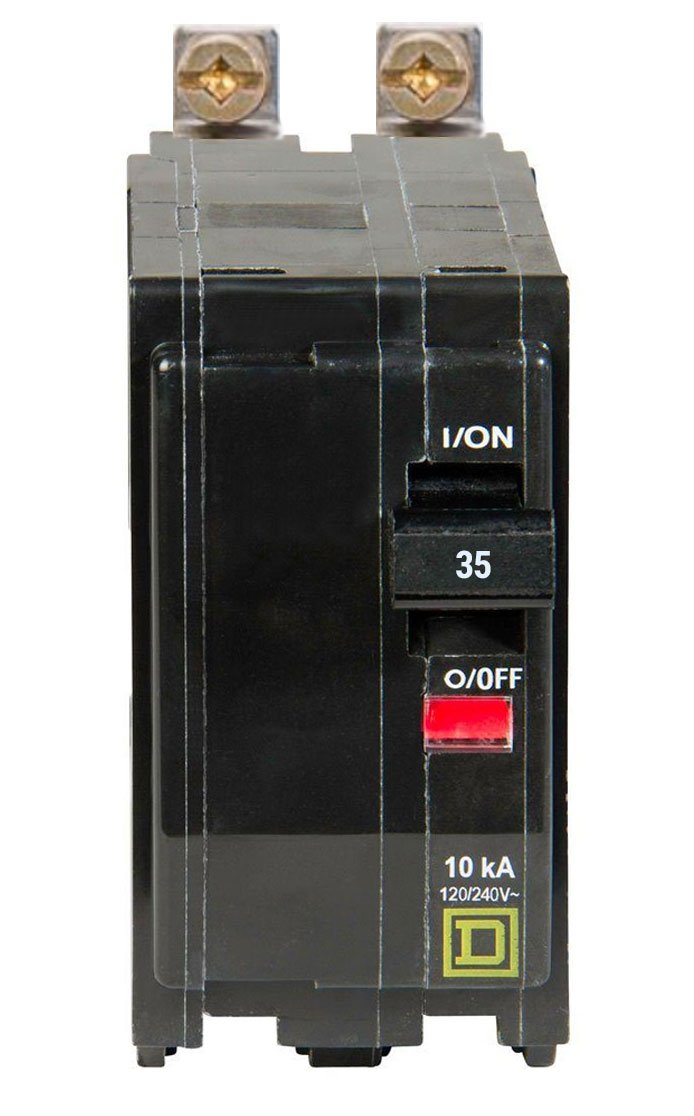

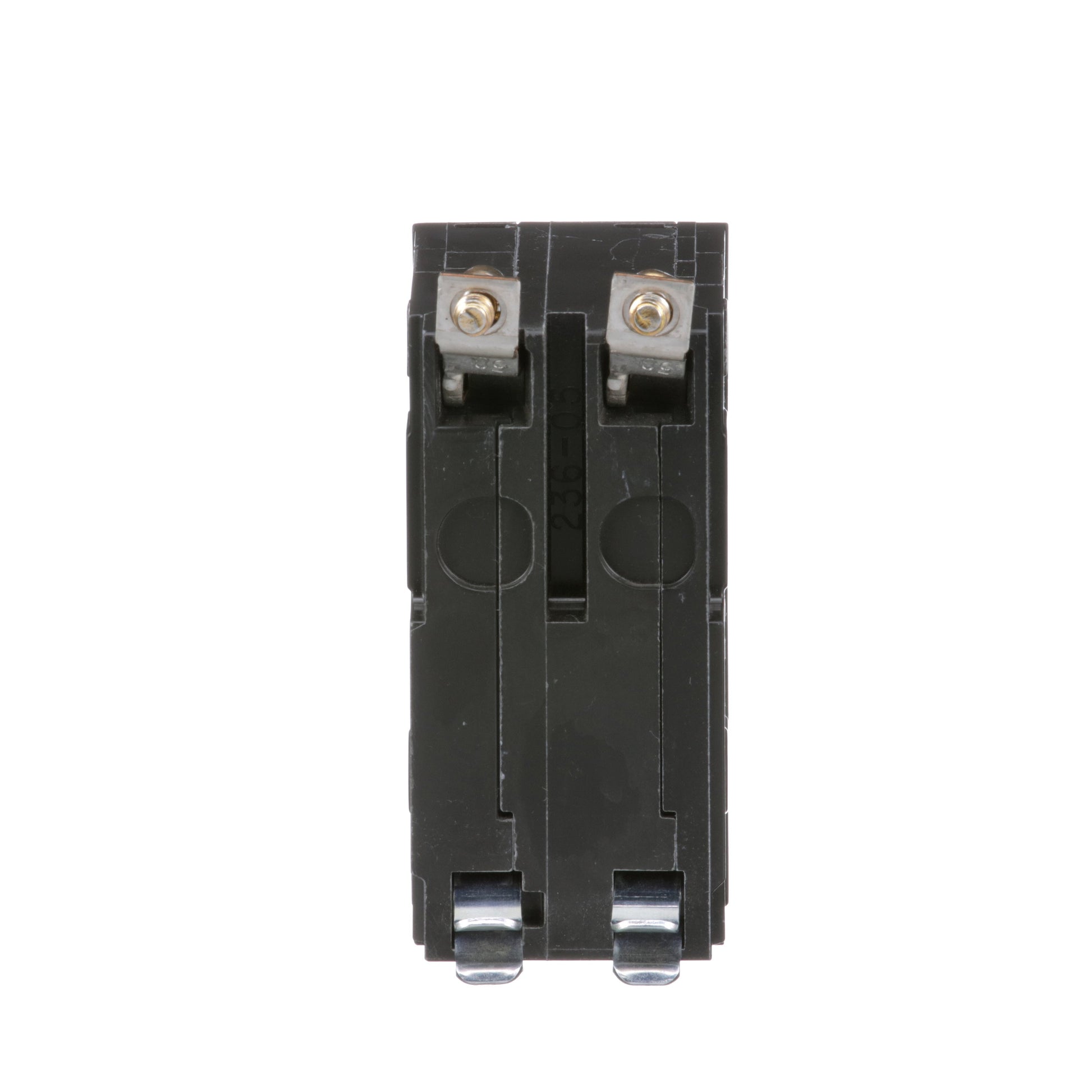

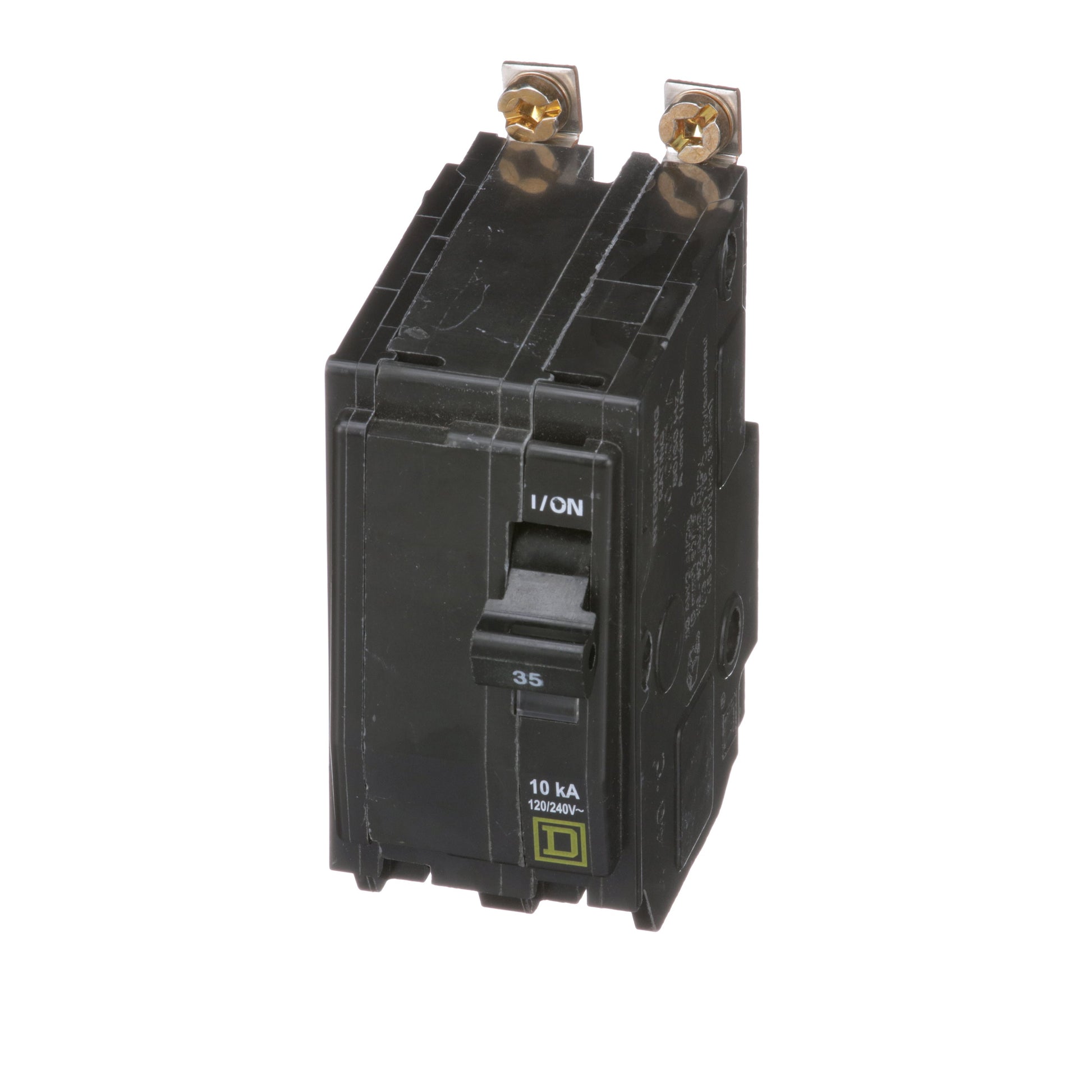

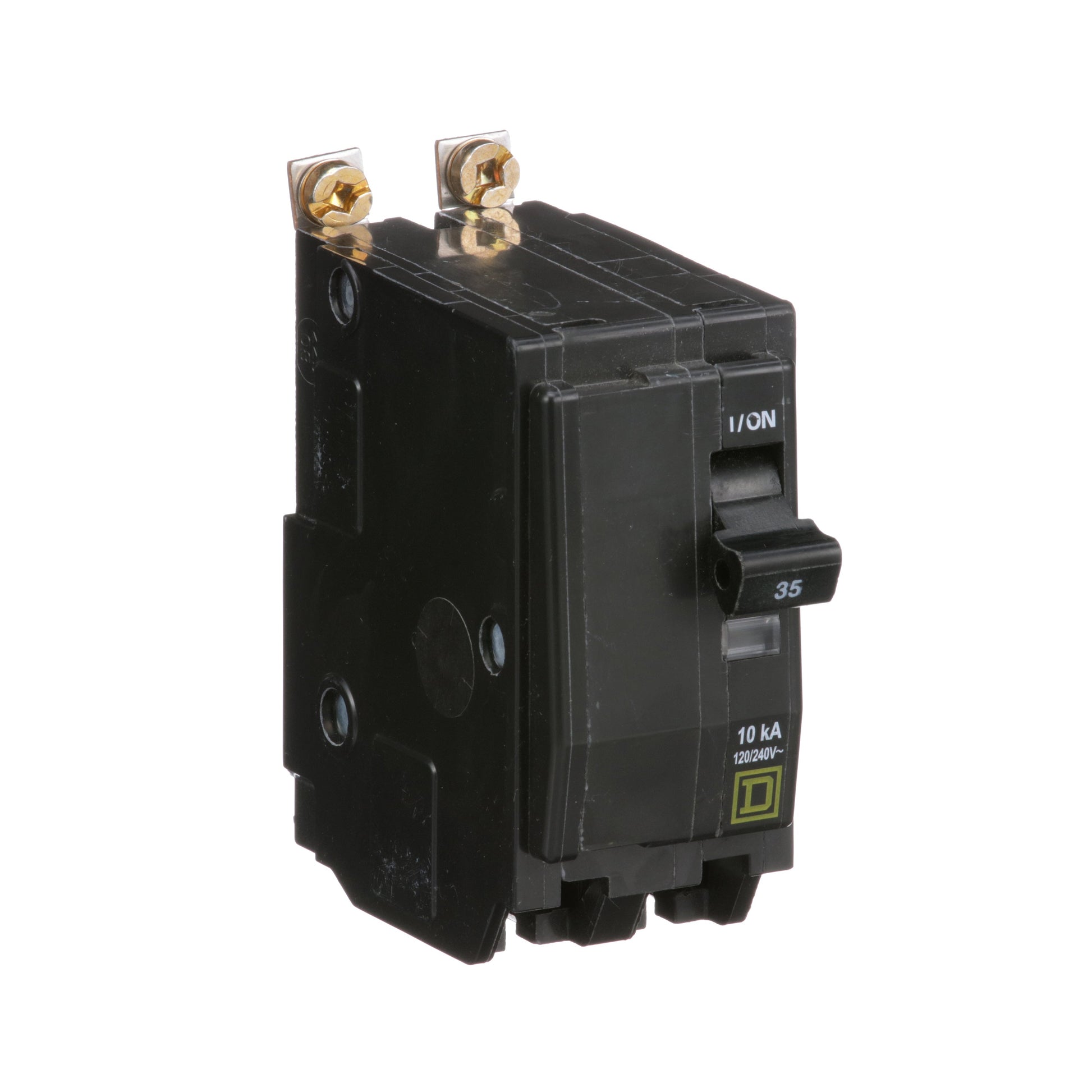

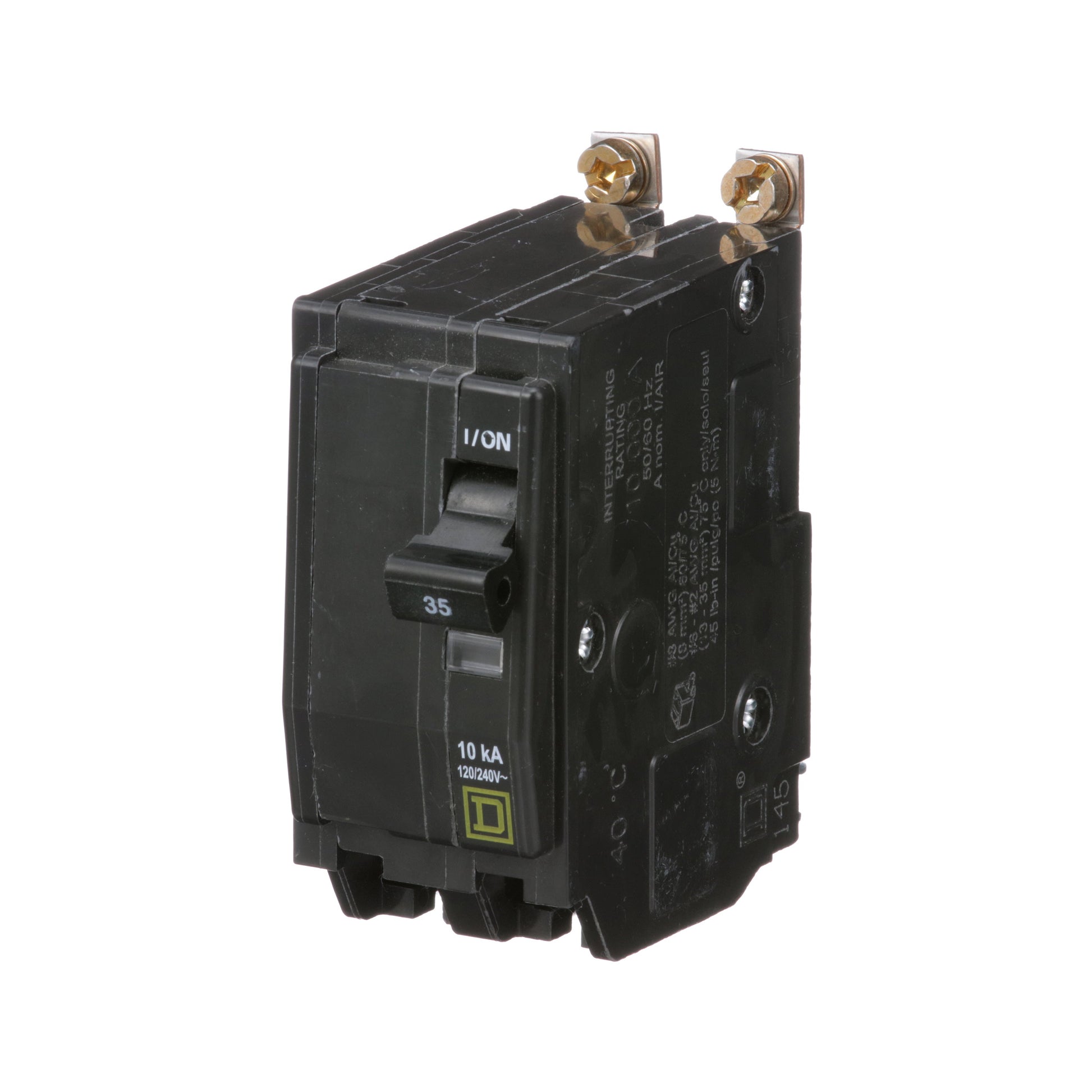

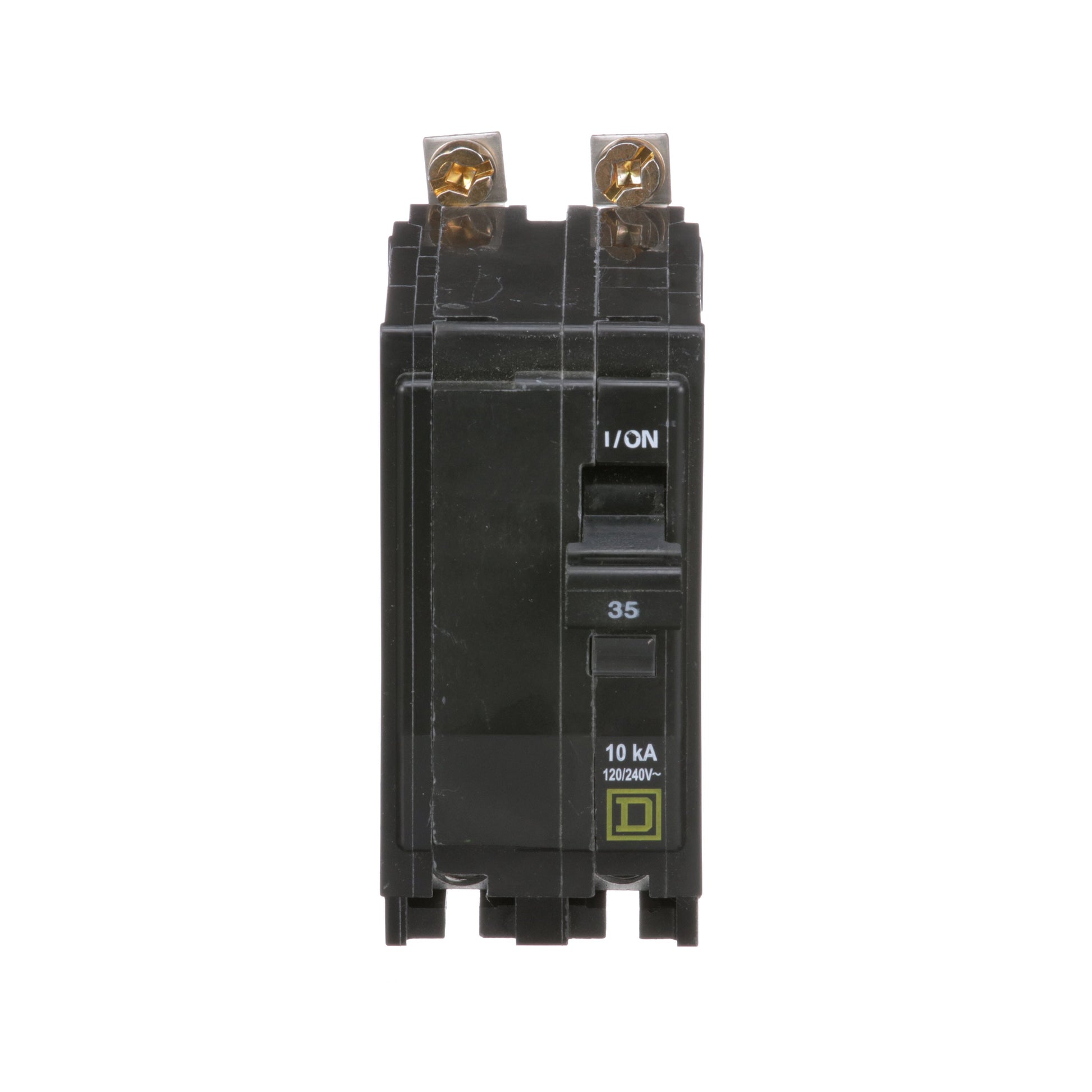

Square D QOB235 Circuit Breaker | 120/240V 35A 2P 10kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB235 is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 35 amp breaker rated for 120/240V systems with a 10kA interrupting capacity. This thermal magnetic breaker features a bolt-on connection for secure installation. It is compatible with Square D NQOD panelboards and meets UL and CSA standards.

Key Features:
✔ Part Number: QOB235
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 35
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901368298
✔ GTIN: 00785901368298
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
